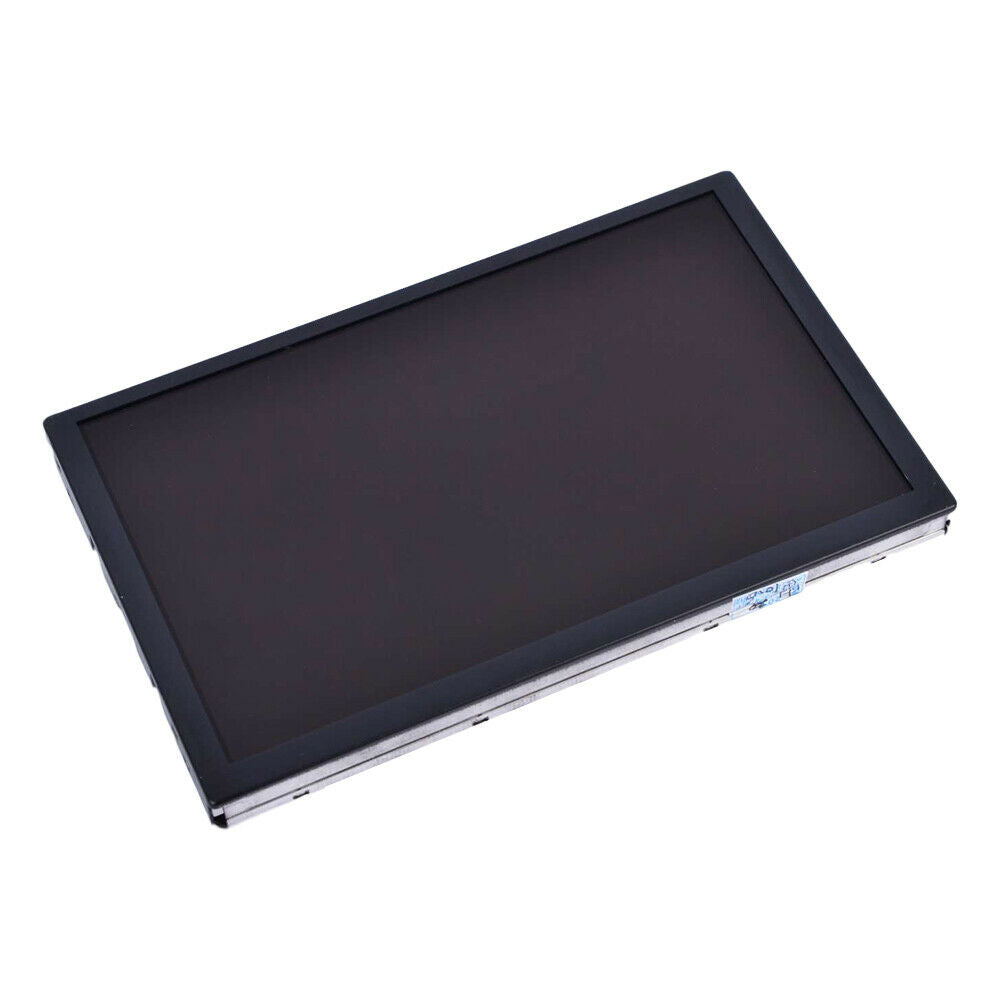

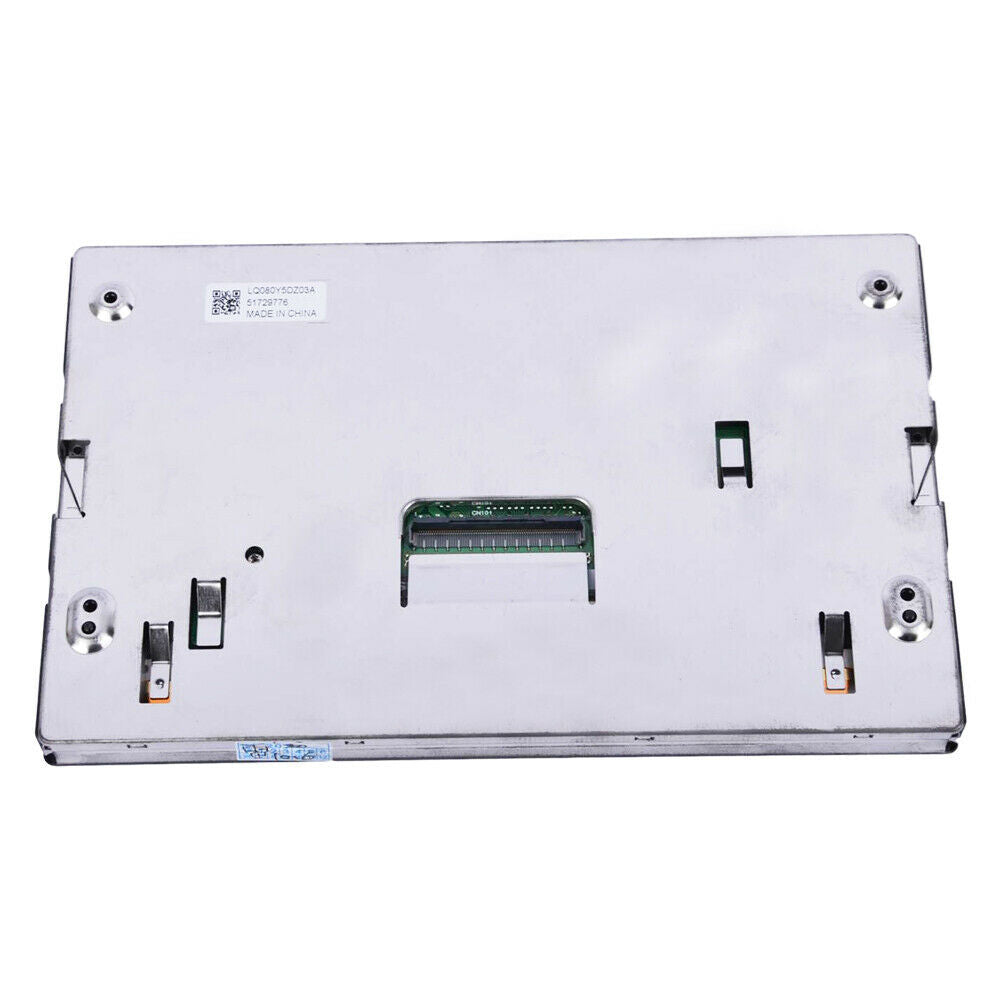

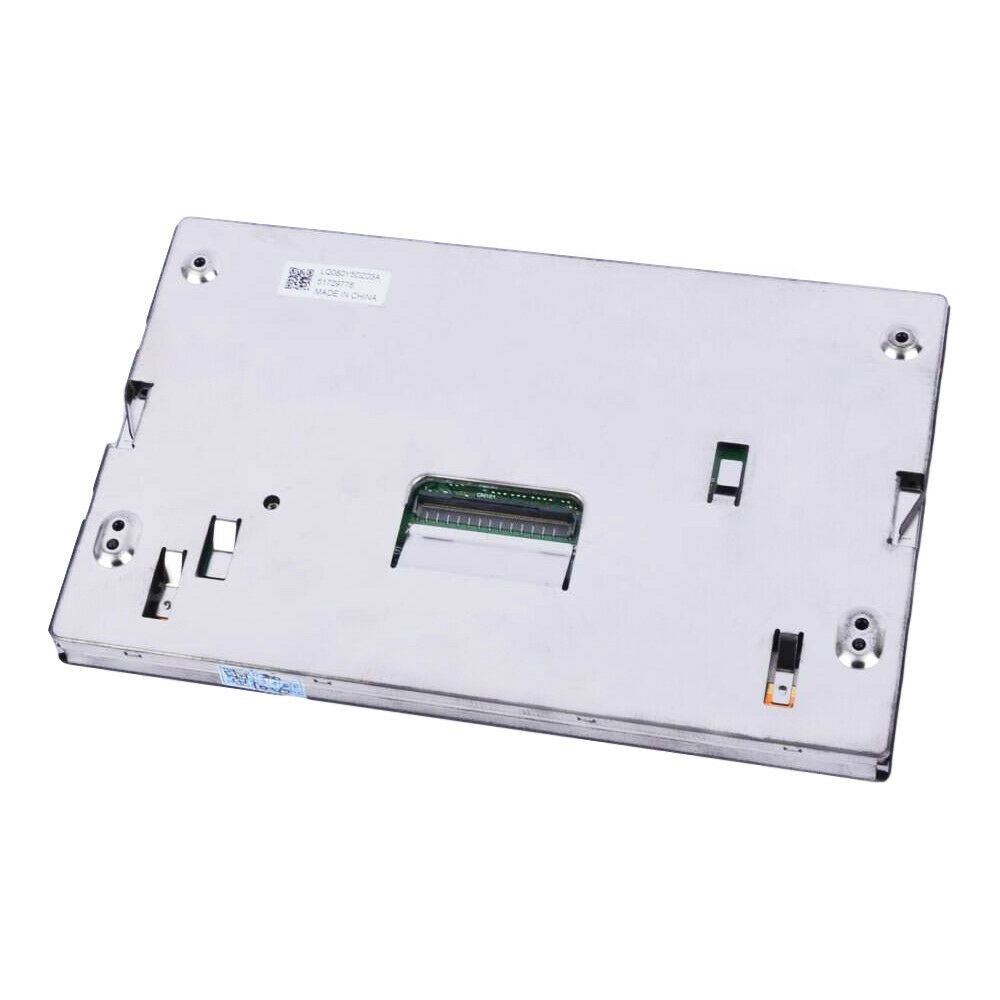

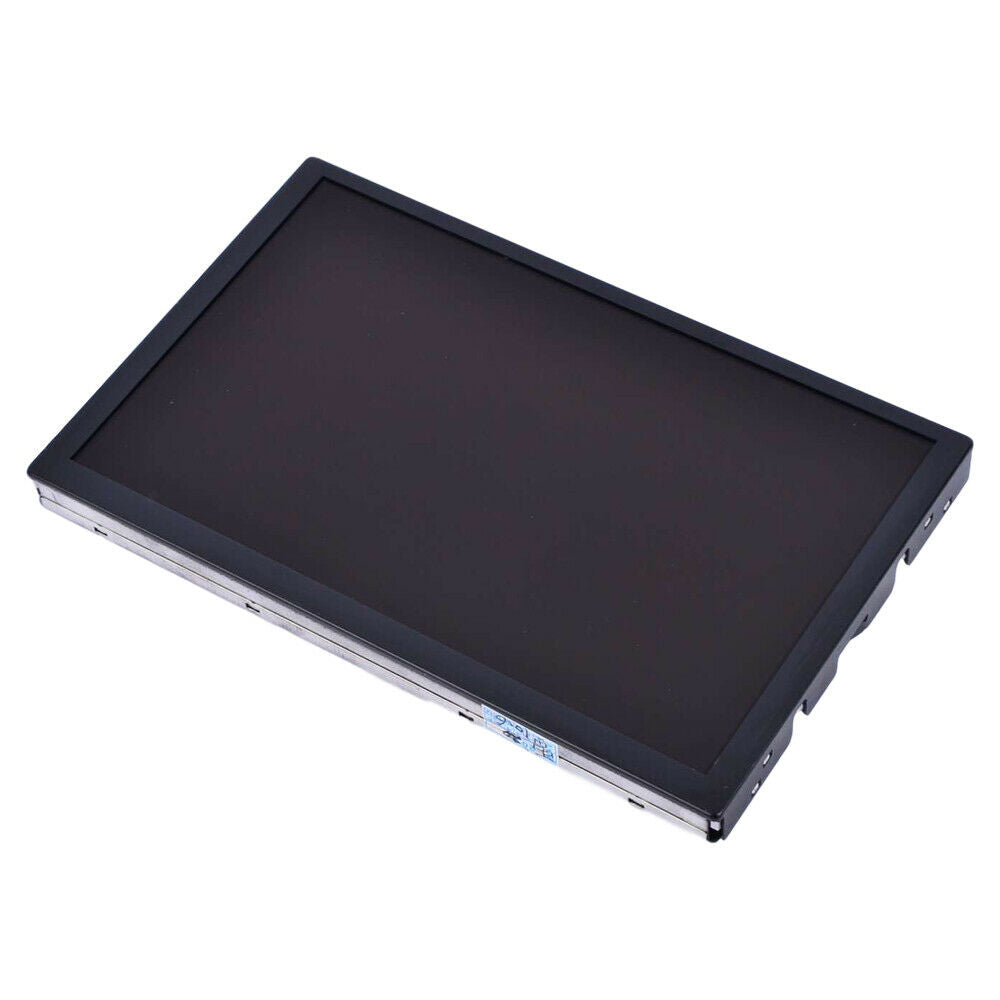

8-Inch LCD Display Panel for 2011-2018 Ford Lincoln SYNC 2 LQ080Y5DZ03A

Replace a damaged or failed 8-inch LCD in a compatible Ford or Lincoln SYNC 2 radio/navigation assembly while retaining the original touch digitizer and electronics when serviceable.

Product Details

• New 8-inch replacement LCD display panel
• For compatible SYNC 2/MyFord Touch assemblies
• Black display assembly
• 90-day warranty stated by the source catalog
• Touch digitizer, radio/APIM module, bezel, and programming are not included unless shown
• Aftermarket replacement panel; not represented as an original Ford component

Fitment and Compatibility

Listed applications include 2011-2014 Ford Edge; 2012-2014 Focus; 2013-2014 C-Max and Escape; 2013-2015 F-150/F-250/F-350 and Fusion; 2014-2015 Explorer; 2011-2015 Lincoln MKX; 2013-2015 MKS/MKZ; and 2015 MKC. The broad source year field extends through 2018, but actual fitment depends on the installed SYNC 2 display. Verify the label, connector, mounting tabs, and panel revision before ordering.

Part Number Information

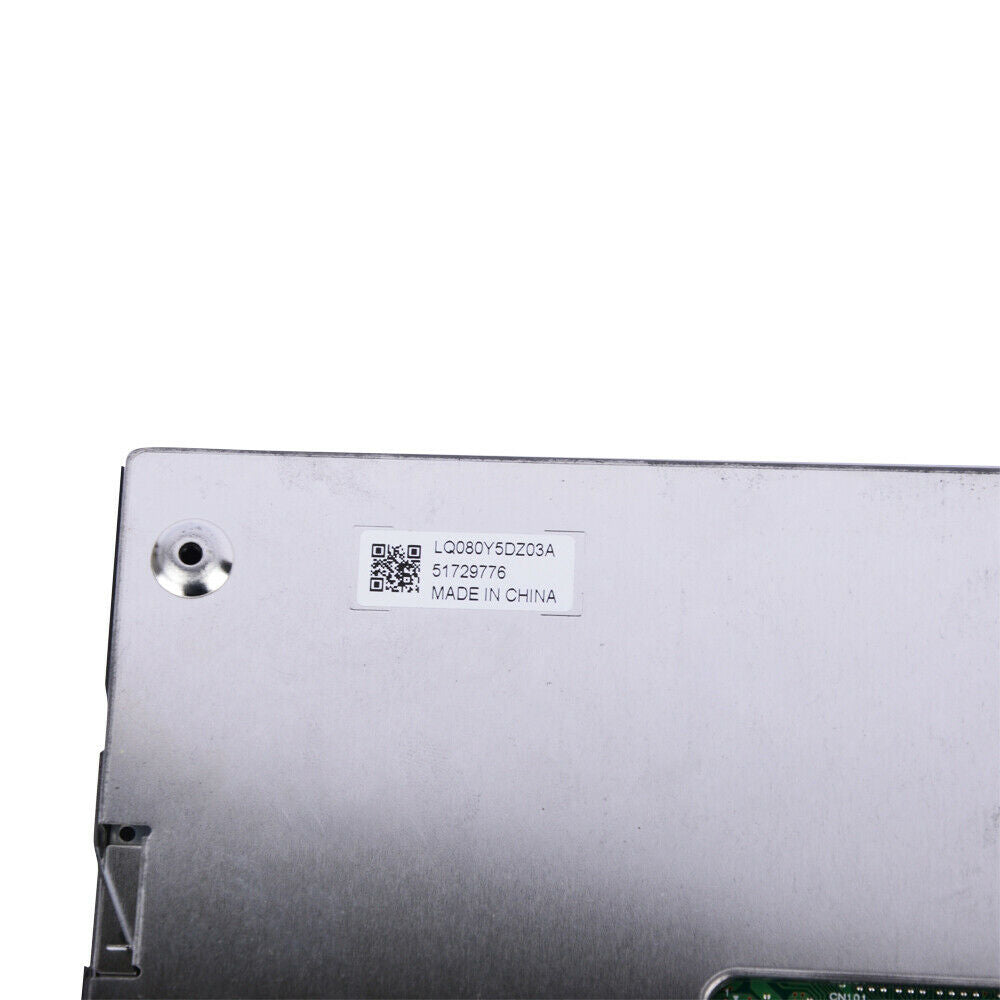

Primary panel reference: LQ080Y5DZ03A. Related references: LQ080Y5DZ03, LQ080Y5DZ30A, LQ080Y5DZ30, and source model reference LQ080Y5DZ05. SYNC 2 identifies the infotainment platform, not the panel part number.

Package Contents

• 1 8-inch replacement LCD display panel
• Mounting hardware only if shown with the product

Installation Notes

Display assembly disassembly is required. Disconnect vehicle power, protect ribbon connectors, and test image and backlight operation before final reassembly. Confirm whether the existing touch digitizer must be transferred. LCD replacement alone does not correct APIM, radio, or software failures.
