LP156WF7 SPA1 SPN1 eDP 40-pin LCD Driver Controller Board VGA HDMI Video Audio
Note:
- This kit is for LP156WF7 SPA1/ SPB2/ SPN1/ SPN3/ SPS1 only, not for LP156WF7-SPEC and other models
- This board using 12V 3A power supply, which is NOT included. DC connector is 5.5 x 2.1mm, also support 5.5 x 2.5mm
- Finish all cables connection and connect power supply at last
- If you very concern about resolution setting, please think it twice before order
- If you are not specialized in electronics or have doubts in operation, please CONTACT US, we are not responsible for wrong operation

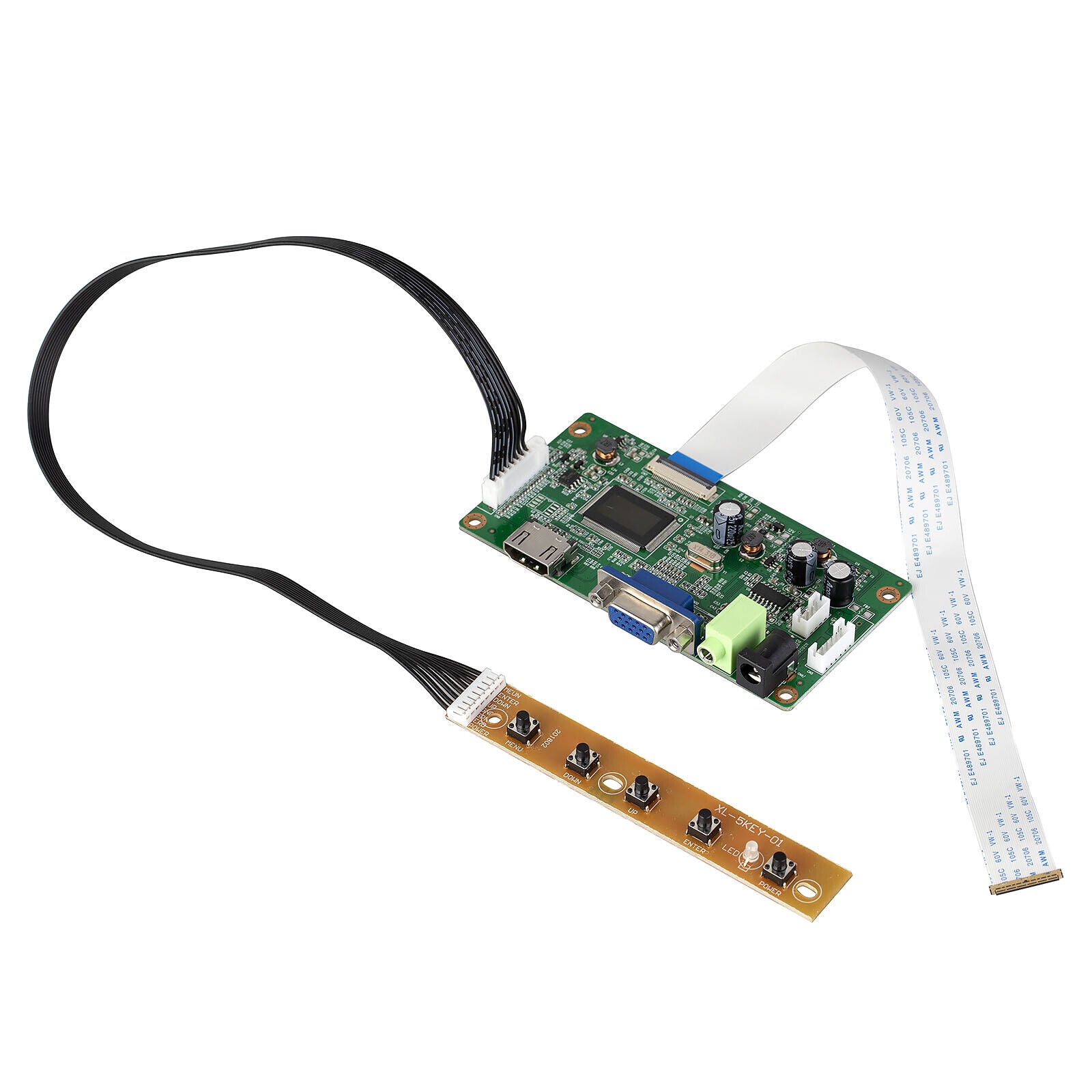

Packing List (bulk pack):

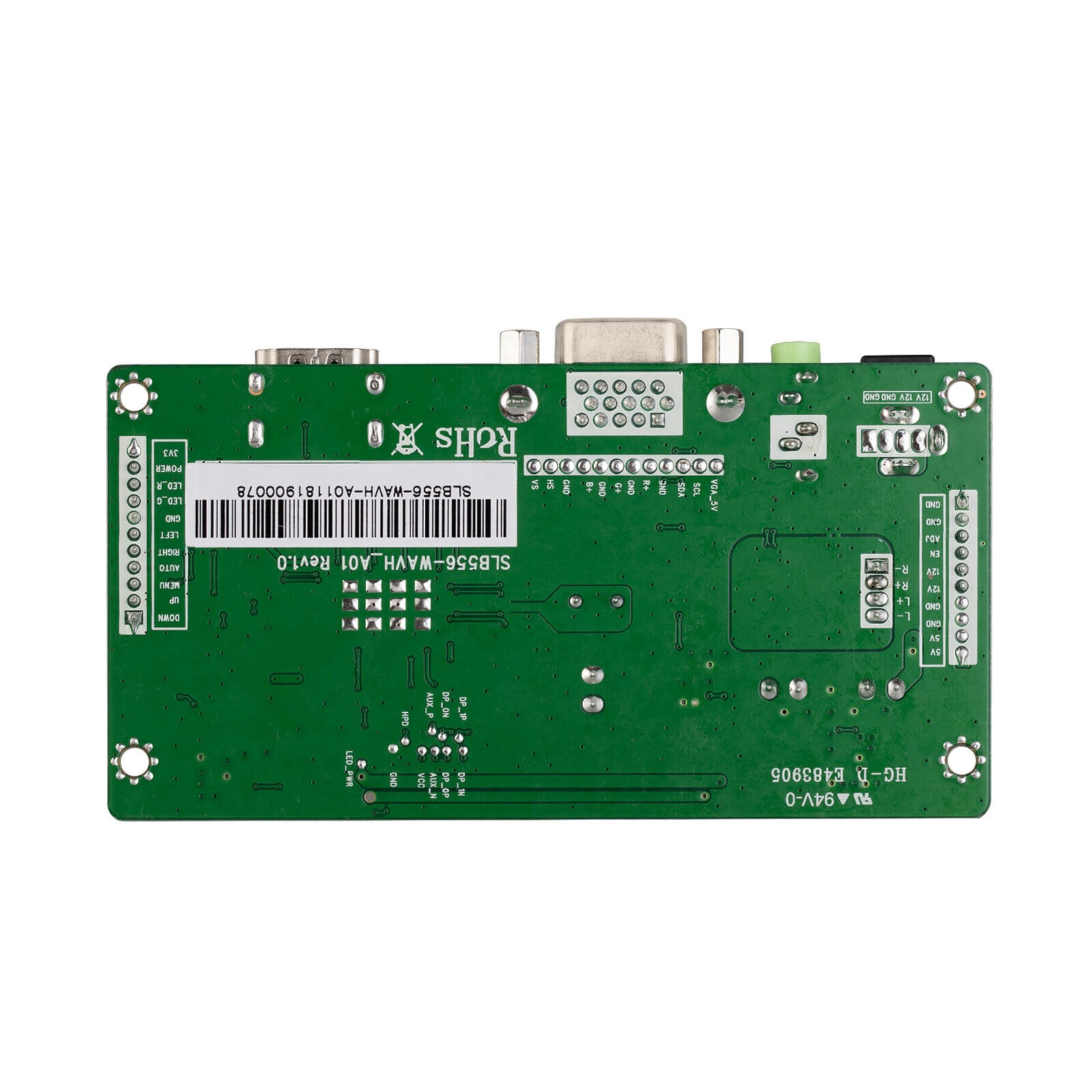

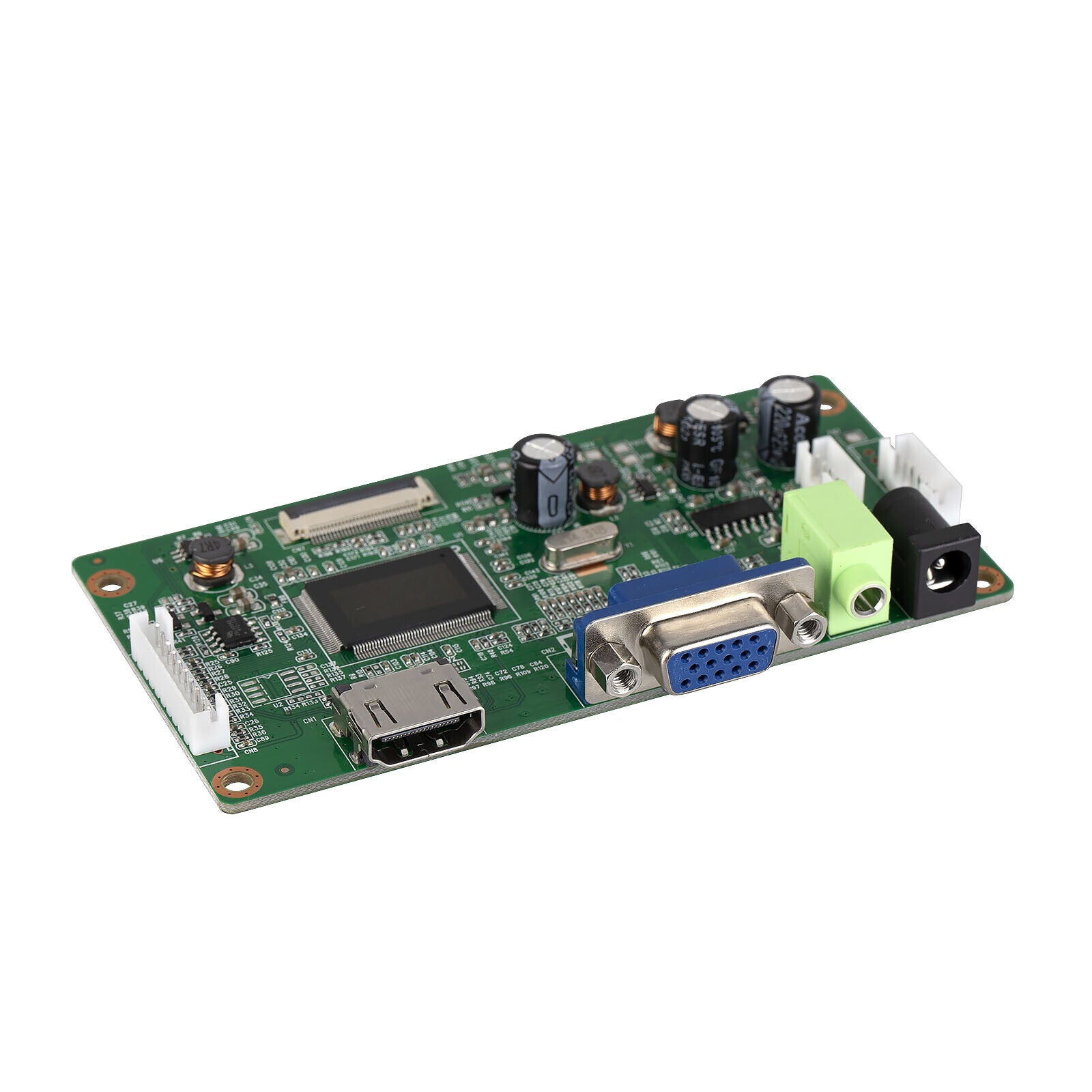

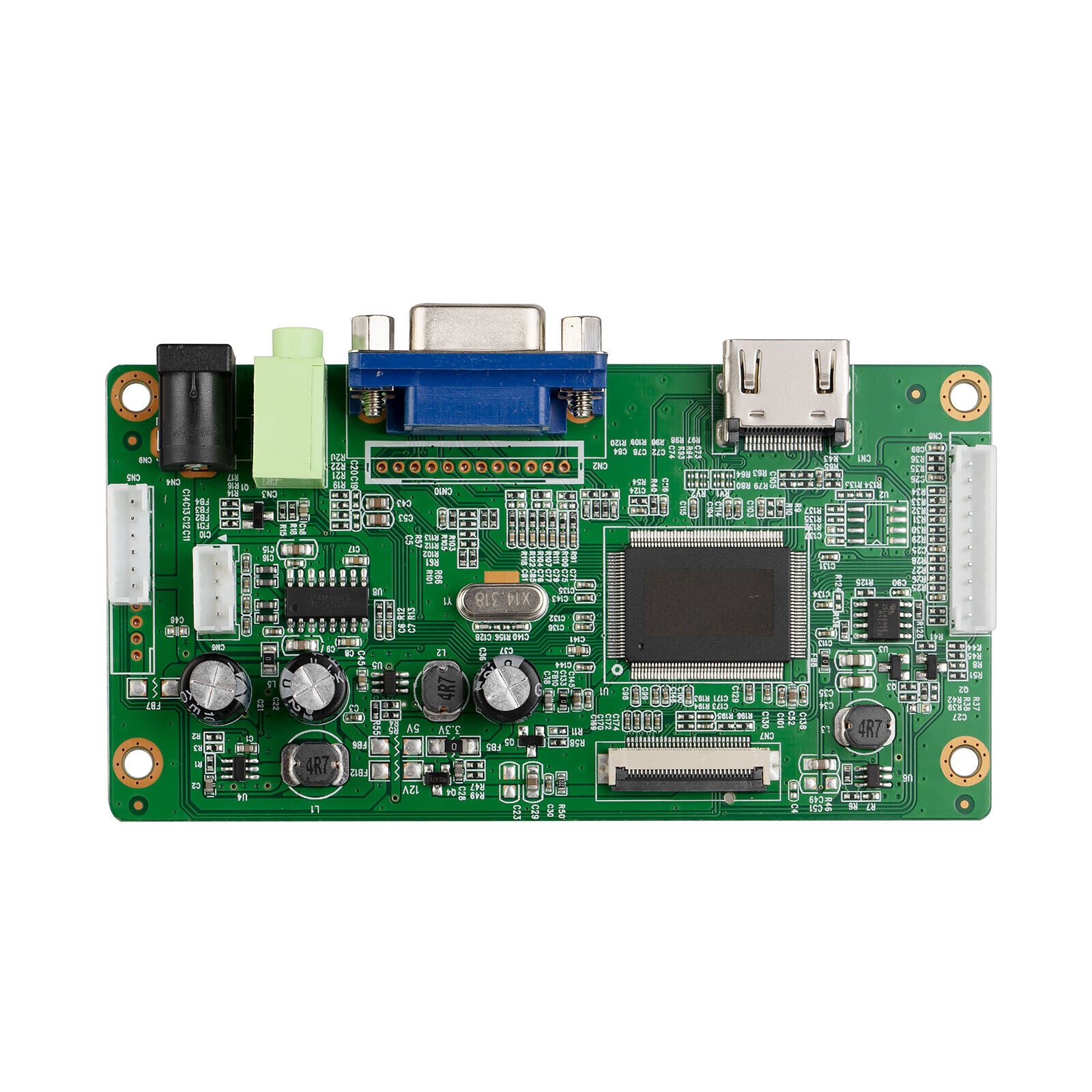

- 1 x Driver board

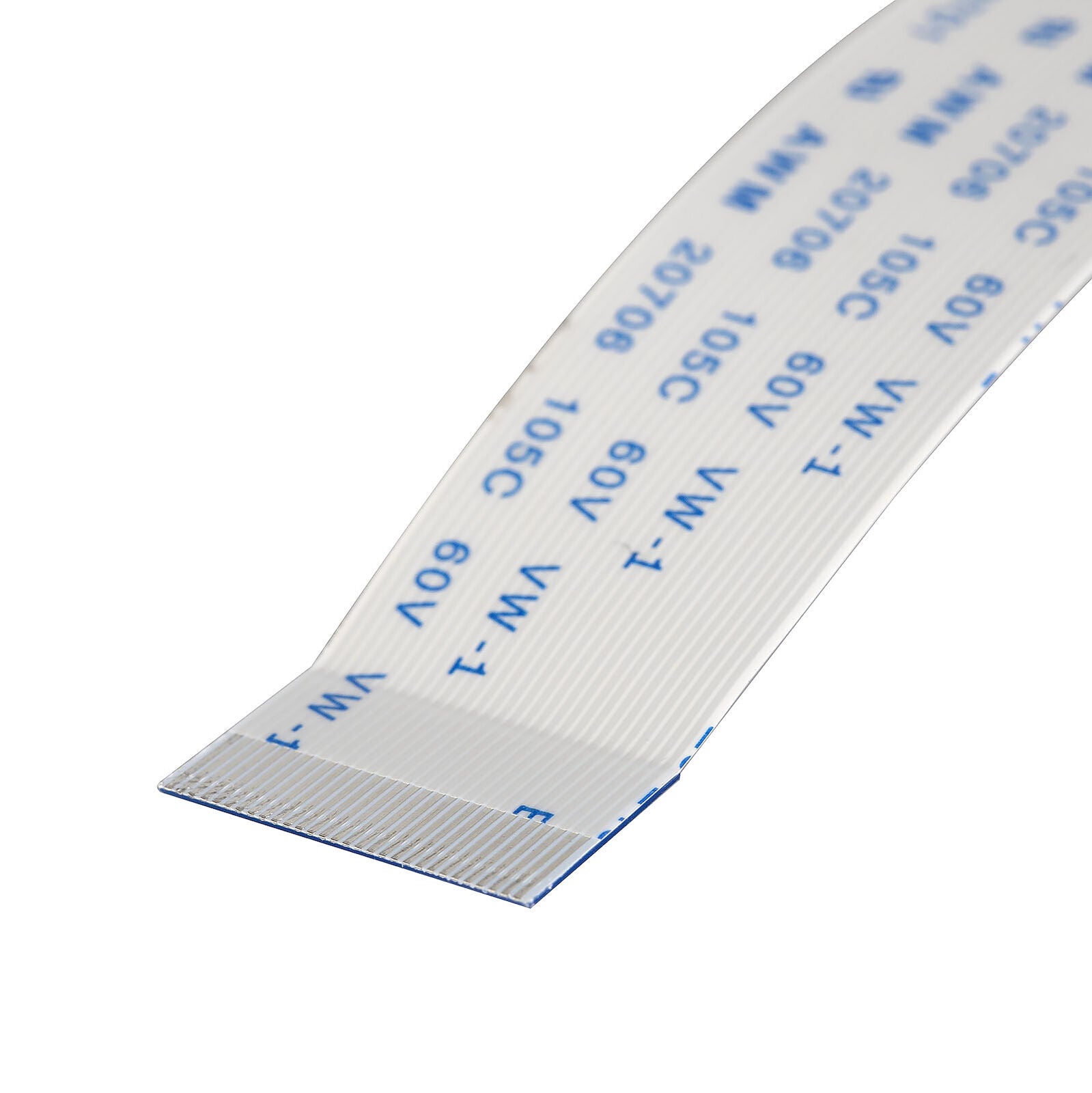

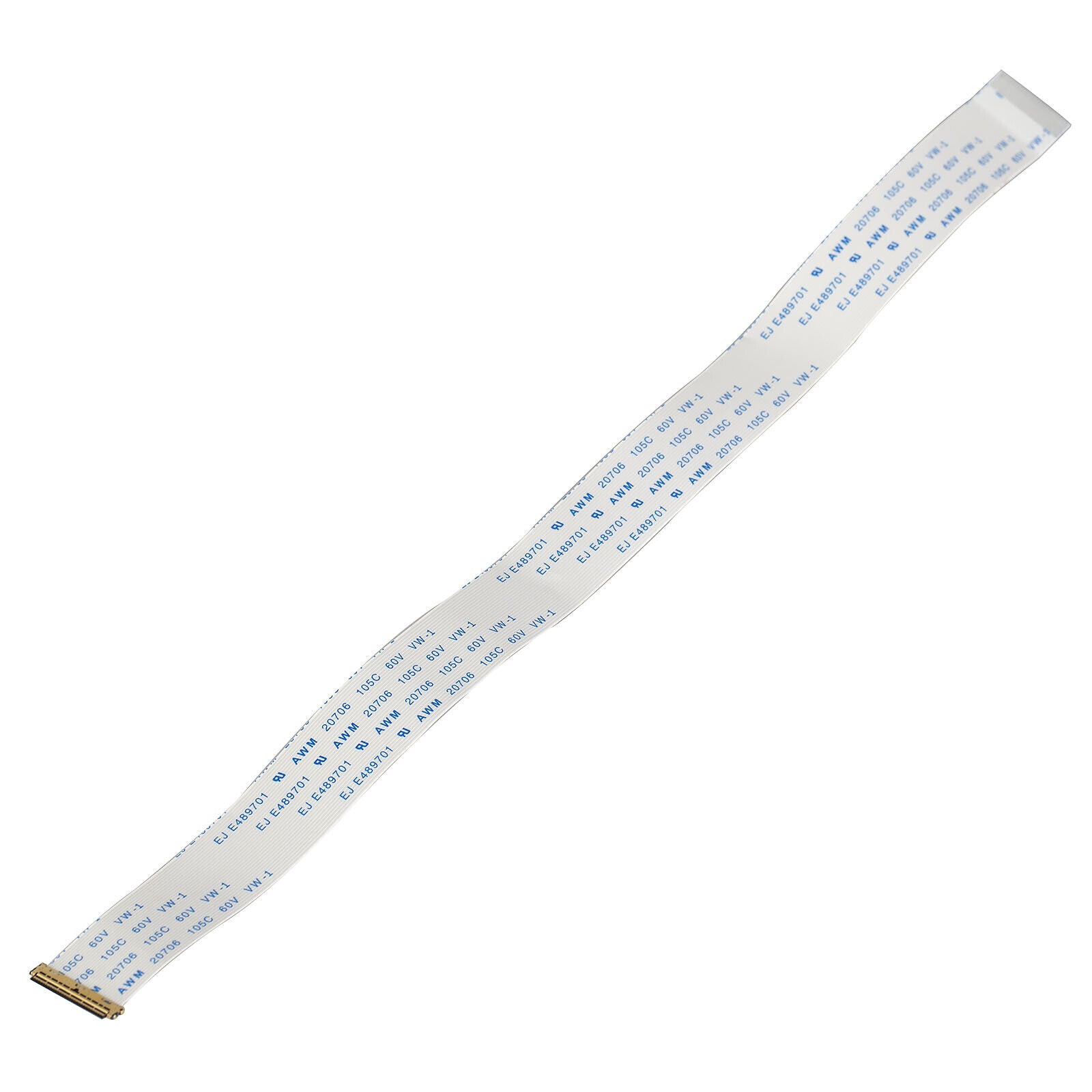

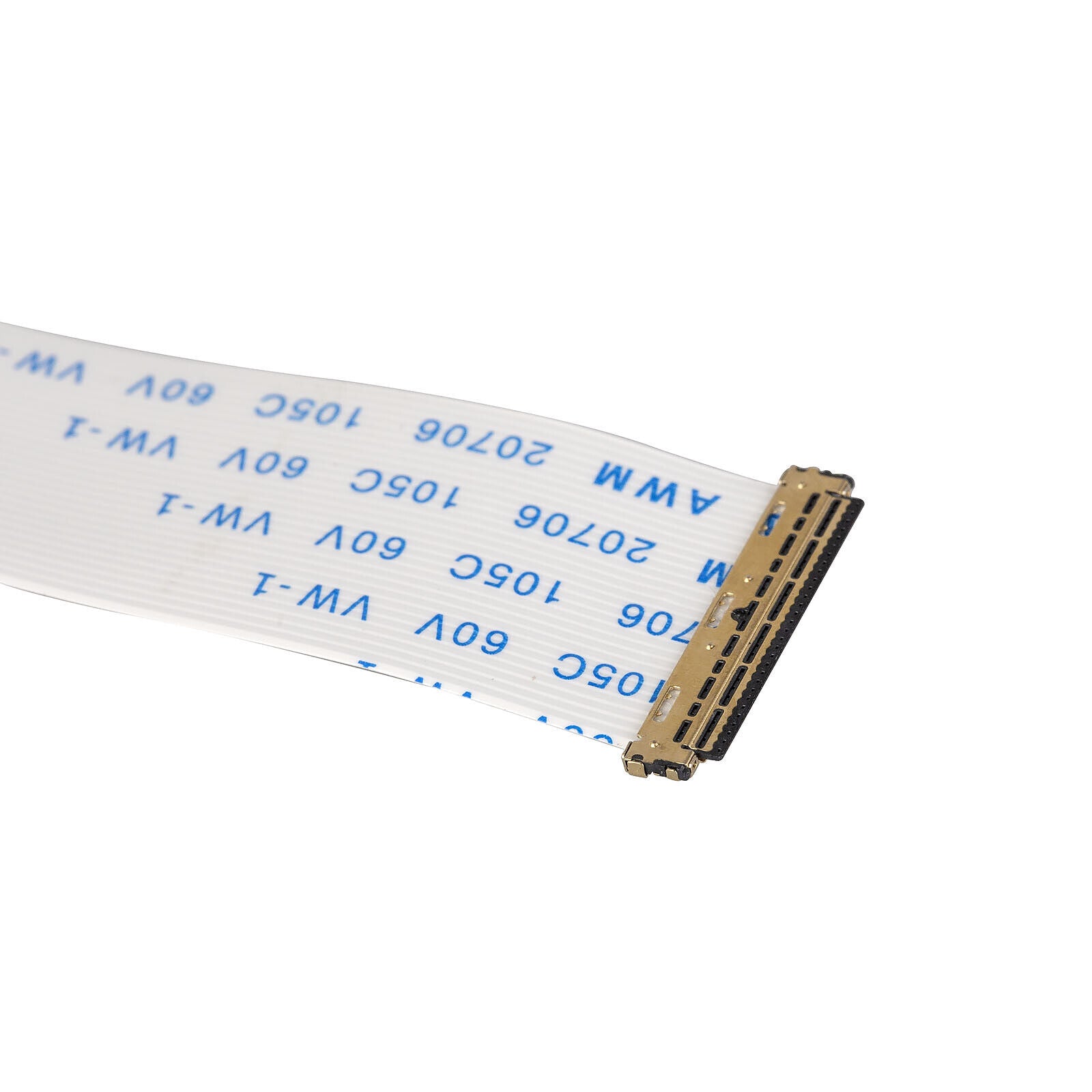

- 1 x eDP cable

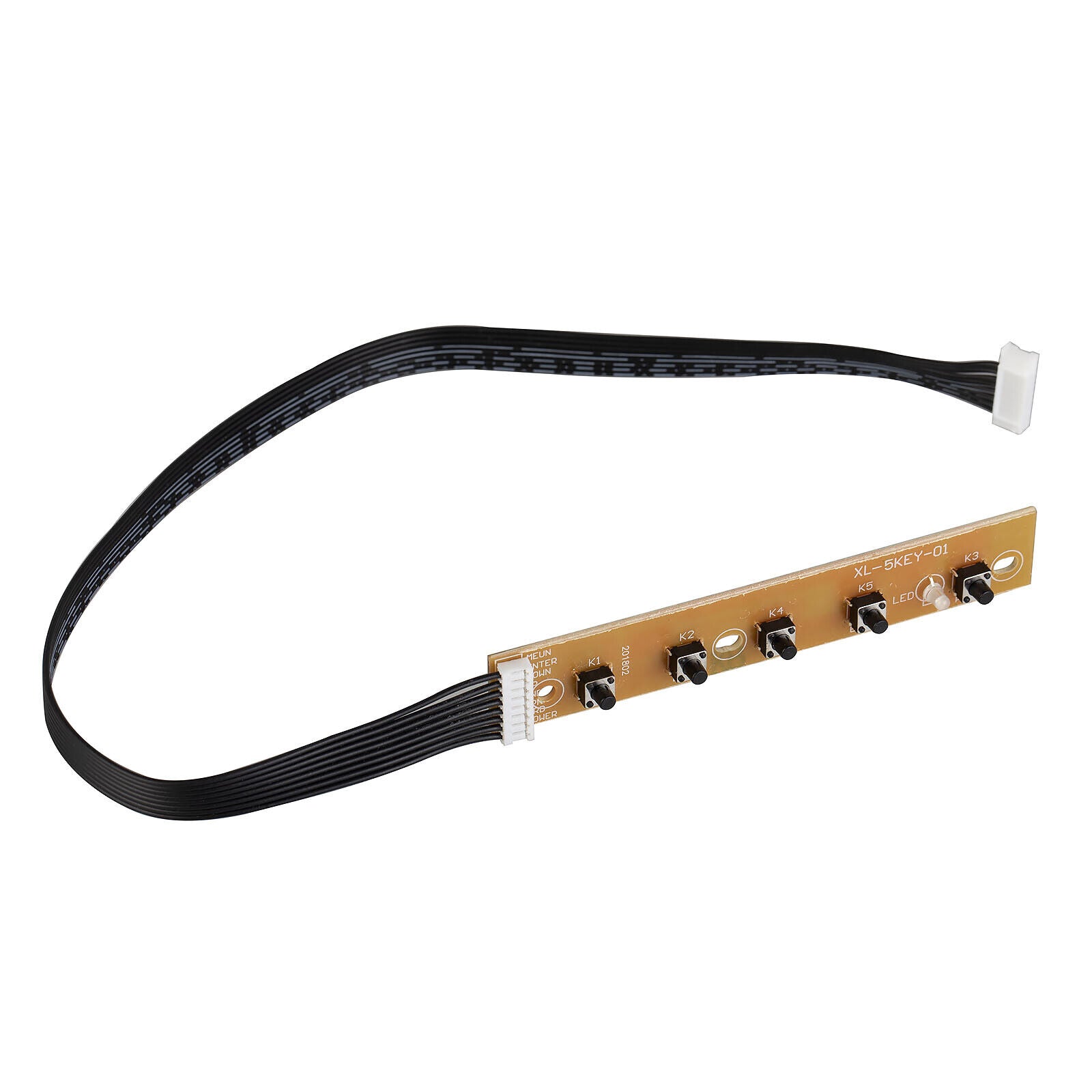

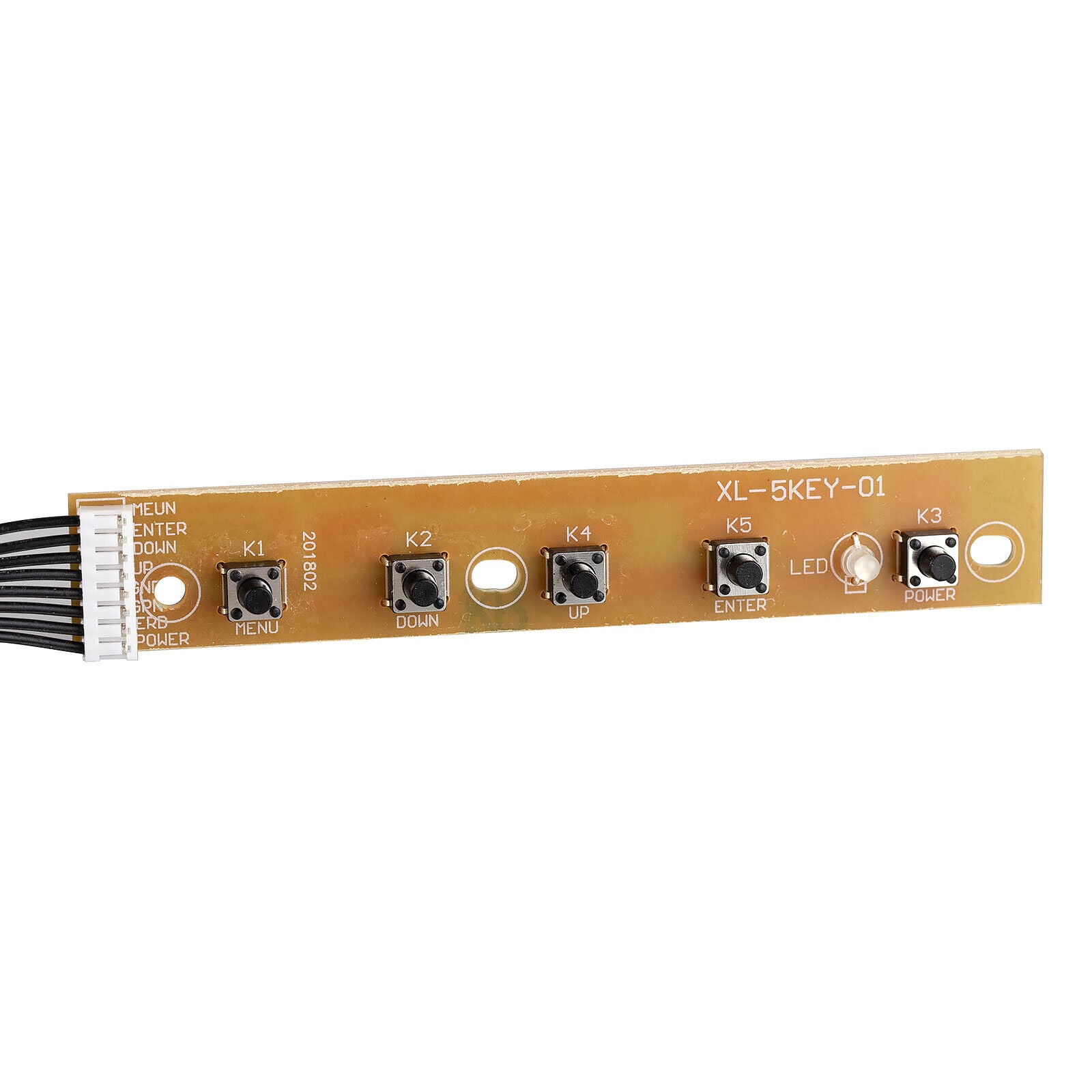

- 1 x 5-key menu board
Features：
- Support resolution up to 1920 x 1080 (1080P)
- Support eDP voltage 3.3V only, voltage is FIXED

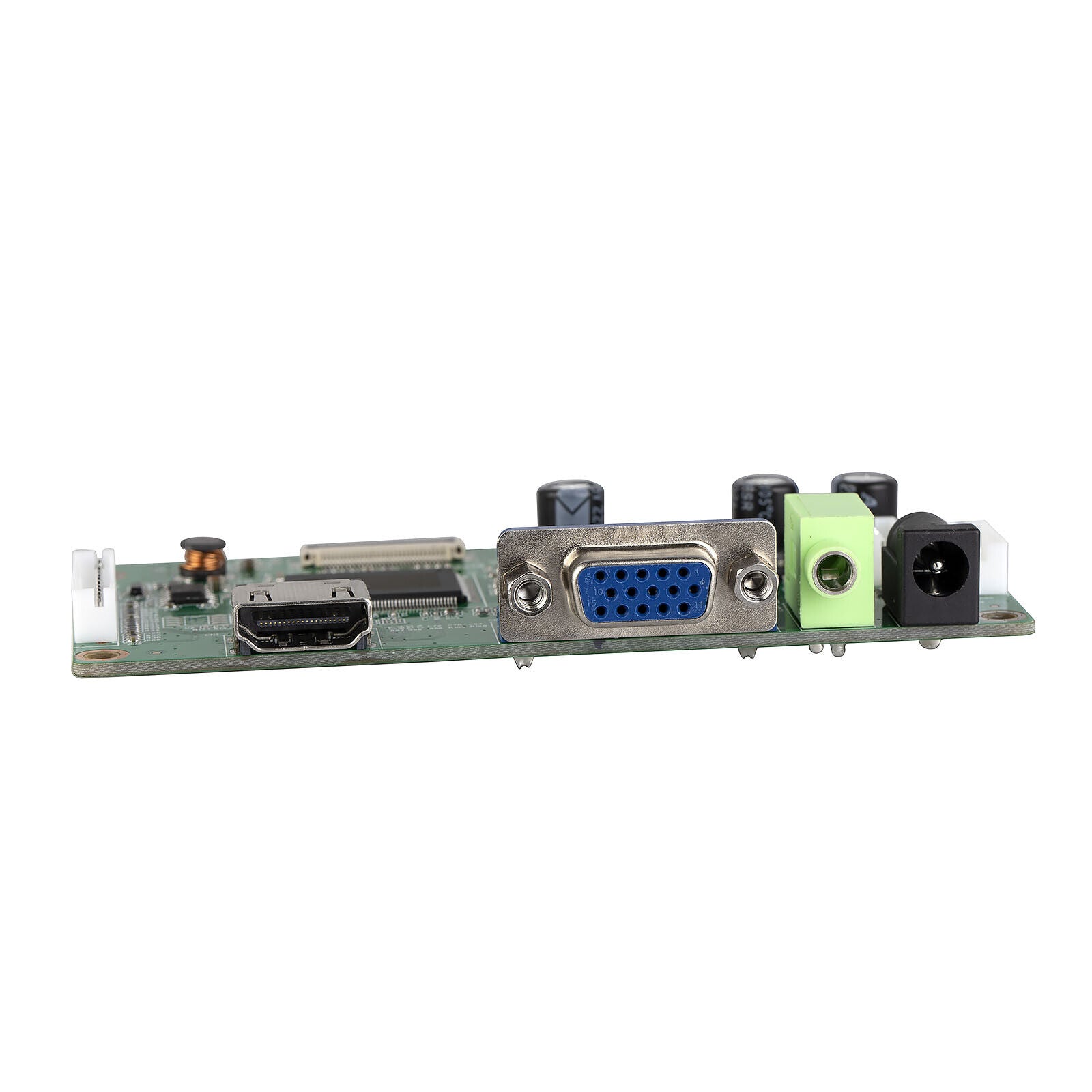

- VGA and HDMI video input, 3.5mm audio input, PH2.0 4-pin speaker header (speaker not included)
- Support control of contrast, brightness, digital volume... etc
- Board size: 10.6 x 5.5cm / 4.17 x 2.16 inch
