2004-2006 Lexus LS430 SC430 Navigation LCD Touch Screen LTA070B054F

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

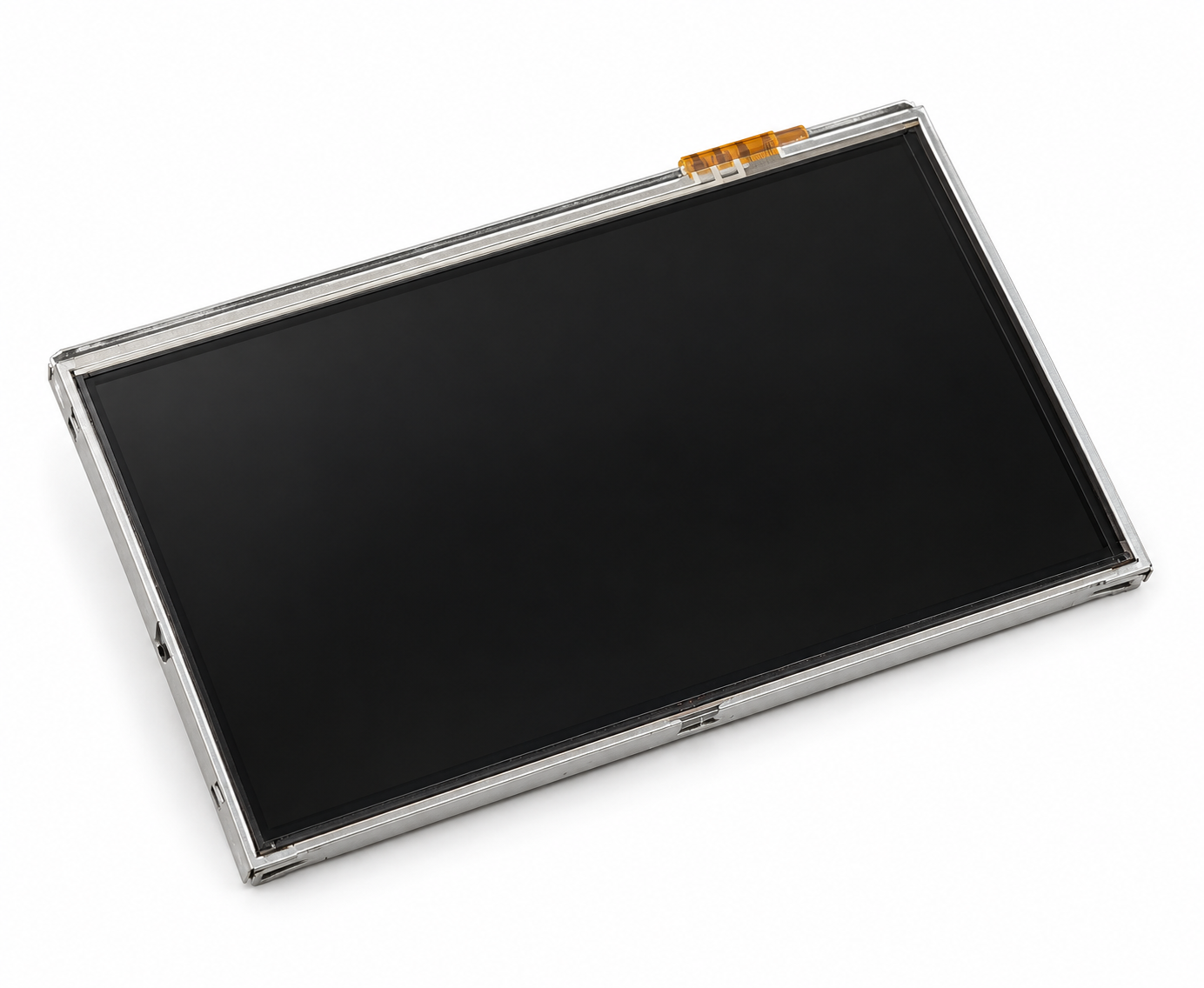

Replacement TFT LCD display and touch-screen digitizer for the factory navigation monitor installed in select 2004–2006 Lexus LS430 and SC430 vehicles.

This internal screen package allows the original Lexus navigation display to be repaired without replacing the complete dashboard monitor assembly. It is suitable for an LCD with scratches, cracks, dead pixels, faded colors, surface deterioration or a damaged polarizing layer. The included digitizer can restore touch operation when the original touch panel is worn, cracked or unresponsive.

This is an internal replacement component and requires disassembly of the original navigation monitor.

𝗟𝗖𝗗 𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿

• Toshiba reference number: LTA070B054F

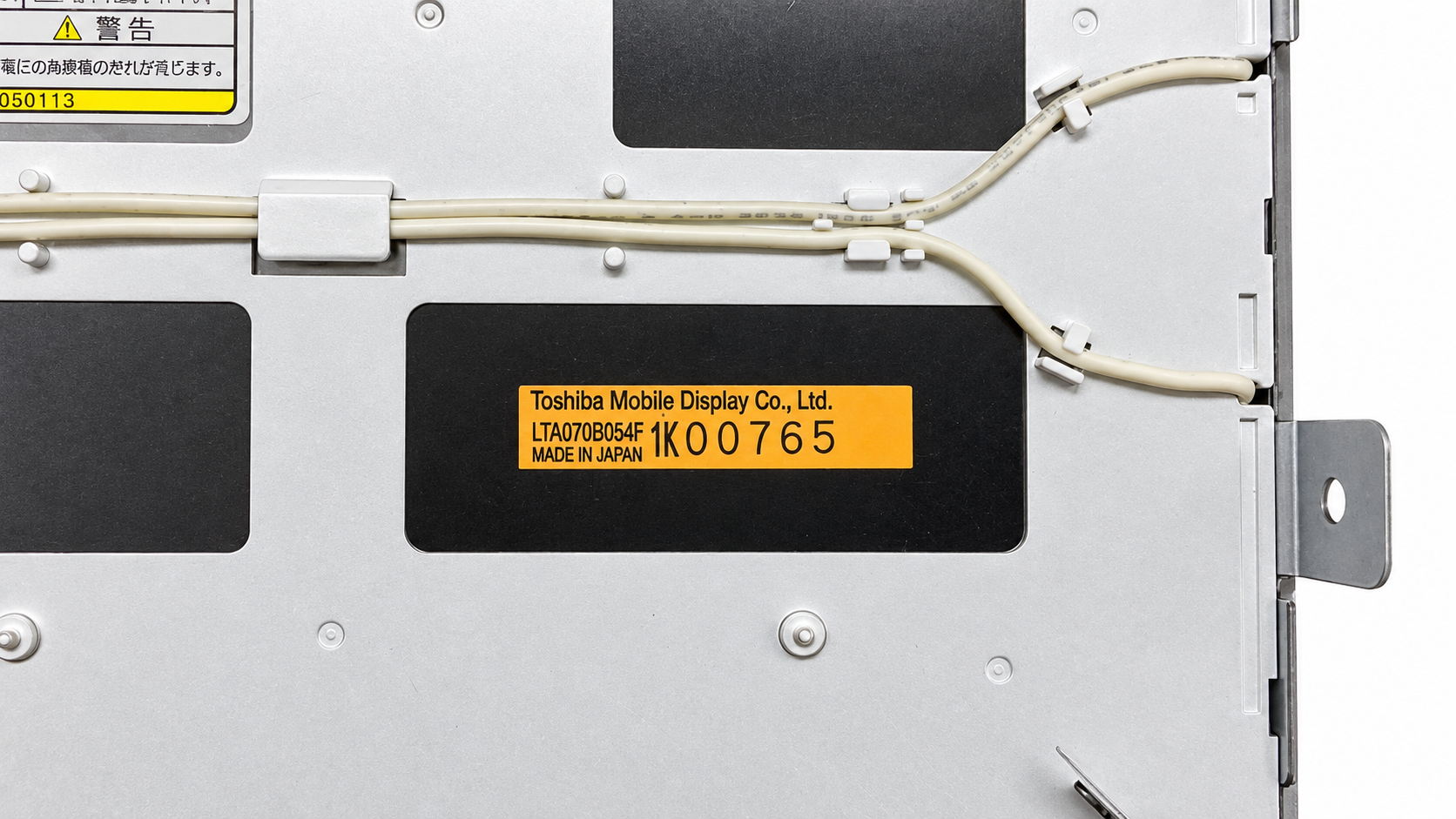

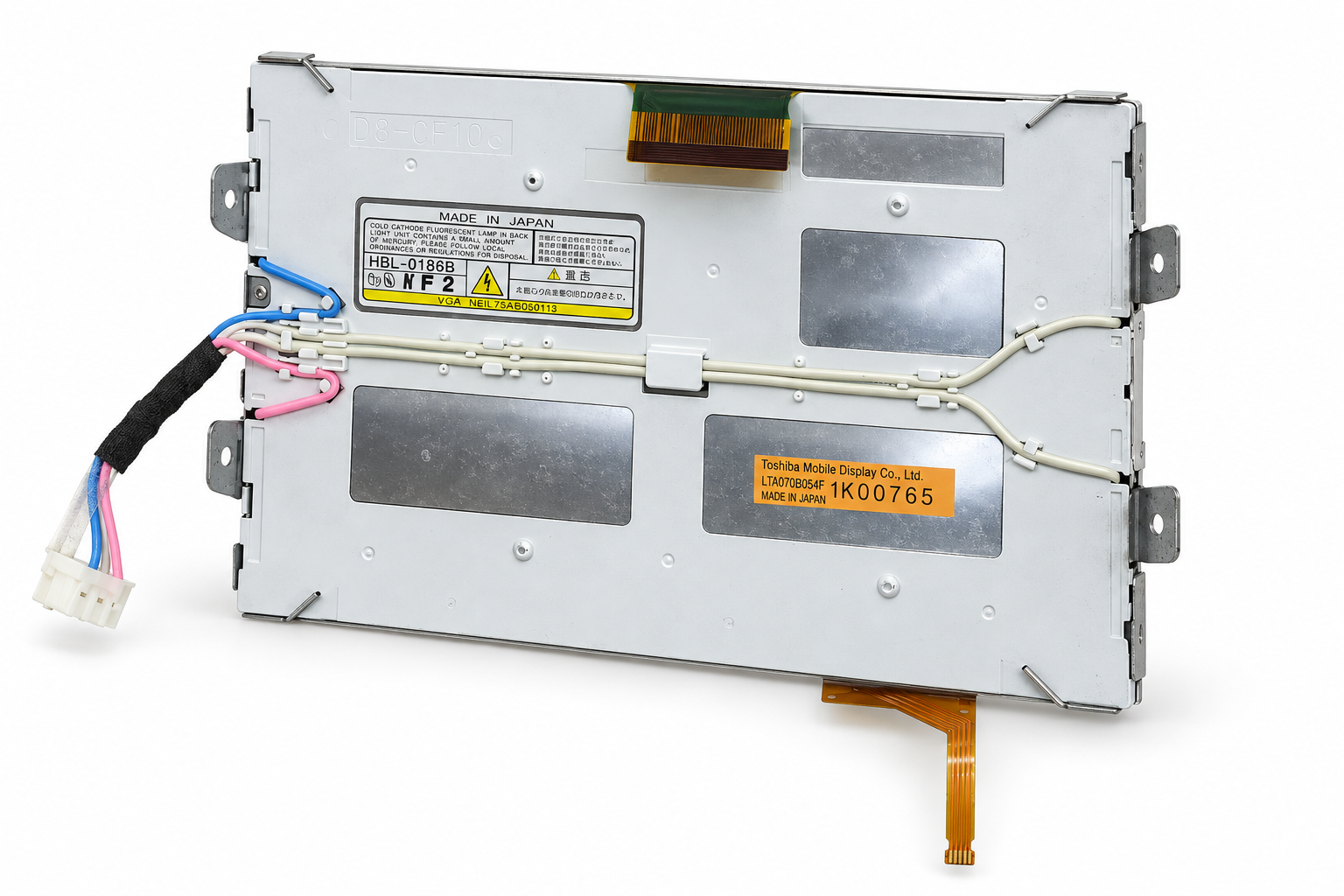

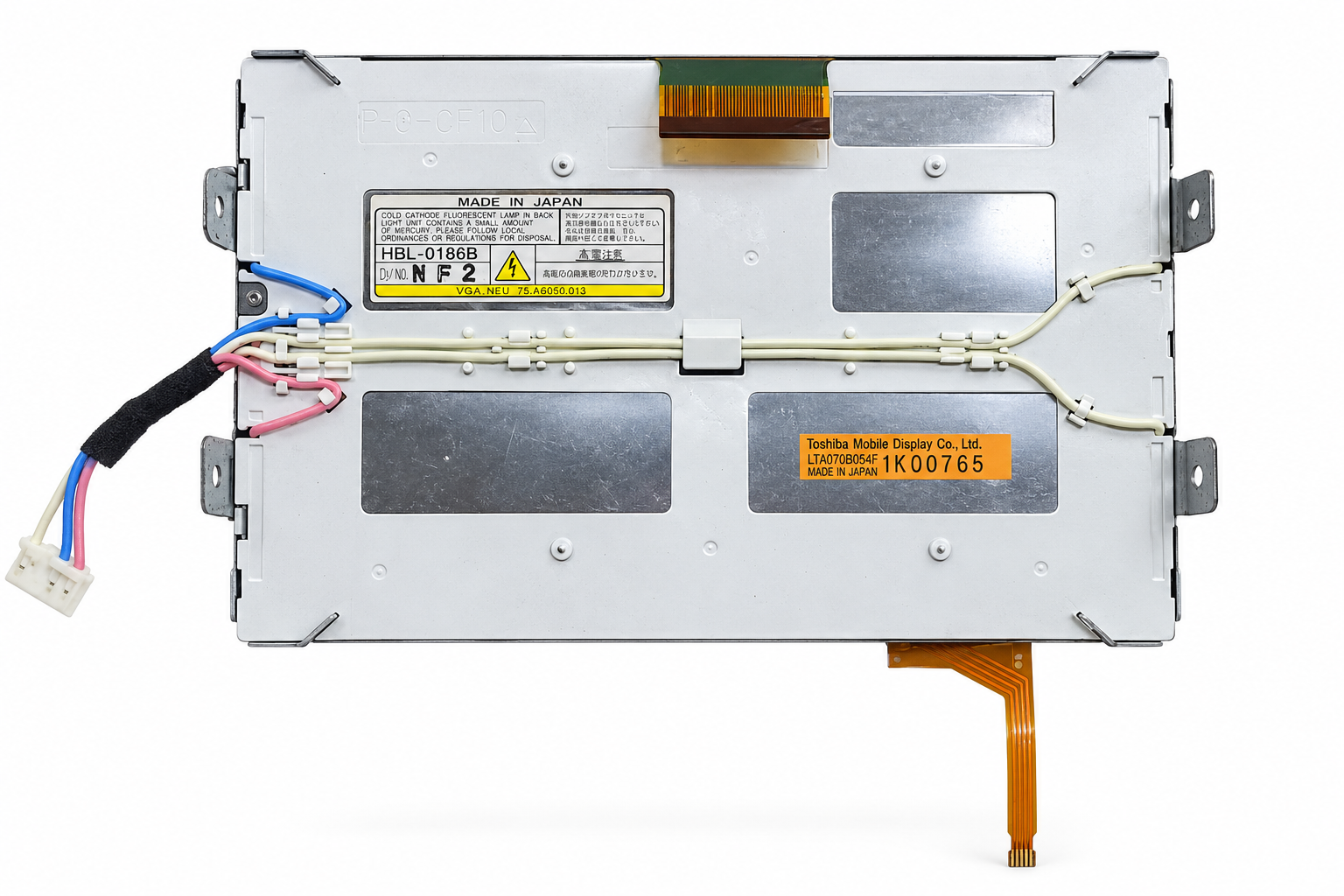

The part number is printed on the rear of the original LCD panel. The original monitor must be disassembled to confirm this number.

𝗙𝗮𝗰𝘁𝗼𝗿𝘆 𝗗𝗶𝘀𝗽𝗹𝗮𝘆 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

Known complete display assemblies associated with these applications may include:

• Lexus LS430: 86110-50180
• Lexus LS430: 86110-50181
• Lexus LS430: 86111-50220
• Lexus SC430: 86111-24140

These complete-unit numbers are provided as identification references only. Internal components can vary by production date and market. The safest method is to match LTA070B054F directly with the number on the original LCD.

𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆

• 2004 Lexus LS430 with factory navigation
• 2005 Lexus LS430 with factory navigation
• 2006 Lexus LS430 with factory navigation
• 2004 Lexus SC430 with factory navigation
• 2005 Lexus SC430 with factory navigation
• 2006 Lexus SC430 with factory navigation

Applicable chassis families include the LS430 UCF30/UCF31 and SC430 UZZ40 when equipped with the matching factory navigation monitor.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗡𝗼𝘁𝗲𝘀

Before ordering, verify all of the following:

• Vehicle has the original factory Lexus navigation system
• Original LCD is marked LTA070B054F
• Ribbon-cable position and connector design match the replacement
• LCD dimensions and mounting points match
• The problem has been diagnosed as an LCD or digitizer failure

Do not order by vehicle year alone. Lexus used different display assemblies depending on model, production date, navigation generation and sales market.

This screen is not intended to add navigation to a vehicle that was not originally equipped with the factory navigation system.

𝗗𝗶𝘀𝗽𝗹𝗮𝘆 𝗙𝗲𝗮𝘁𝘂𝗿𝗲𝘀

• Approximately 7-inch TFT LCD
• Replacement touch-screen digitizer included
• Maintains the factory Lexus dashboard appearance
• Retains the original monitor housing and electronics
• Displays navigation, climate, audio and vehicle-control menus supported by the original system
• Designed for repair of the original factory display

𝗧𝗵𝗶𝘀 𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿

• Cracked or physically damaged LCD
• Scratched or peeling screen surface
• Dead or stuck pixels
• Faded or discolored picture
• Deteriorated polarizing layer
• Cracked touch panel
• Incorrect or unresponsive touch input caused by a failed digitizer

𝗧𝗵𝗶𝘀 𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿

• Failed navigation computer or map disc
• Distorted navigation video caused by the navigation ECU
• Defective display circuit boards or power supply
• Vehicle wiring, fuse or communication problems
• Failed radio or audio amplifier
• Climate-control electronic faults
• SC430 motorized-screen opening or closing mechanism failures

Proper diagnosis is strongly recommended before ordering.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

New replacement LCD display and touch-screen digitizer. Any protective film should remain installed until testing and final assembly are complete.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

Installation requires removal and complete disassembly of the factory navigation monitor. Delicate ribbon cables, circuit boards, brackets and the original housing must be transferred or reconnected correctly.

The SC430 display also uses a motorized mounting mechanism that must be handled carefully during removal and reassembly. Professional installation by an experienced automotive-electronics technician is strongly recommended.

Test the display and touch response before reinstalling all dashboard trim.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

• One LTA070B054F replacement LCD panel
• One touch-screen digitizer
• Complete navigation monitor, housing, circuit boards, radio, navigation computer and installation tools are not included
