LCD Display for 1999-2018 Mercury SmartCraft SC1000 Gauges CHM1102

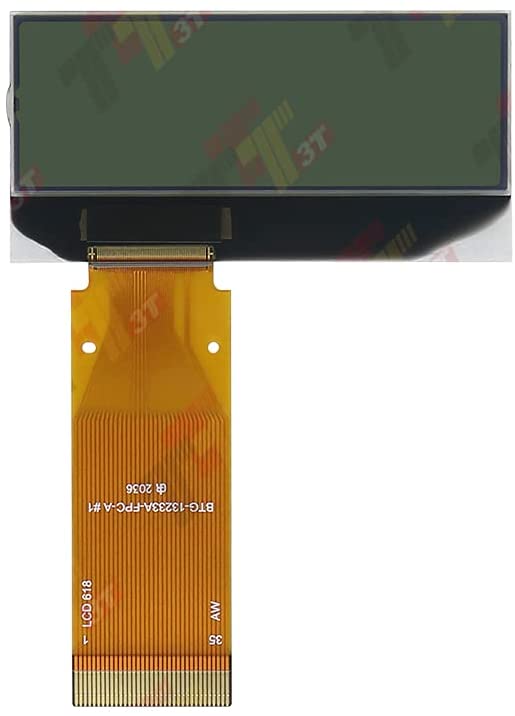

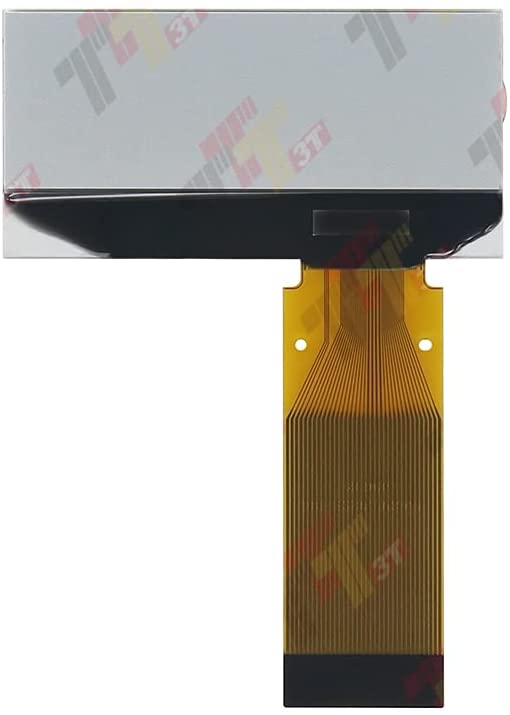

. Replacement internal LCD panel for repairing a compatible Mercury SmartCraft SC1000 speedometer or tachometer multifunction gauge. This is the display component only, not a complete marine instrument.
Product Details

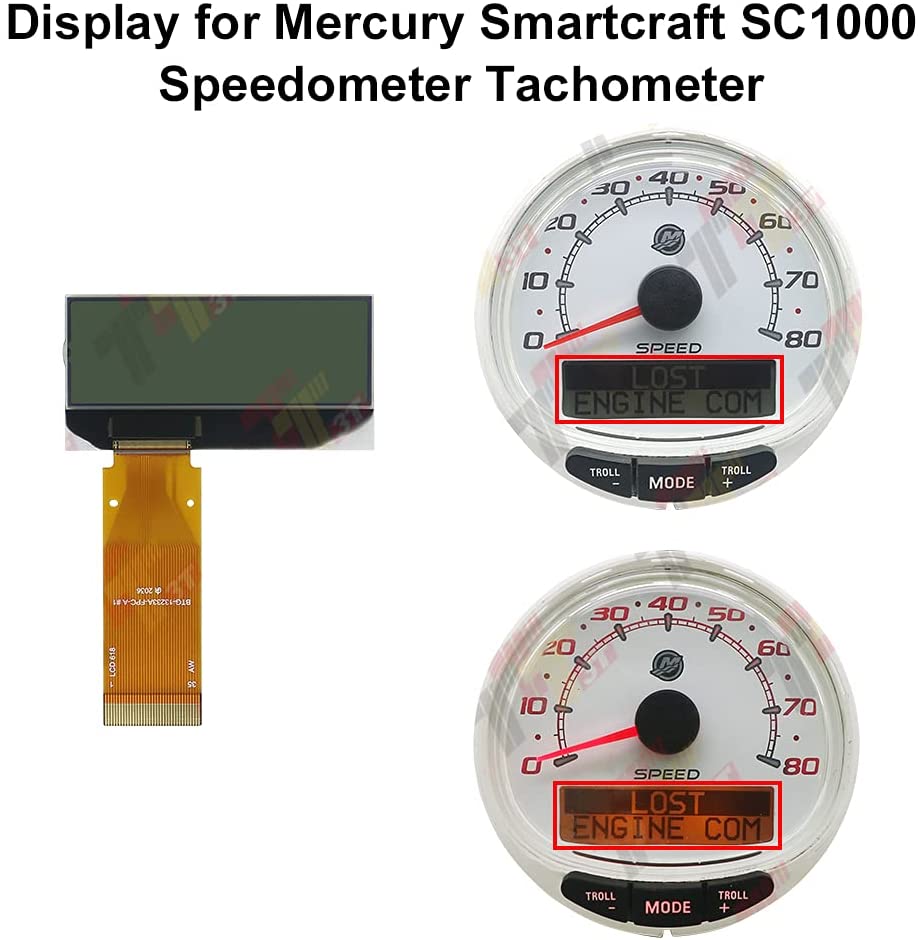

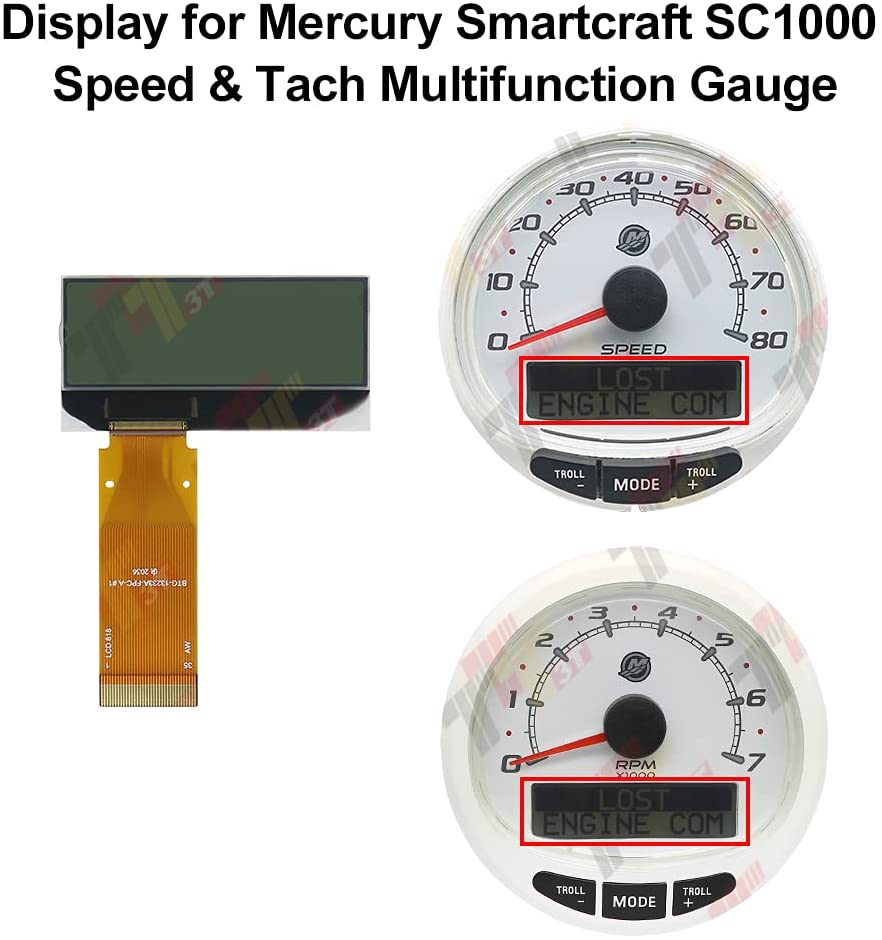

- Replacement LCD for compatible SC1000 speed and tach gauges
- Designed for gauges installed in an 85 mm opening
- May repair missing segments, fading, a blank screen, cracks or LCD leakage when the display is the confirmed fault
- Aftermarket internal repair component
Fitment and Compatibility

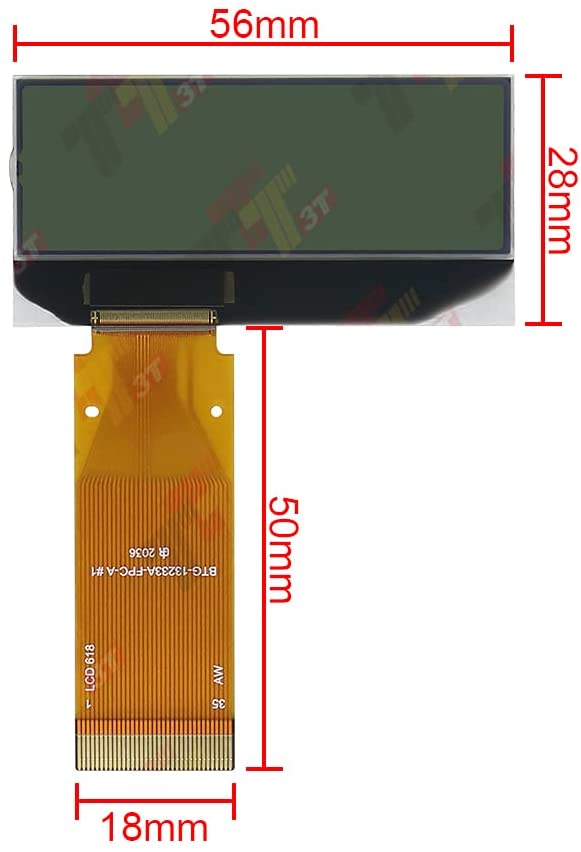

For select 1999-2018 Mercury SmartCraft SC1000 multifunction speedometer and tachometer gauges using the matching 85 mm display configuration. Match the gauge reference, screen dimensions, contact layout and housing before ordering.
Part Number Information
Display/gauge references include SC1000, CHM1102, A2C52100134, A2C59500399, 8M6003251, 8M6003255, 8M0101099, 79-889222, 79-8M0135634, 79-8M0135641, 79-8M0079894, 79-8M0062382, 79-8M0059084 and 79-889223K21. These may identify related gauge assemblies; verify the original.
Package Contents
One replacement LCD display panel. Complete SmartCraft gauge, housing, bezel, tools and installation service are not included.
Installation Notes
Marine gauge disassembly and careful electronic handling are required. Use ESD protection, keep contacts clean and restore the housing seal to prevent moisture intrusion. Professional installation is recommended.
