KD116N5-30NV-B7 LCD Panel Control Board 30-pin eDP VGA HDMI Video Audio Driver
This is small size eDP LCD panel controller borad supports KD116N5-30NV-B7 and N116BGE-EA2 up to 1080P. It supports brightness control, plug and play, fast response time.
Important Note, Must Read:
- This kit is for KD116N5-30NV-B7 and N116BGE-EA2 only, not for other models
- This controller DOES NOT support touchscreen function
- This board use 12V 3A power supply, which is NOT included. DC connector is 5.5 x 2.1mm center positive
- Finish all cables connection and connect power supply at last
- If you are not specialized in electronics or have doubts in operation, please CONTACT US, we are not responsible for wrong operation

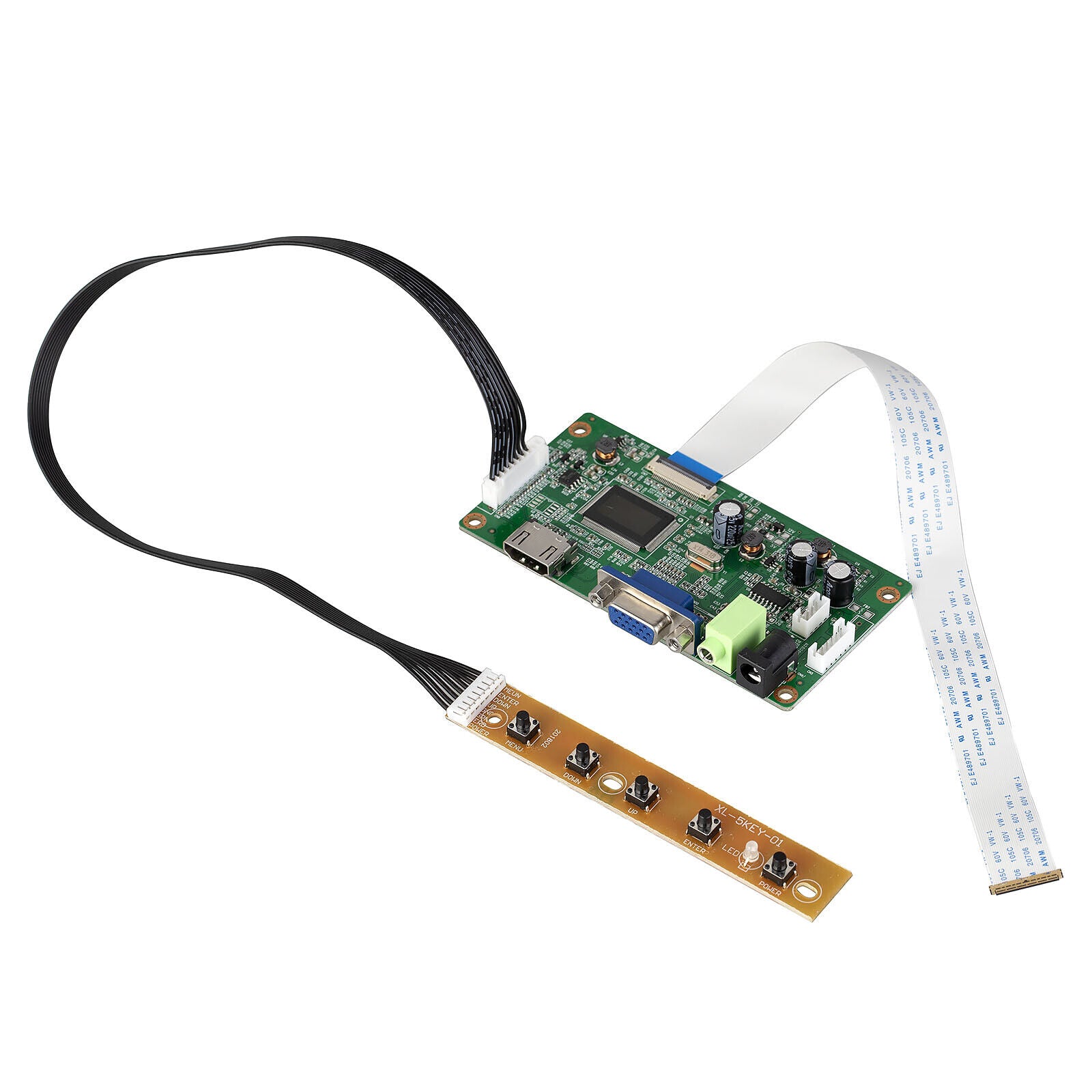

Packing List (bulk pack):

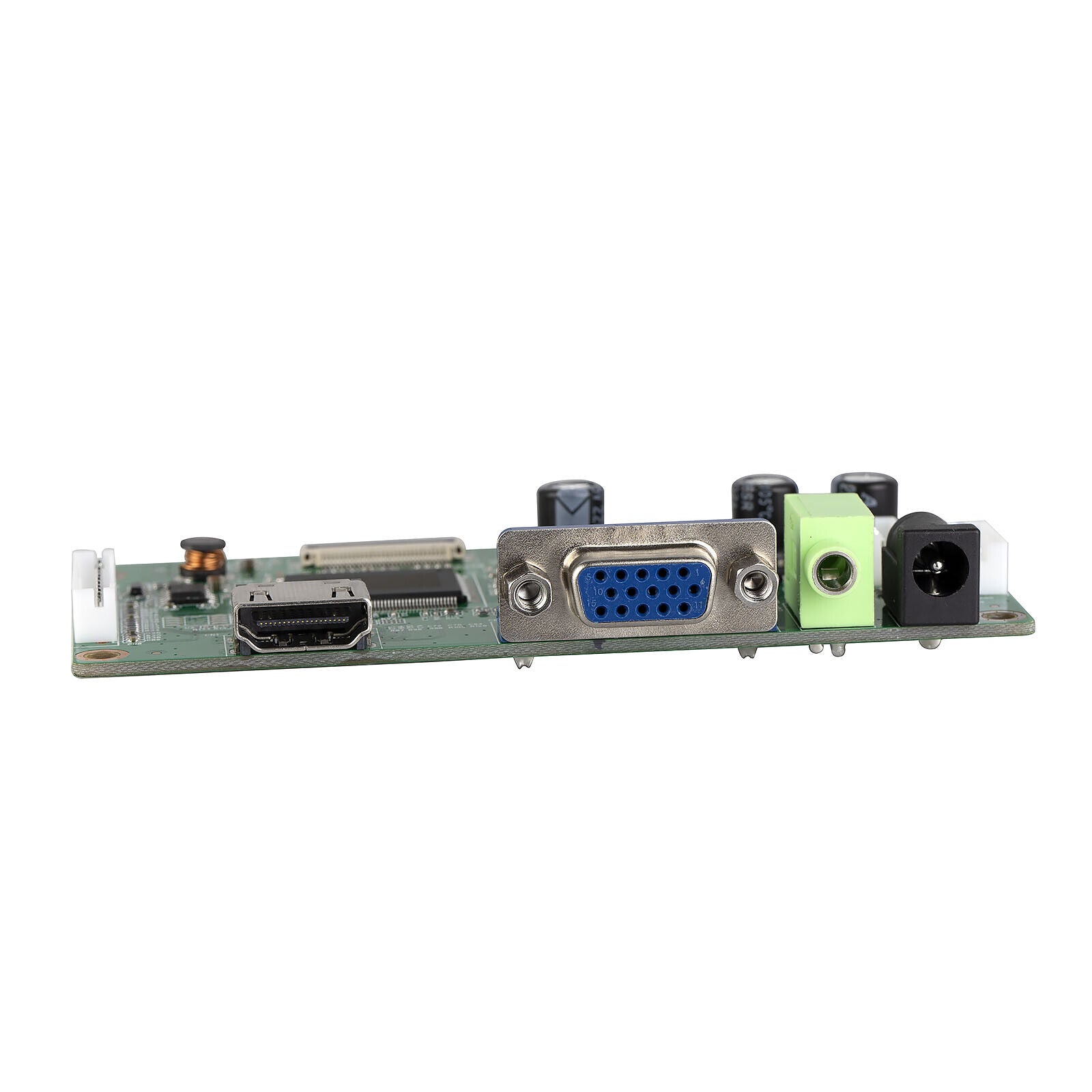

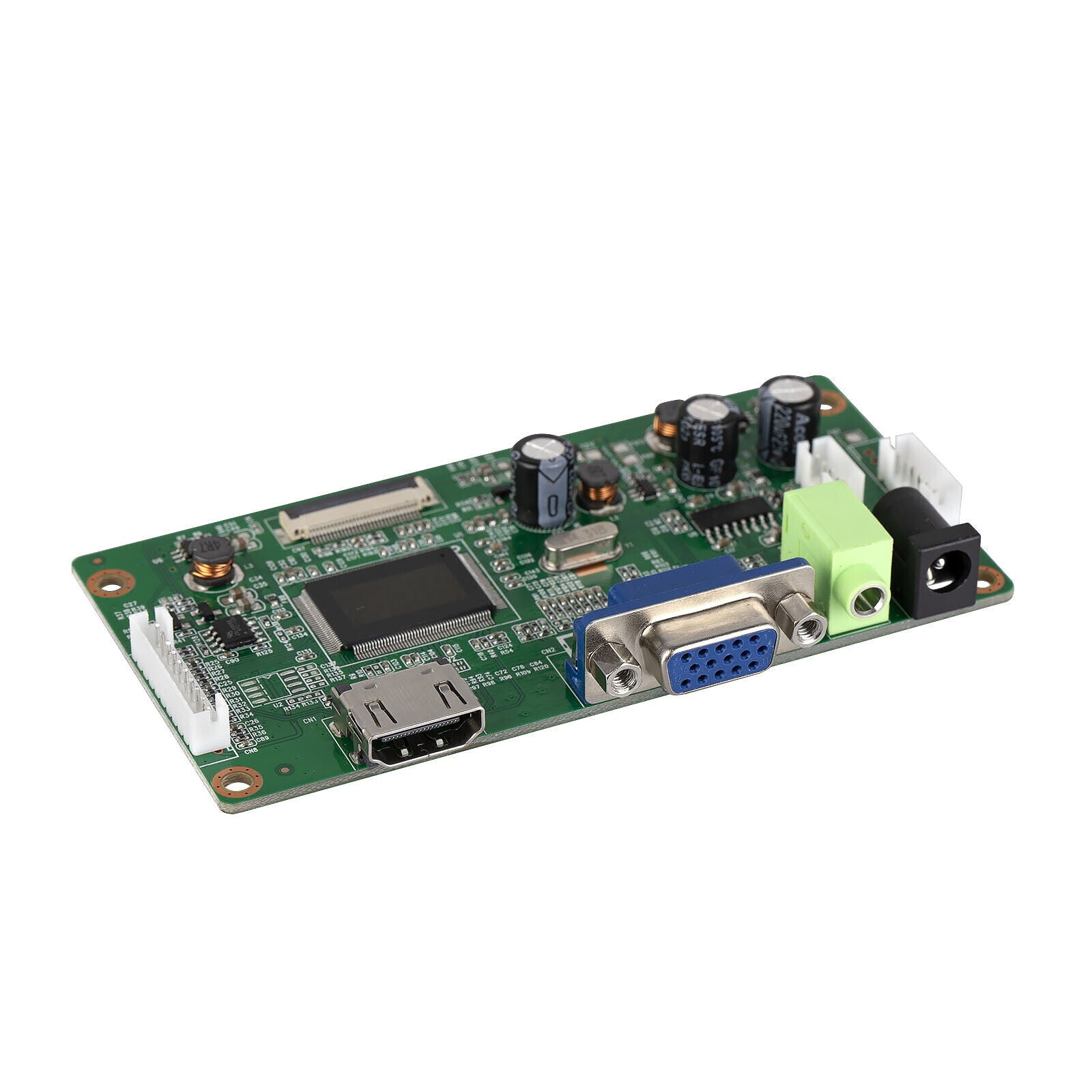

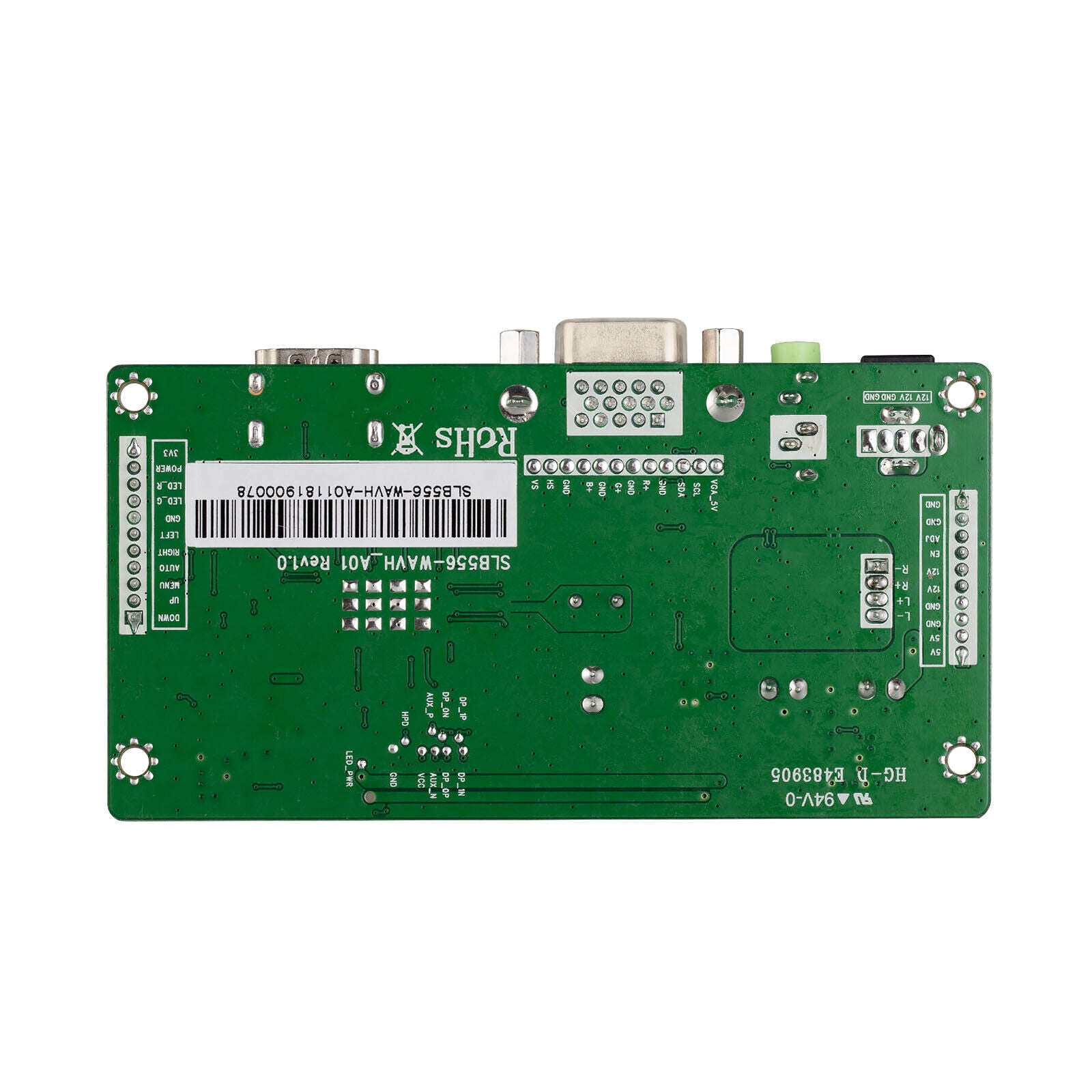

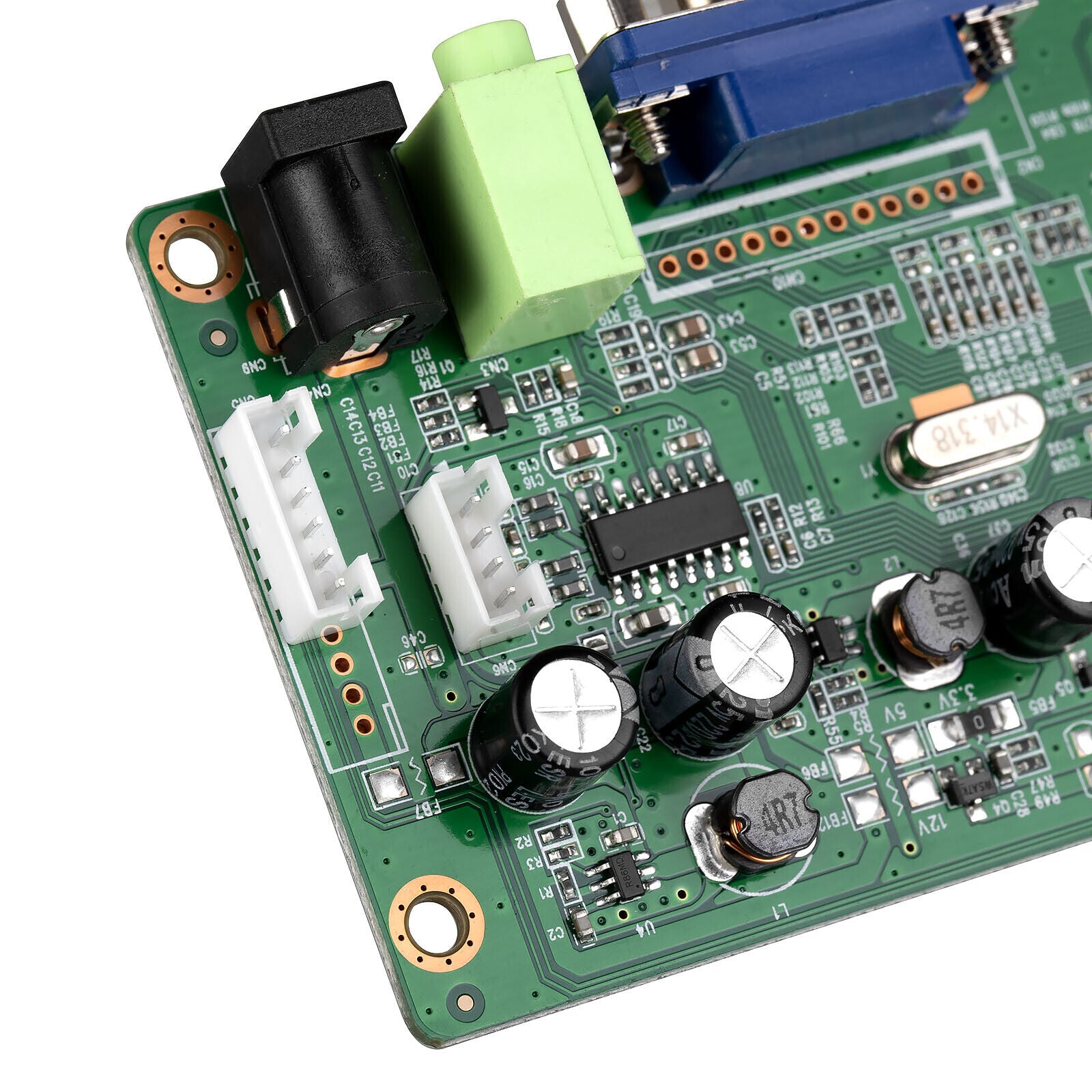

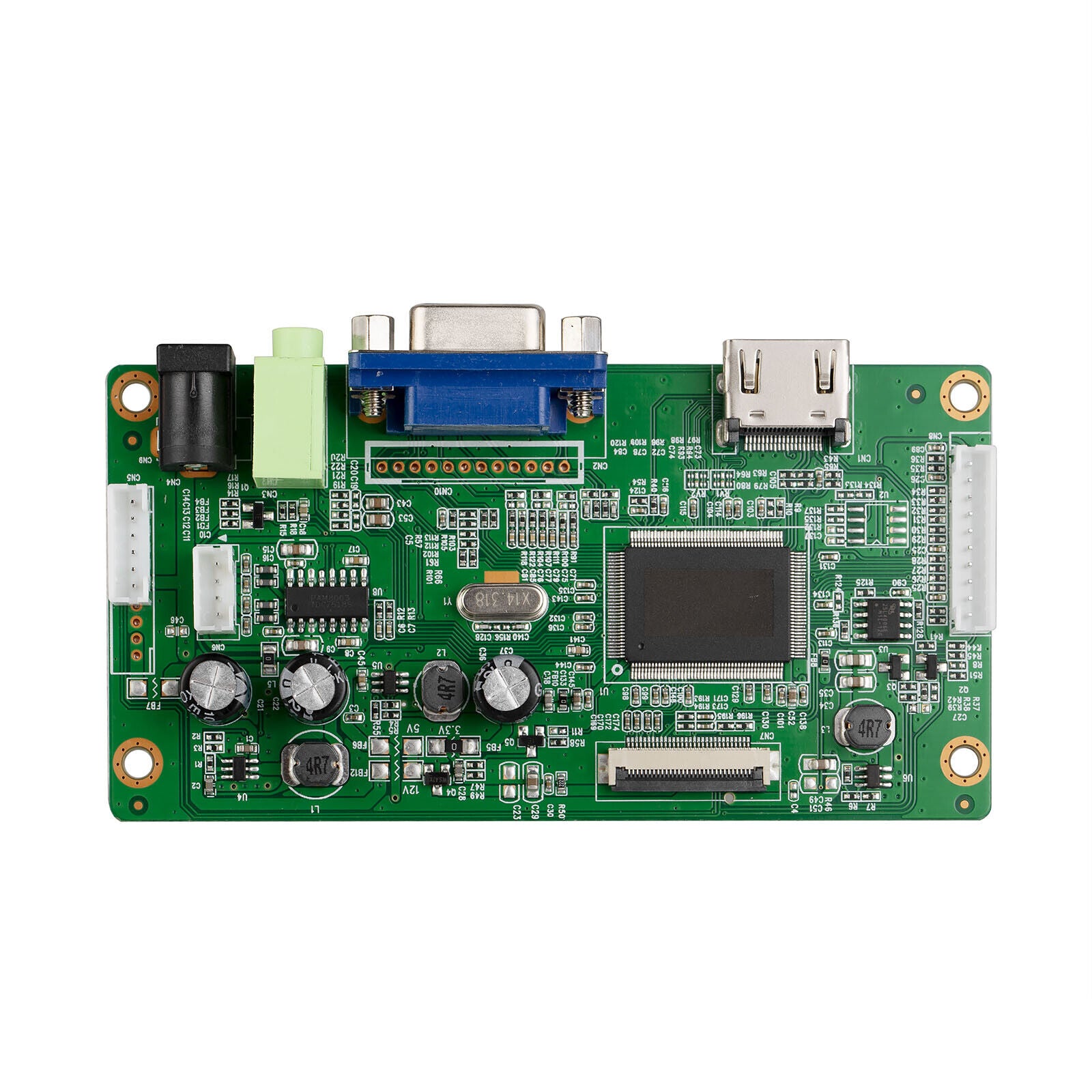

- 1 x Driver board

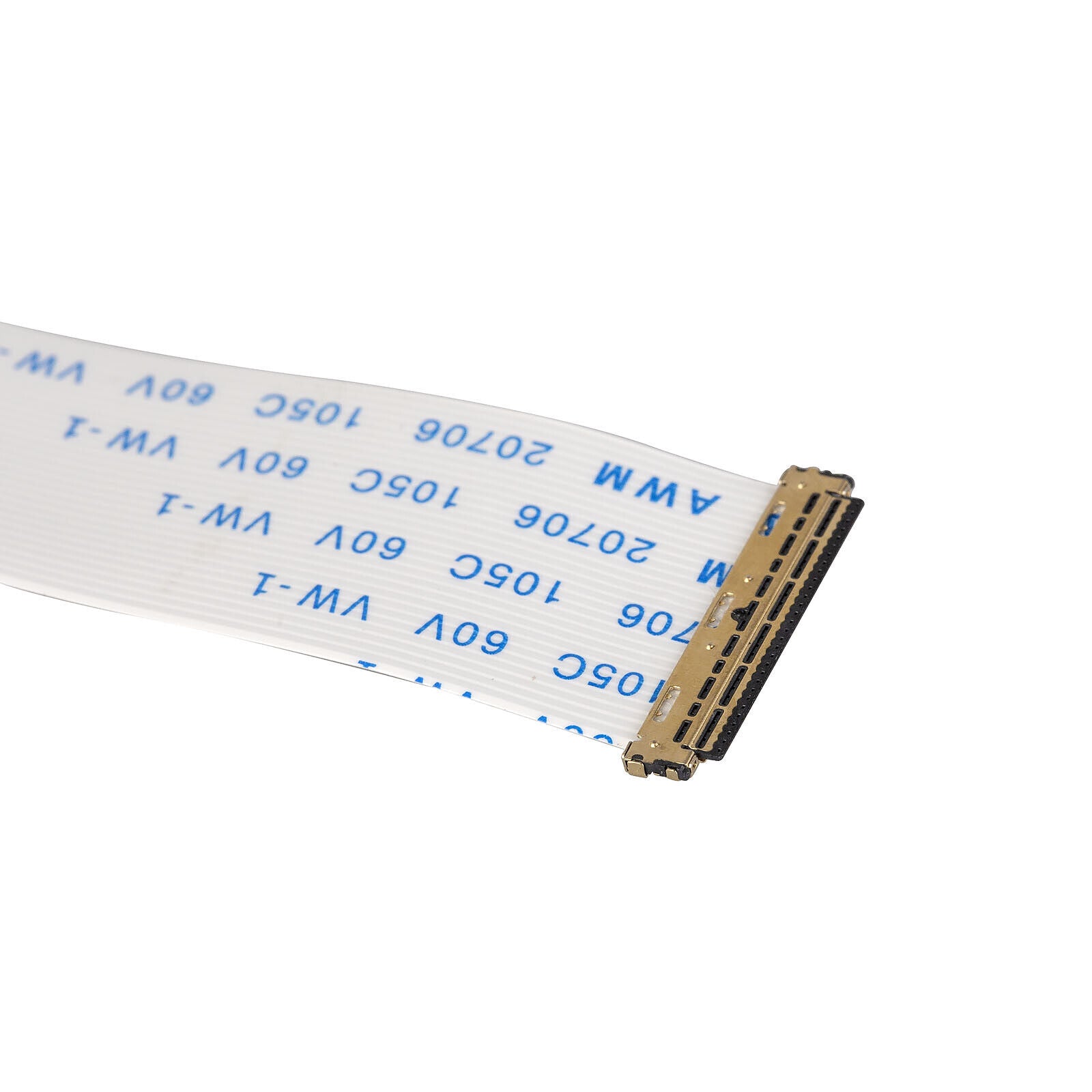

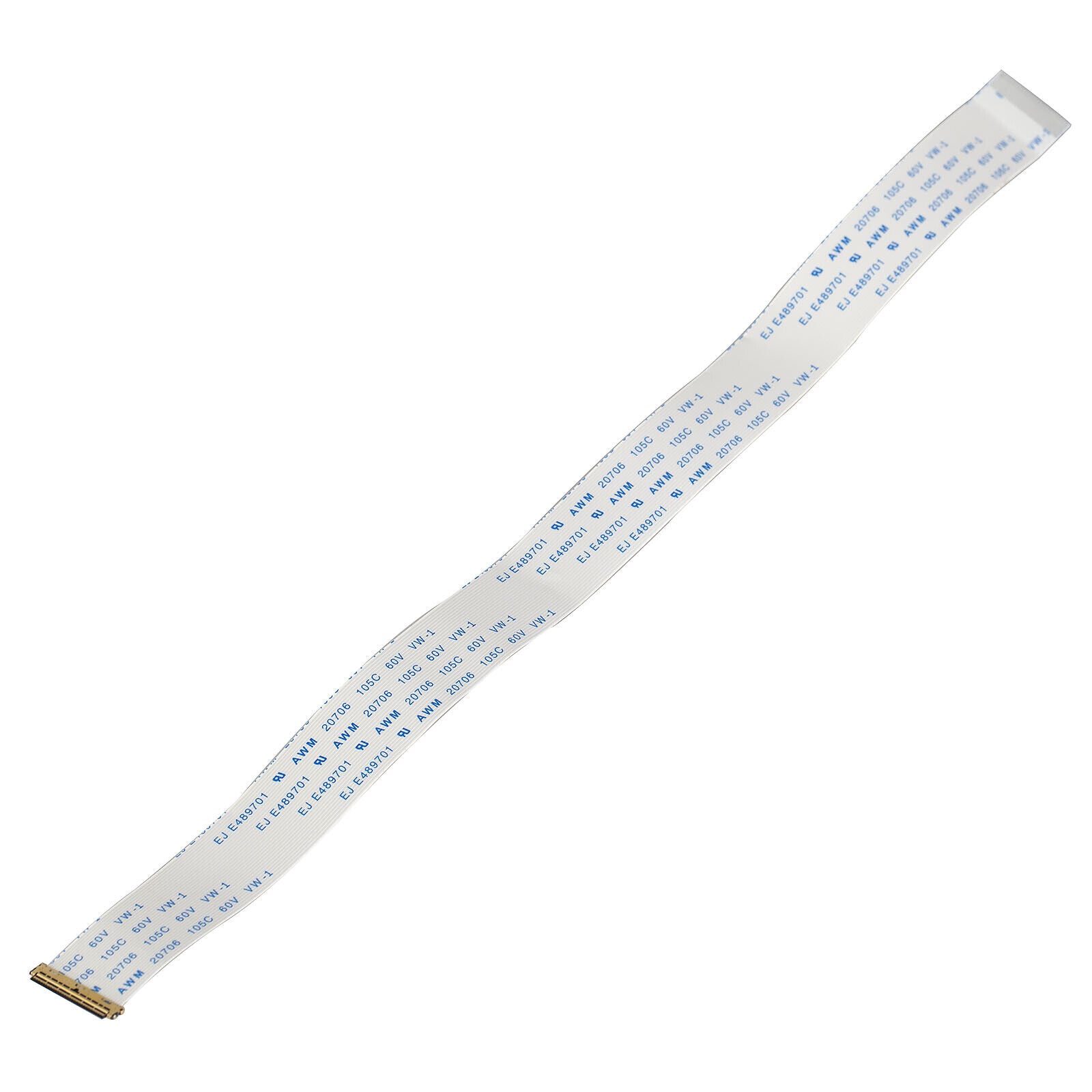

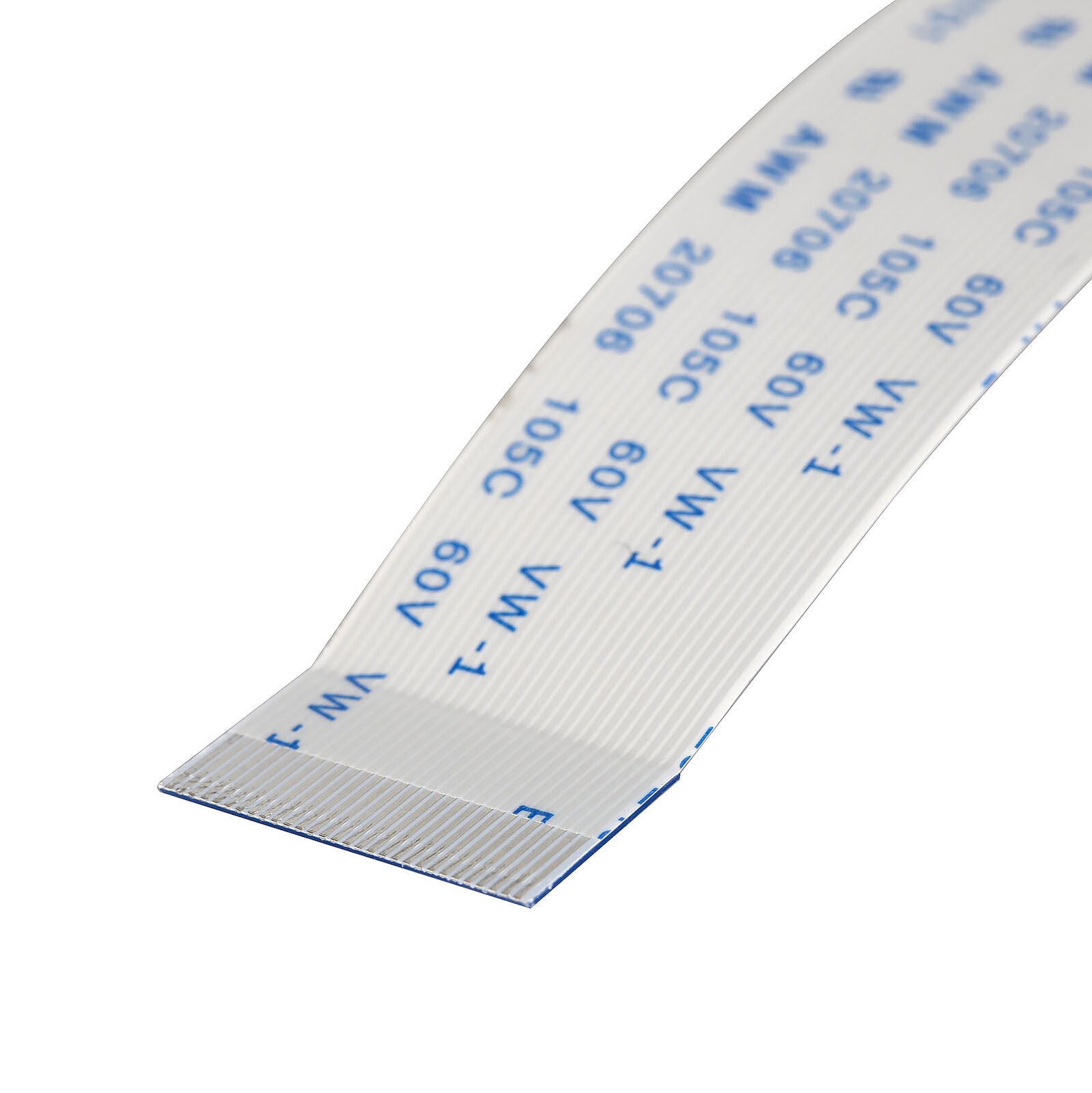

- 1 x eDP cable

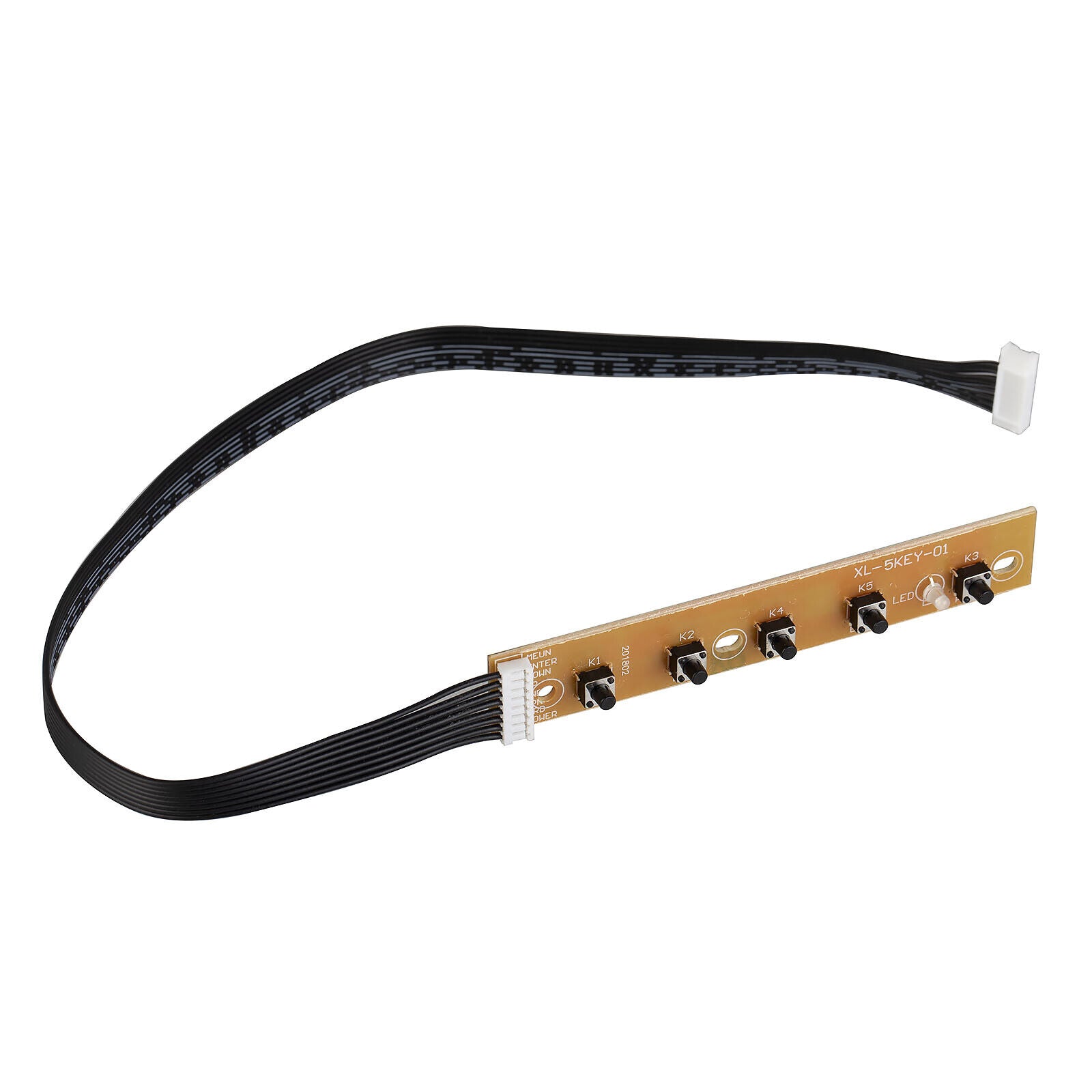

- 1 x 5-key menu board
Features：
- Support resolution up to 1920 x 1080 (1080P)
- Support eDP voltage 3.3V only, voltage is FIXED
- VGA and HDMI video input, 3.5mm audio input, 4 pin speaker header (speaker not included)
- Support control of contrast, brightness, digital volume... etc
- Board size: 10.6 x 5.5cm / 4.17 x 2.16 inch
