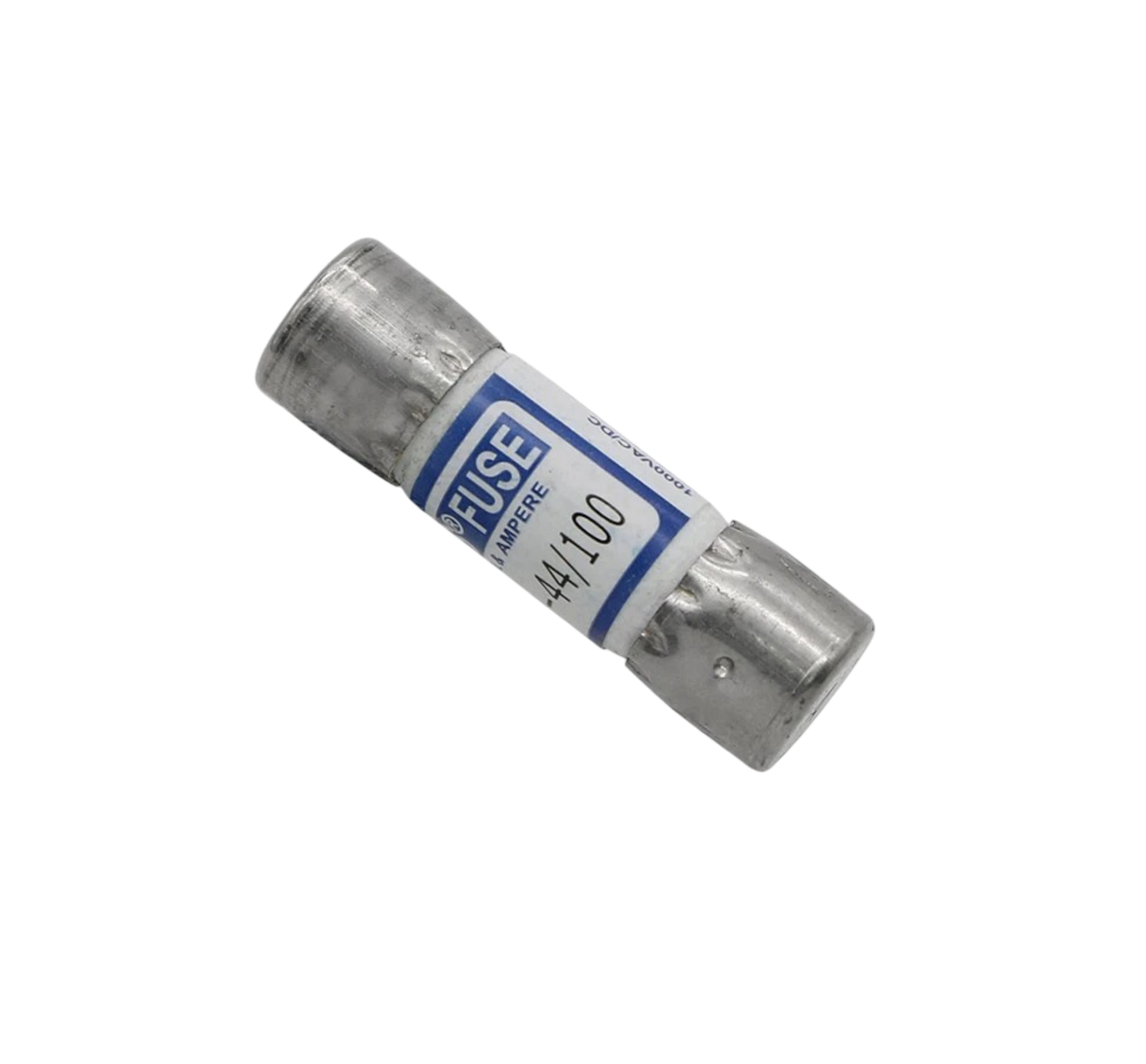

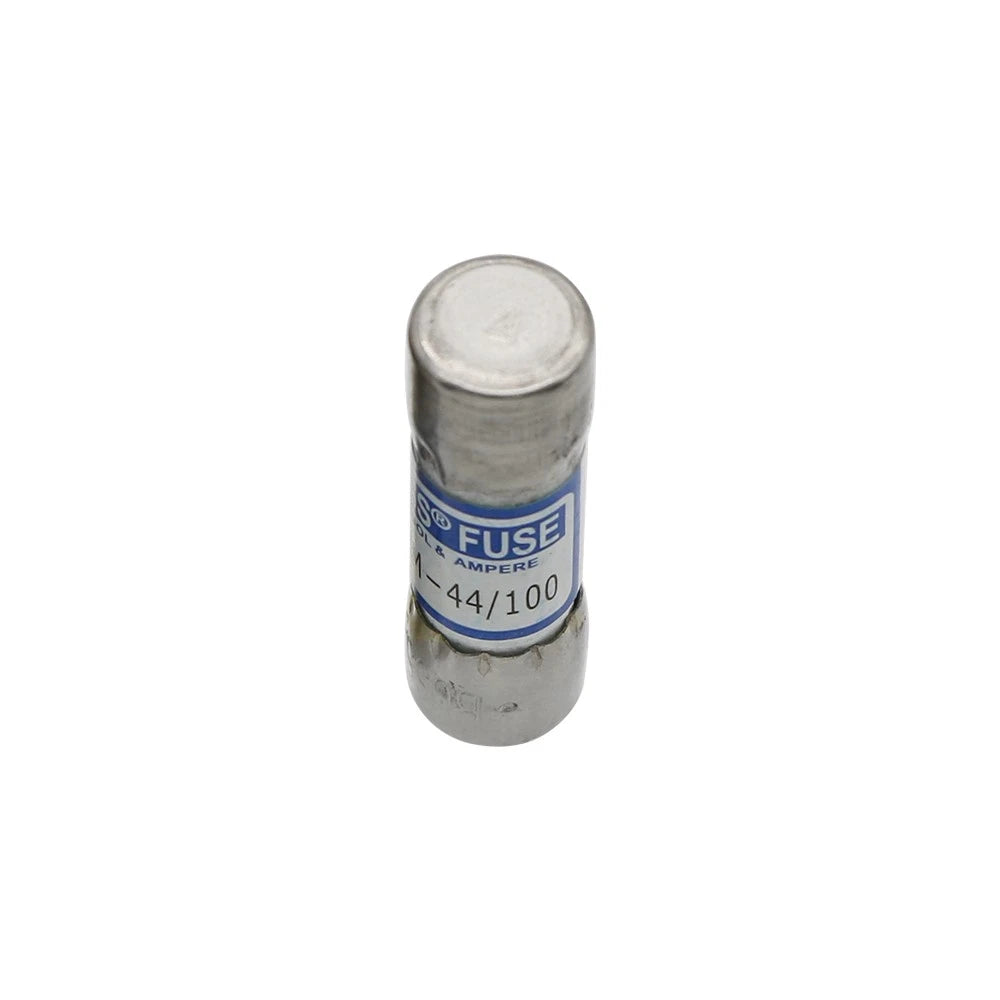

Fuse 44/100 Amp 440 mA 1000V High Voltage for Fluke 27 85 87 175 189

$ 14.95

Explore payment options with

Used to protect the low current measurement circuitry in the following Fluke Digital Multimeters:
23-III, 26-III, 27 (S/N over 7211001)
77-III, 79-III, 83, 83-III, 85, 85-III, 87 (S/N over 65650001)
87-III, 87E-III, 87-IV, 87-V, 88-V, 89-IV, 175, 177, 179, 187, 189, 863, 865, 867 and 867B.

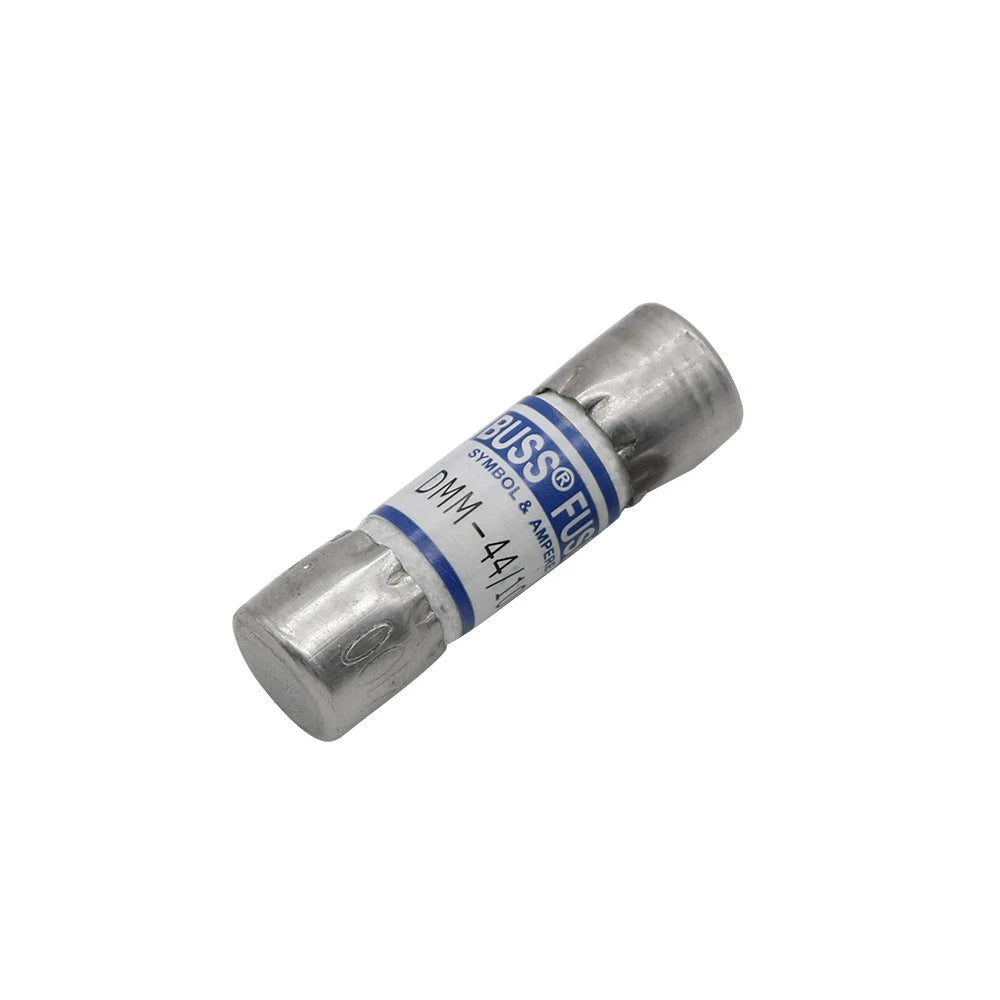

This fuse is called/known as Fluke fuse 440mA 1000V, Fluke fuse DMM-44/100, BUSSMANN Fuse DMM 44/100 or BUSSMANN Fuse DMM-B-44/100, or Fluke fuse 943121, Fluke fuse 203411 or Fluke fuse 203414.

To check to this fuse in your meter, point the rotary function switch to the V~ (AC Voltage) function and insert either lead into the mA/uA connector on the front of the meter. If you hear a "chirping" sound, the fuse is good. If you don't hear a sound, the fuse is defective - assuming the meter "beeper" is OK...

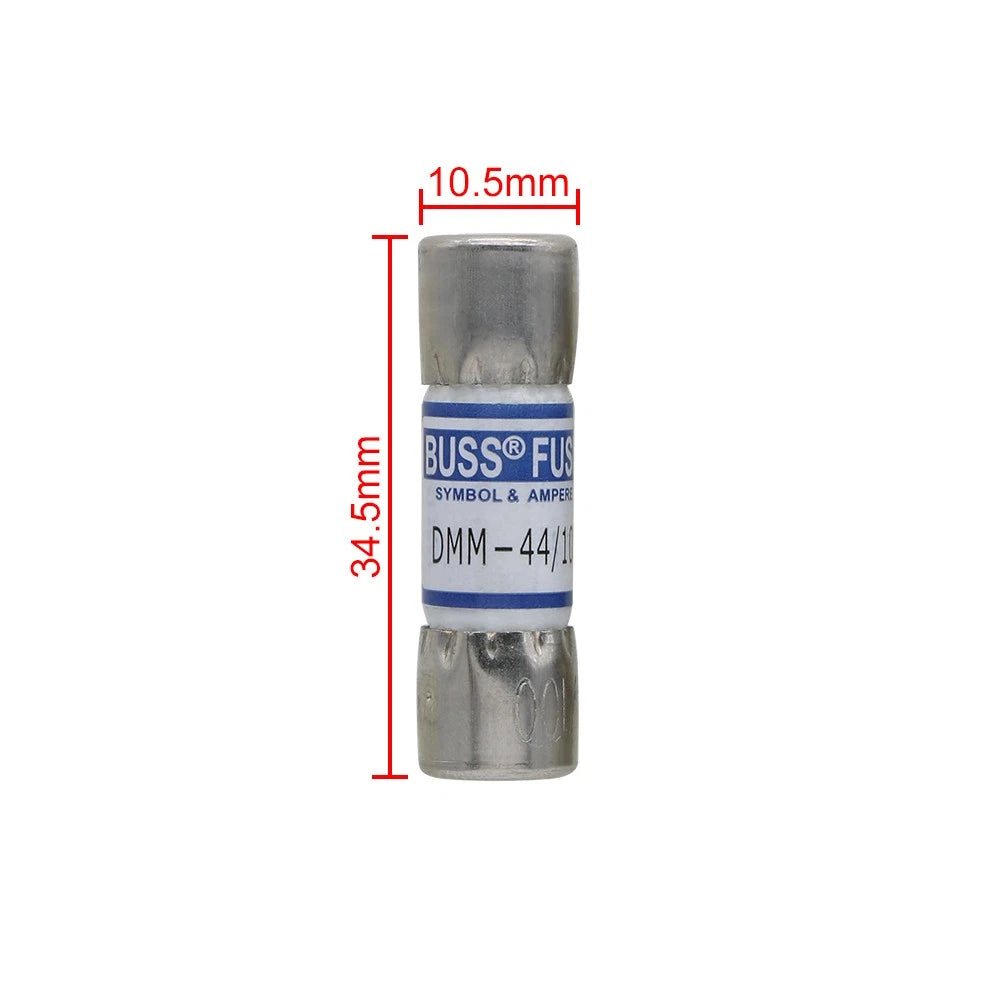

Dimension of the fuse: 34.9 mm (1.375 In.) L x 10 mm (0.406 In.) D

Package Included:
1PCS Fuse 44/100 Amp
We selling Fuse only, the digital multimeter in picture as an application scenario instruction, not included for sale.

Fitment and compatibility

Application reference: Fuse 44/100 Amp 440 mA 1000V High Voltage for Fluke 27 85 87 175 189

Fitment can vary by production date, trim, drivetrain, factory options, connector style and installed equipment. Before ordering, compare the original component, mounting points, electrical connections and specifications with the listing photographs and details.

Part number information

Part number / catalog reference: 1000V

Part numbers may have supersessions or regional variations. Match at least one reference number and the physical configuration to the original part whenever possible.

Package and installation notes

Quantity is one product unless the title, variant selection or photographs clearly state otherwise. Professional installation is recommended for electrical, safety-related and drivetrain components.
