Fuel Pump Module Assembly for 1999-2005 Toyota Yaris 1.3L 77020-0D010

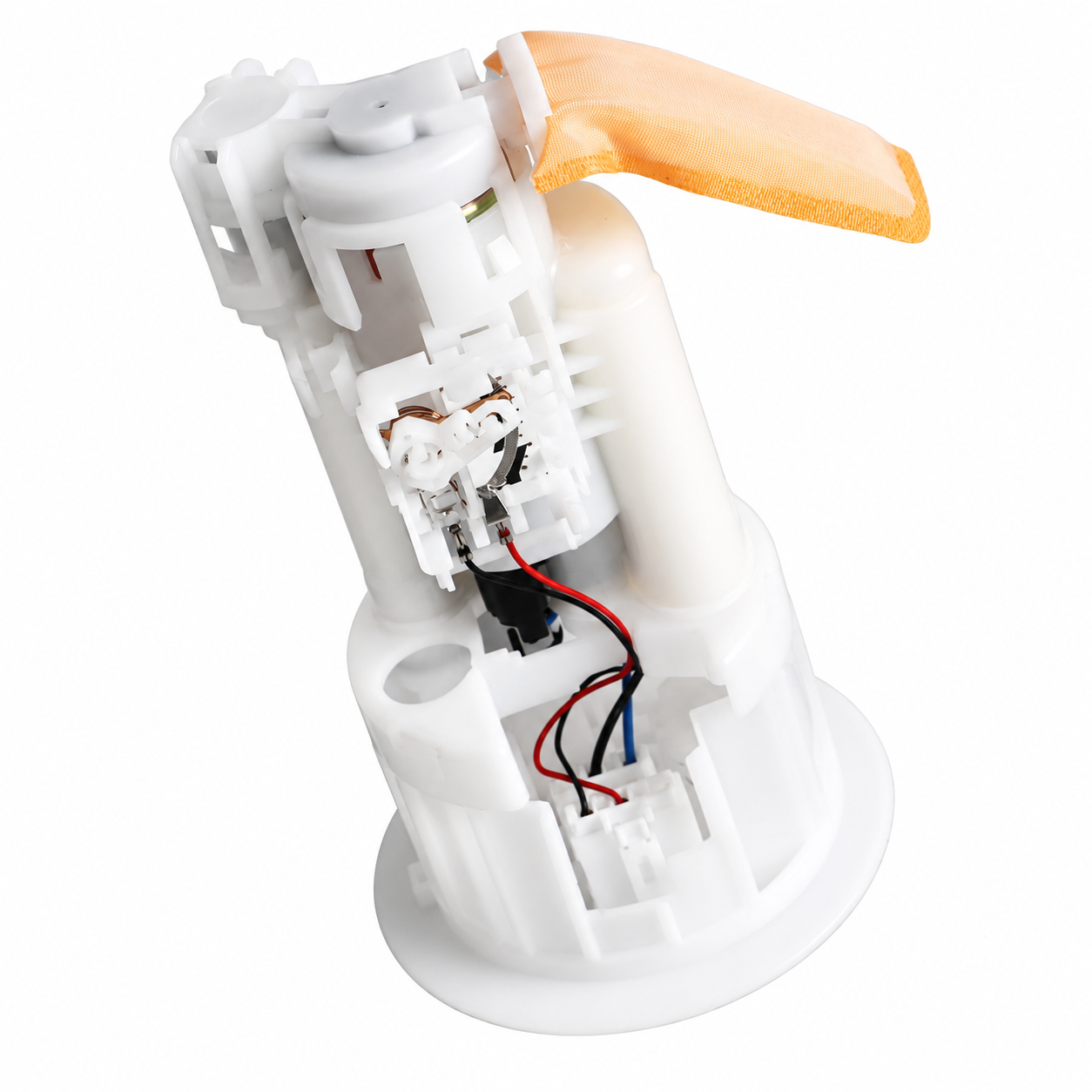

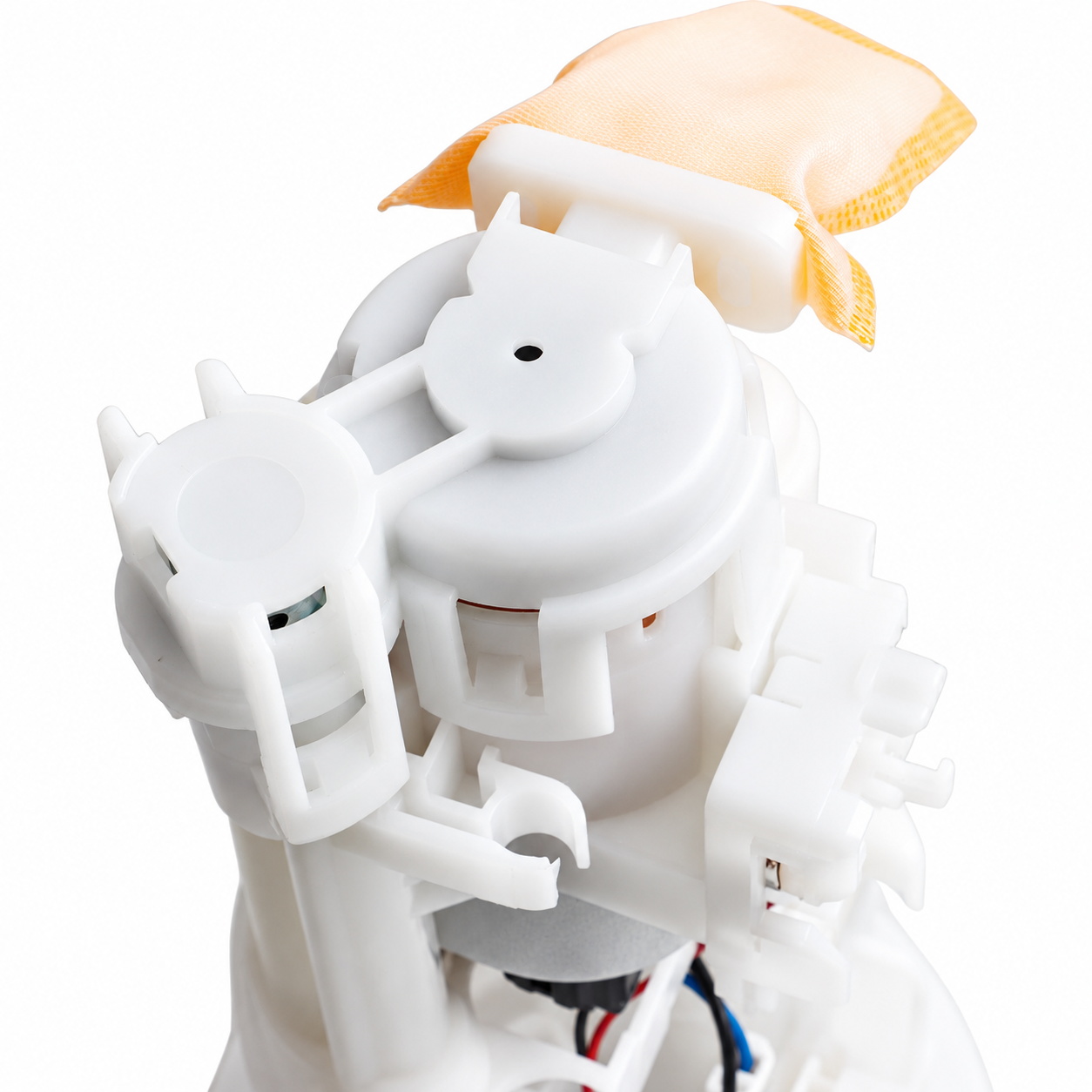

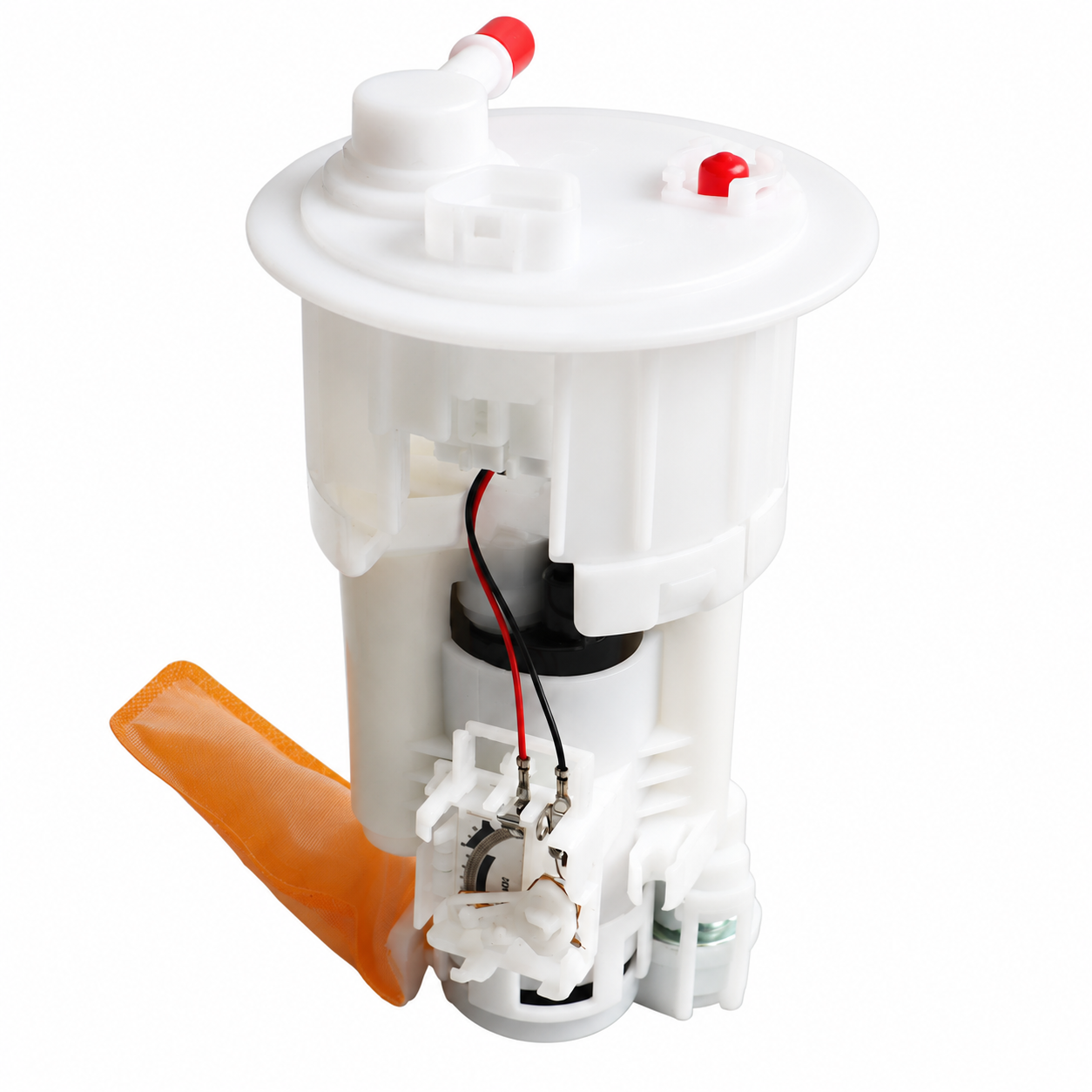

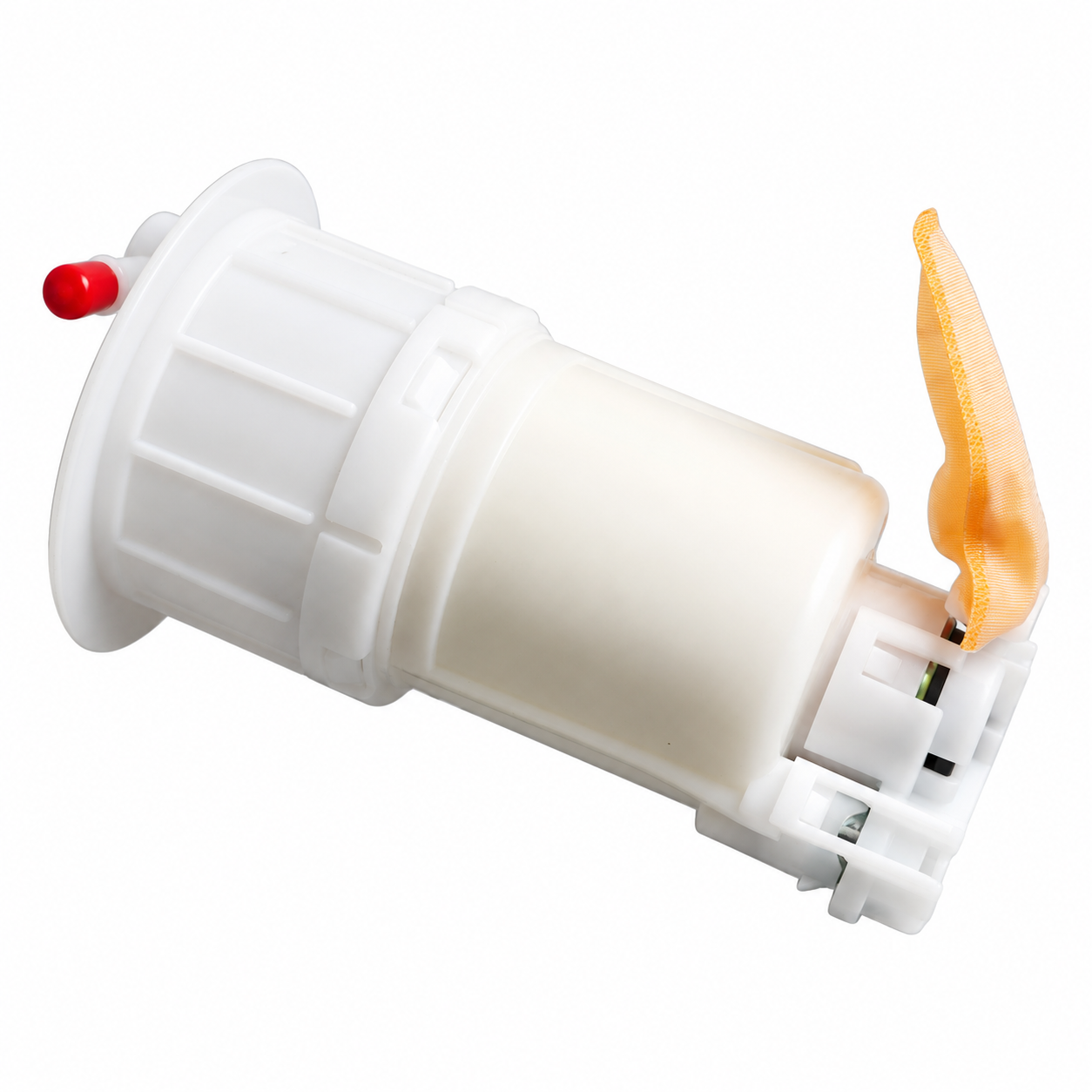

Replace a matching in-tank fuel-pump assembly with this module for first-generation Toyota Yaris petrol applications. The assembly includes the pump housing, intake strainer, fuel-level sender and float arm, with a separate sealing ring as pictured.

Product details

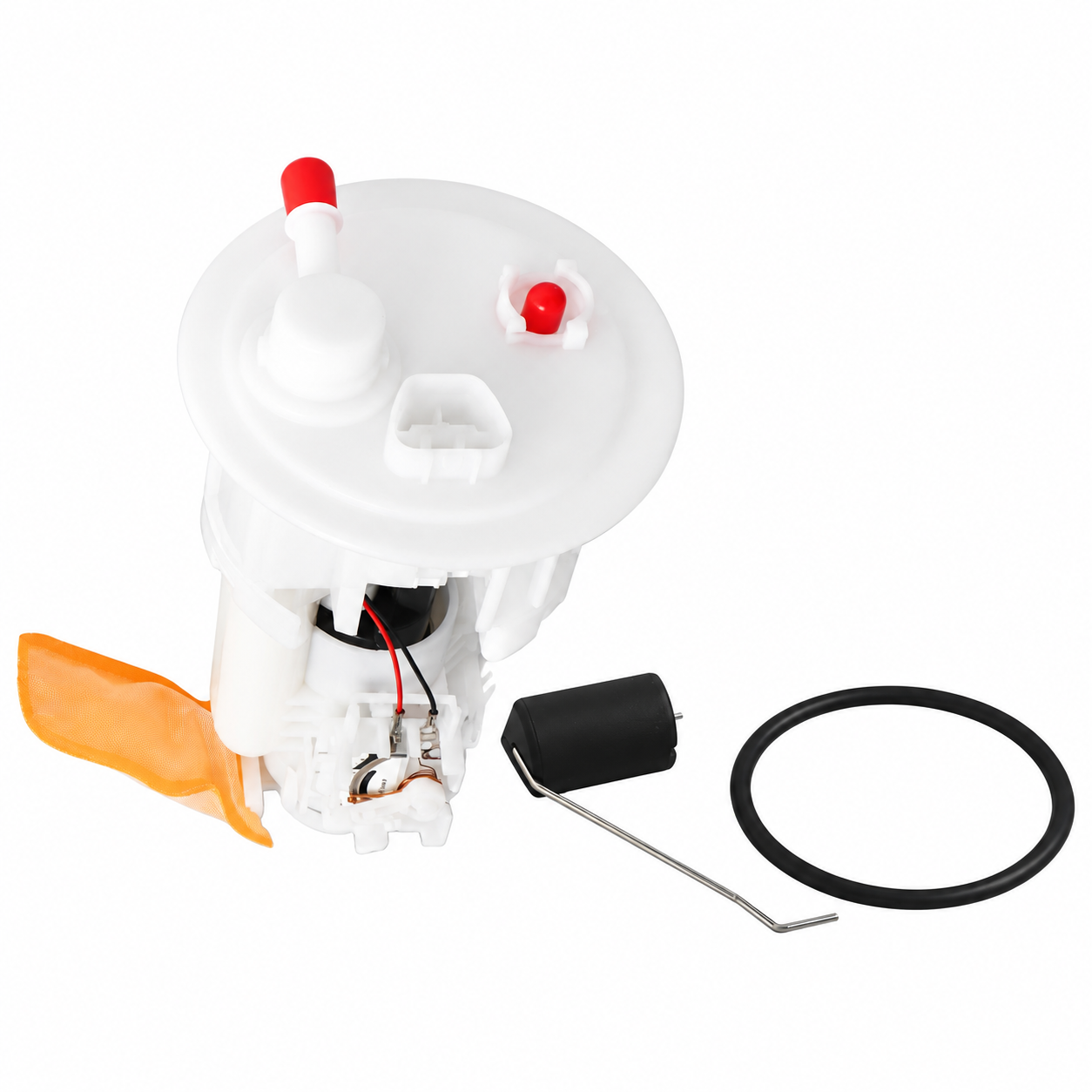

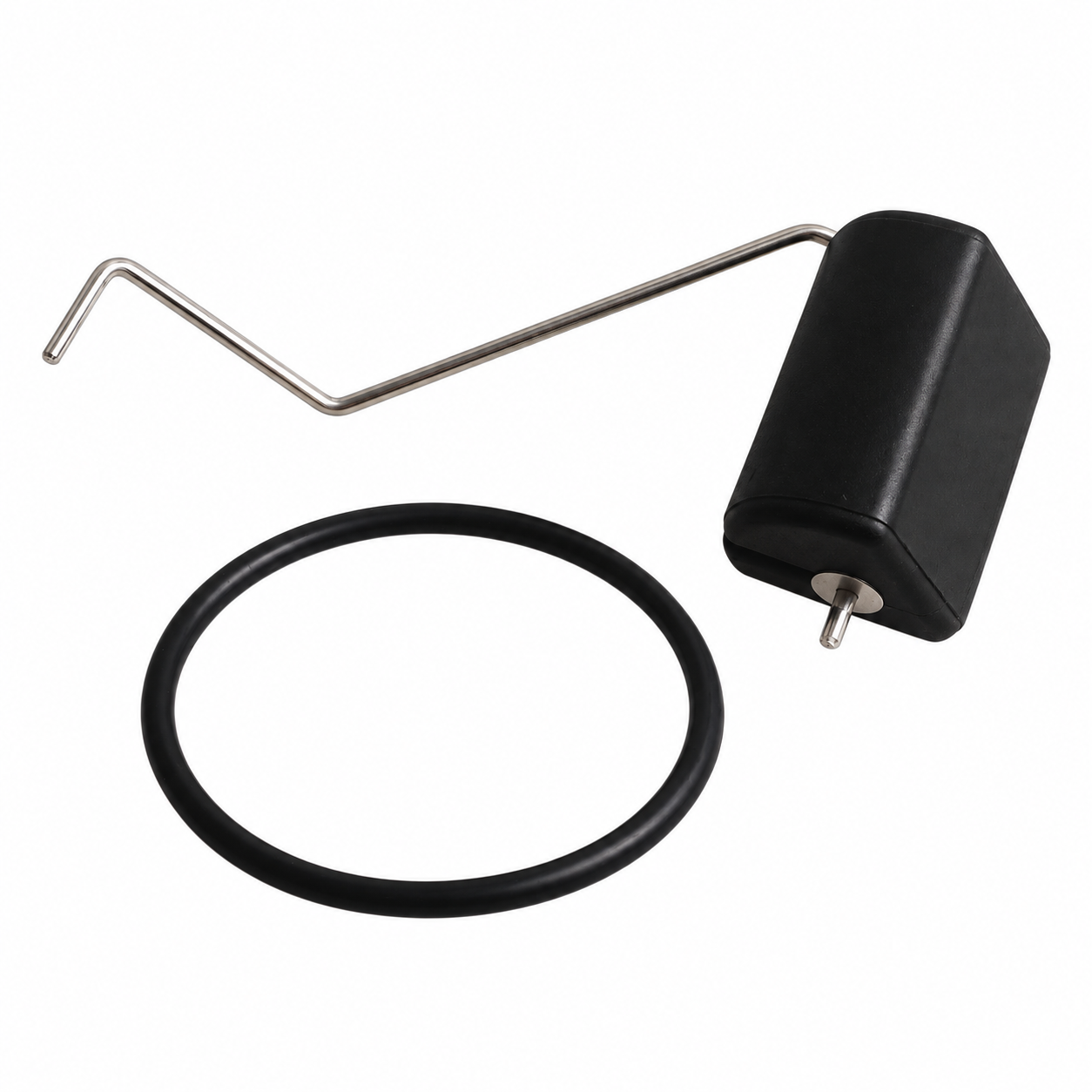

• Includes one fuel-pump module assembly, float arm and sealing ring
• Replacement reference: 77020-0D010 / 770200D010
• Electric in-tank petrol pump module

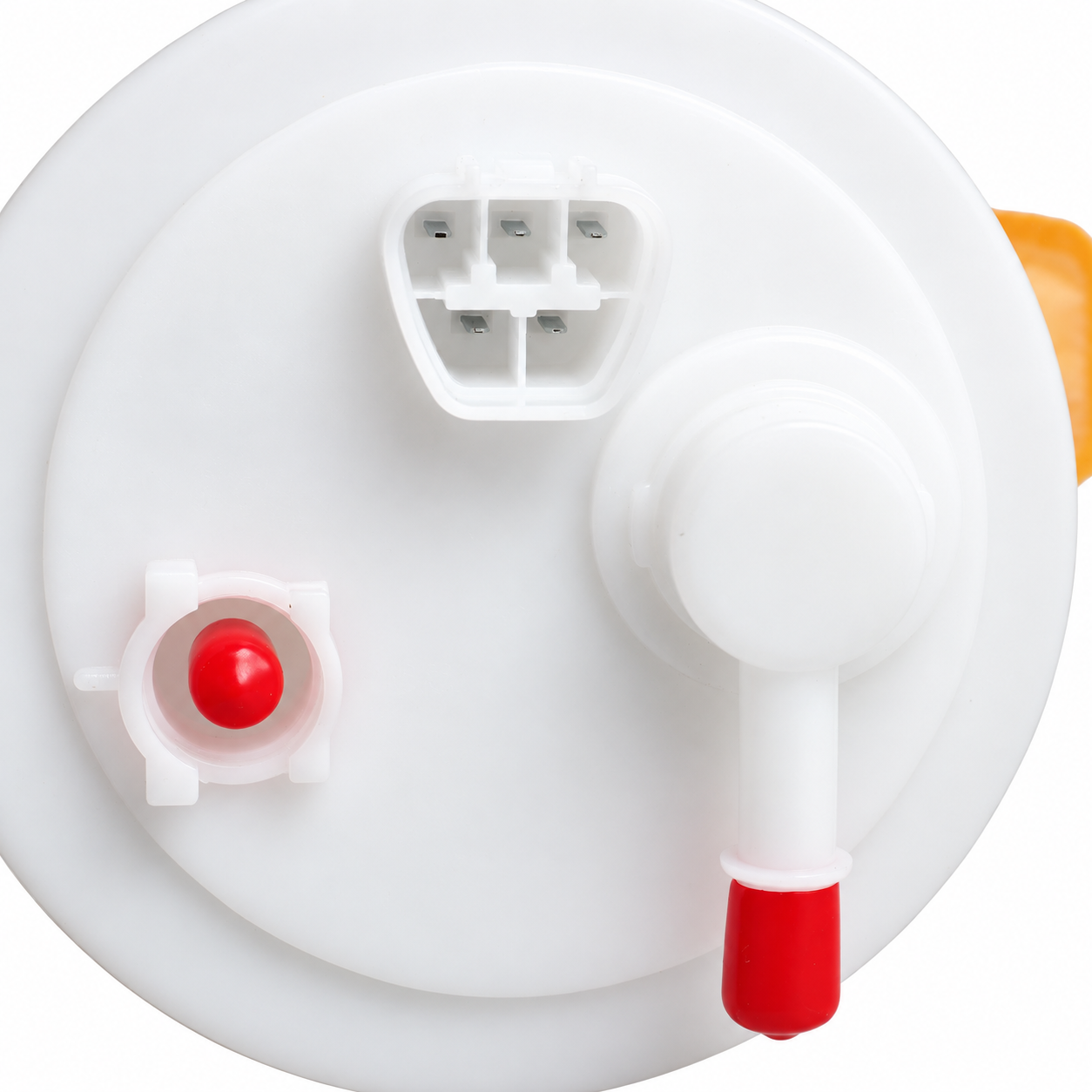

• White molded housing with the pictured electrical connector and fuel outlets
• Not for diesel applications

Fitment and compatibility

For 1999-2005 Toyota Yaris 1.3L petrol models using the 77020-0D010 module design. This is the first-generation Yaris application, not the later North American Yaris or Scion xD module.

Confirm the original module reference by VIN and compare the top flange, five-position connector, outlet arrangement, housing height and float-arm travel with the removed assembly. Production-market and fuel-system differences can change the required module; do not select by displacement or year alone.

Installation involves the fuel tank and flammable petrol. Follow the vehicle service procedure for depressurizing, sealing, electrical connection and leak checks. Professional installation is recommended.
