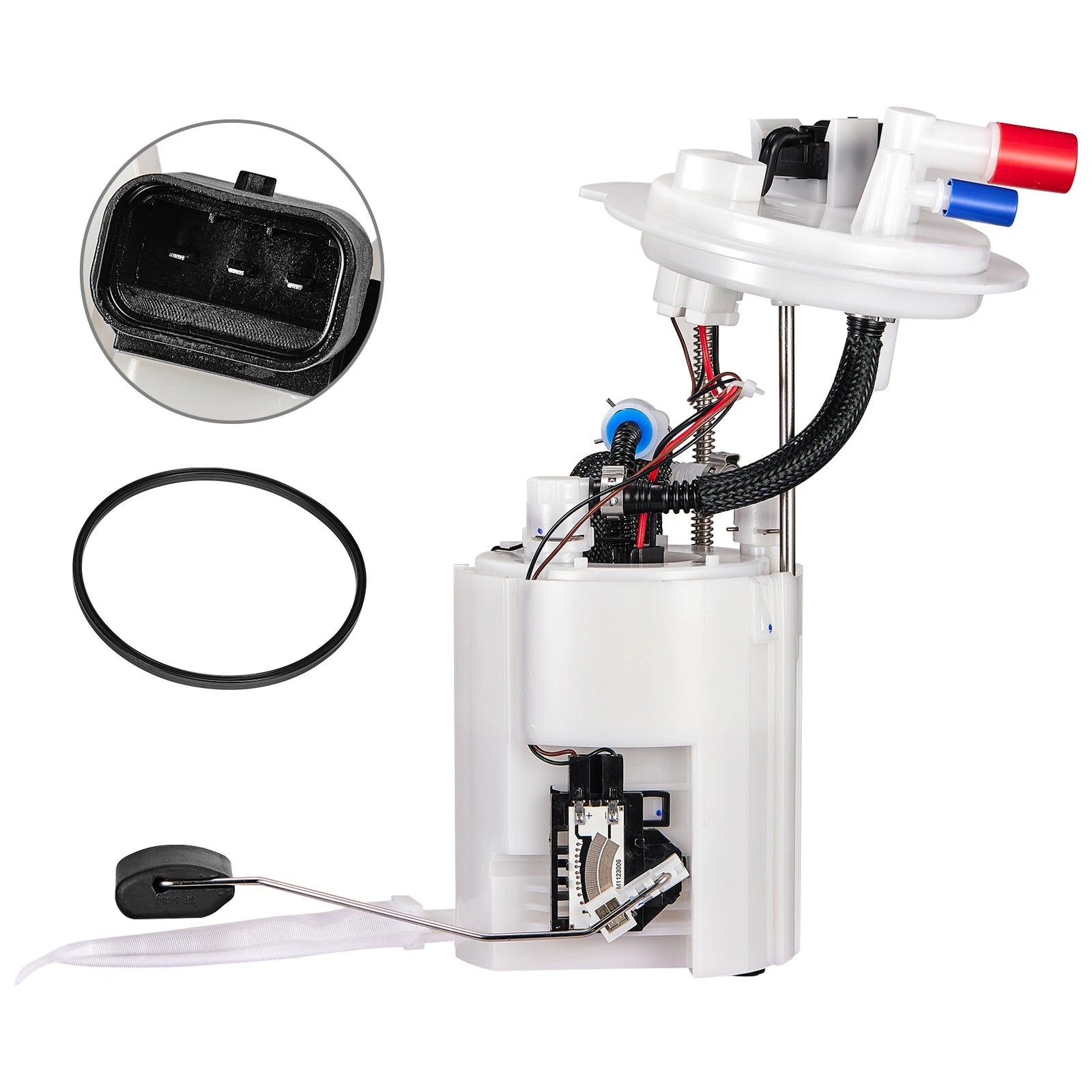

Fuel Pump Assembly for 2011-2014 Hyundai Sonata 2.4L 2012-2015 Kia Optima 2.4L

Fitment

For Hyundai:
2011-2014 Sonata 2.4L
For Kia:
2012-2015 Optima 2.4L

Attributes

Brand:TEMBOR
Condition:New
Manufacturer Warranty:1 Year
Drive Type:Electrical
UPC:Does not apply.
Connector Gender:Female
Float Included:Yes
Gasket or Seal Included:No
Internal Or External Strainer:Internal
Mounting Hardware Included:No
Wiring Harness Included:No
Black Pressure Sensor Included:No
Custom Bundle:No
Interchange Part Number:E9120M,SP3037M,P76756M,FG1285
Modified Item:No
Type:Fuel Pump
Weight:4 LB
Color:White
OE Spec or Performance/Custom:OE Spec
Pressure:65-75 psi
Voltage:12 V
Flow Rate:65-75
Flow Rate:65-75 gph

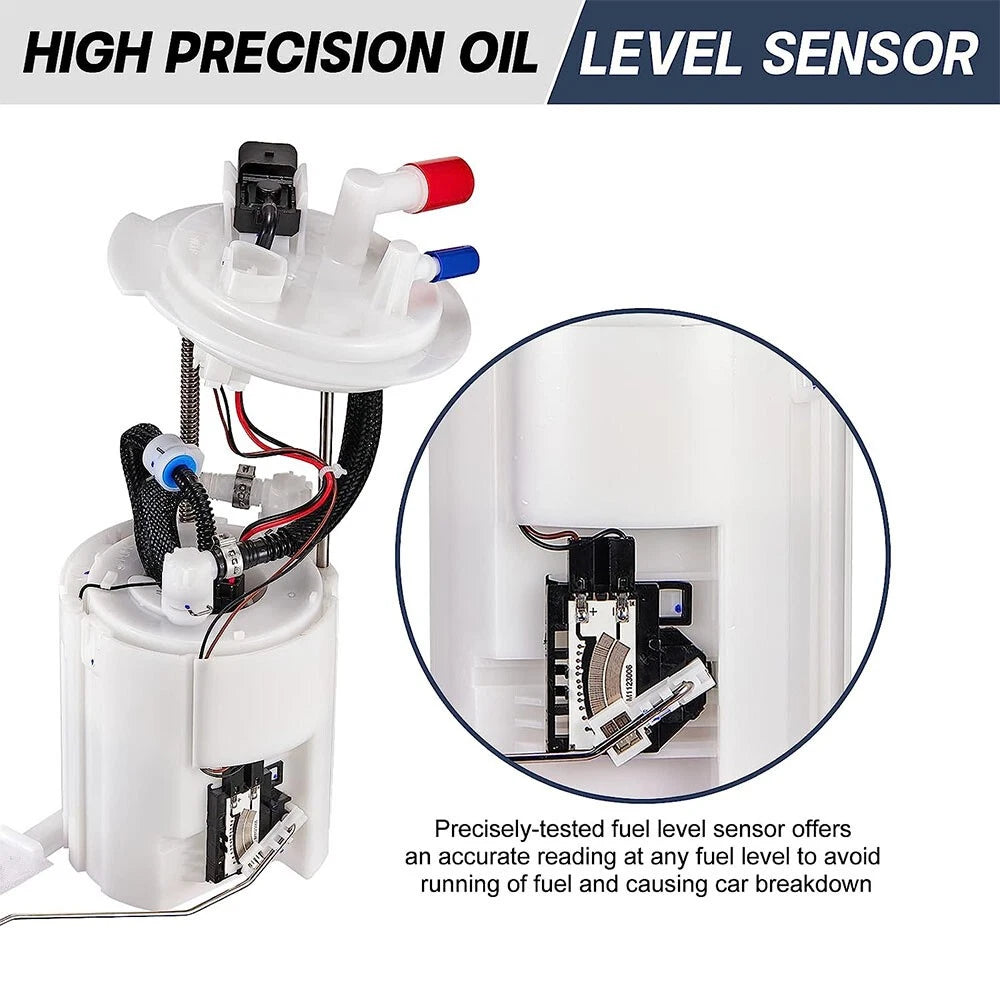

Fuel Level Sender Resistance:8-200 ohm
Fuel Type:Gasoline
Inlet Type:Strainer
OE/OEM Part Number:311103Q600, 311103Q699, 311103Q700
Outlet Size:5/16
Outlet Type:Quick Connect

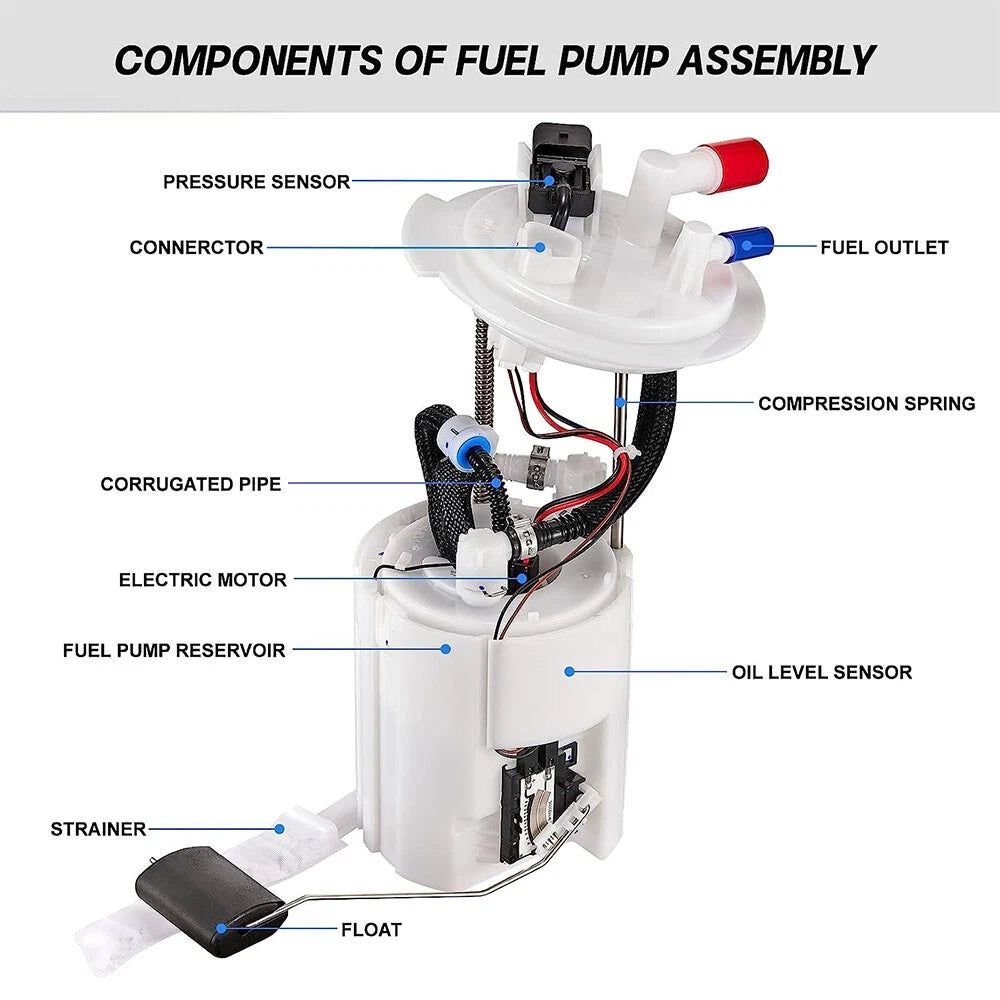

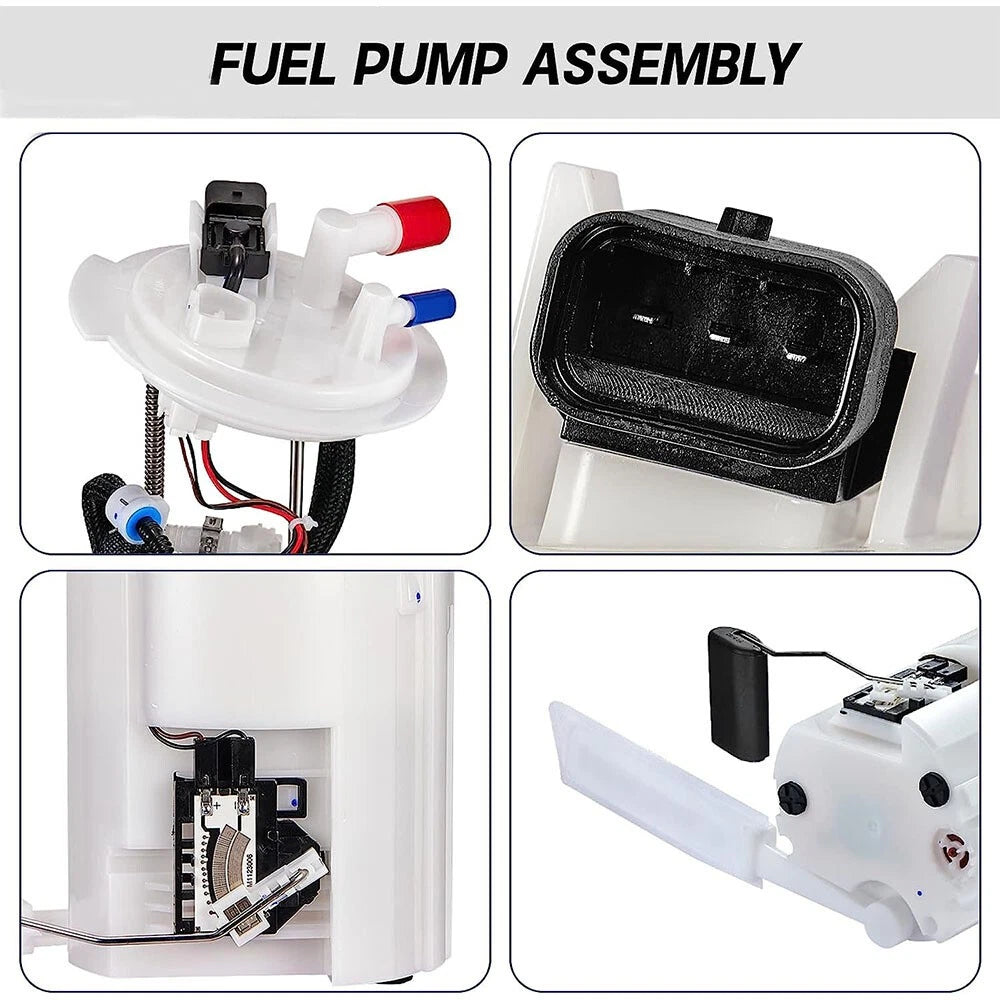

Package Contents:Fuel Pump Module Assembly w/Float Arm
Placement on Vehicle:Fuel Tank
Placement on Vehicle:In Tank
Pressure:65-75
Terminal Gender:Male
Terminal Type:Blade
Type:Electrical
Voltage:12.0 2H

Key Benefits

• Designed specifically for the optimal replacement in fuel systems, ensuring efficient fuel transfer with a flow rate of 65-75 gph.
• Offers OE Spec conformity that aligns with original vehicle specifications for models using part numbers 311103Q600, 311103Q699, and 311103Q700.
• Suitable for gasoline fuel types, providing reliable performance for for various vehicle applications.
• Equipped with an internal strainer, enhancing filtration and durability by preventing debris intrusion.

Installation Guide

• Ensure vehicle is parked on a level surface and disconnect the battery before starting the installation.
• Carefully detach the fuel tank to gain access to the in-tank fuel pump assembly.
• Remove the old fuel pump by disconnecting the electrical connectors and carefully removing the quick connect outlet.
• Install the new fuel pump assembly, ensuring the float arm is correctly positioned within the tank.
• Reattach any disconnected wiring, ensuring secure connections with the blade terminal type.
• Reinstall the fuel tank, reconnect the battery, and test the system for proper functionality.

Important Notes

• Verify compatibility requirements using interchange part numbers such as E9120M, SP3037M, P76756M, and FG1285 before purchase.
• Note that the package does not include a gasket or mounting hardware; these items may need to be sourced separately if required.
• Operating voltage must be 12 V to ensure optimal performance; deviations may affect system efficiency.
• Fuel level sender resistance measures between 8-200 ohm; ensure this specification aligns with your vehicle's requirements.
• This item is provided with a 1-Year manufacturer warranty for added assurance and support.

Fitment and compatibility

Application reference: Fuel Pump Assembly for 2011-2014 Hyundai Sonata 2.4L 2012-2015 Kia Optima 2.4L

Fitment can vary by production date, trim, drivetrain, factory options, connector style and installed equipment. Before ordering, compare the original component, mounting points, electrical connections and specifications with the listing photographs and details.

Part number information

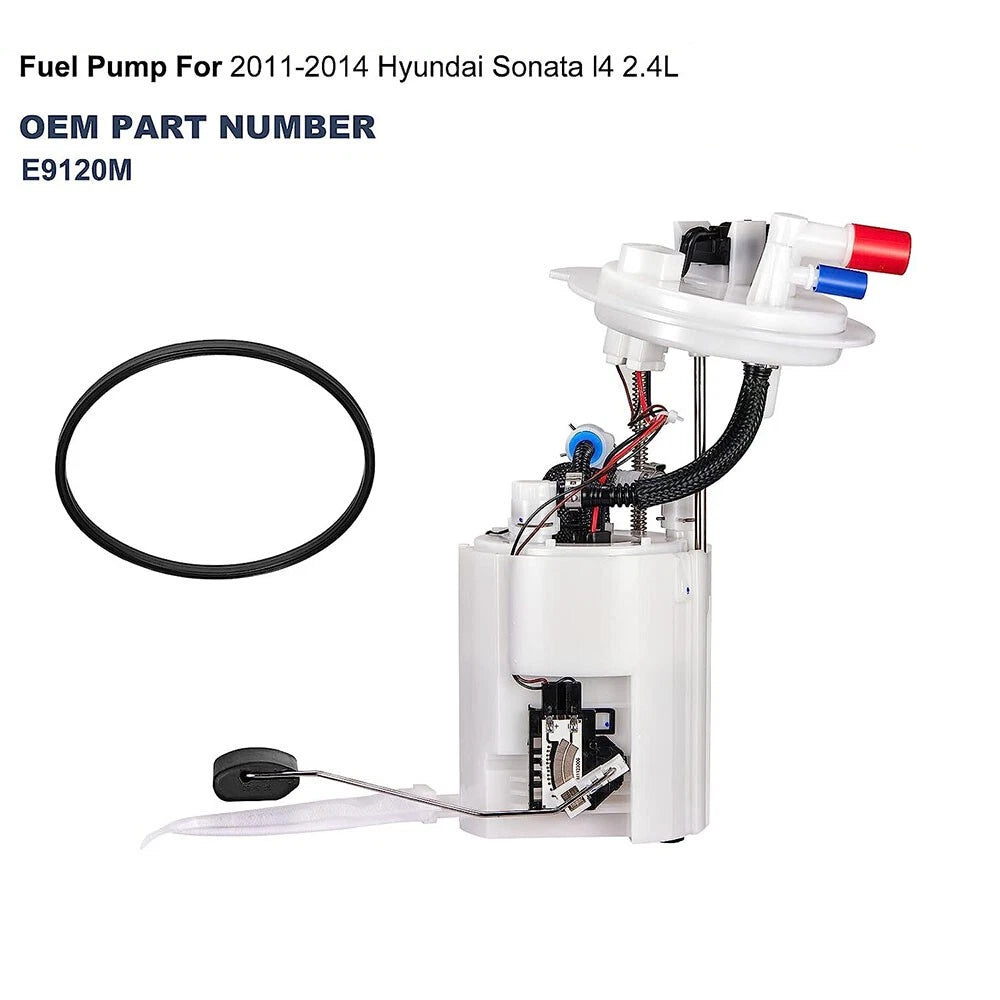

Part number / catalog reference: E9120M, 311103Q600

Part numbers may have supersessions or regional variations. Match at least one reference number and the physical configuration to the original part whenever possible.

Package and installation notes

Quantity is one product unless the title, variant selection or photographs clearly state otherwise. Professional installation is recommended for electrical, safety-related and drivetrain components.
