Foxwell NT520 Pro for Land Range Rover Jaguar Diagnostic Tool SRS ABS Engine Transmission NT510

  • $ 249.95

Pro Multi-System Scanner Tool

The Foxwell NT510 for LAND ROVER/JAG is a professional fault diagnosis tool with advanced software designed specifically for LR/JAG vehicles. It is an easy to use, stand alone unit that will have you scanning your vehicle within minutes. Simply, plug it into the OBD II port and the device will boot up with step-by-step instructions. This scanner has a large, easy to read 4 inch color display accompanied by a user friendly interface that requires no additional software. As an added bonus, the scanner is equipped with full OBDII capabilities that allows you to scan all engine readings and related trouble codes  (check engine light) on ANY vehicle make/model 1996 and newer.(U.S. only)

Oil/Service/Brake Service Reset Function

The NT520 allows you to reset Oil,Service, and Brake Lights in a click of a button on supported vehicles. On vehicles where a manual reset is required, the tool will guide you through the full process step-by-step.

EPB Reset Function

Brake Pad / Shoe changes on vehicles equipped with EPB's (Electronic Parking Brakes) MUST be carried out using a Diagnostic Tool to correctly re-calibrate. The NT520 offers you that capability on supported models. De-activate to Service Position - Replace - Re-activate.

SAS Reset Function

The Steering Angle Sensor (SAS) is used to measure the angle of the steering wheel and the speed at which it is being turned. The signal is mainly used by the ABS System as part of it's stability control function but also by other systems such as ride level control and adaptive lighting. A problem with the SAS Signal will cause a fault with any of the systems that use the signal directly, or indirectly.

If the Steering Angle Sensor (SAS) needs to be changed, many vehicle's require the new sensor to be calibrated. The NT520 will allow you to carry out steering angle re-calibration on supported models.

DPF Regeneration or Replacement

Carry out a forced Diesel Particulate Filter (DPF) Regeneration on supported vehicles - this MUST be done by trained personnel. Required when the DPF filter blockage reaches levels where passive or active regeneration is unable to burn off the excess soot. The NT520 is also capable of adapting a new DPF Filter where supported.

Compatible With the Following Jaguar cars:
  • 1997 - 2014     FREELANDER & FREELANDER 2 (LR2)
  • 1997 - 2004 and 2007 - 2015     DEFENDER
  • 1999 - 2015     DISCOVERY 2, DISCOVERY 3 (LR3), DISCOVERY 4 (LR4)
  • 2005 - 2016     RANGE ROVER SPORT (Supercharged and HSE)
  • 1999 - 2016     RANGE ROVER (Supercharged and HSE)
  • 2012 - 2016     EVOQUE (& Convertible)

Compatible With the Following Jaguar cars:

  • 1994 - 2016     XJ TYPE
  • 2008 - 2016     XF TYPE
  • 1997 - 2015     XK TYPE
  • 2014 - 2016     F TYPE
  • 1999 - 2008     S TYPE
  • 2001 - 2009     X TYPE
  • 2016 -             XE Type



Foxwell NT510 Car Software List:

Notice: Scanner is shipped with the advertised software make, each additional make is $60

1. Ford  ( includes Ford, Lincoln, Mercury vehicles )

2. BMW ( includes BMW , MINI , Rolls-Royce vehicles )

3. Chrysler ( includes Chrysler, Dodge , Jeep vehicles )

4. Fiat ( includes Fiat , Alfa , Abarth, Lancia vehicles )

5. GM ( includes Buick, Cadillac, Chevrolet, GMC, Saturn, Pontiac, Daewoo, Holden vehicles )

6. Honda ( includes Honda, Acura vehicles )

7. Hyundai ( includes Hyundai , Kia vehicles )

8. Land Rover ( includes Land Rover , Jaguar vehicles )

9. Opel ( includes Opel, Vauxhall vehicles )

10. Toyota ( includes Toyota , Lexus, Scion vehicles )

11. VAG ( includes Volkswagen , Audi , Seat , Skoda ,   Lamborghini , Bentley vehicles )

12. Aston Martin ( includes Aston Martin vehicles )

13. Ferrari ( includes Ferrari vehicles )

14. Maserati ( includes Maserati vehicles )

15. Mazda ( includes Mazda vehicles )

16. Volvo ( includes Volvo vehicles )

17. Porsche ( includes Porsche vehicles )

18. Benz (includes Mercedes, Sprinter, SMART, Maybach vehicles)

19. Renault (includes Renault, Dacia vehicle)

20. PAS (includes Peugeot, Citroen vehicles)

21. AU Ford(includes Australia Ford Vehicles)

22. Holden(includes Holden vehicles)

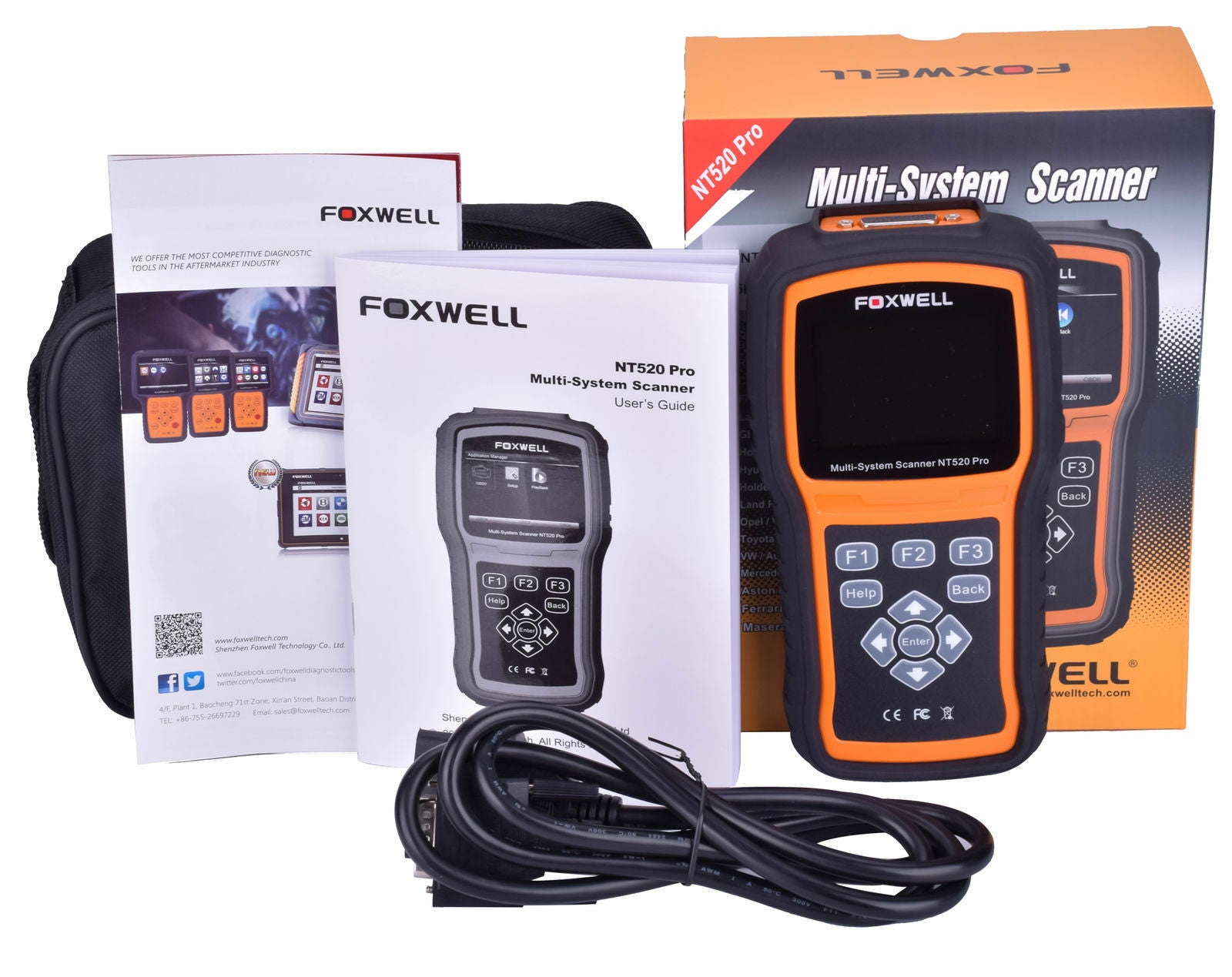

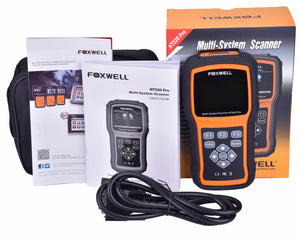

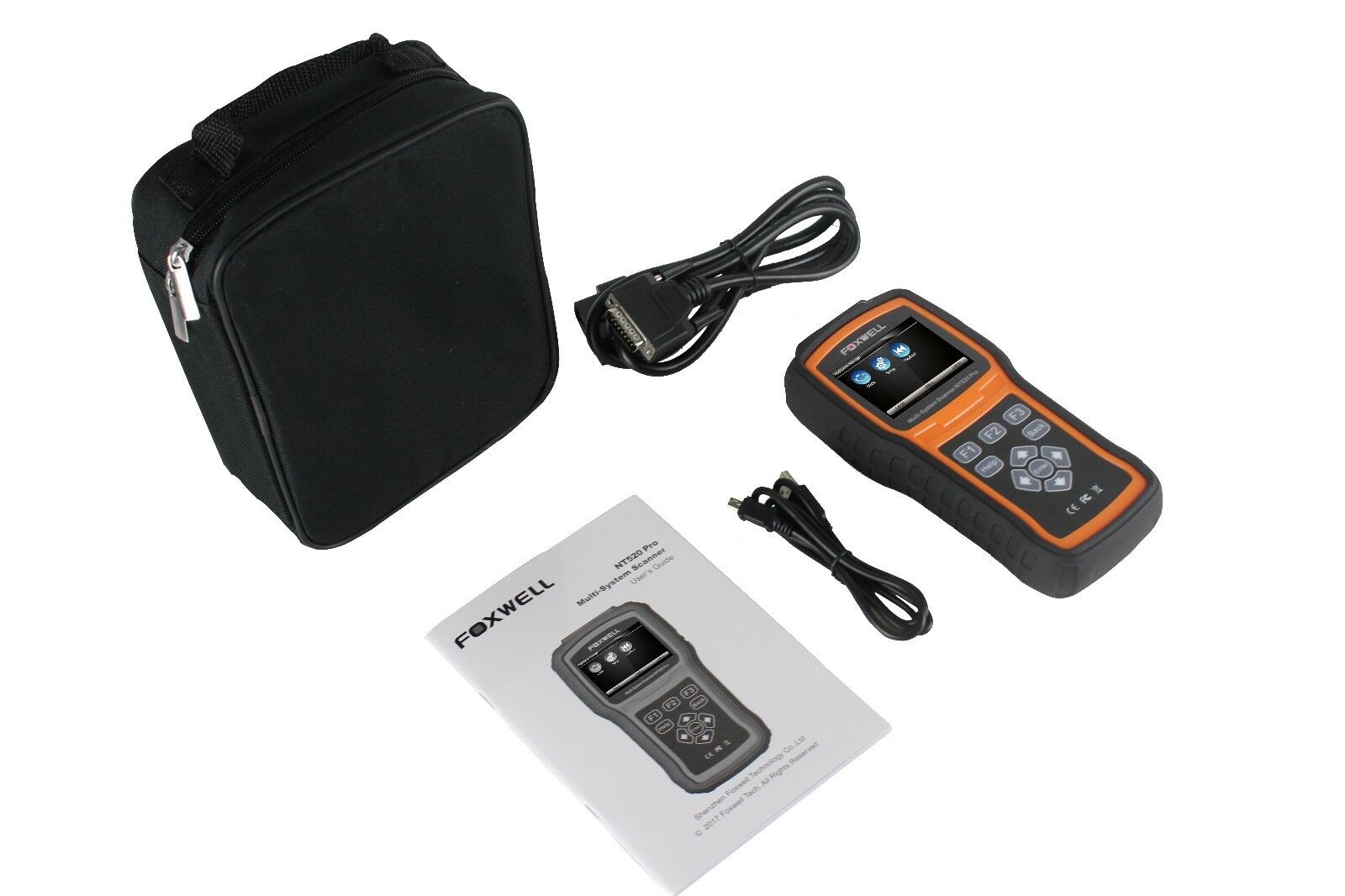

Package Contents:

  • Foxwell NT520 Scan Tool

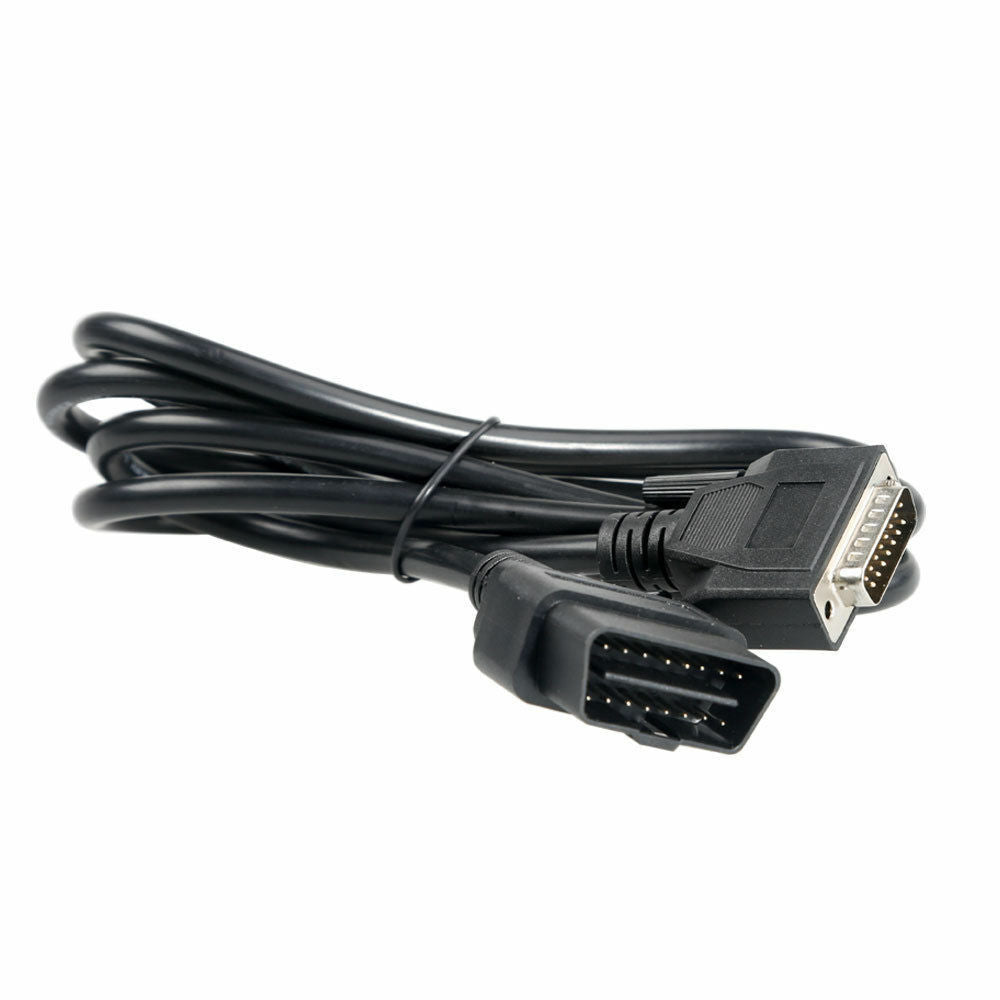

  • OBDII Cable

  • User manual

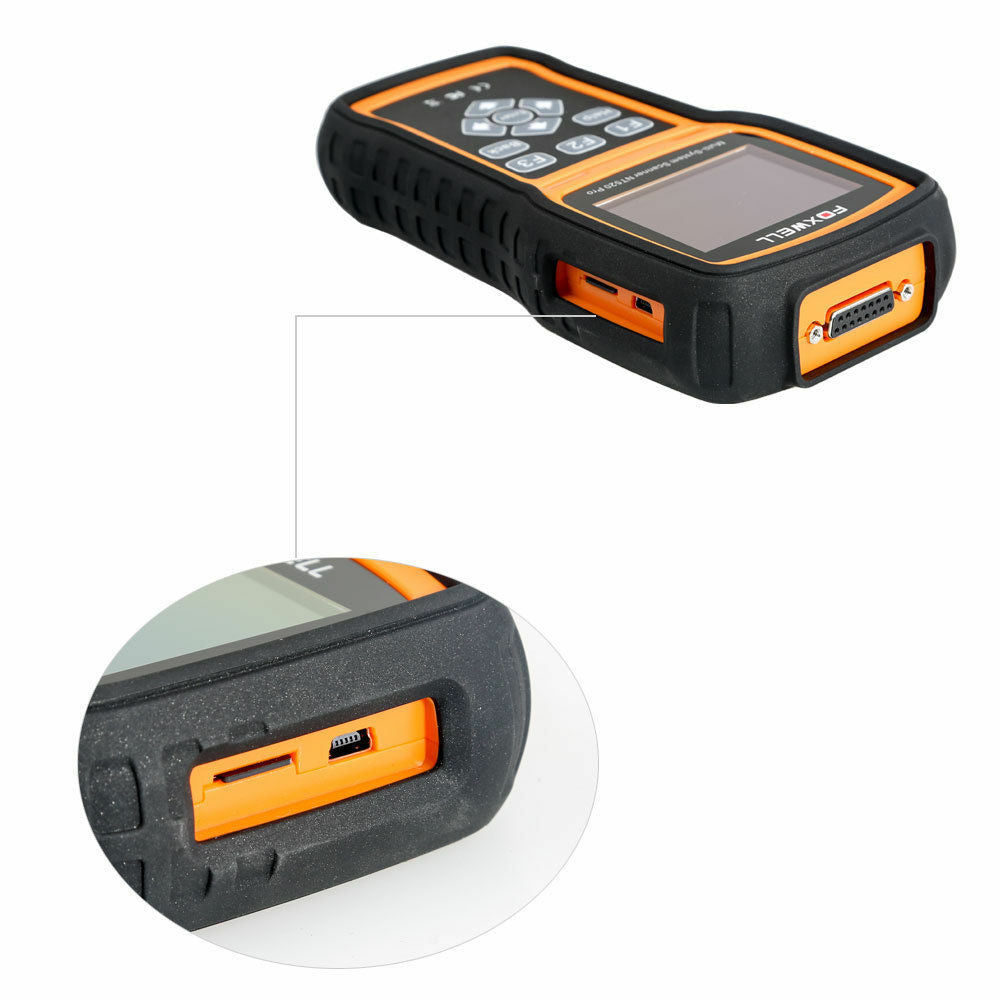

  • USB Cable (for connecting to a computer)

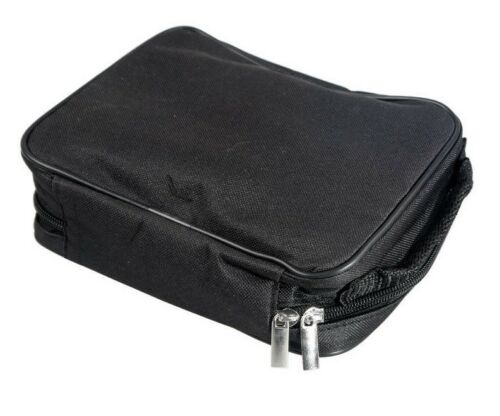

  • Nylon Carry Case

  • SD Card
