Reverse Camera RCA Input Harness Adapter for Ford Lincoln SYNC 2 3 54-Pin APIM Rear Backup

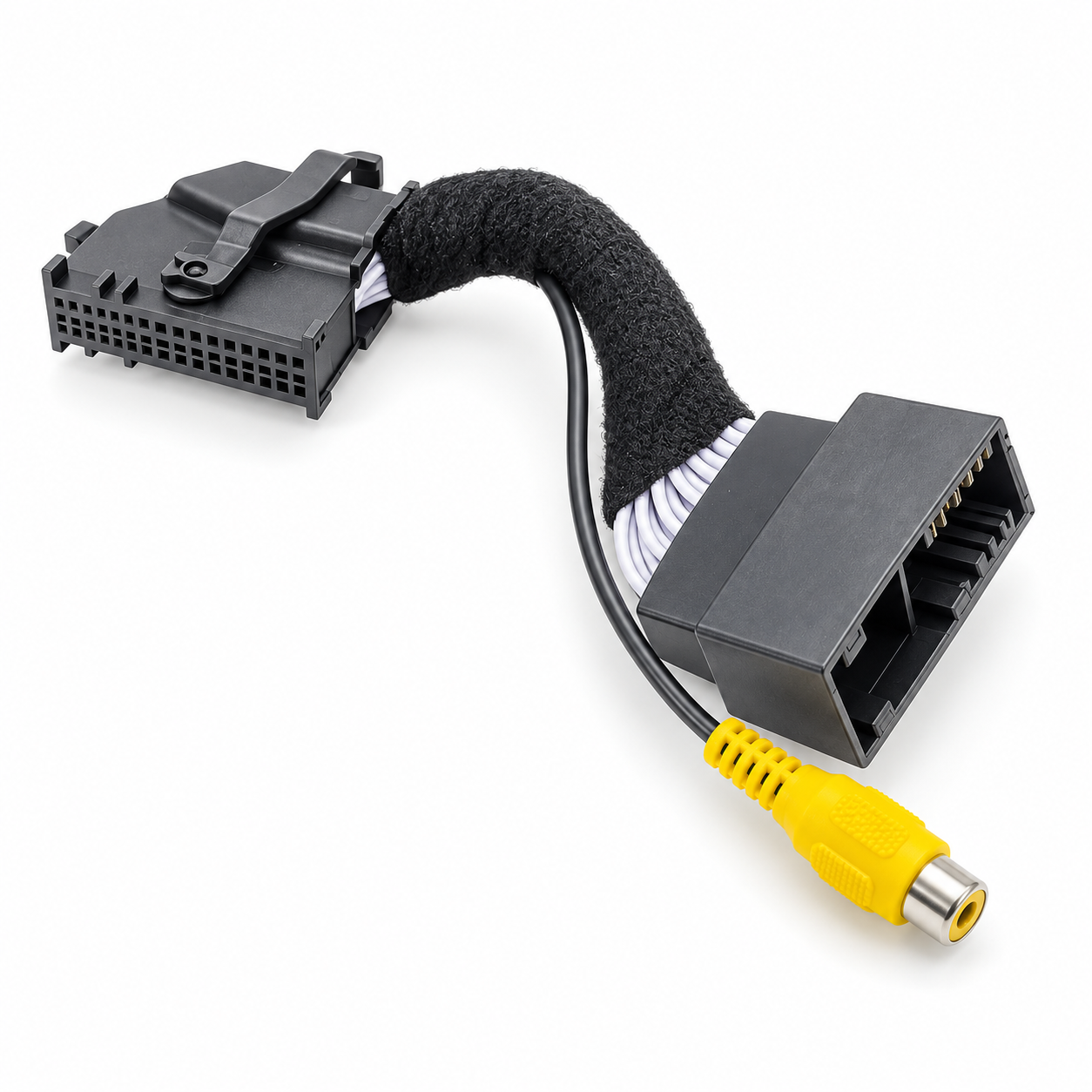

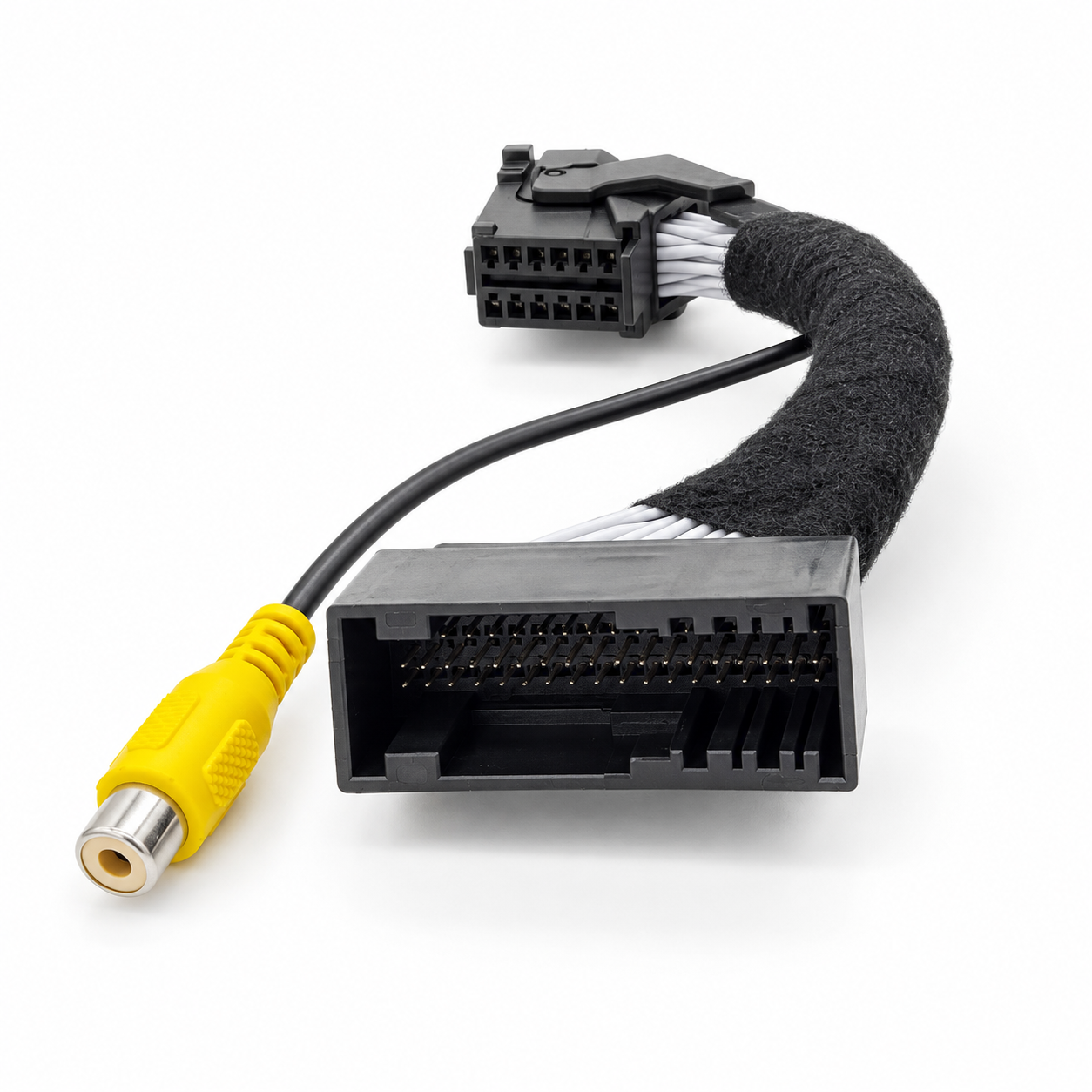

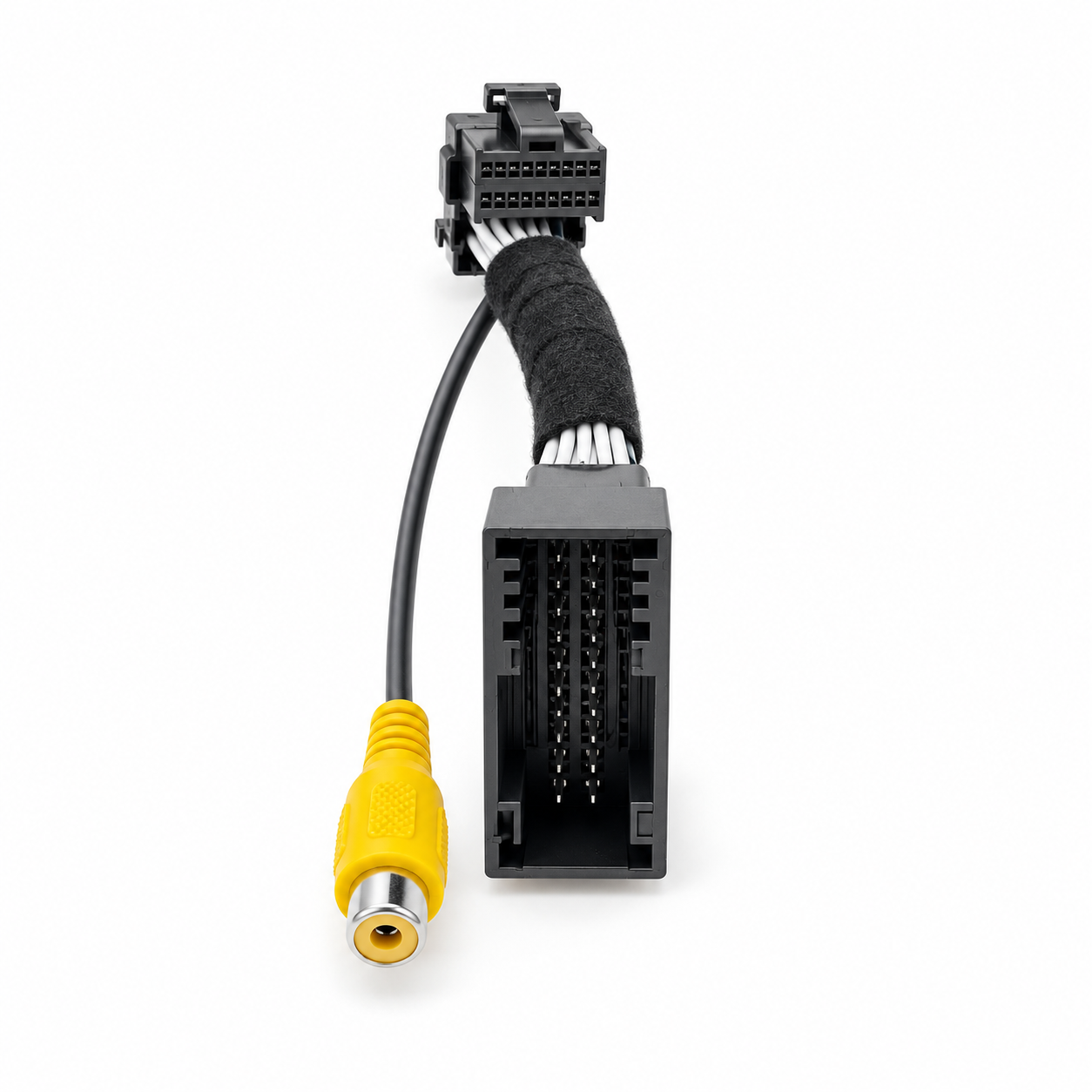

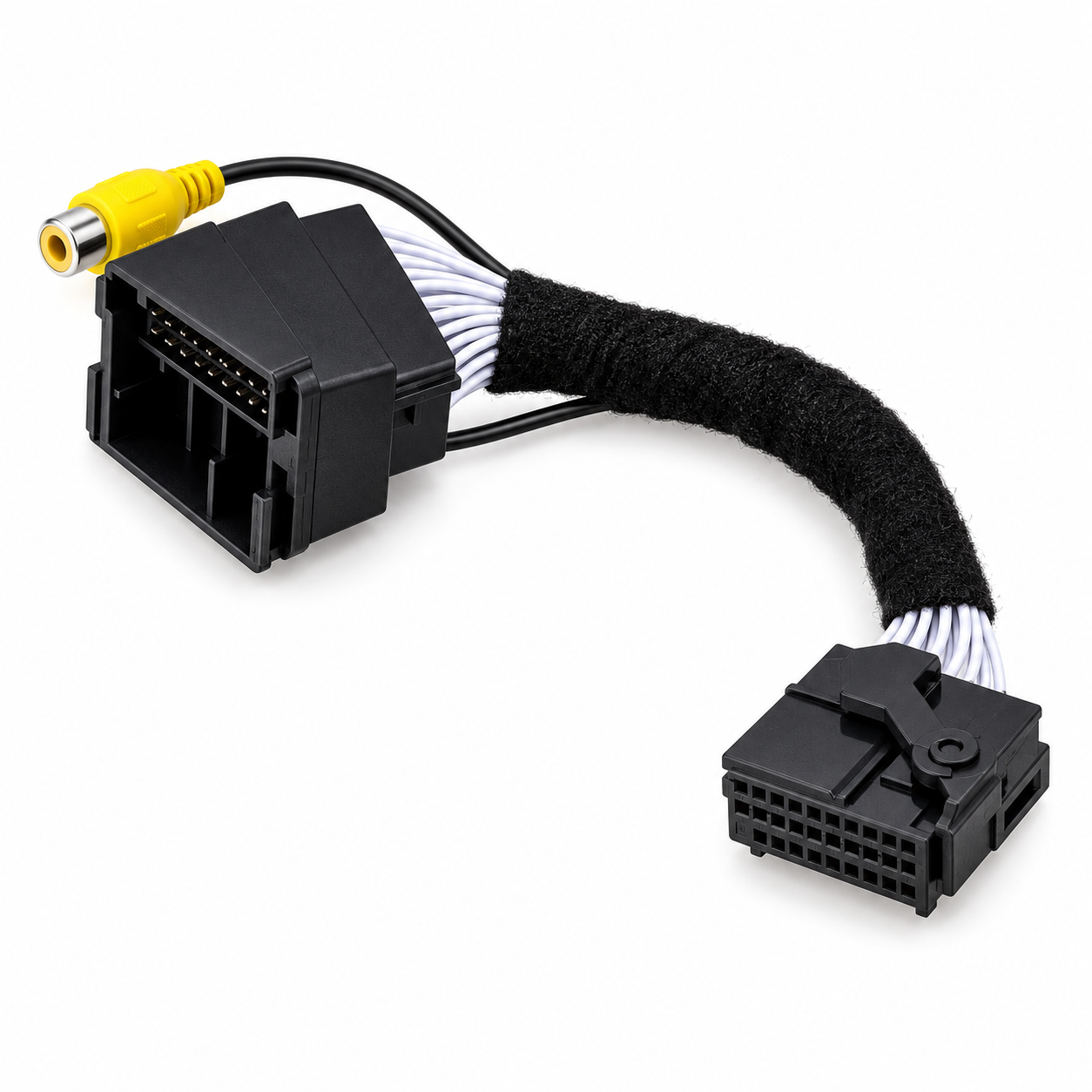

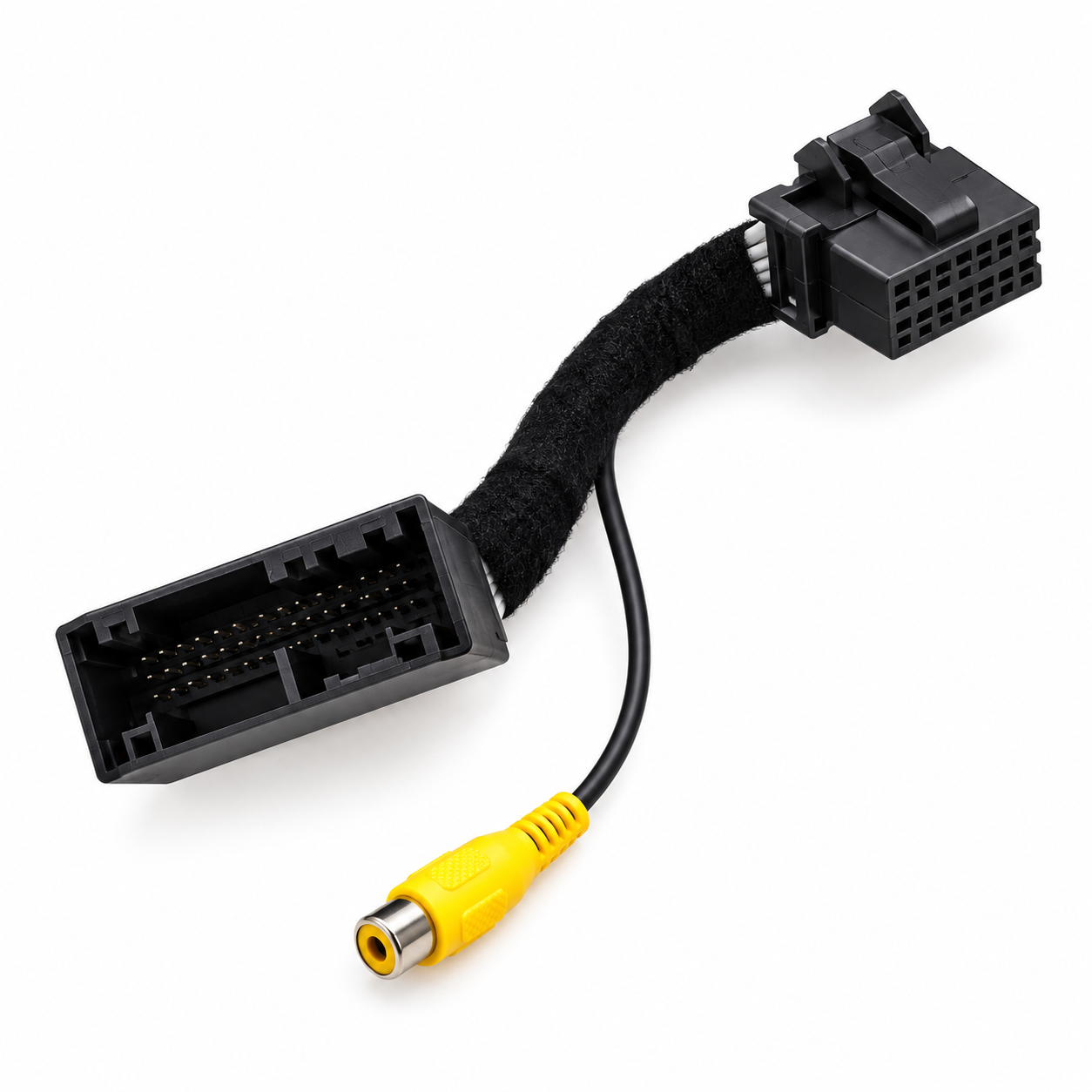

Add an aftermarket rearview camera to a compatible factory Ford or Lincoln SYNC system with this 54-pin APIM camera-input harness. The male and female connectors install inline between the vehicle wiring and APIM, while the RCA connector accepts a standard composite-video signal from an aftermarket backup camera.

This adapter is intended for properly equipped vehicles with a factory SYNC 2 8-inch touchscreen or SYNC 3 system using the matching 54-pin APIM connector. Programming may be required before the factory display will automatically show the camera image in reverse.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

• Product type: Rearview camera input adapter harness

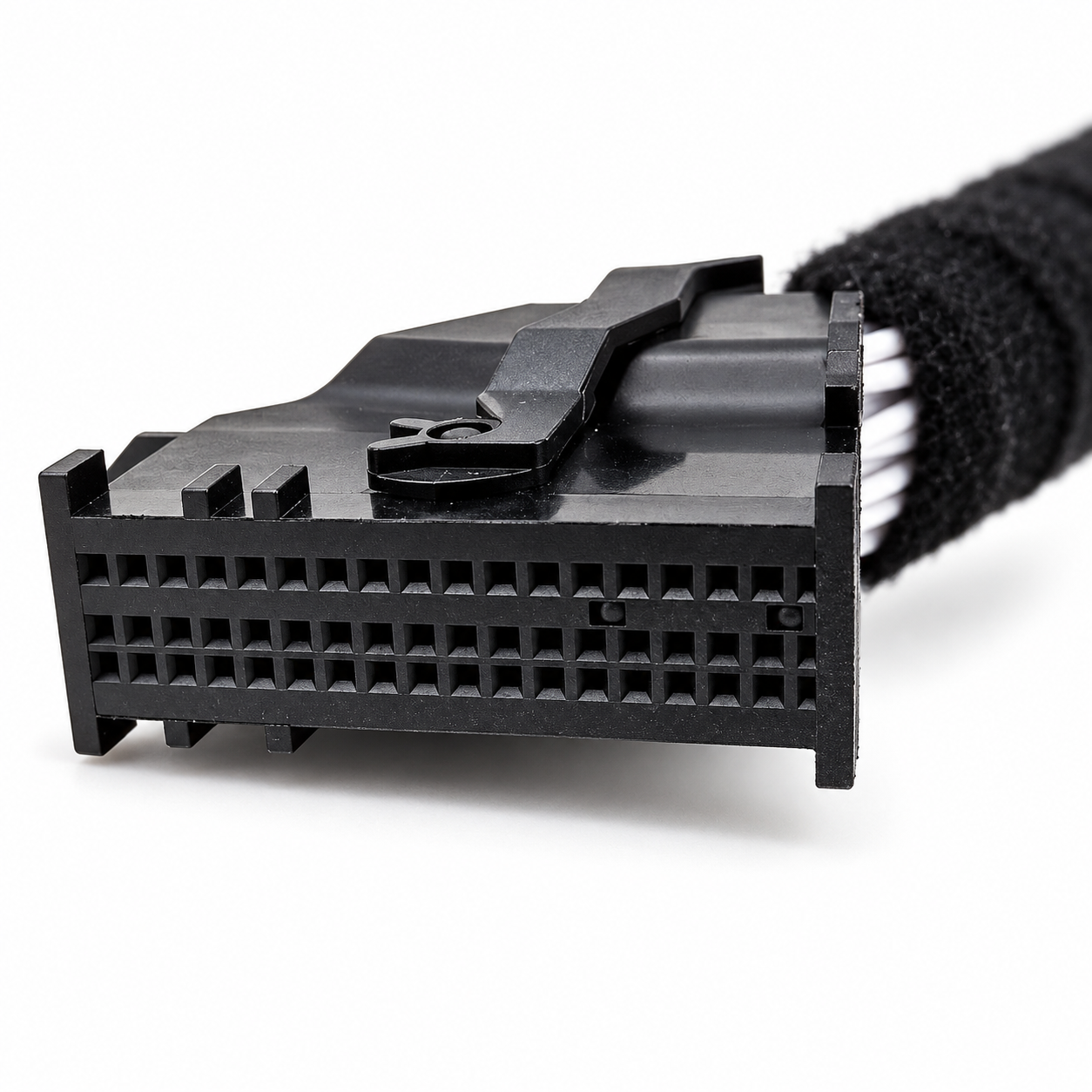

• Connector type: Ford 54-pin APIM male and female connectors
• Camera connection: RCA composite-video input
• Installation style: Inline T-harness
• Compatible video format: NTSC aftermarket camera recommended
• Condition: New
• Brand: Virtue
• Manufacturer part number: Does not apply
• Country of manufacture: China
• Quantity: One harness

𝗪𝗵𝗮𝘁 𝗧𝗵𝗶𝘀 𝗛𝗮𝗿𝗻𝗲𝘀𝘀 𝗗𝗼𝗲𝘀

• Provides an RCA camera-video connection at the factory APIM
• Allows an aftermarket rear camera to display through a compatible factory touchscreen
• Installs inline without cutting the primary APIM connector from the vehicle
• Retains the original connector arrangement through male-to-female pass-through plugs
• Provides a cleaner installation than manually inserting wires into the APIM connector

This harness does not create a camera image, supply camera power, or automatically activate a disabled camera feature. The vehicle must have compatible equipment and may require APIM configuration.

𝗦𝘆𝘀𝘁𝗲𝗺 𝗥𝗲𝗾𝘂𝗶𝗿𝗲𝗺𝗲𝗻𝘁𝘀

• Factory Ford or Lincoln SYNC 2 8-inch touchscreen or SYNC 3 system
• Matching 54-pin APIM connector
• Aftermarket NTSC rearview camera with RCA composite-video output
• Separate camera power connection
• RCA extension cable long enough to reach the APIM
• Camera feature enabled in the vehicle’s APIM configuration

𝗣𝗼𝘁𝗲𝗻𝘁𝗶𝗮𝗹 𝗙𝗼𝗿𝗱 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Depending on the installed SYNC system and connector, applications may include:

• C-Max
• EcoSport
• Edge
• Escape
• Expedition
• Explorer
• F-150
• F-250, F-350, F-450 and F-550 Super Duty
• Fiesta
• Flex
• Focus
• Fusion
• Mustang
• Taurus
• Transit
• Transit Connect

𝗣𝗼𝘁𝗲𝗻𝘁𝗶𝗮𝗹 𝗟𝗶𝗻𝗰𝗼𝗹𝗻 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

• MKC
• MKS
• MKT
• MKX
• MKZ
• Navigator

The vehicle list is a general application guide. Not every trim level, production date, or radio option within these models uses the same APIM connector. Compare the vehicle’s connector and SYNC version with the listing photographs before ordering.

𝗣𝗿𝗼𝗴𝗿𝗮𝗺𝗺𝗶𝗻𝗴 𝗥𝗲𝗾𝘂𝗶𝗿𝗲𝗱

If the vehicle was not originally equipped with a rear camera, the camera feature will normally need to be enabled in the APIM configuration using compatible diagnostic/programming equipment.

This harness alone does not perform programming. Professional configuration may be necessary.

𝗡𝗼𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 𝗪𝗶𝘁𝗵

• Ford SYNC 1 systems
• Ford SYNC 2.5 systems
• Ford SYNC 4 or SYNC 4A systems
• Vehicles without the matching 54-pin APIM connector
• Basic 4-inch displays unless the vehicle is being converted with additional compatible components
• PAL-only cameras
• Factory 360-degree camera systems unless compatibility is independently confirmed
• Proprietary factory cameras that do not provide standard RCA composite video without an additional converter

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗢𝘃𝗲𝗿𝘃𝗶𝗲𝘄

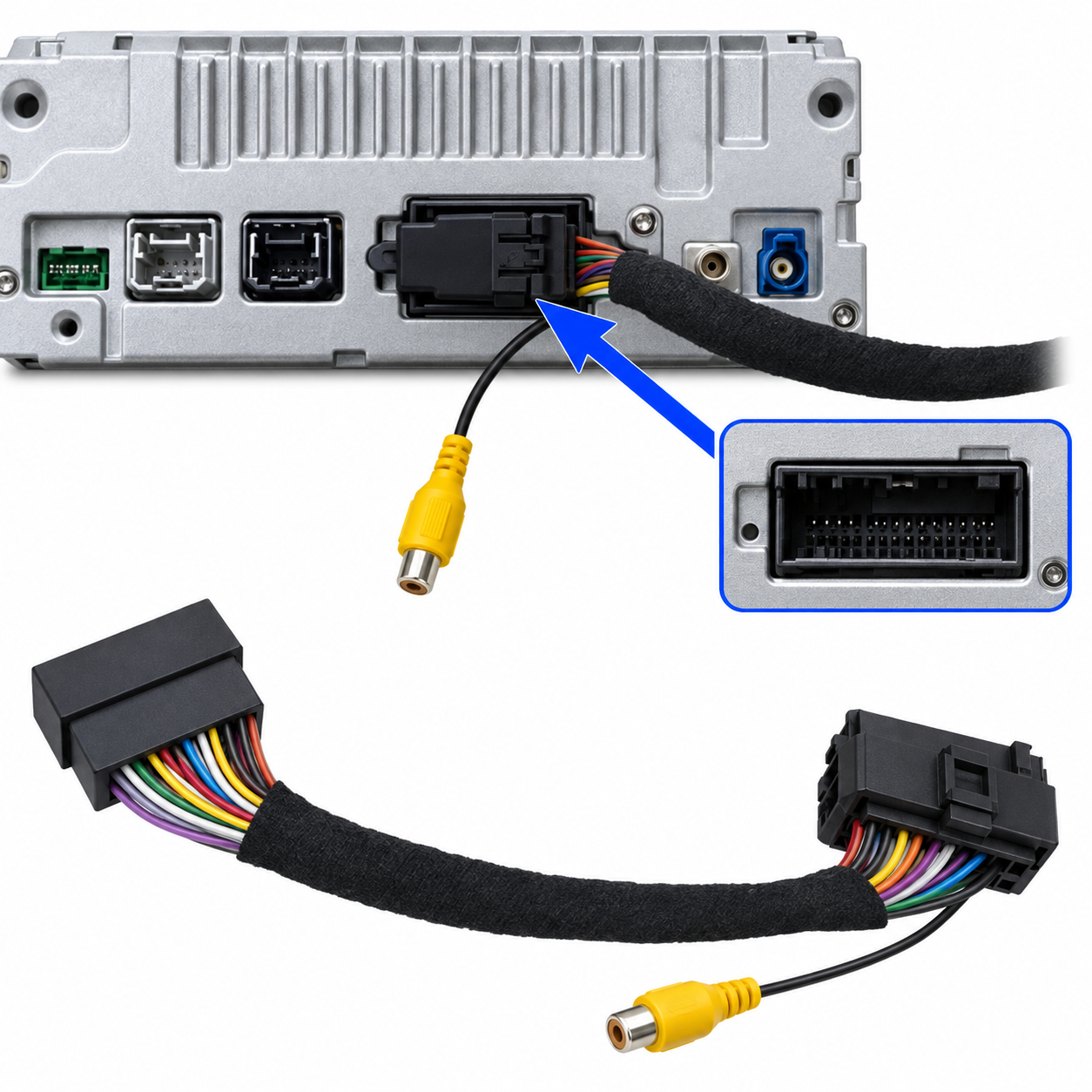

1. Disconnect the vehicle battery according to the manufacturer’s service procedure.

2. Remove the necessary dashboard trim and access the APIM.

3. Disconnect the original 54-pin vehicle connector.

4. Install this harness inline between the vehicle connector and APIM.

5. Connect the camera’s RCA video cable to the adapter.

6. Supply the camera with an appropriate power and ground connection.

7. Enable the rear-camera feature in the APIM when required.

8. Test camera activation and image quality before reinstalling the trim.

Professional installation and programming are recommended.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

• One 54-pin APIM rear-camera RCA input harness

𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱

• Rearview camera
• RCA extension cable
• Camera power wiring, relay or noise filter
• Diagnostic or programming equipment
• Programming service or software
• APIM, touchscreen or radio
• Installation tools

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗡𝗼𝘁𝗶𝗰𝗲

Do not purchase using the vehicle year and model alone. Ford used several different entertainment systems and connectors within the same model year. Confirm that the vehicle has SYNC 2 with an 8-inch touchscreen or SYNC 3 and the matching 54-pin APIM connector.

The eBay vehicle-compatibility table should be treated only as a general reference. Final compatibility is determined by the installed SYNC system, APIM connector and vehicle configuration.
