Engine Timing Tool Kit for 2019 Cadillac XT4 2.0L LSY HAO-LSYL3B-TK01
. Engine Timing Tool Kit for the supported applications listed below.

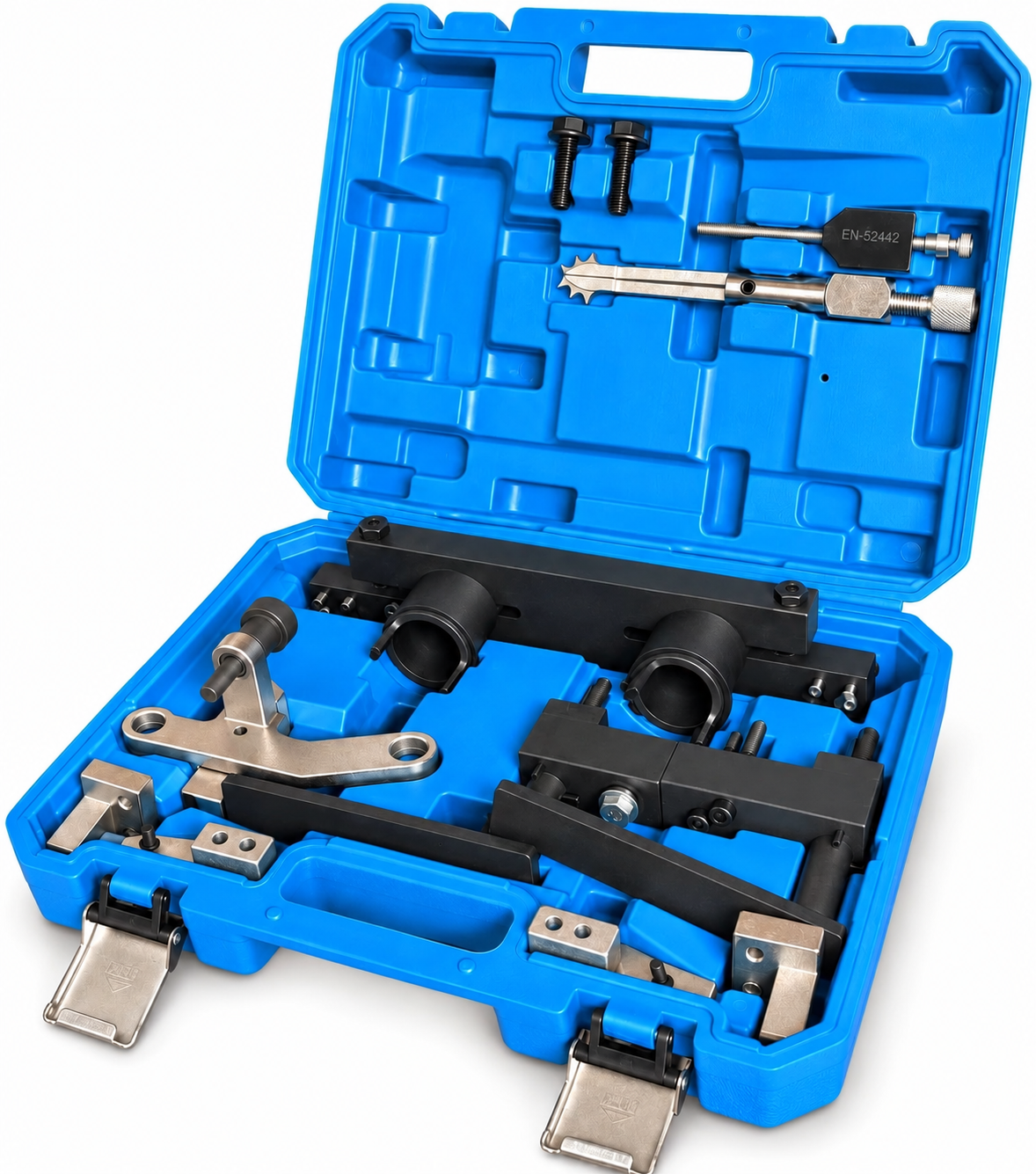

Quantity: 1 complete tool set with the pictured components.
Condition: New, unused.
Part number: HAO-LSYL3B-TK01.
Fitment and compatibility
| Year / selection basis | Make | Model / application | Engine / requirements |
|---|---|---|---|
| 2019 | Cadillac | XT4 | 2.0L LSY turbo petrol; EN-52461-100 adapter required |
Product details
- EN-52436 chain-tensioner retention, EN-52461 torque reaction, EN-52462-A camshaft alignment and EN-52476 flywheel-locking tool equivalents.
- Pictured EN-52442 balance-shaft tool and EN-52461-100/-200 engine-specific torque adapters.
Application limits
The row establishes the stated LSY application. L3B 2.7L service requires the correct -200 adapter and procedure; model/year coverage beyond this row must be checked separately. Do not torque fasteners against an engaged timing pin.
Before ordering: Confirm the VIN, full engine or transmission code, component dimensions and required service-tool references against the pictured contents. Unlisted configurations are not confirmed.
