Zebra Connector Strip Set for 1984-1989 Chevrolet Corvette C4 Digital Cluster – 16-Piece

Restore reliable electrical contact between the LCD driver boards and glass displays in a 1984-1989 Corvette C4 digital instrument cluster. These silicone elastomeric zebra strips replace aged original foam-style connectors that can dry out, deform or become contaminated.

Product Details

• Conductive elastomeric connectors for the C4 digital cluster
• Improved silicone-rubber construction

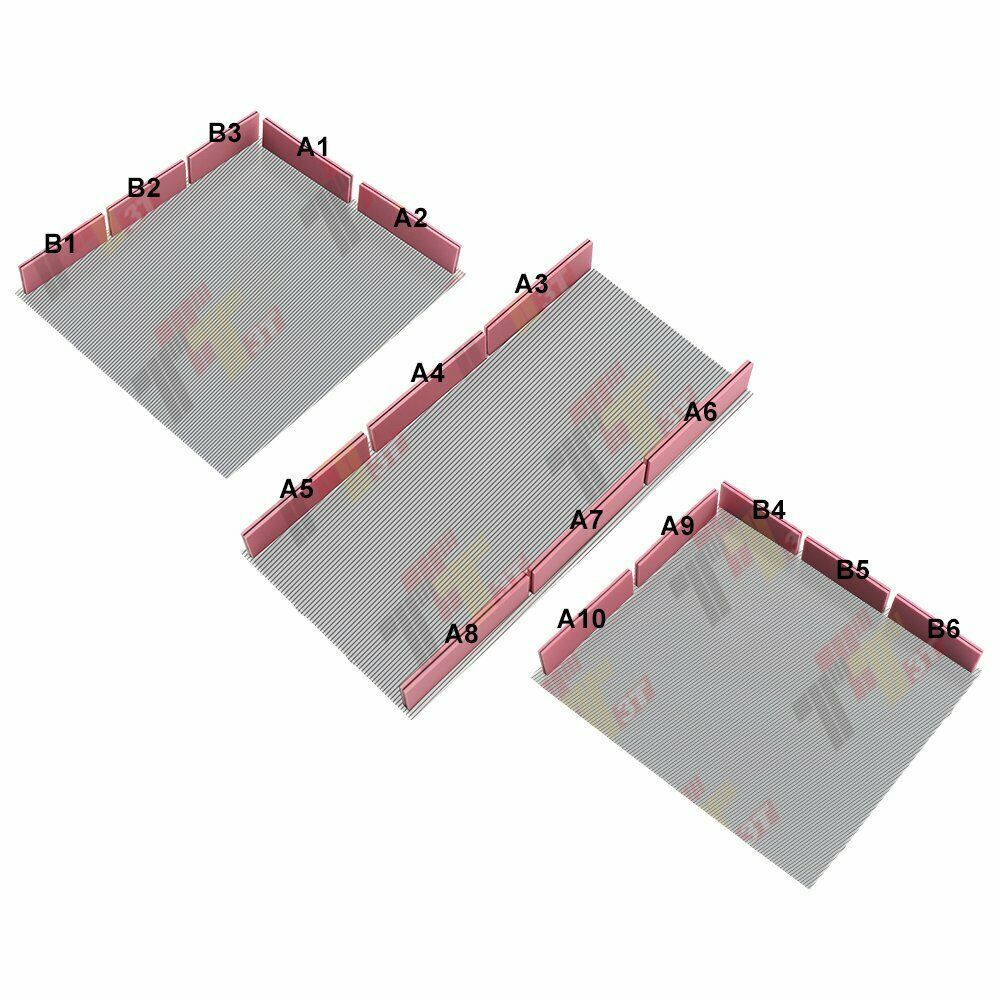

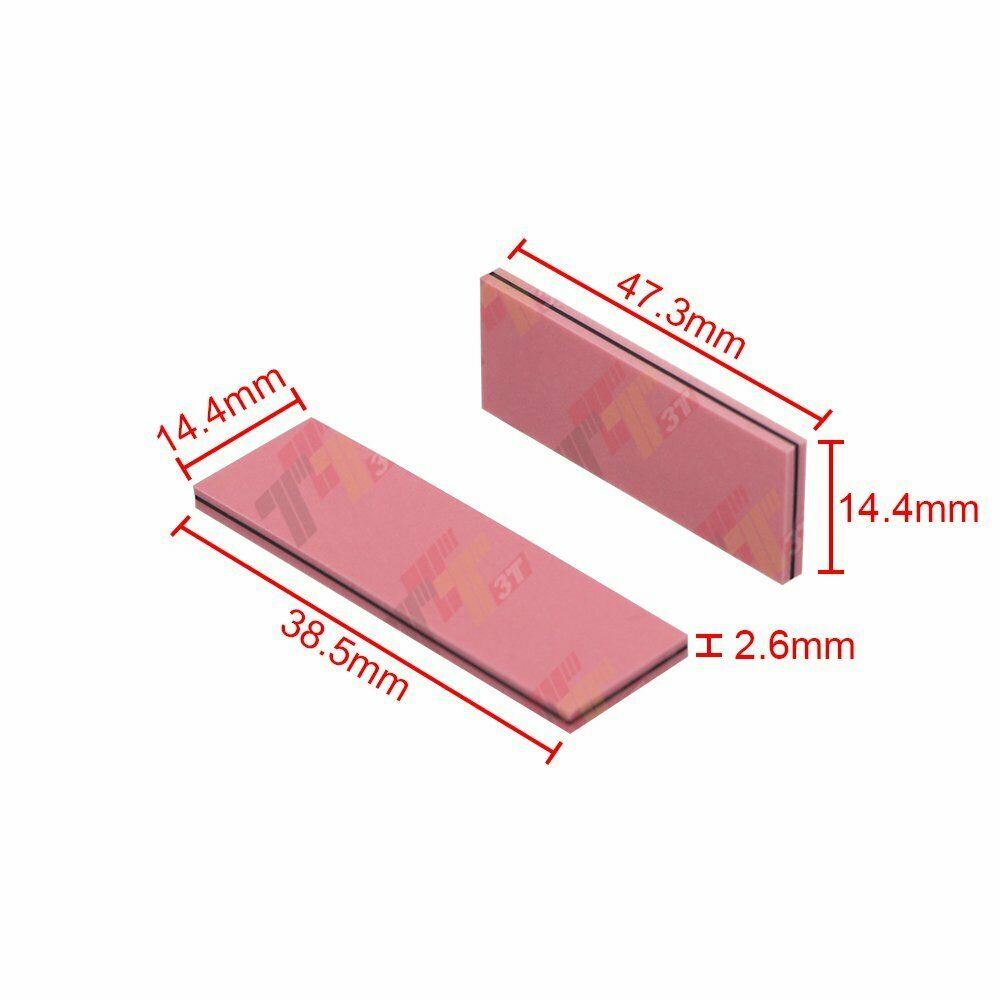

• Ten A-size strips measuring approximately 47.3 x 14.4 mm
• Six B-size strips measuring approximately 38.5 x 14.4 mm

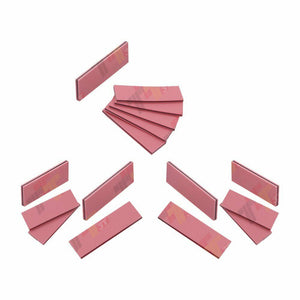

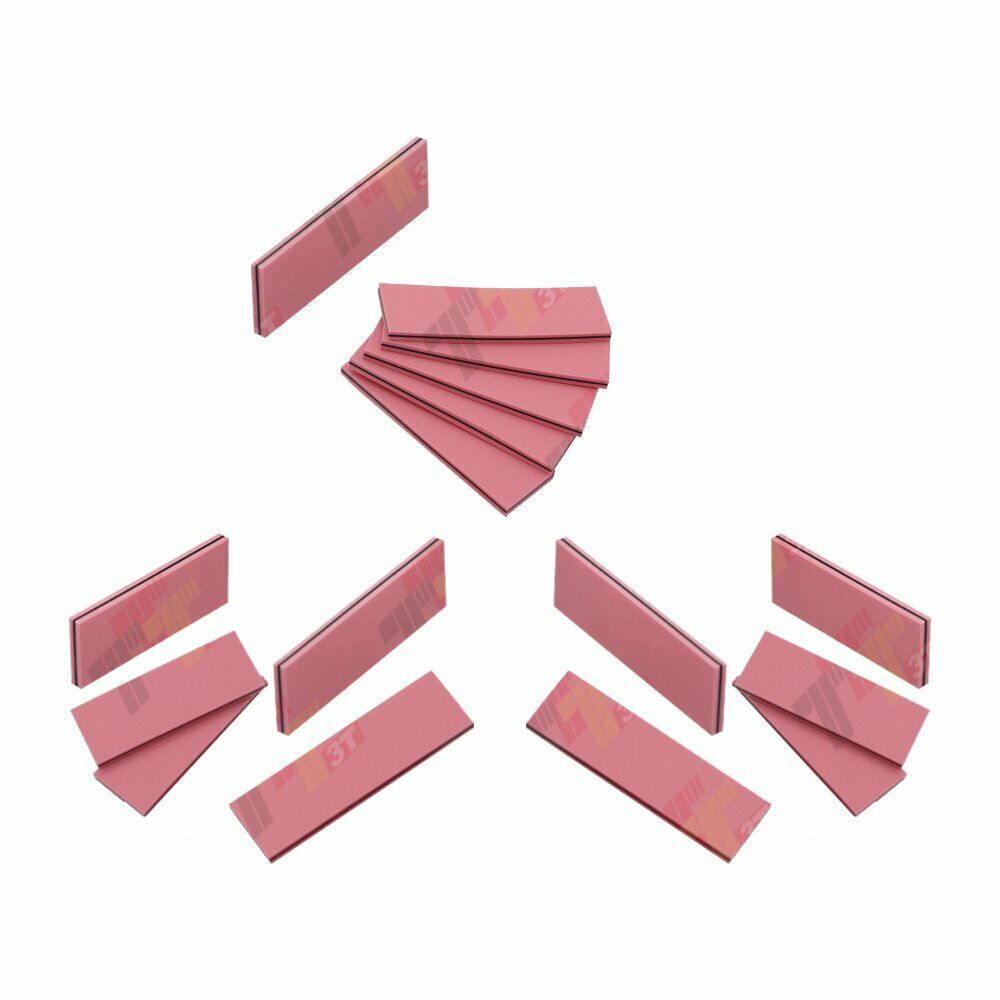

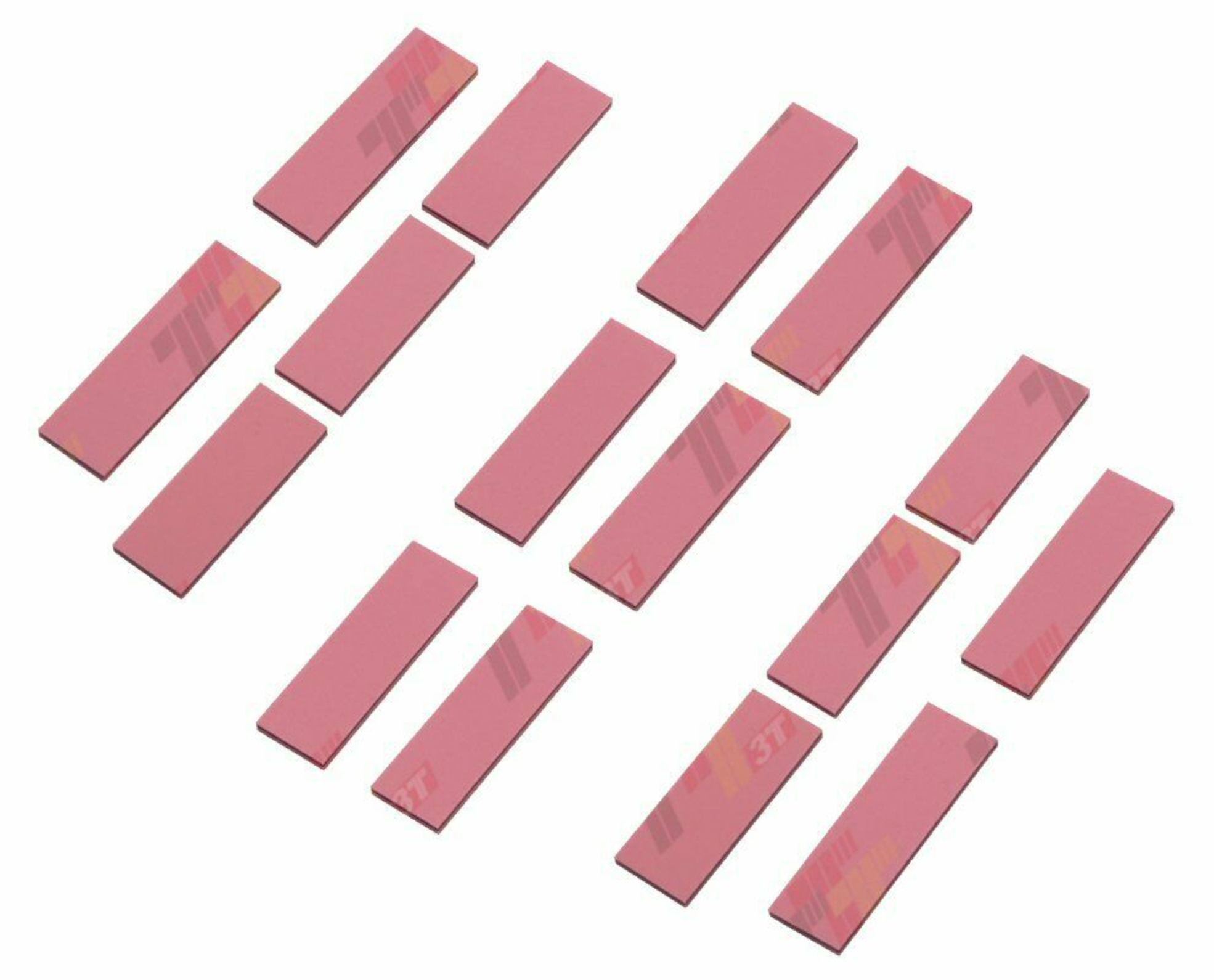

• Sixteen strips total

Fitment and Compatibility

For 1984-1989 Chevrolet Corvette C4 digital instrument clusters using the matching A- and B-size LCD connector arrangement. Compare the original strip count, dimensions and display layout before ordering.

Part Number Information

These service connector strips do not have a separate Chevrolet/GM OE part number.

Package Contents

Ten A-size zebra strips and six B-size zebra strips, for sixteen pieces total. LCD glass, bulbs, driver boards and complete cluster are not included.

Installation Notes

Open the cluster in a clean, ESD-safe workspace. Remove residue from the contact pads and LCD edges without scratching the conductive surfaces, then seat each strip evenly. Uneven compression or contamination can cause missing segments. Professional cluster service is recommended.
