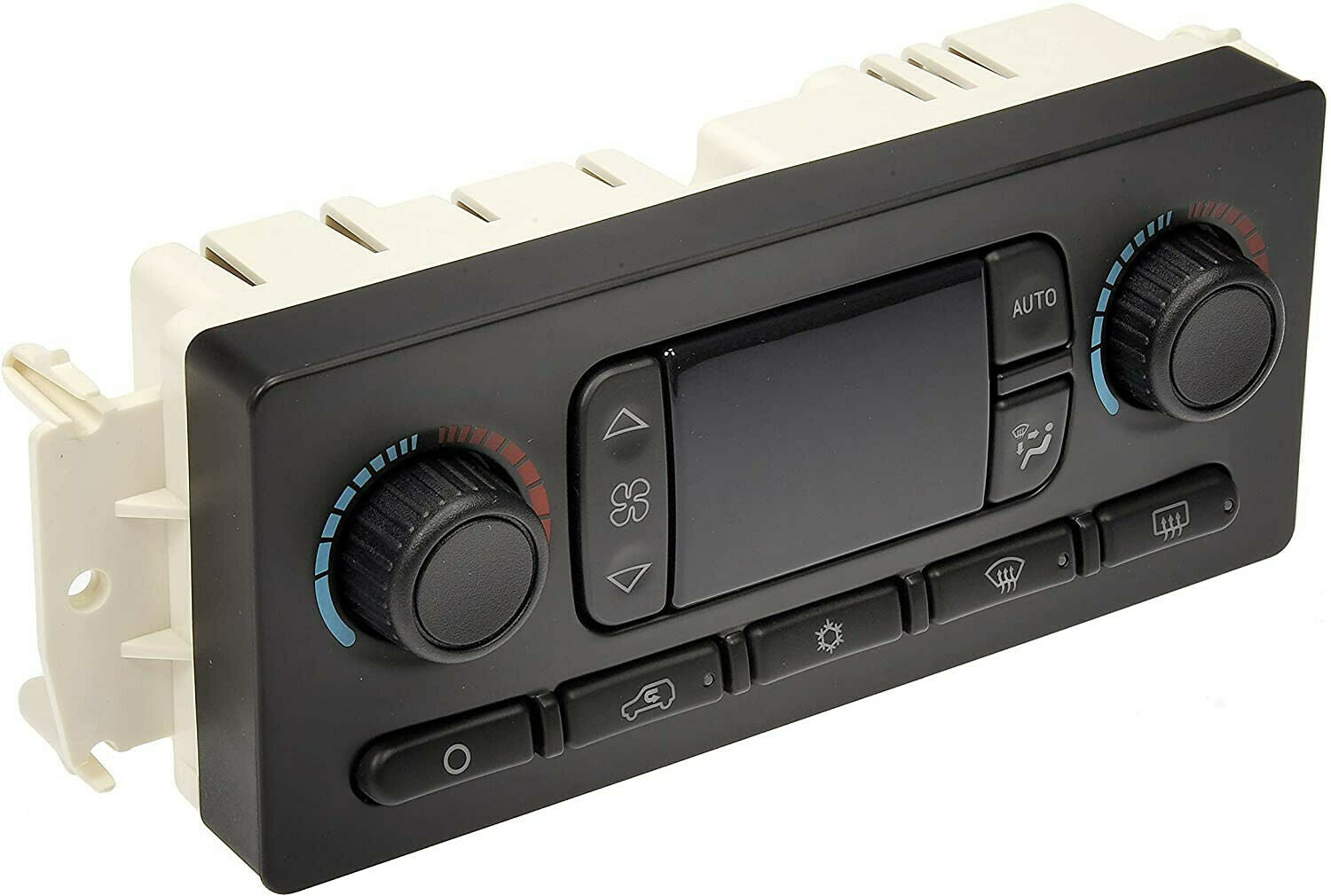

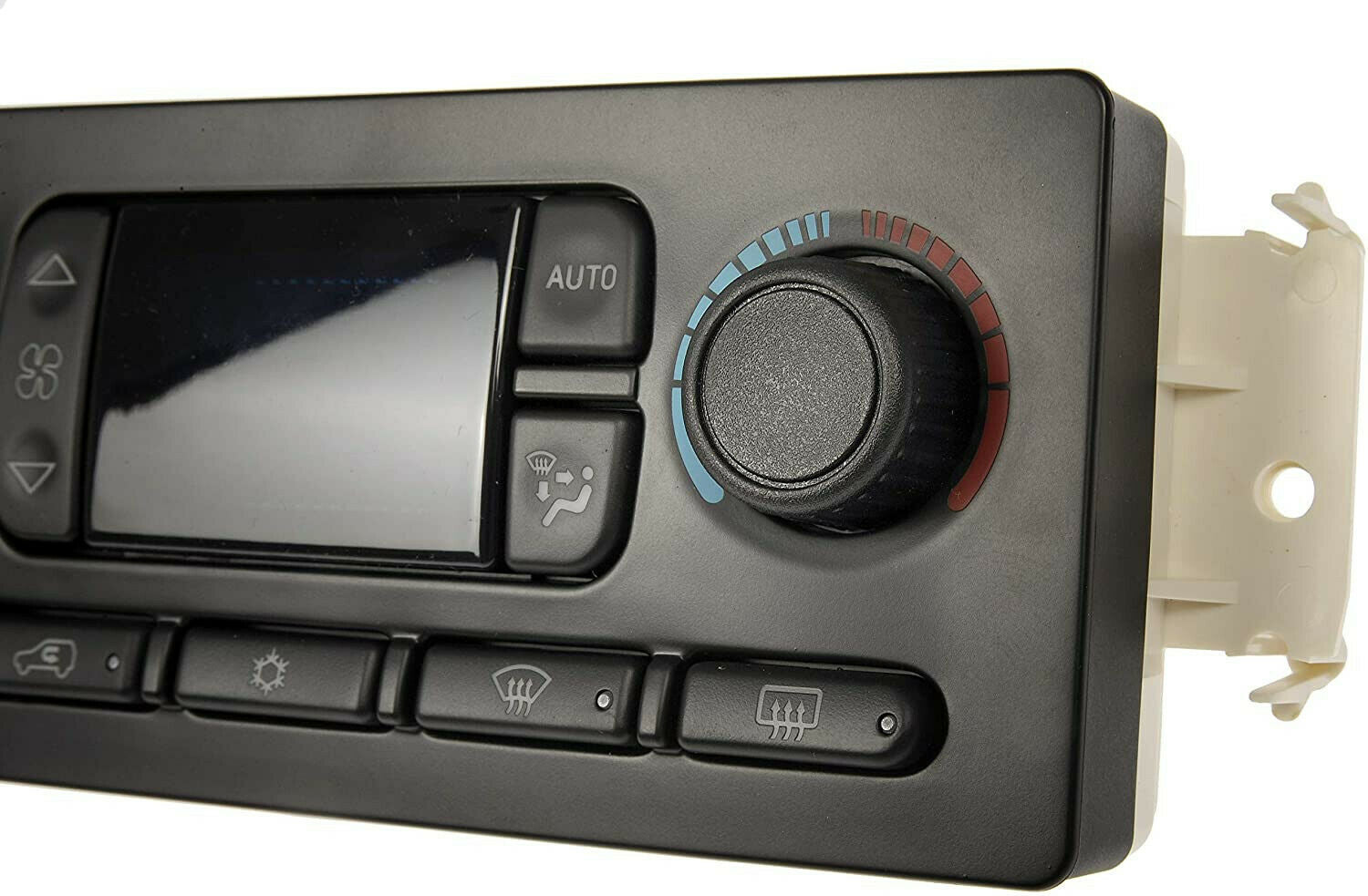

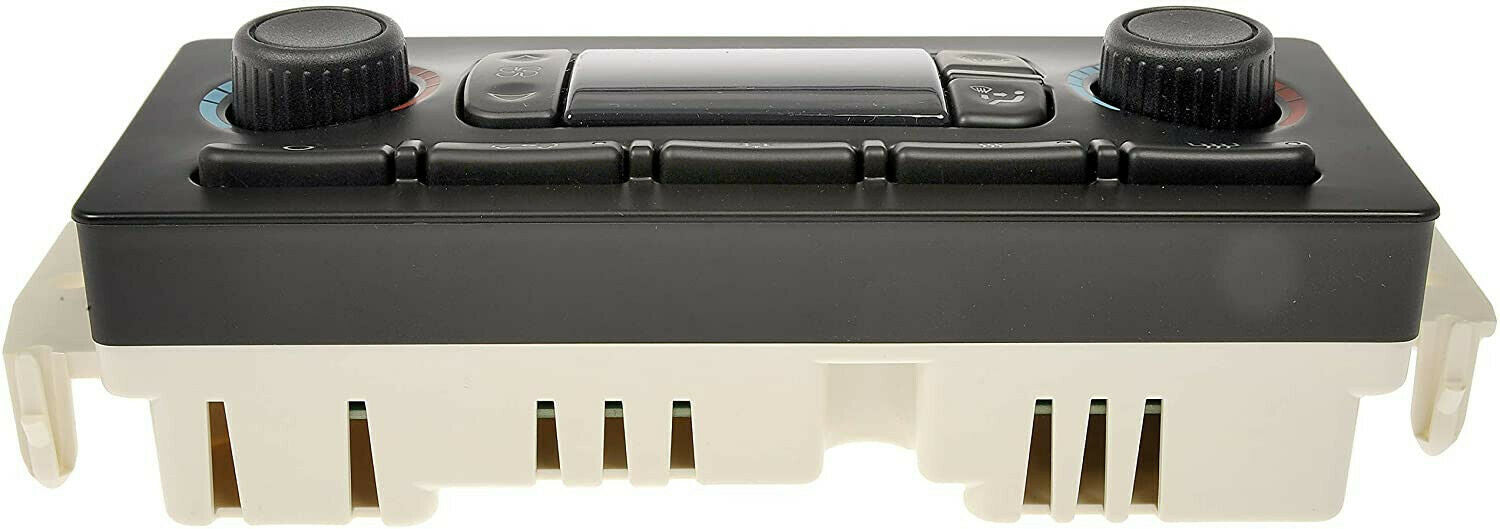

Automatic HVAC Climate Control Module for 2002-2009 Select GM Vehicles Dorman 599-211XD

Restore factory-style automatic heating and air-conditioning control with a new Dorman replacement HVAC module engineered for select General Motors vehicles.

Product Details

• Brand: Dorman
• Condition: New

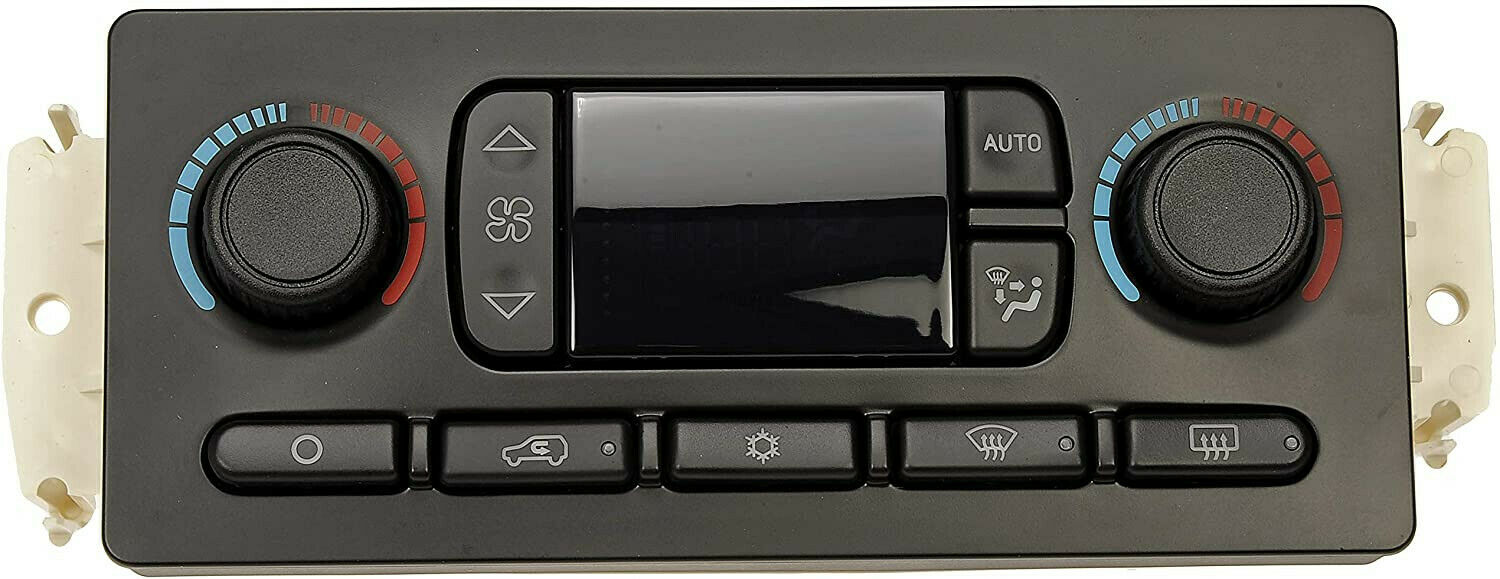

• Control type: Automatic temperature control
• Direct replacement design with factory-style appearance

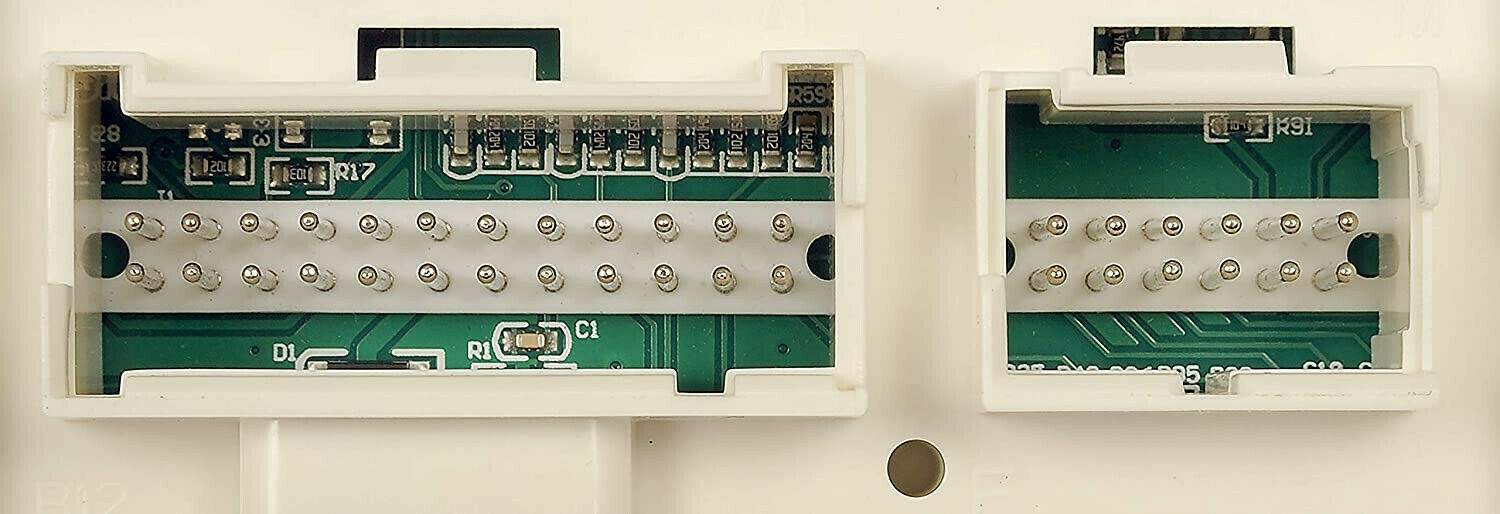

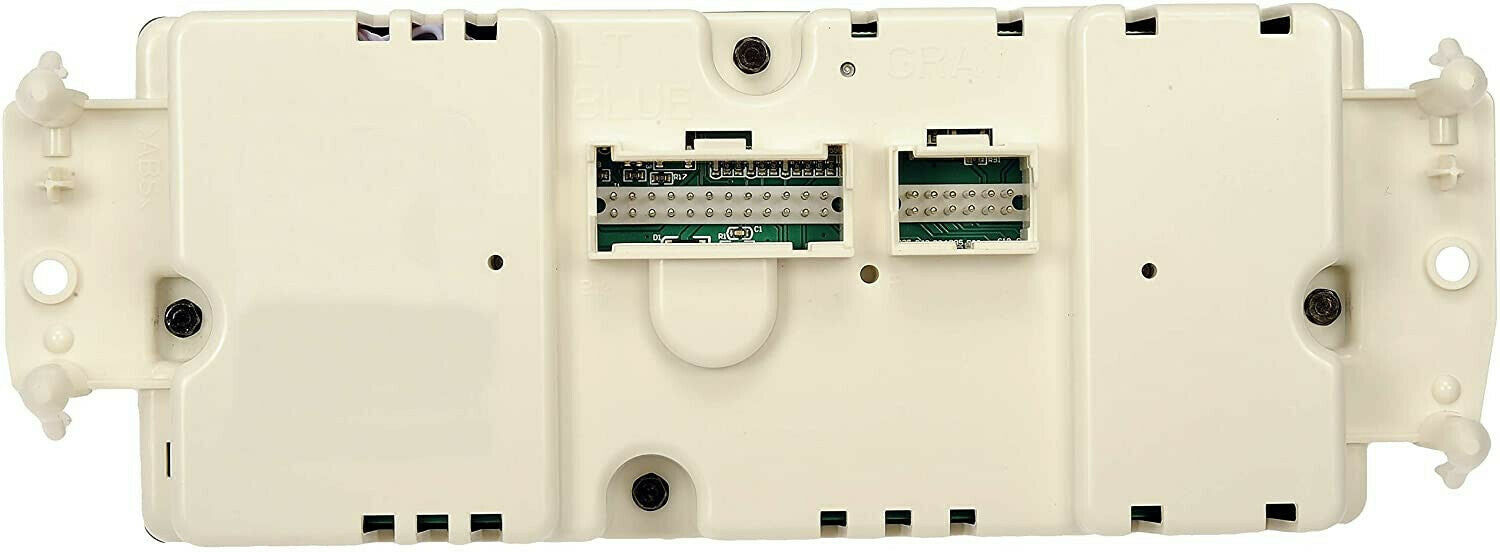

• Two electrical connectors with 36 total terminals
• Configuration is completed through the supplied setup procedure; no scan tool is required

Fitment and Compatibility

Compatible applications include select Buick 2004–2007, Cadillac 2003–2006, Chevrolet 2002–2009, GMC 2002–2009, Hummer 2003–2007 and Oldsmobile 2002–2004 models equipped with the matching automatic HVAC system. Coverage varies by model, trim and factory option package. Match the original module number, connector layout and control-face configuration before ordering.

Part Number Information

Dorman part number: 599-211XD.

Common OE references include 10367041, 10399657, 15077479, 15107730, 15132070, 15137655, 15165918, 15175897, 15192450, 15195331, 15201969, 15203179, 15214766, 15220310, 15222482, 15763065, 15814152, 15832311, 15845093, 15855848, 21997426 and 21999163. This is not a complete interchange list; confirm at least one matching reference.

Package Contents

One Dorman 599-211XD HVAC climate control module and manufacturer installation/configuration information.

Installation Notes

Disconnect the battery before removal. Transfer surrounding trim only when required, connect the module, then complete Dorman’s vehicle-specific configuration steps. Confirm correct blower, temperature, mode and defrost operation before reassembling the dash.
