Digital LCD Wood Moisture Meter Detector Tester Wood Firewood Paper Cardboard

$ 99.95

Pay in 4 interest-free payments of $ 24.99 with

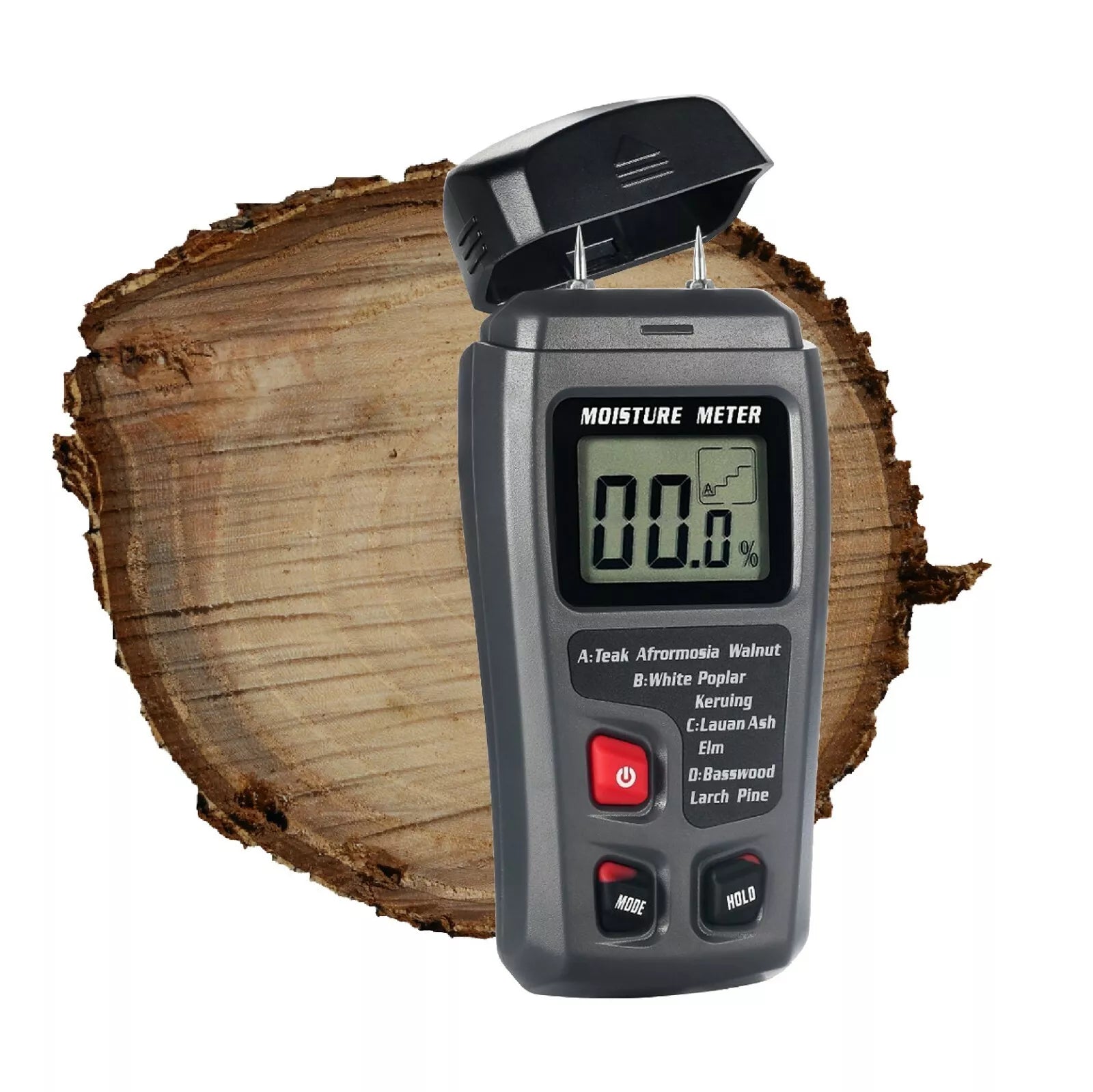

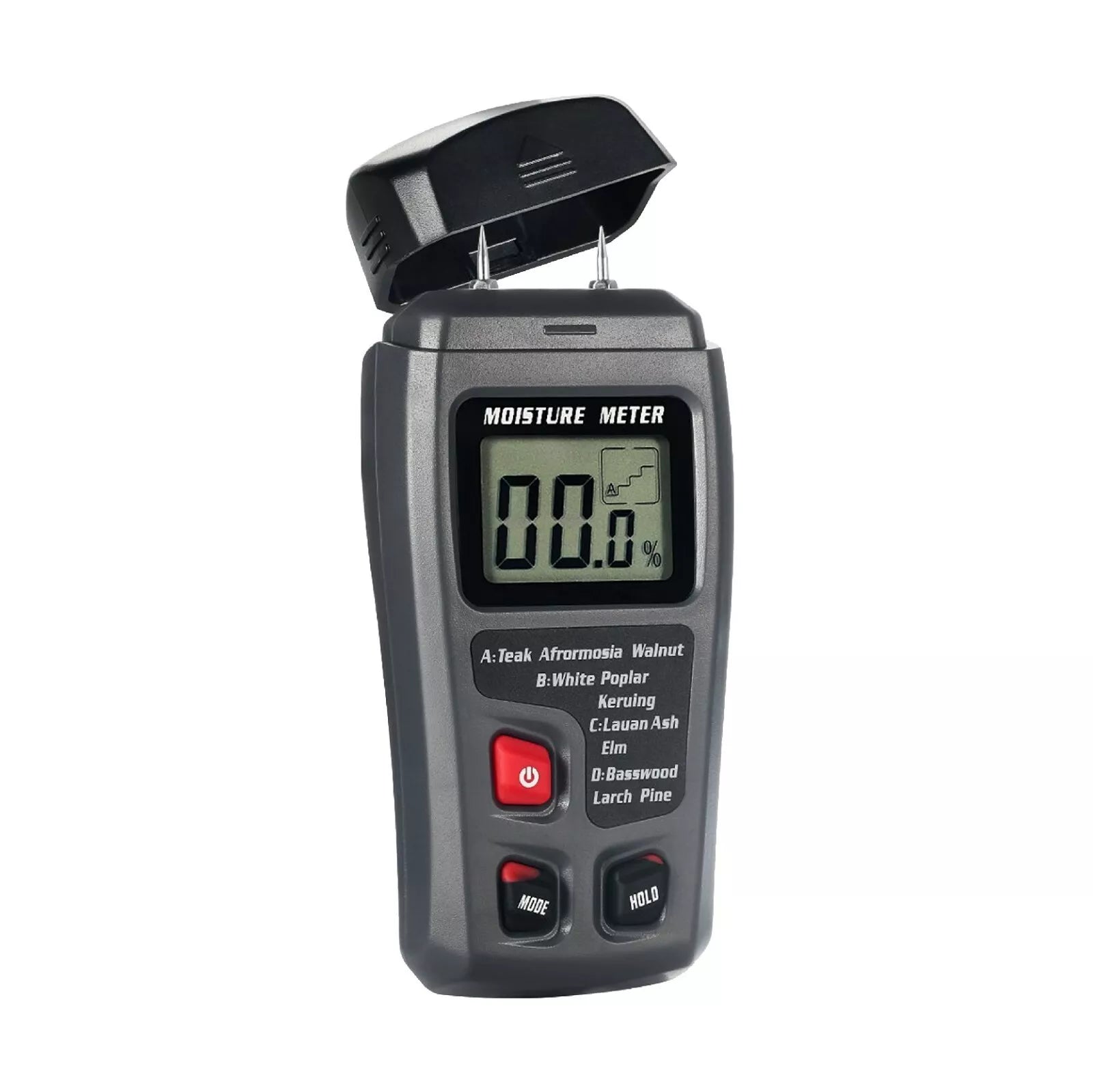

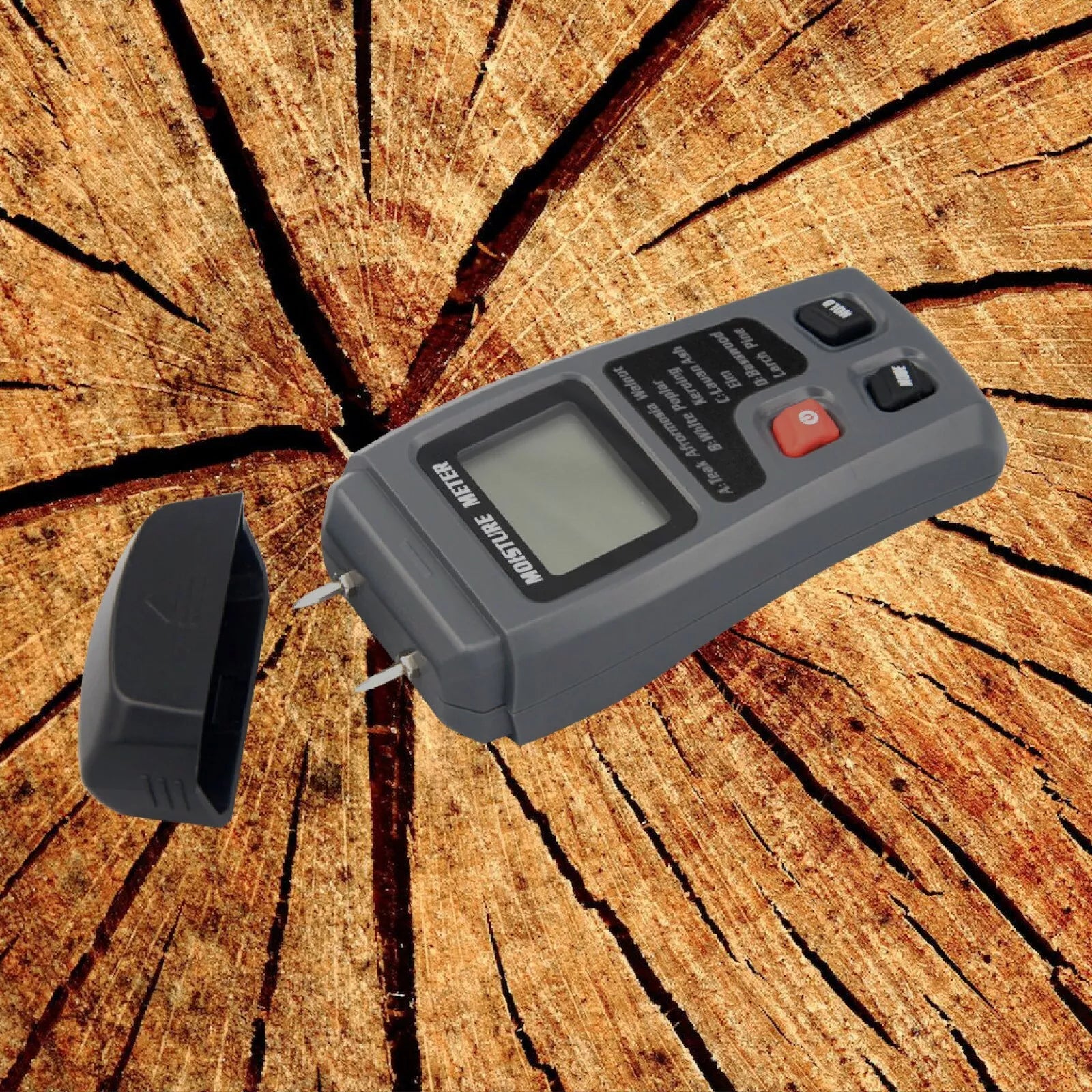

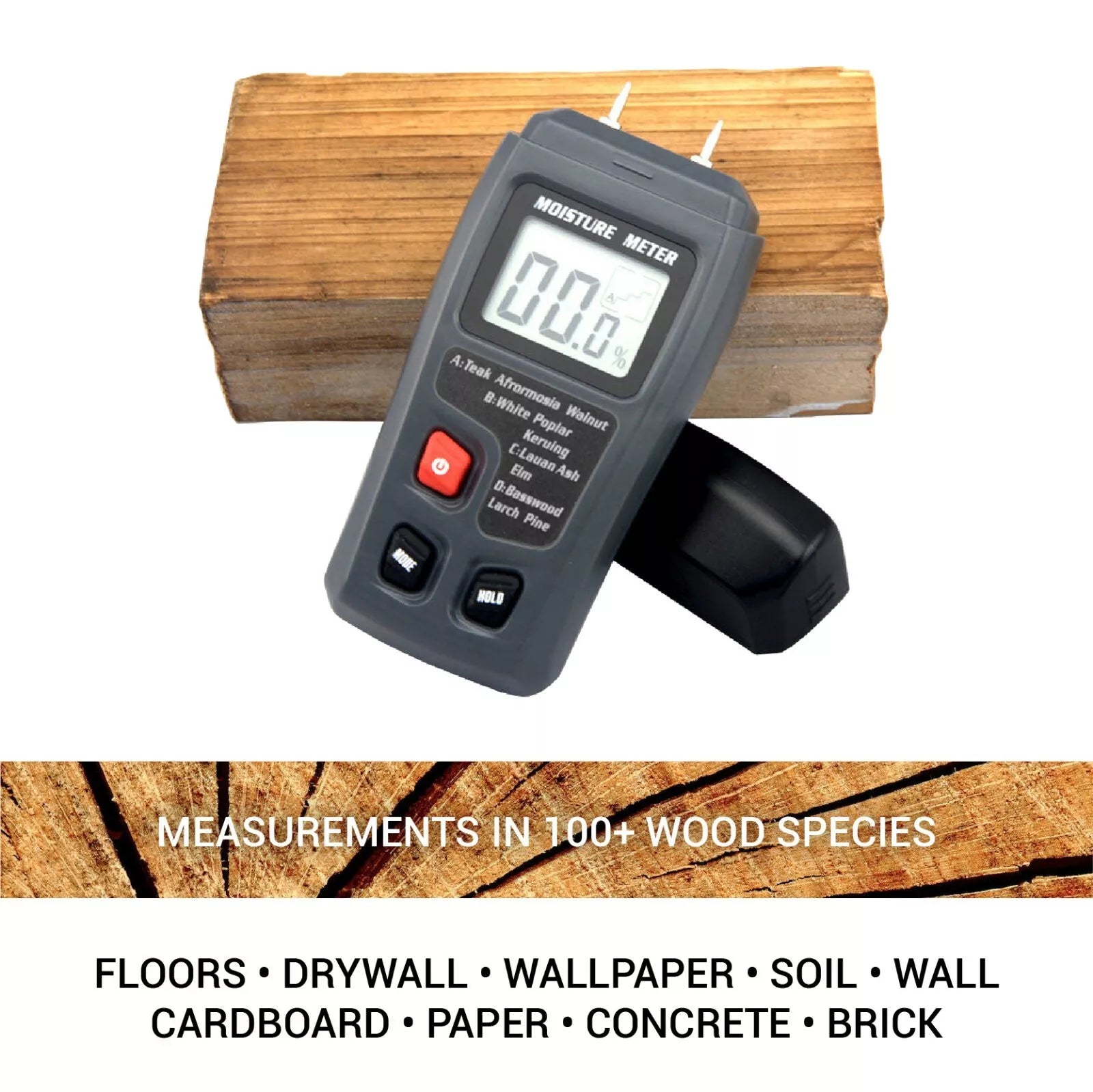

Wood Moisture Meter

This instrument is a conductivity moisture meter specifically designed for the wood industry and home. The instrument has four calibration scales, enabling the user to take accurate moisture measurements in 50 wood species. Moisture measurements can be taken using the integral pin electrodes. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.

Specifications

Display: 1 3/4" LCD characters display
Measurement principle: Electrical resistance
Moisture Range: 0~99.9% for Wood
Resolution: 0.1%
Accuracy: 0.5%
Electrode length: 10mm (0.4”)
Electrode pins: Integrated
Auto Power OFF: After approx.10 minutes
Power Supply: One 9V Battery (Not Include)
Meter housing: ABS plastics
Operating Temperature: 0 to 40 ˚C (32 to 104˚F)
Dimensions: 145 X 67 X 32mm (5.7” x 2.6” x 1.3”)
Weight: 200g (7.0 oz)

Items Included

One (1) Wood Moisture Meter
User Manual

Wood Species Group Table

Teak Walnut Afromosia Rubber tree
Keruing White poplar Beech Cedar Tola
Lauan Ash Elm Fir Maple Padauk Tola
Basswood Larch Pine Birch

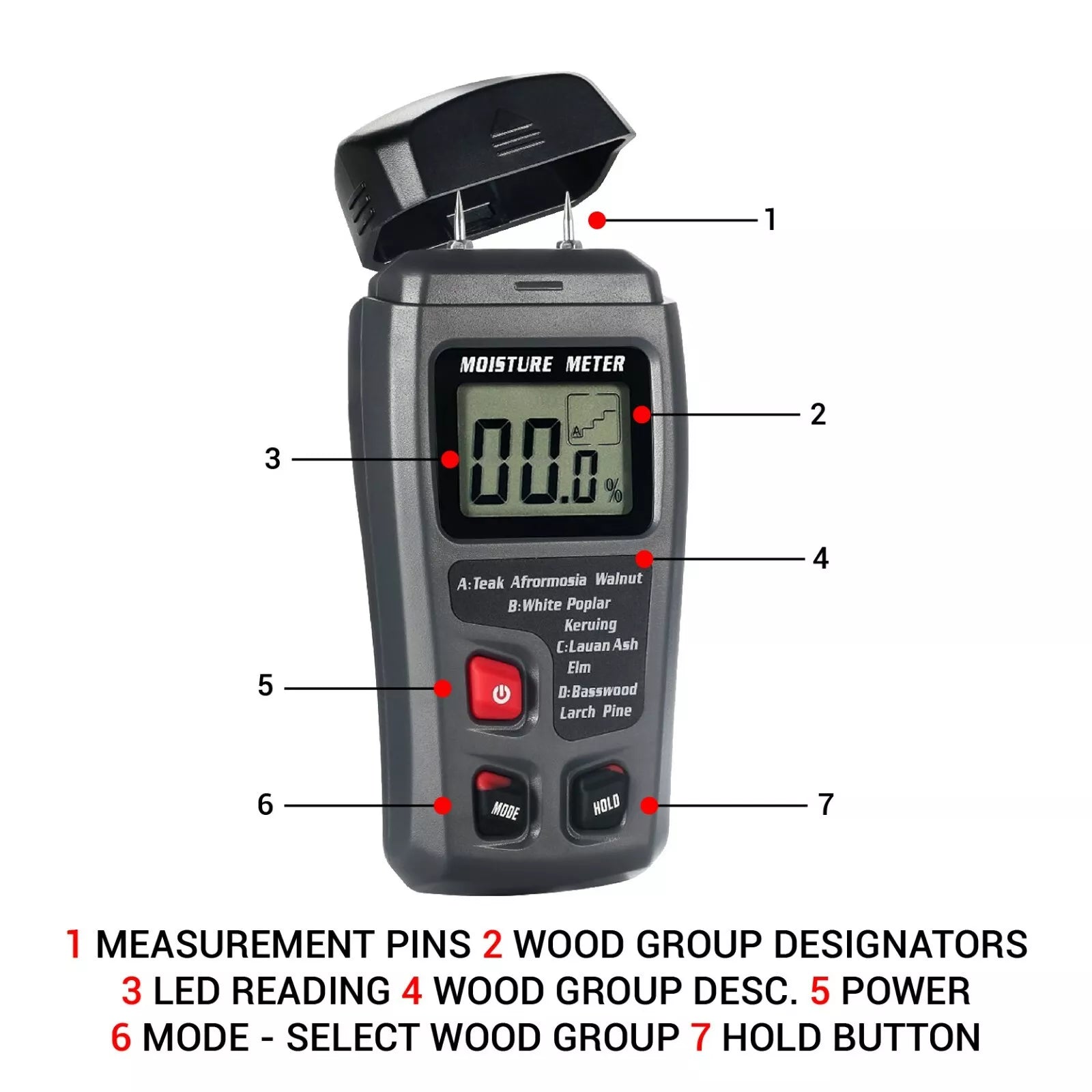

How to Use

Take off the protection cap of the meter, and press "POWER" button
Press "MODE" to select matching wood groups

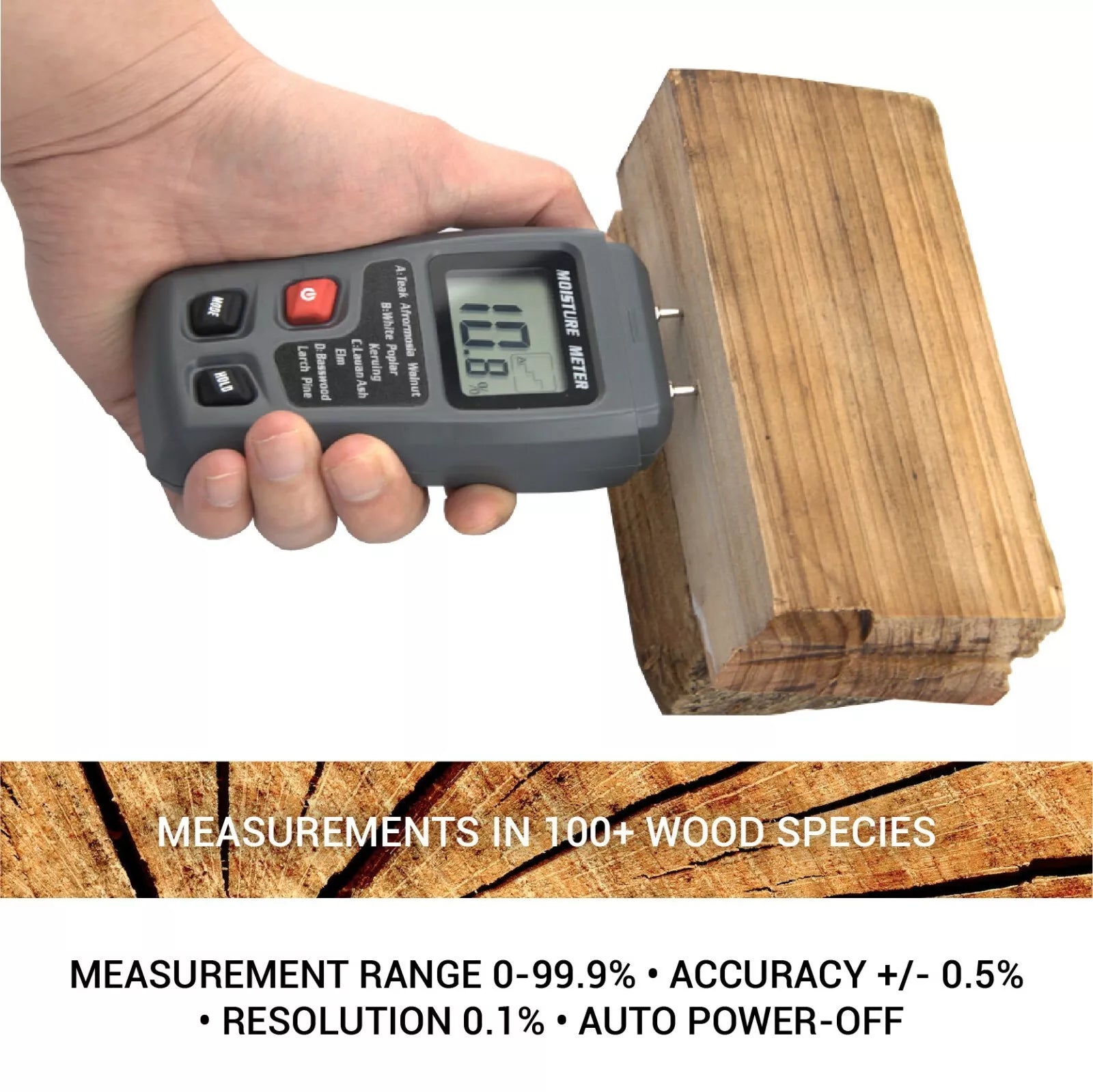

Pushed the pins into the wood, and it displays reading
Until the reading stability， Press "HOLD", and you can read the record
Press "POWER" button to close the device, or 15m Auto power off function save your Battery(s)
