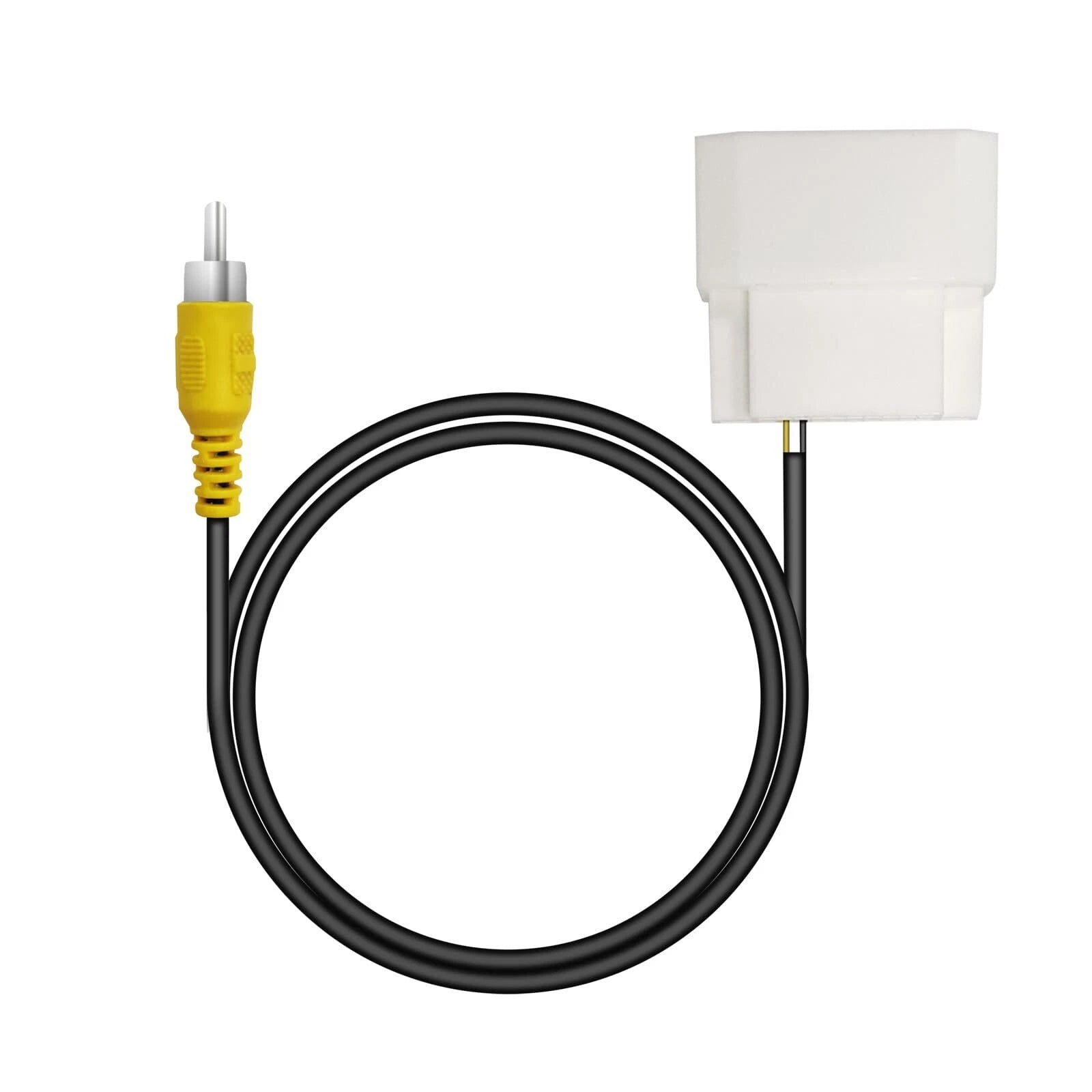

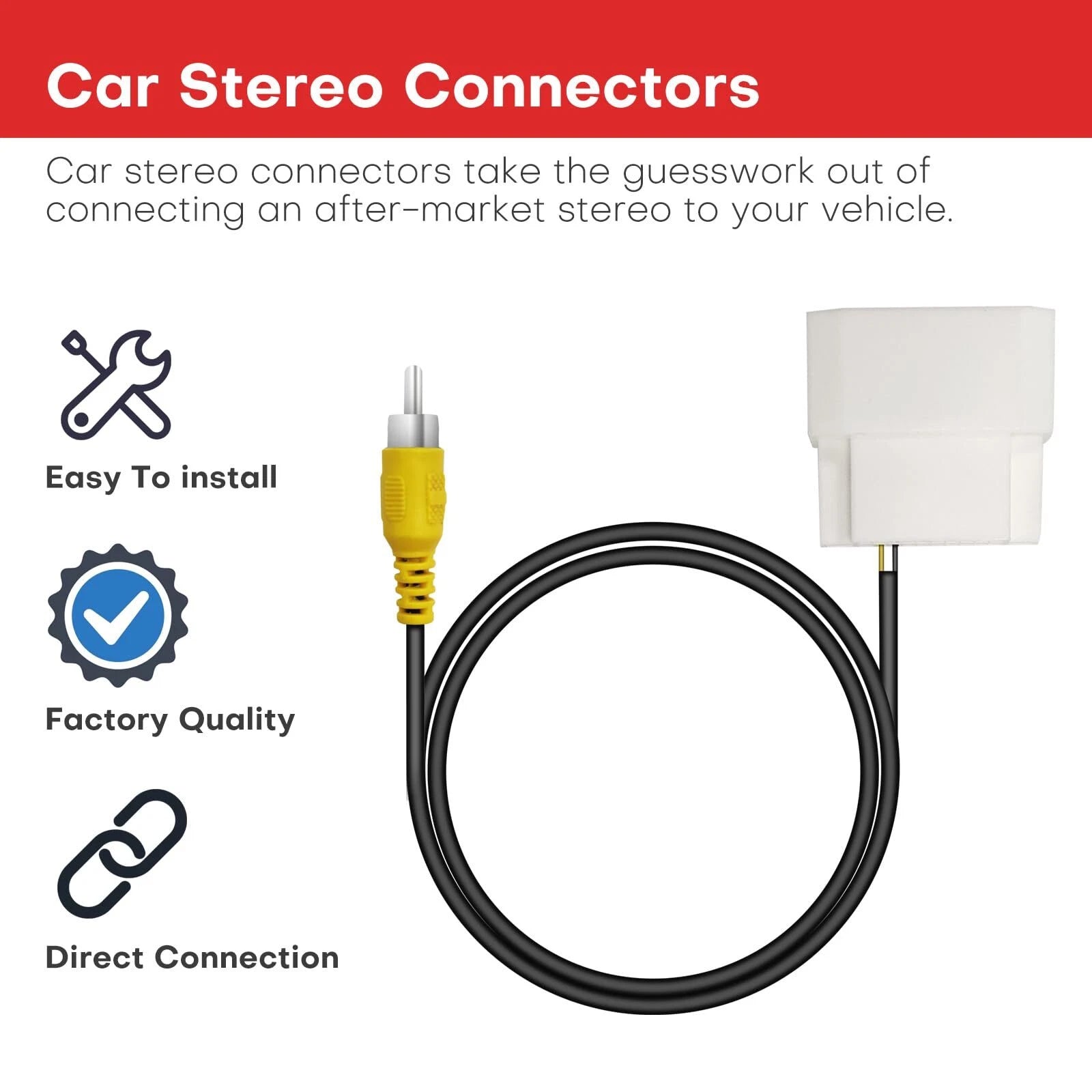

Retain your vehicle’s original factory backup camera when installing an aftermarket radio. This adapter converts the factory camera connection to a standard yellow RCA video plug for connection to the rear-camera input on a compatible aftermarket stereo or multimedia receiver.
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀
• Product type: Factory backup-camera retention harness
• Connection type: Vehicle-specific camera connector to male RCA video plug
• Application: Factory camera to aftermarket radio
• Video format: Analog composite video
• Installation location: Behind the radio
• Installation type: Plug-and-play camera connection
• Wire cutting required: No, when used with the correct factory connector
• Condition: New
• Quantity: One harness
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻
This adapter is intended for vehicles already equipped with an original factory rear-view camera. It allows the factory camera’s video signal to connect to the yellow backup-camera input on an aftermarket radio.
It is useful when replacing the original Chrysler, Dodge, Jeep, RAM, or Volkswagen radio with a double-DIN multimedia receiver while retaining the existing rear camera.

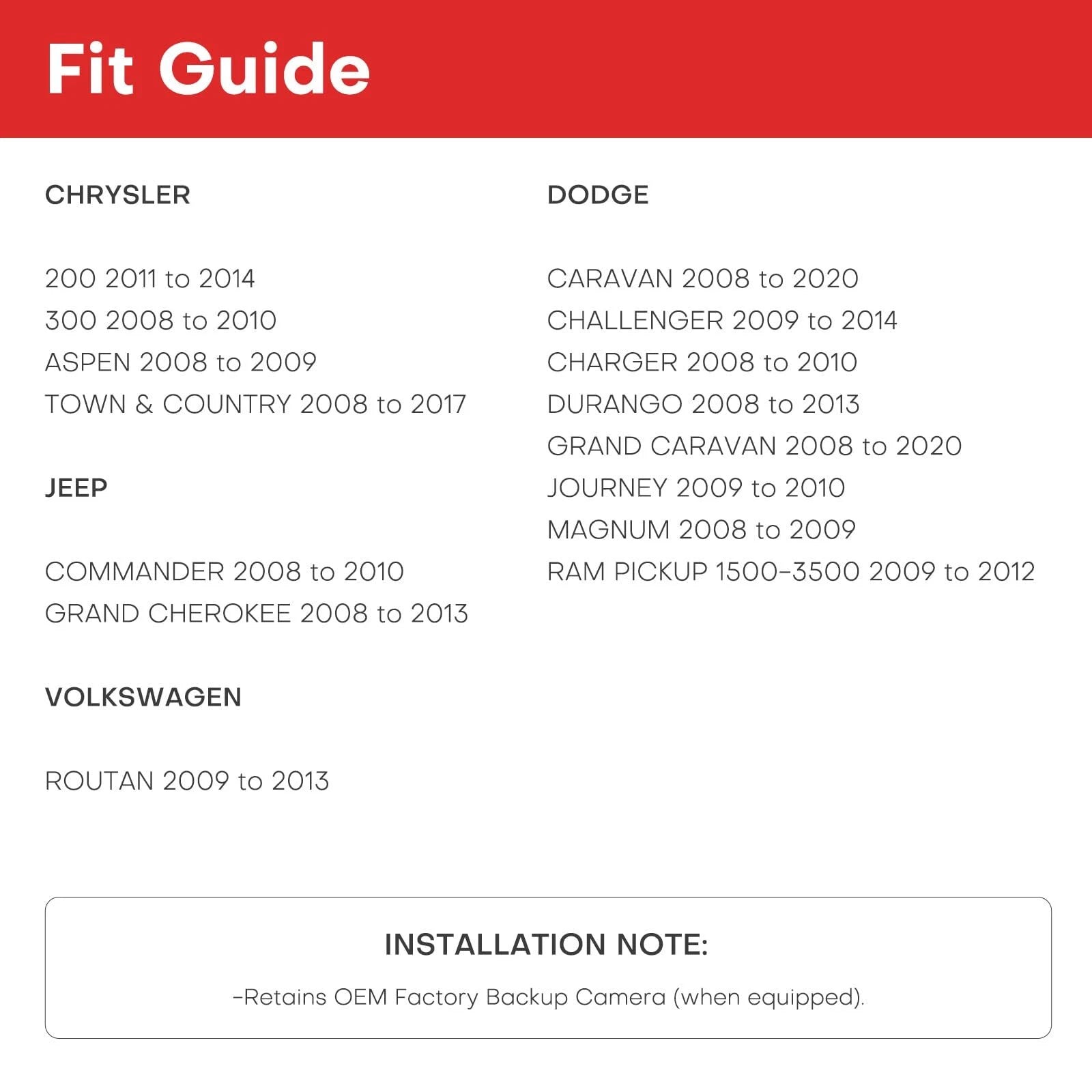

𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗔𝗻𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆
Chrysler:
• 200: 2011–2014
• 300: 2008–2010
• Aspen: 2008–2009
• Town & Country: 2008–2017
Dodge:
• Caravan: 2008–2020
• Grand Caravan: 2008–2020
• Challenger: 2009–2014
• Charger: 2008–2010
• Durango: 2008–2013
• Journey: 2009–2010
• Magnum: 2008–2009
Dodge RAM / RAM:
• 1500: 2009–2012
• 2500: 2009–2012
• 3500: 2009–2012
Jeep:
• Commander: 2008–2010
• Grand Cherokee: 2008–2013
Volkswagen:
• Routan: 2009–2013
𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗥𝗲𝗾𝘂𝗶𝗿𝗲𝗺𝗲𝗻𝘁𝘀
• Vehicle must already have a factory-installed backup camera

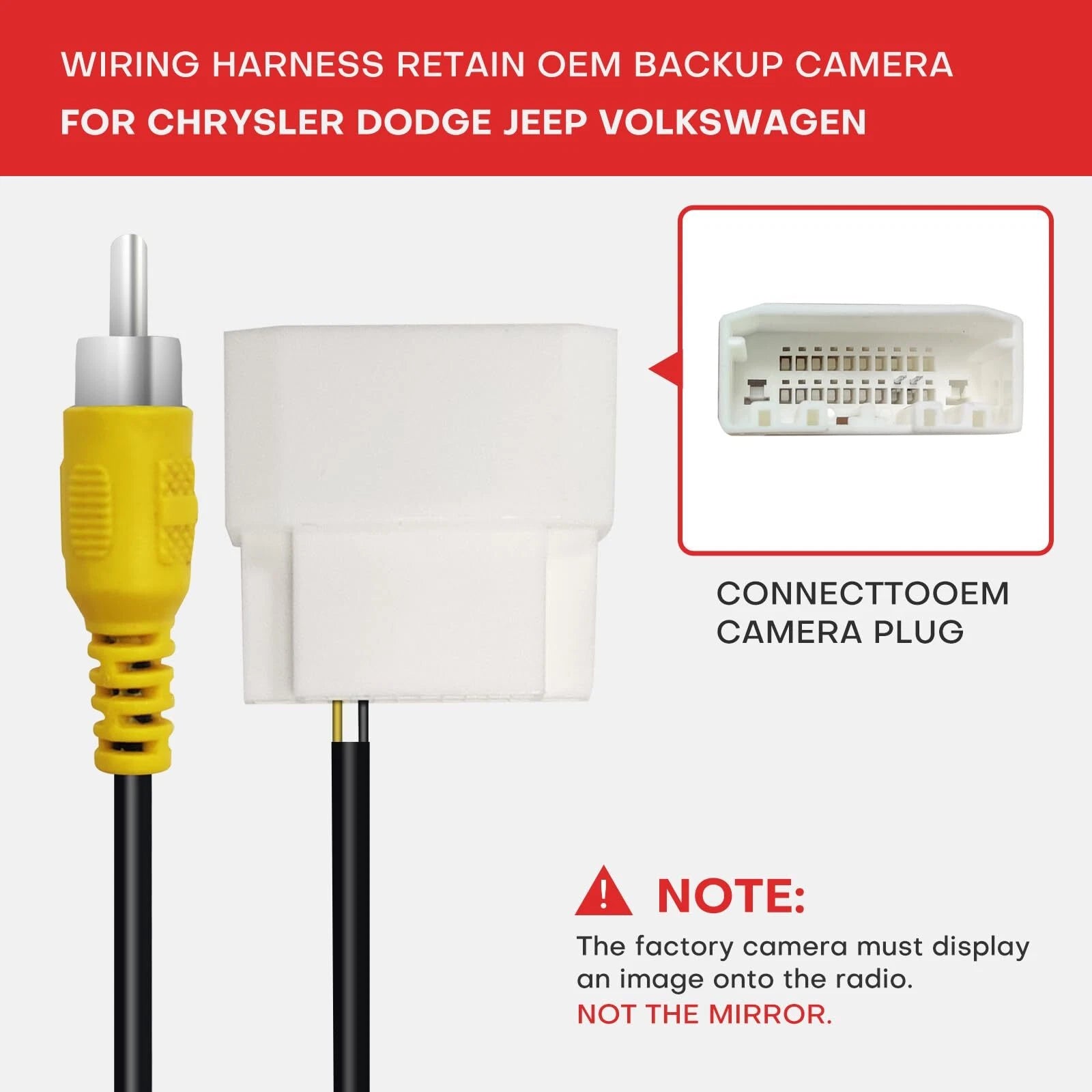

• Factory camera connector must match the connector shown in the product photographs
• Aftermarket radio must have a standard composite RCA camera input
• Radio must support automatic or manually selectable rear-camera display
• Additional radio wiring and installation accessories may be required
Fitment is determined by the original camera system and connector—not solely by the vehicle’s model and year. Compare the factory connector before ordering.
𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗟𝗶𝗺𝗶𝘁𝗮𝘁𝗶𝗼𝗻𝘀
• This harness retains an existing factory camera
• It does not include a backup camera
• It is not designed to add an aftermarket camera to the factory radio
• It does not replace the complete radio installation harness
• It does not retain steering-wheel controls, factory amplifiers, USB ports, satellite radio, or rear-seat entertainment by itself
• It may not generate the reverse-gear trigger required by the aftermarket radio
• A compatible data-interface module or separate reverse-signal connection may be required
• It will not convert a digital camera signal to analog video
• It does not repair a defective camera, damaged wiring, or faulty radio display
𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻
-
Disconnect the vehicle battery according to the manufacturer’s service procedure.
-
Remove the factory radio and identify the original backup-camera connection.
-

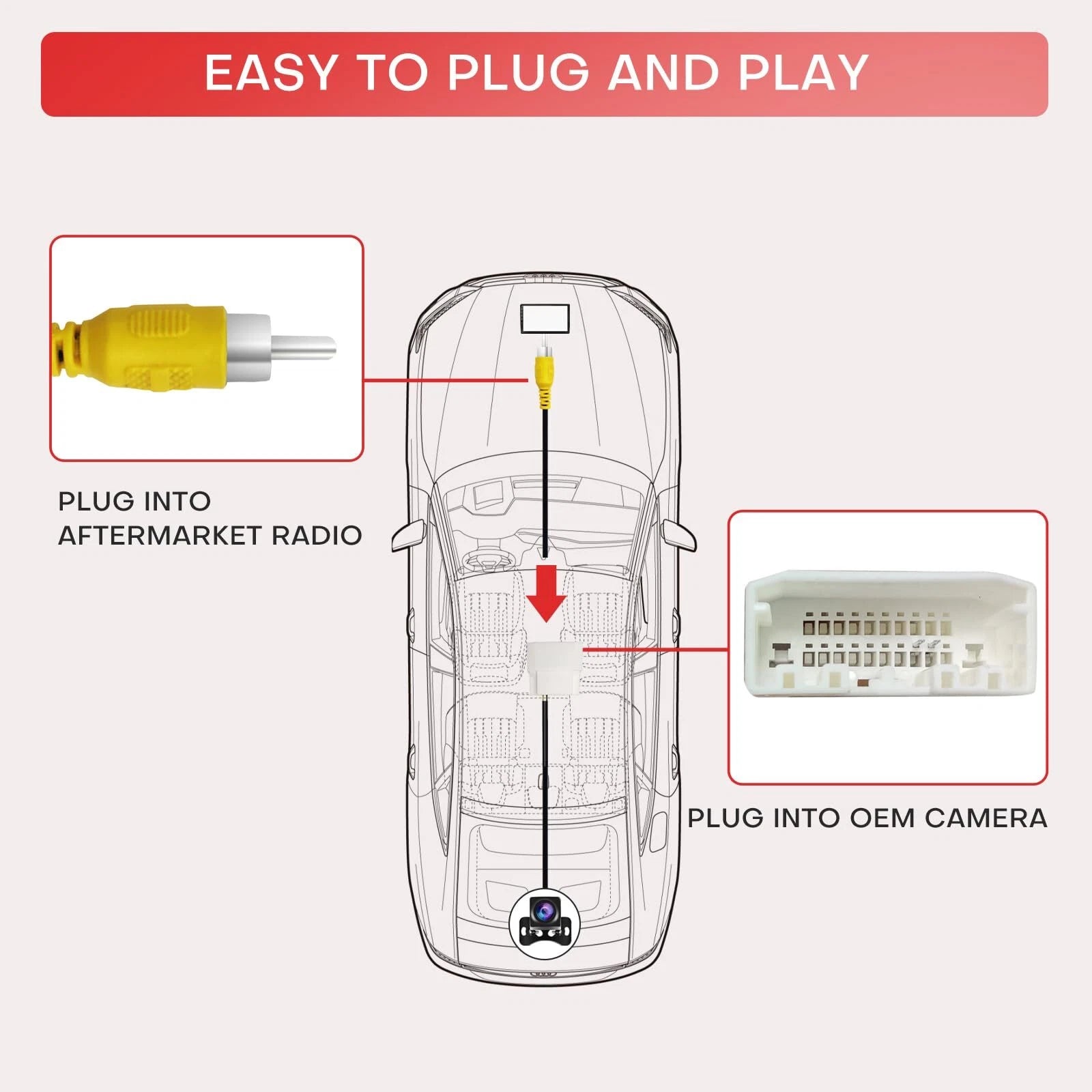

Connect the vehicle-specific end of this harness to the matching factory camera connector.
-
Connect the yellow RCA plug to the aftermarket radio input labeled Camera In, Rear Camera, or Rear View.
-
Connect or program the radio’s reverse trigger as required by the radio and vehicle installation interface.
-
Test the camera image, orientation, and automatic reverse activation before reinstalling the radio and trim panels.
Professional installation is recommended if the vehicle uses a data-controlled reverse signal or an integrated factory entertainment system.
𝗣𝗮𝗿𝘁 𝗡𝘂𝗯𝗲𝗿 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻
No unique manufacturer or Mopar part number is supplied for this aftermarket adapter. Compatibility should be confirmed using the vehicle application, factory-camera equipment, connector configuration, and product photographs.
Do not advertise this adapter under an original Chrysler, Dodge, Jeep, RAM, or Volkswagen part number unless that number appears directly on the product or its packaging.
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀
• One factory backup-camera retention harness with RCA video connector
Backup camera, aftermarket radio, radio installation harness, data interface, mounting kit, antenna adapter, tools, and installation instructions are not included.
.
