BMW E70 X5 E71 X6 E89 Z4 HiFi Audio Amplifier Amp 65129133913 OEM Lear
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฐ๐ฟ๐ถ๐ฝ๐๐ถ๐ผ๐ป
Genuine BMW HiFi audio-system amplifier removed from a 2008 BMW X5 E70. This original Lear AMPH70 module is designed for selected BMW vehicles equipped with factory option S676A, the BMW HiFi speaker system.
The amplifier receives the audio signal from the factory head unit and supplies amplified output to the vehicleโs HiFi speakers and bass channels. It is intended as an original replacement componentโnot as an upgrade for vehicles equipped with the base stereo, Logic7, Top HiFi or Individual Audio systems.
This unit is used and untested. It is being sold as-is for replacement, diagnostic, repair, rebuilding or parts use.
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐
โข Brand: Genuine BMW OEM ย
โข Manufacturer: Lear Corporation ย

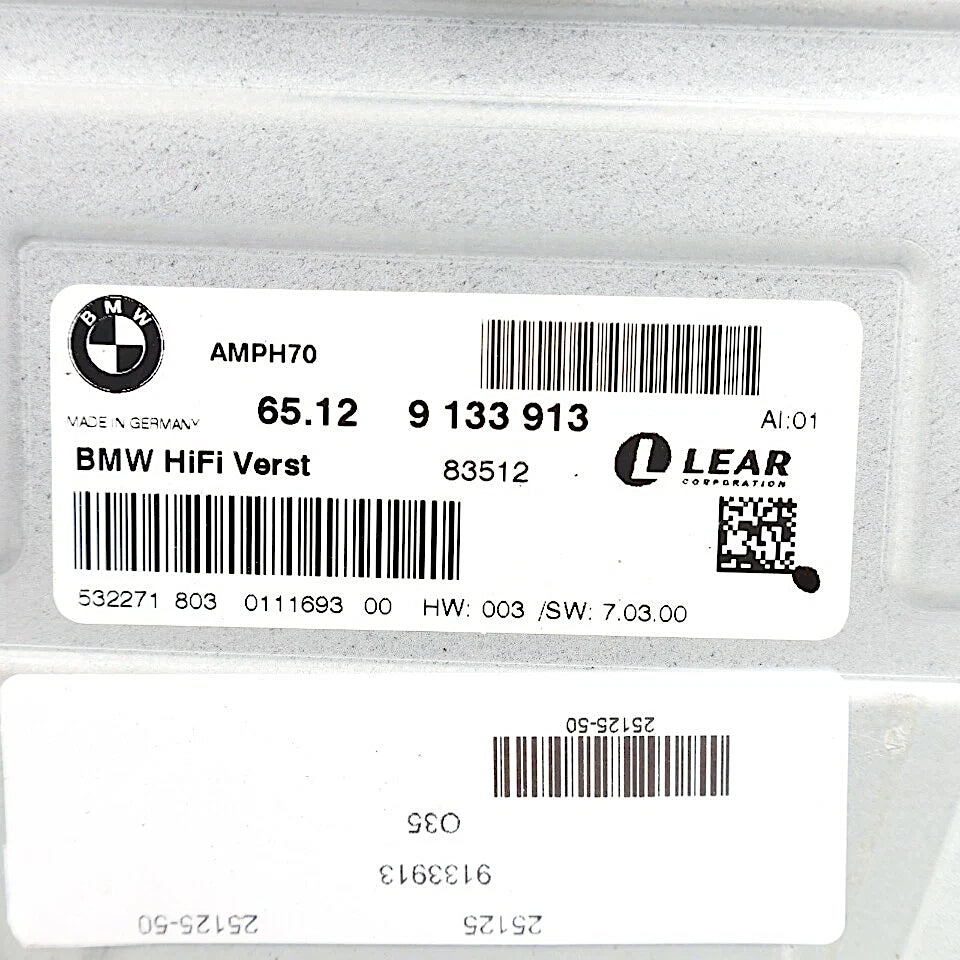

โข BMW part number: 65 12 9 133 913 ย
โข Compact part number: 65129133913, 9133913
โข Module designation: AMPH70 ย
โข Hardware version: HW 003 ย
โข Software version: SW 7.03.00 ย
โข Component type: Factory HiFi audio power amplifier ย
โข Audio system: BMW HiFi speaker system, option S676A ย

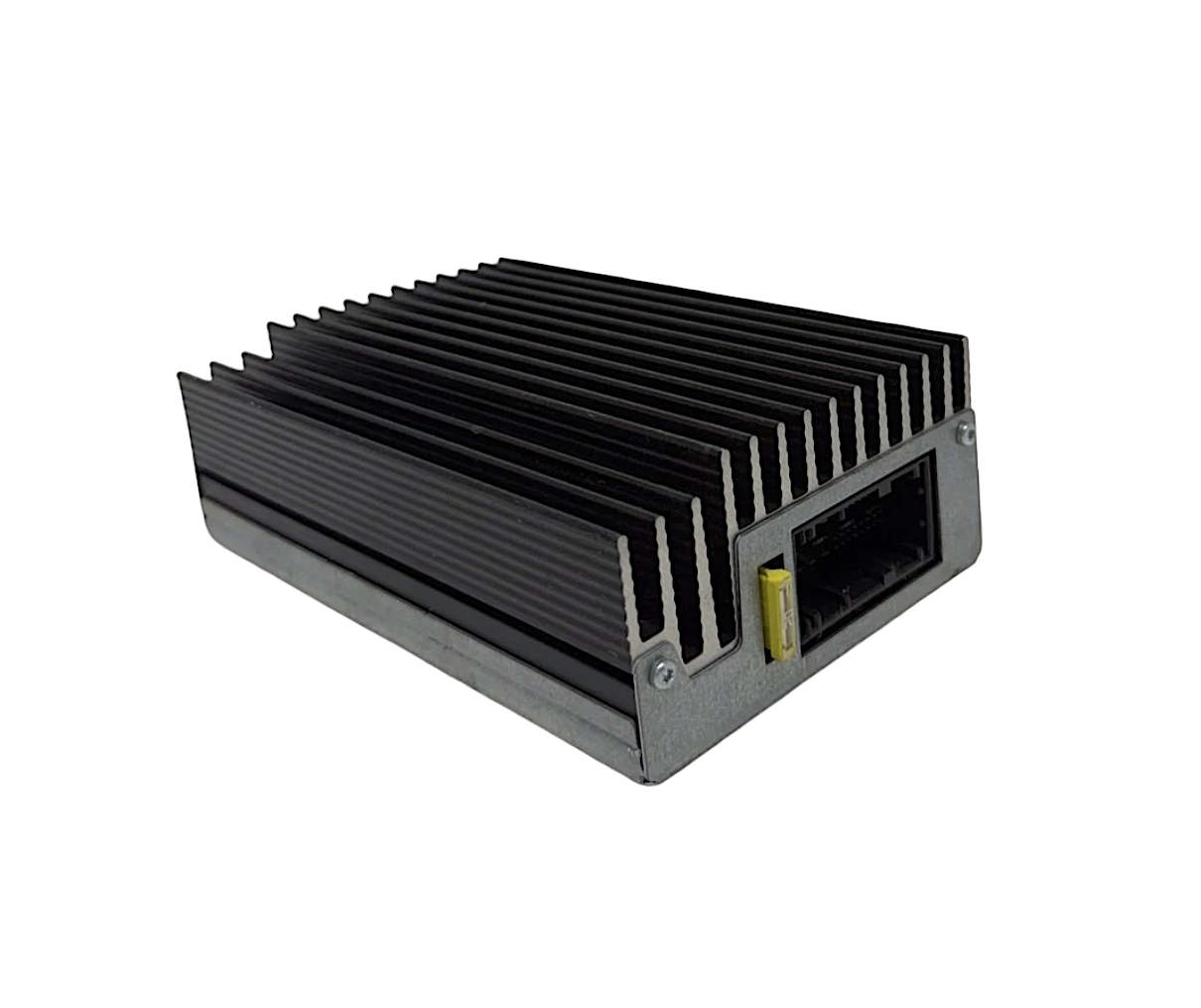

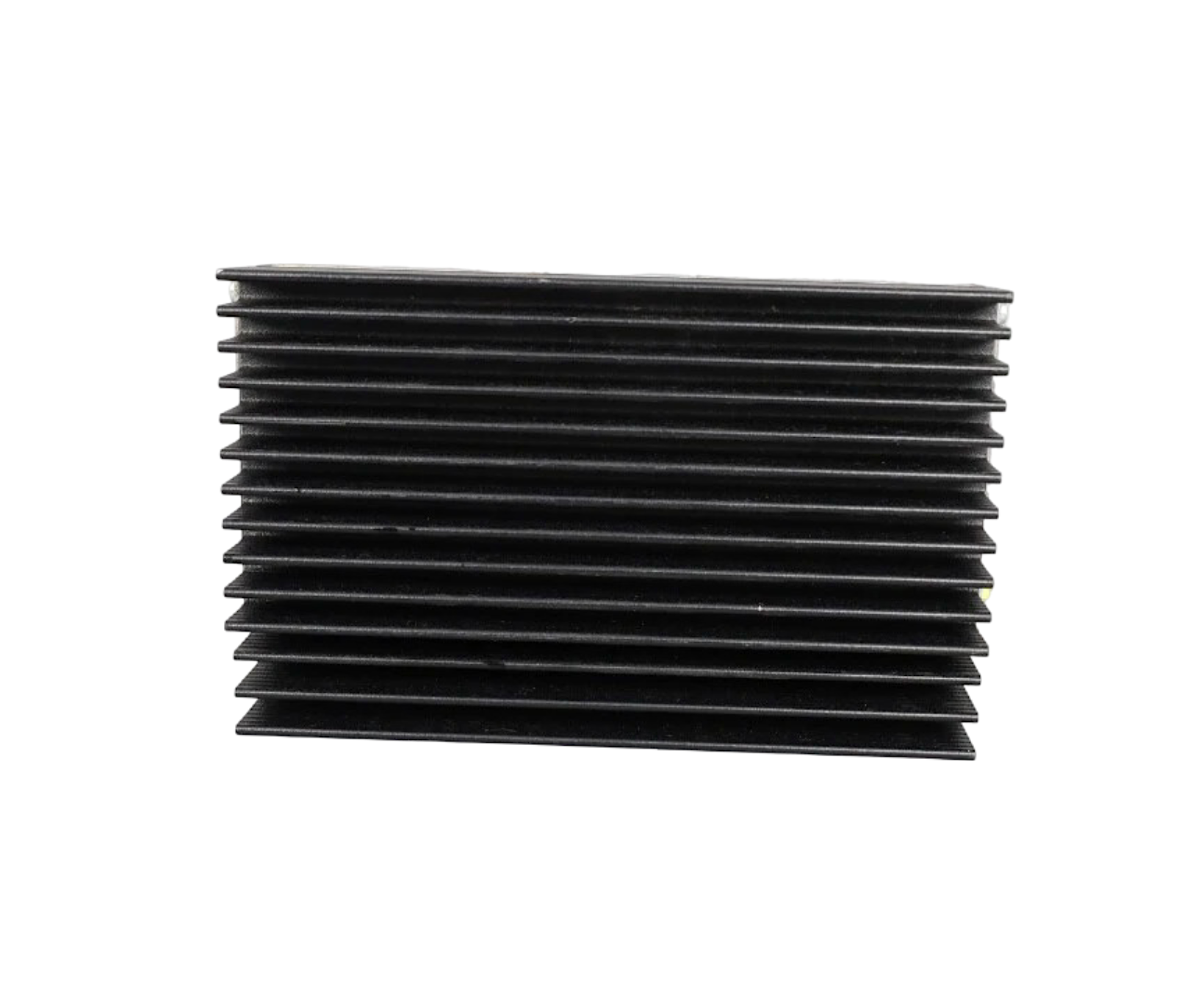

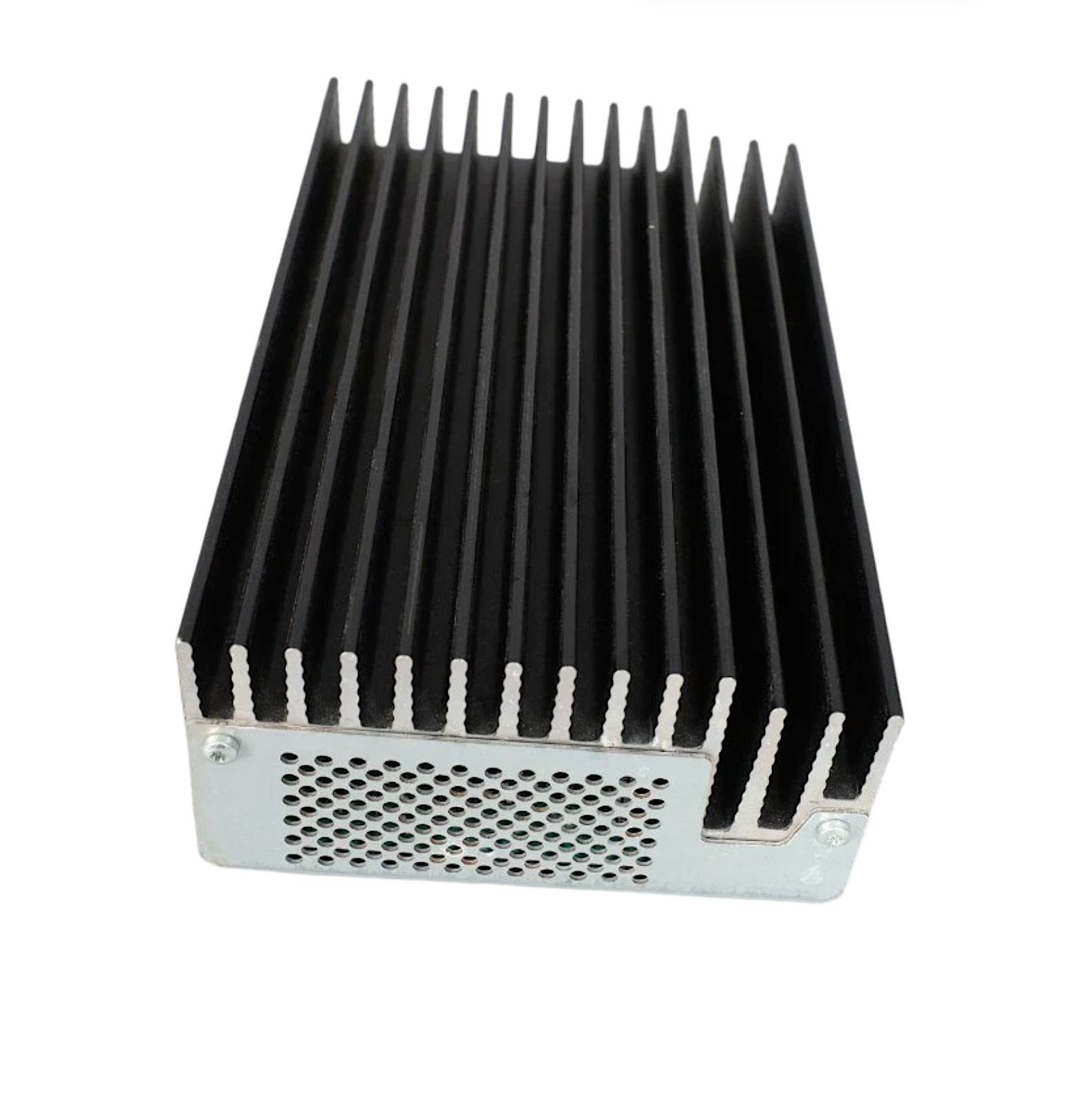

โข Housing: Finned aluminum heat sink with metal mounting structure ย

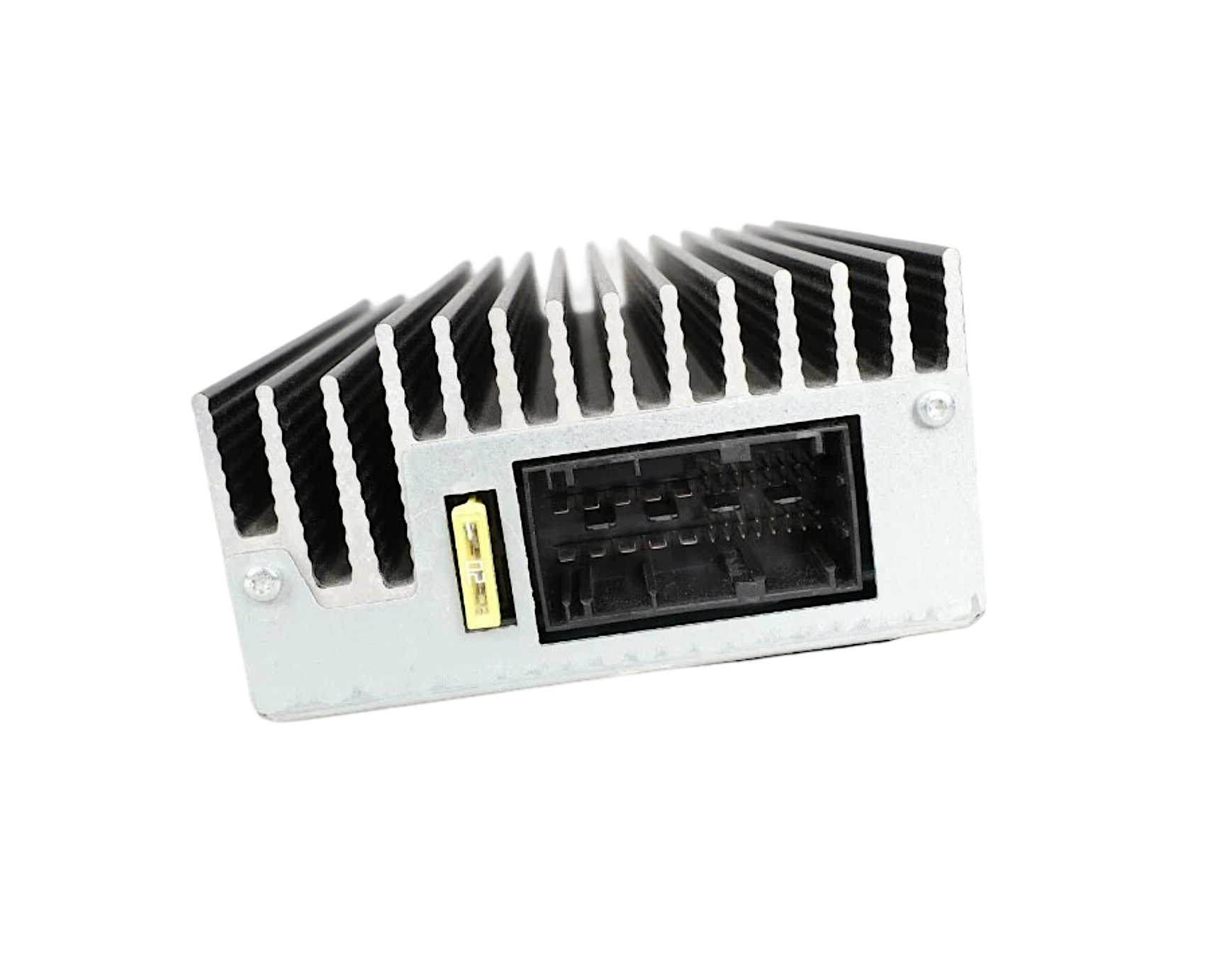

โข Connector type: Single factory multi-pin electrical connector ย
โข Country of manufacture: Germany ย
โข Condition: Used and untested ย
โข Warranty: None ย
๐๐ผ๐ป๐ผ๐ฟ ๐ฉ๐ฒ๐ต๐ถ๐ฐ๐น๐ฒ
โข 2008 BMW X5 ย
โข Chassis: E70 ย
โข Factory HiFi audio system ย
๐ฉ๐ฒ๐ต๐ถ๐ฐ๐น๐ฒ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐
Part number 65129133913 was used in selected early-production vehicles including:
๐๐ ๐ช ๐ซ๐ฑ
โข E70 X5: Approximately 2007โ2010 ย
โข Selected 3.0si, 4.8i, xDrive30i, xDrive35d and xDrive48i configurations ย
โข Must have factory HiFi speaker option S676A ย
๐๐ ๐ช ๐ซ๐ฒ
โข E71 X6: Approximately 2008โ2010 early production ย
โข Selected xDrive35i, xDrive50i, xDrive30d and xDrive35d configurations ย
โข Must have factory HiFi speaker option S676A ย
๐๐ ๐ช ๐ญ๐ฐ
โข E89 Z4: Approximately 2009โ2010 early production ย
โข Selected sDrive23i, sDrive30i and sDrive35i configurations ย
โข Must have factory HiFi speaker option S676A ย
Model years are general references only. BMW changed amplifier part numbers during production, and the same vehicle could be equipped with several completely different audio systems.
๐๐๐ฑ๐ถ๐ผ ๐ฆ๐๐๐๐ฒ๐บ ๐ฅ๐ฒ๐พ๐๐ถ๐ฟ๐ฒ๐บ๐ฒ๐ป๐
This amplifier is intended for vehicles equipped with:
โข S676A โ HiFi Speaker System ย
โข S676 โ HiFi Loudspeaker System ย
Check the vehicleโs factory option list or VIN build sheet for option 676 before ordering.
๐ก๐ผ๐ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐น๐ฒ ๐ช๐ถ๐๐ต
โข Standard base audio systems without the external HiFi amplifier ย
โข S677A HiFi System Professional DSP ย
โข Logic7 surround-sound systems ย
โข Harman Kardon systems ย
โข S752A BMW Individual High-End Audio ย
โข Amplifiers using a fiber-optic MOST connection ย
โข Vehicles with a different connector or amplifier part number ย
The HiFi, Top HiFi and Logic7 amplifiers are not interchangeable simply because they fit in a similar mounting location.
๐ฃ๐ฎ๐ฟ๐ ๐ก๐๐บ๐ฏ๐ฒ๐ฟ ๐ก๐ผ๐๐ฒ๐
BMW part number 65129133913 superseded earlier amplifier number:
โข 65129118032 ย
It was subsequently replaced in applicable catalogs by:
โข 65129197002 ย
Additional later replacement numbers may exist depending on chassis, production date and audio configuration. Do not purchase by a supersession number alone without confirming compatibility through the vehicleโs VIN.
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐๐ถ๐๐บ๐ฒ๐ป๐ ๐ก๐ผ๐๐ฒ
Before ordering, compare the following with the amplifier currently installed in the vehicle:
โข BMW part number ย
โข AMPH70 module designation ย
โข Connector shape and pin arrangement ย
โข Hardware and software information ย
โข Mounting tabs and bracket configuration ย
โข Vehicle chassis and production date ย
โข Factory audio option code ย
Matching the part number exactly is strongly recommended.
A replacement amplifier from a different chassis may require BMW coding or programming so that its equalization and vehicle configuration match the recipient vehicle. Coding is not included with this item.
๐๐ผ๐ป๐ฑ๐ถ๐๐ถ๐ผ๐ป

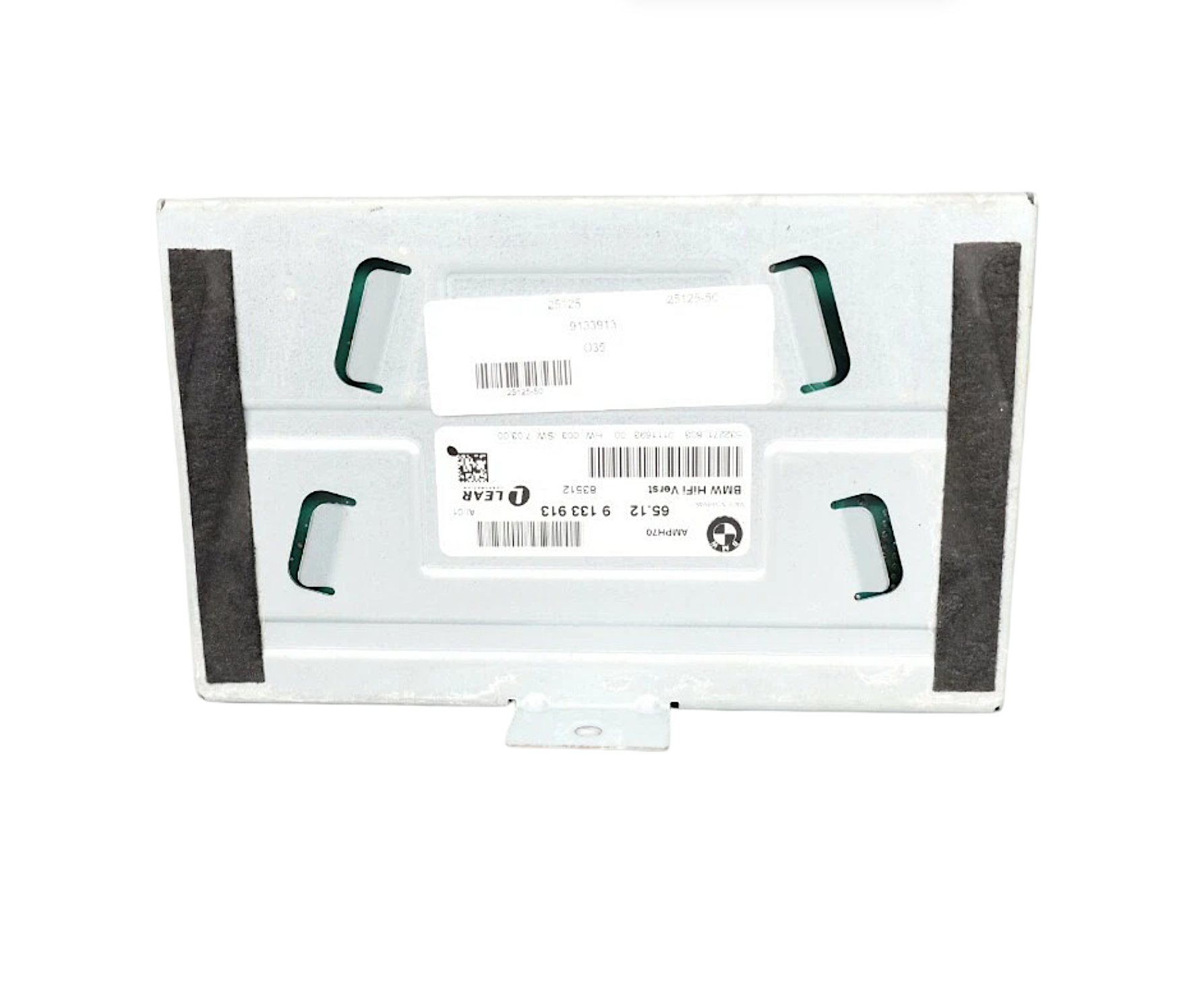

This is a used original BMW component. The aluminum heat sink and metal housing show normal cosmetic wear, including:
โข Light surface scuffs ย
โข Dust from storage and previous installation ย
โข Adhesive or label residue ย
โข Yellow salvage-yard inventory writing ย
โข General mounting wear ย
No cracks, obvious burned areas or visibly broken connector pins were observed in the listing photographs.
The amplifier has not been functionally tested. No guarantee is made regarding audio output, individual channels, internal electronics or communication with the vehicle. It is sold as-is with no warranty.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐
โข One genuine BMW Lear AMPH70 HiFi amplifier ย
โข Integrated housing and mounting tabs shown in the photographs ย
Wiring harnesses, electrical connectors, speakers, mounting screws, radio components and coding services are not included.
The item shown in the photographs is the exact unit the buyer will receive.
