B116XTN02.3 eDP Controller Driver VGA HDMI Video Audio Panel 30-pin 11.6" LCD

  • $ 74.95

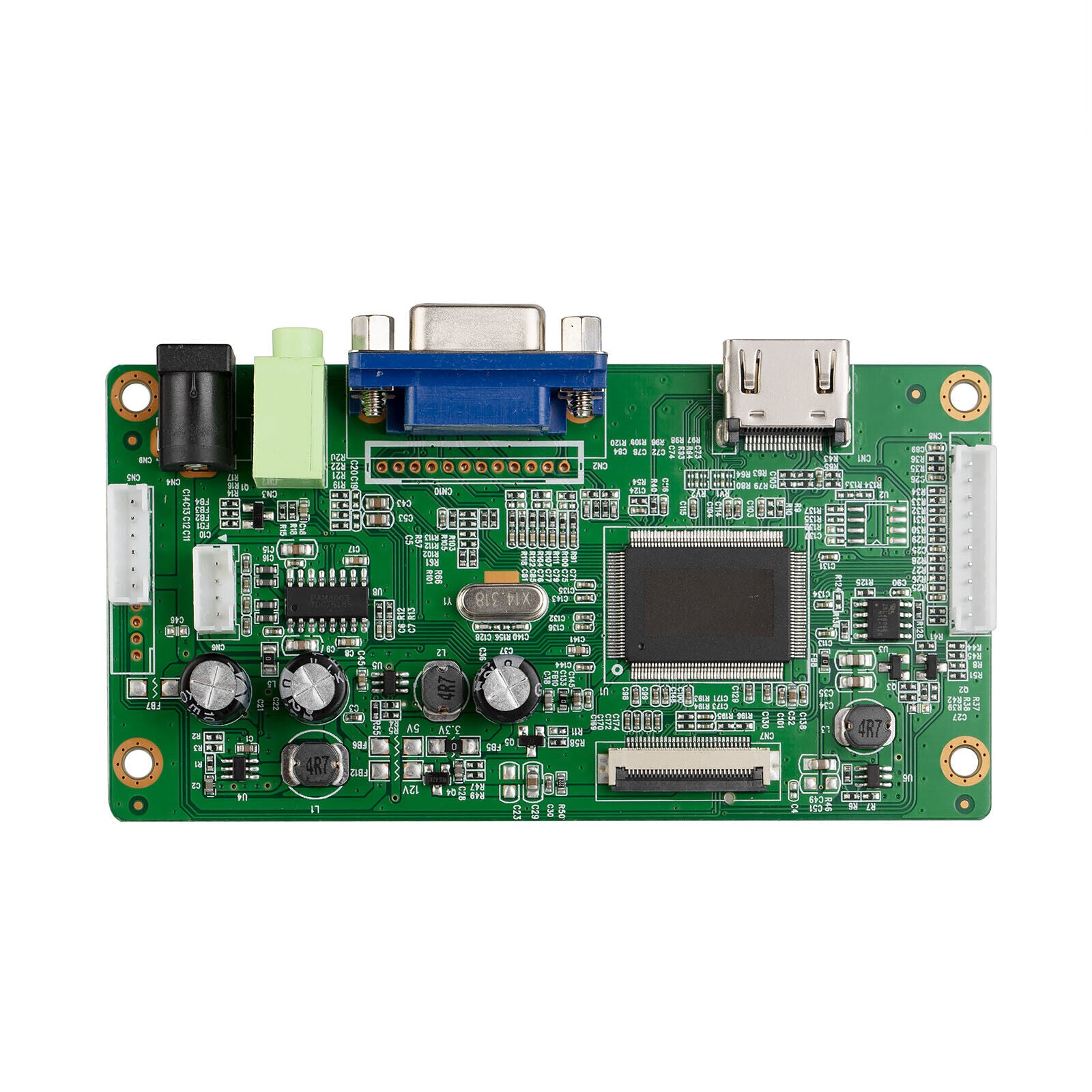

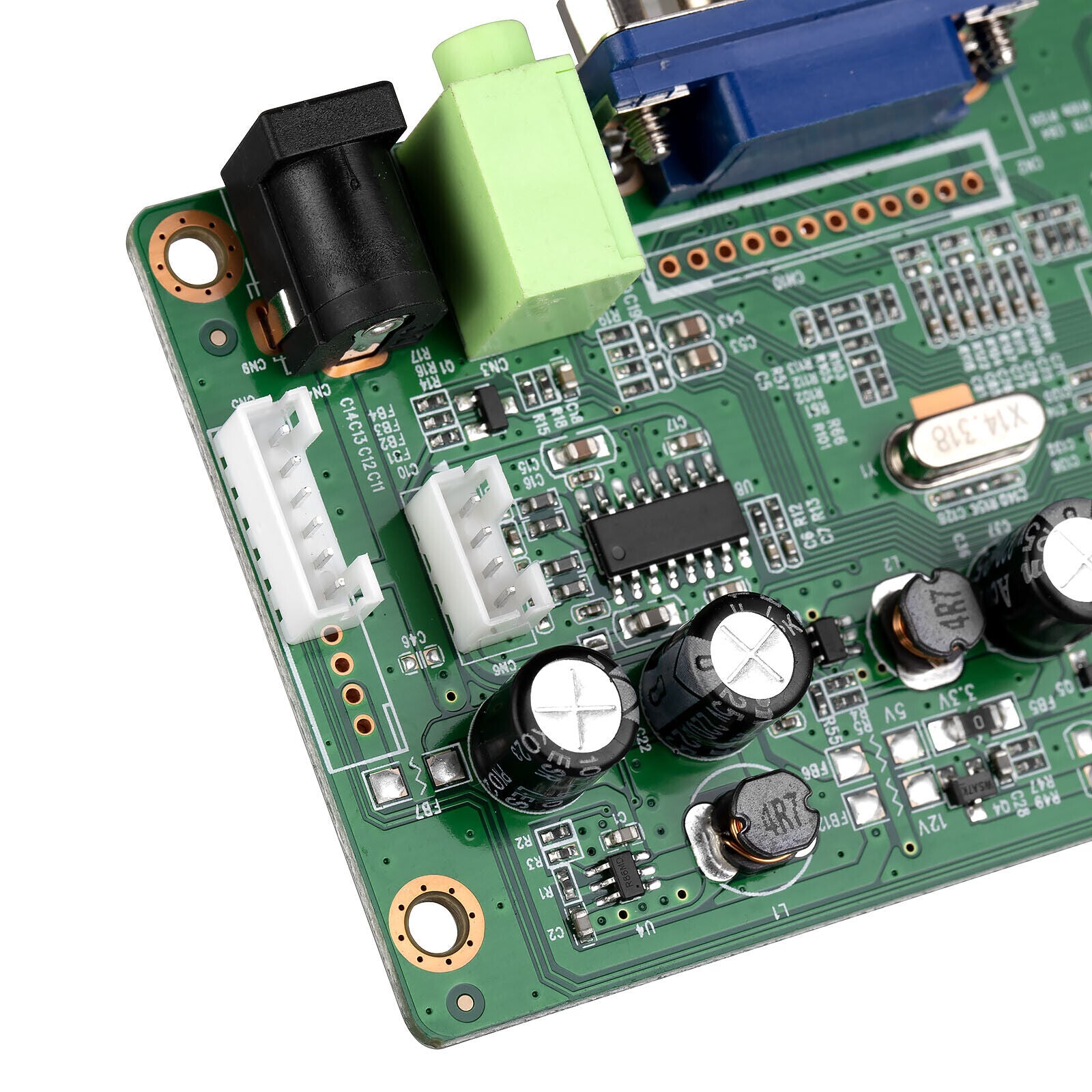

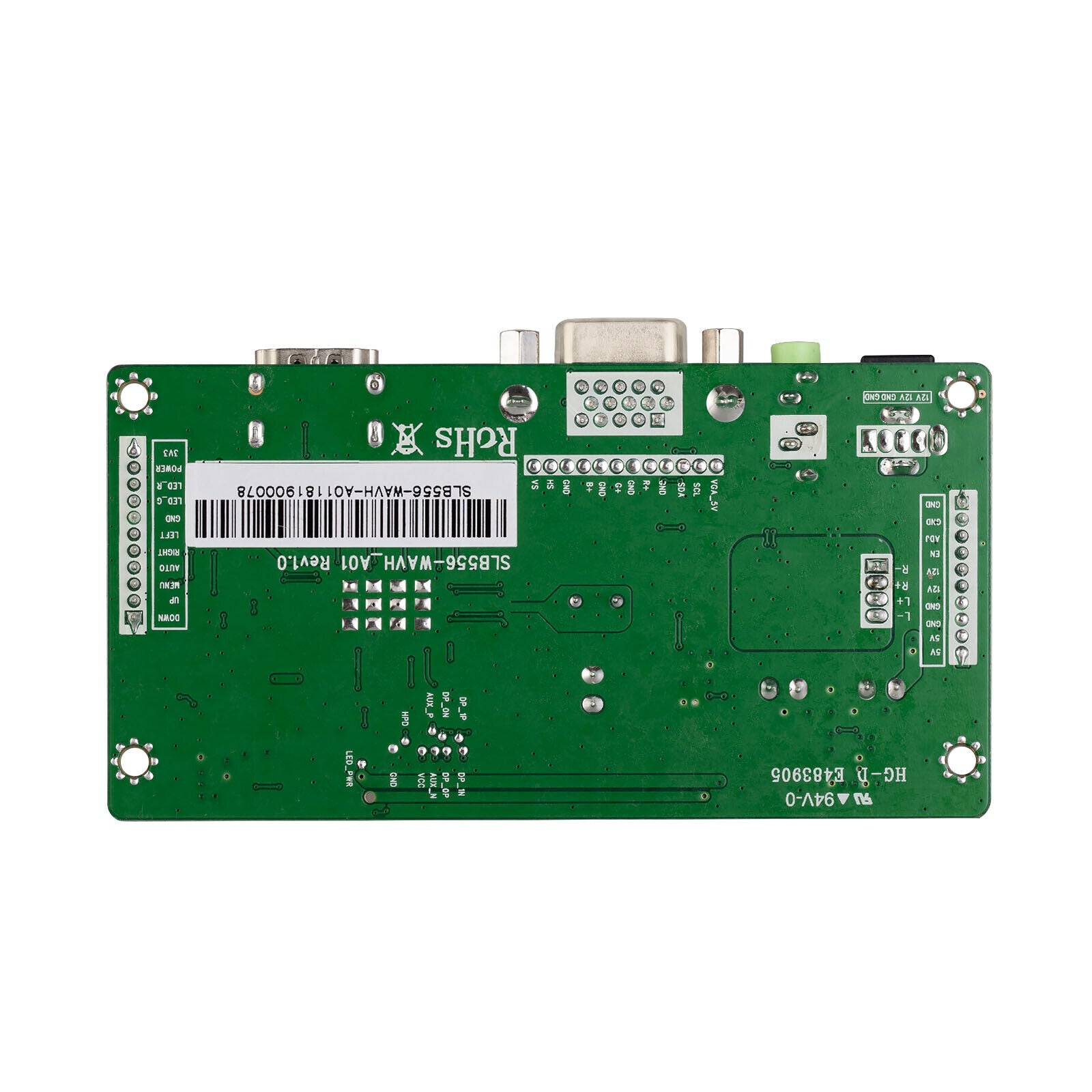

This is small size eDP LCD panel controller borad supports B116XTN02.3 up to 1080P. It supports brightness control, plug and play, fast response time.
Important Note, Must Read:
  • This kit is for B116XTN02.3 only, not for other models
  • This board using 12V 3A power supply, which is NOT included. DC connector is 5.5 x 2.1mm center positive
  • Finish all cables connection and connect power supply at last
  • If you very concern about resolution setting, please think it twice before order
  • If you are not specialized in electronics or have doubts in operation, please CONTACT US, we are not responsible for wrong operation

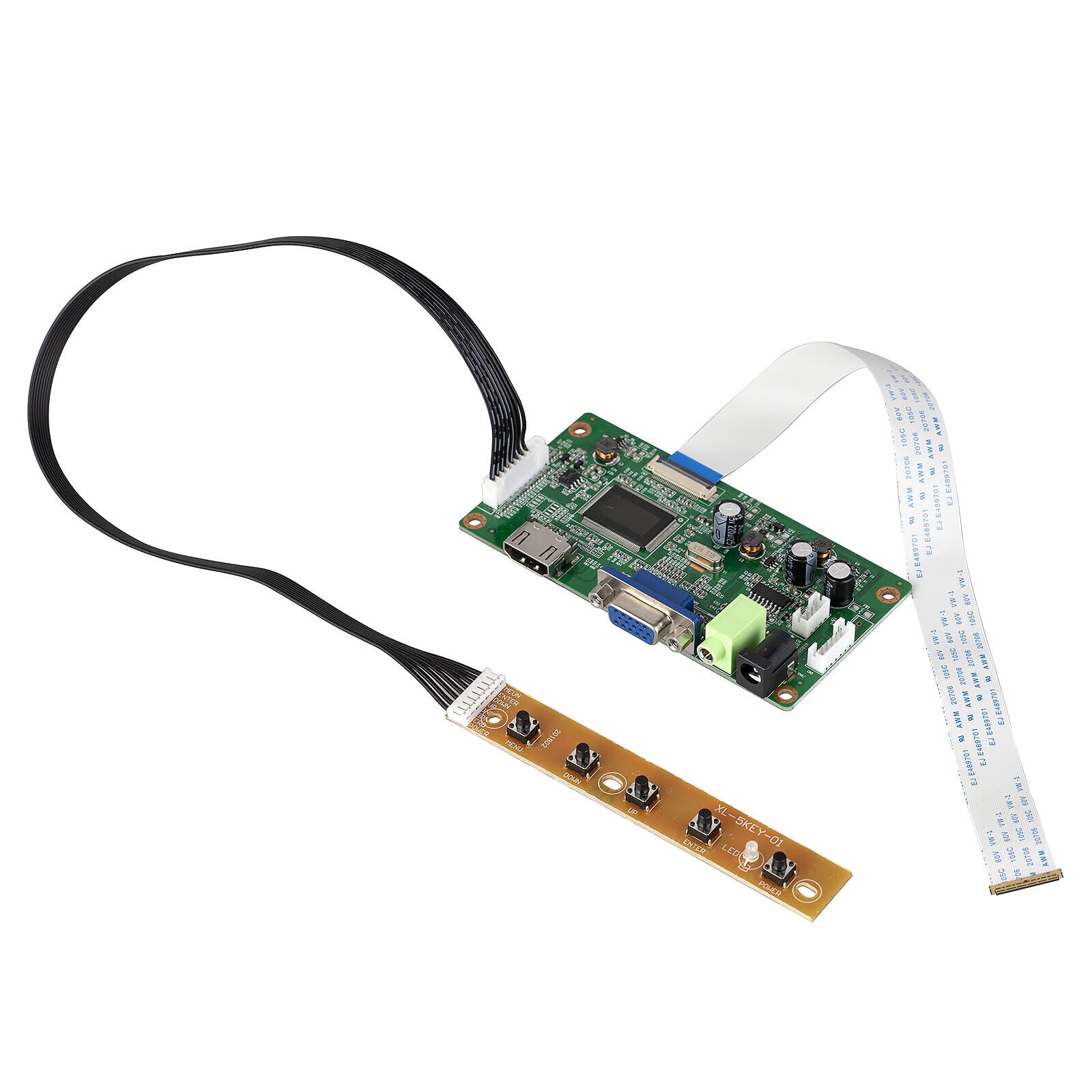

Packing List (bulk pack):
  • 1 x Driver board

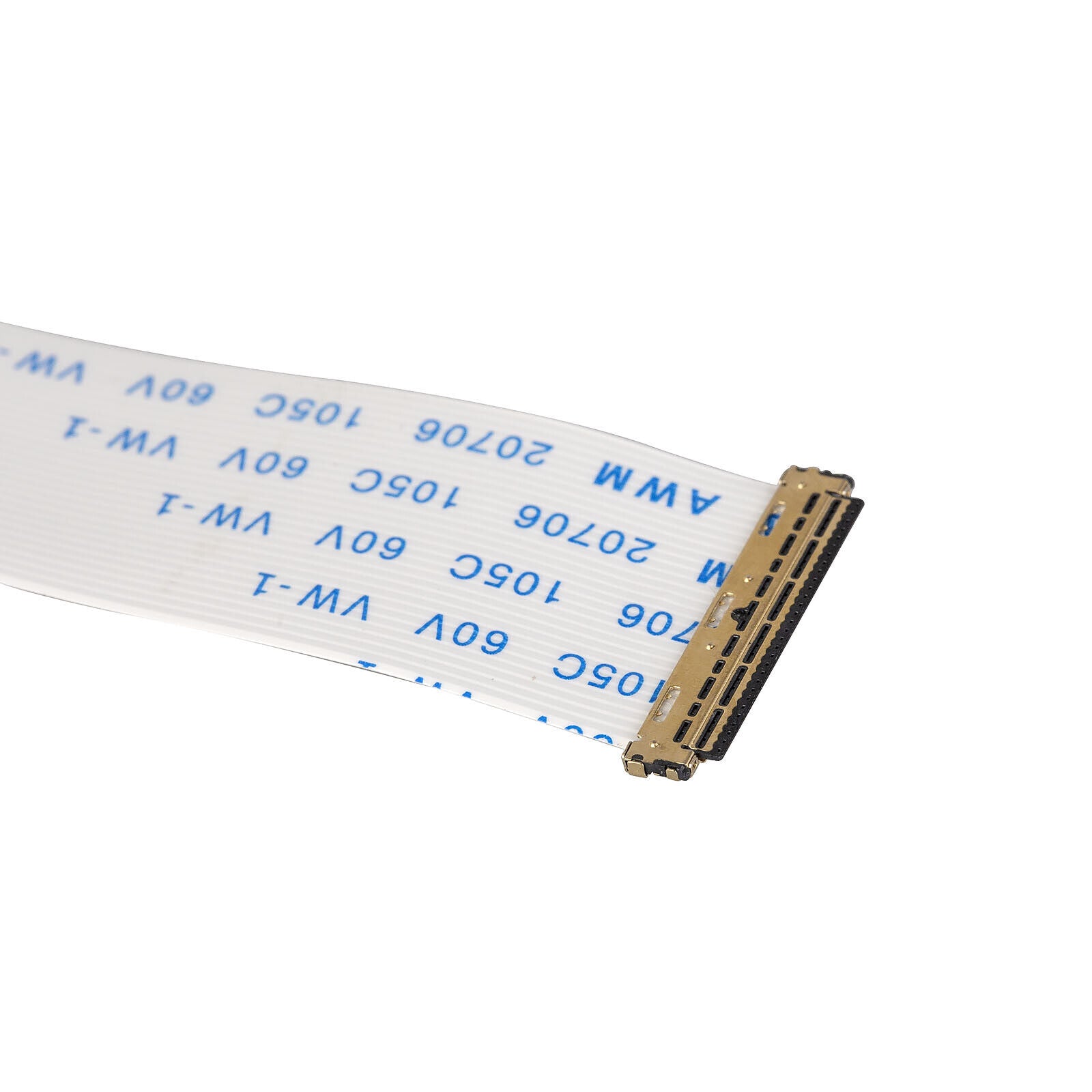

  • 1 x eDP cable

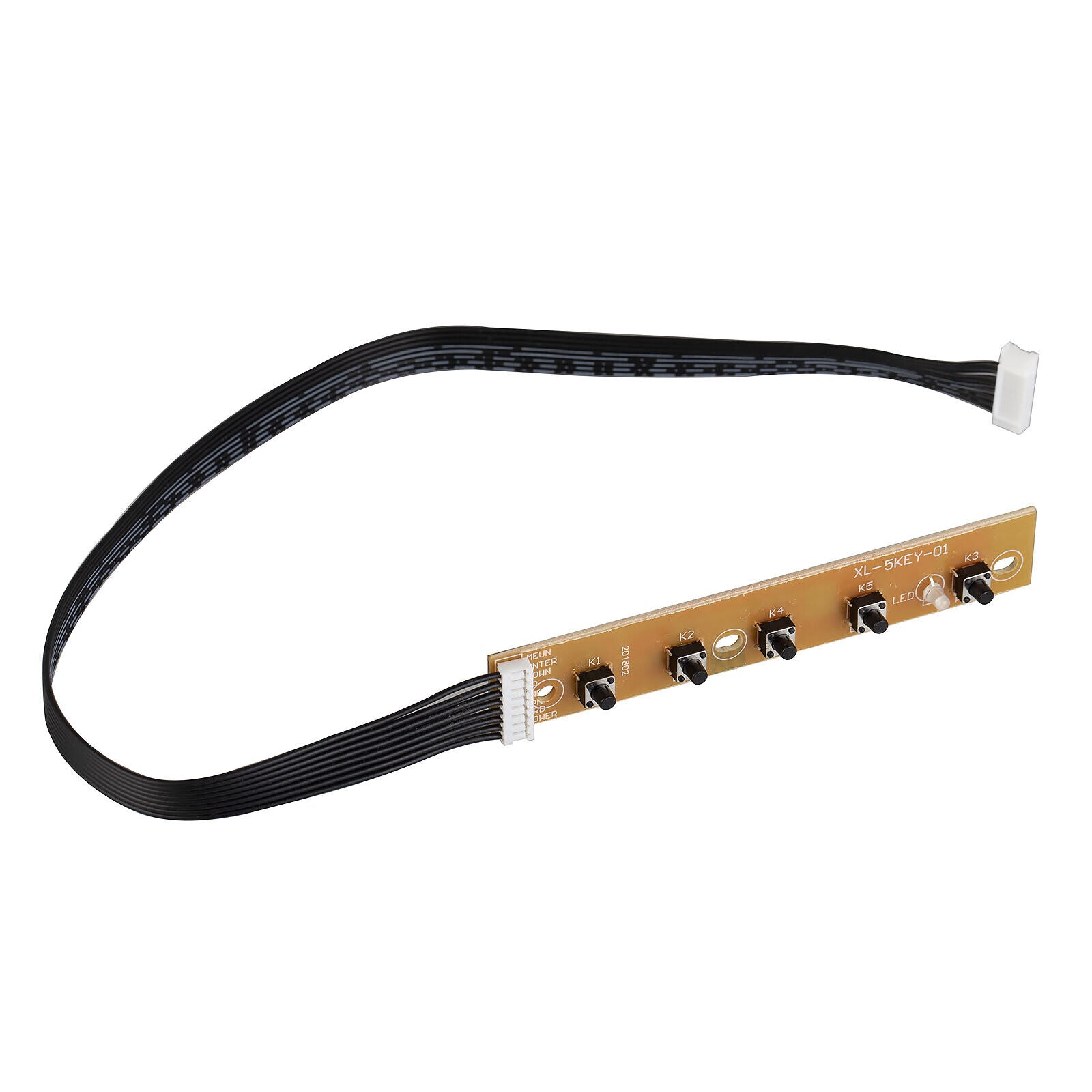

  • 1 x 5-key menu board
  • Support resolution up to 1920 x 1080 (1080P)
  • Support eDP voltage 3.3V only, voltage is FIXED

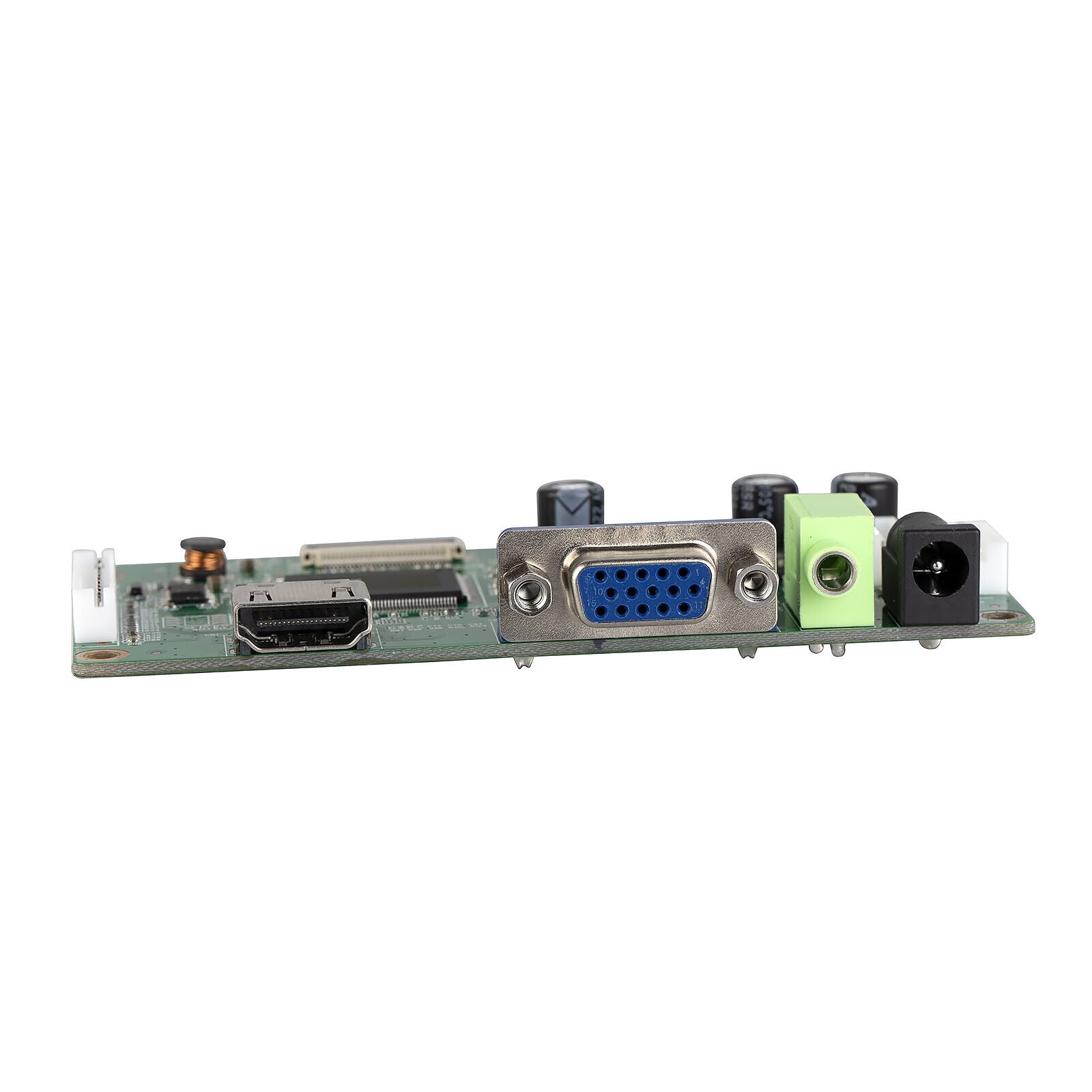

  • VGA and HDMI video input, 3.5mm audio input, 4 pin speaker header (speaker not included)
  • Support control of contrast, brightness, digital volume... etc
  • Board size: 10.6 x 5.5cm / 4.17 x 2.16 inch
