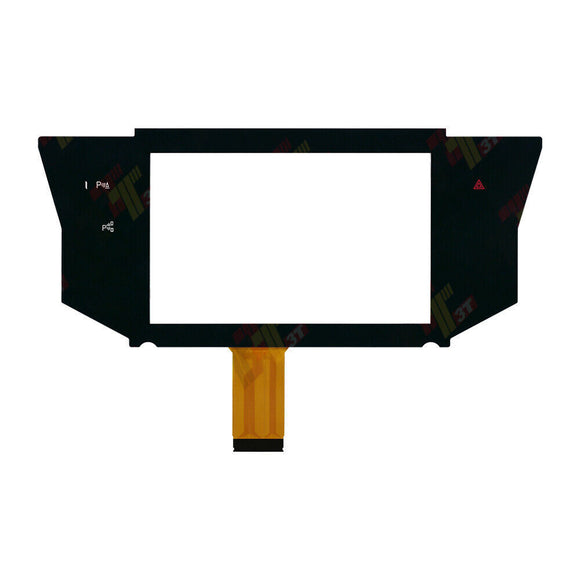

8-Inch Touchscreen Digitizer for 2017-2021 Cadillac XT5 DJ080EA-07A

This replacement 8-inch touch digitizer restores touch response when the compatible Cadillac XT5 radio display still shows an image but no longer responds correctly to touch.

Product Details

• Glass touch panel/digitizer only; LCD is not included
• Approximate dimensions: 314 x 136 mm
• 60-pin FPC connection with approximately 65 mm flex length
• 5-volt touch panel

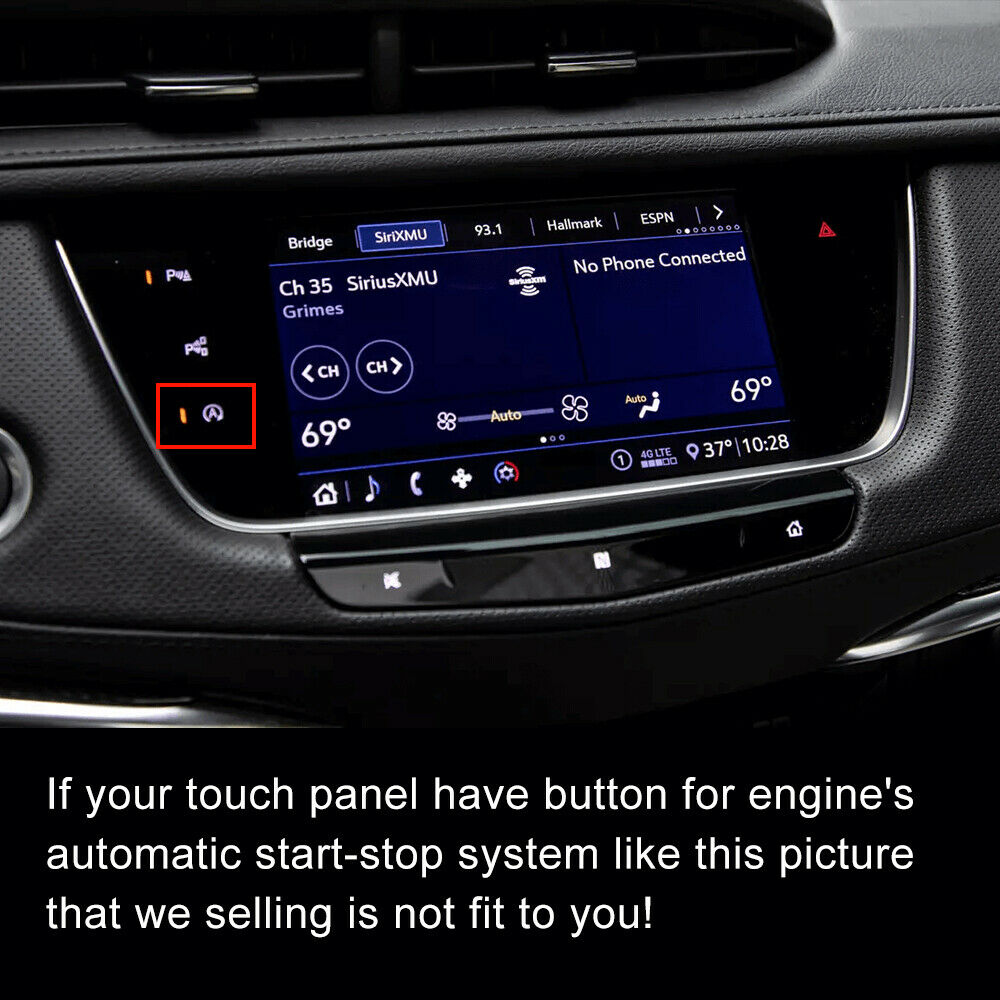

• Version without the engine auto start/stop button opening

Fitment and Compatibility

For selected 2017-2021 Cadillac XT5 radio/navigation displays using screen number DJ080EA-07A and the same 60-pin layout. Cadillac used multiple screen versions. Match the screen number, dimensions, button openings and flex cable before ordering. XT6 fitment is not asserted without an exact screen match.

Part Number Information

Screen number: DJ080EA-07A. Reference radio/display assemblies: 84129302, 84303686 and 84062172; these assembly references do not mean the digitizer replaces the complete module.

Package Contents

One 8-inch touchscreen glass digitizer with protective film.

Installation Notes

Display disassembly and glass bonding require electronics experience, ESD precautions and suitable adhesive. Remove the protective film only after installation and testing.
