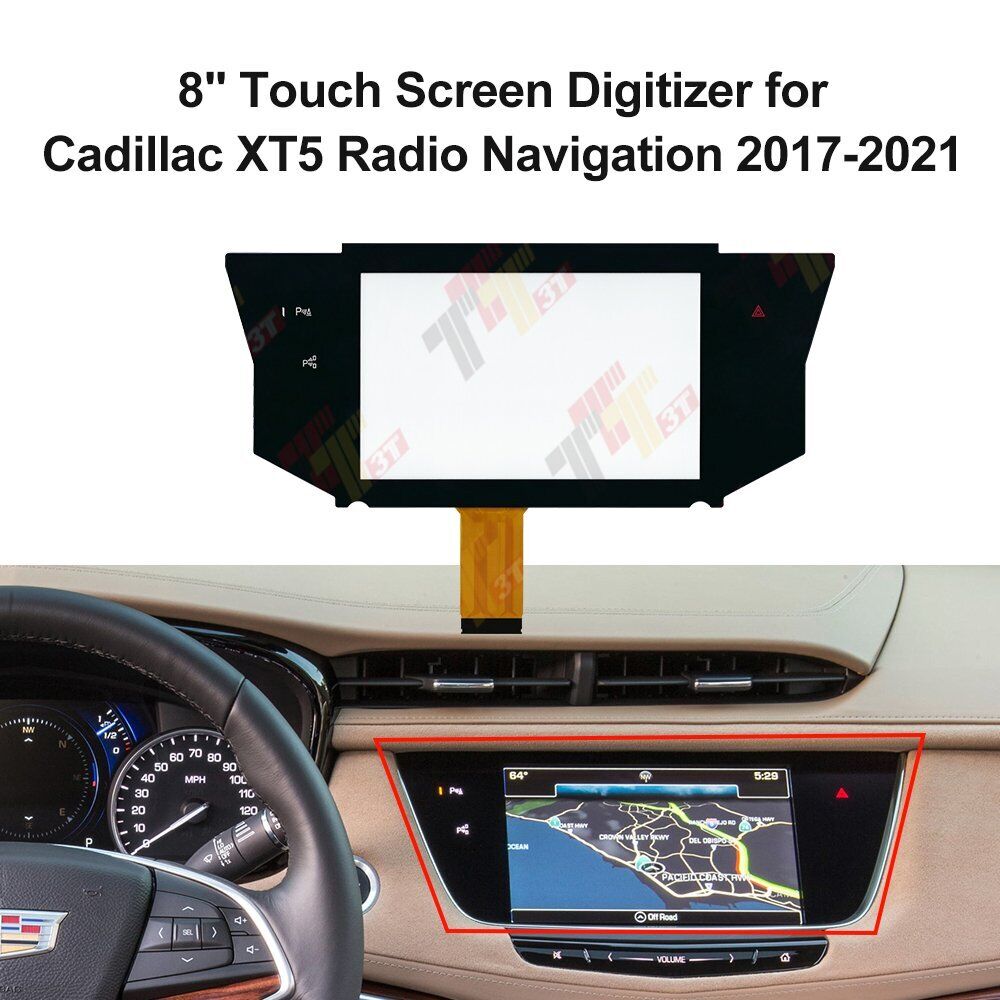

8" Touchscreen Digitizer for 2017-2021 Cadillac XT5 DJ080EA-07A

Restore touch response on a compatible Cadillac XT5 infotainment display with this eight-inch replacement glass digitizer. The LCD and complete radio/navigation unit are not included.

Product Details

• New eight-inch touch-screen digitizer

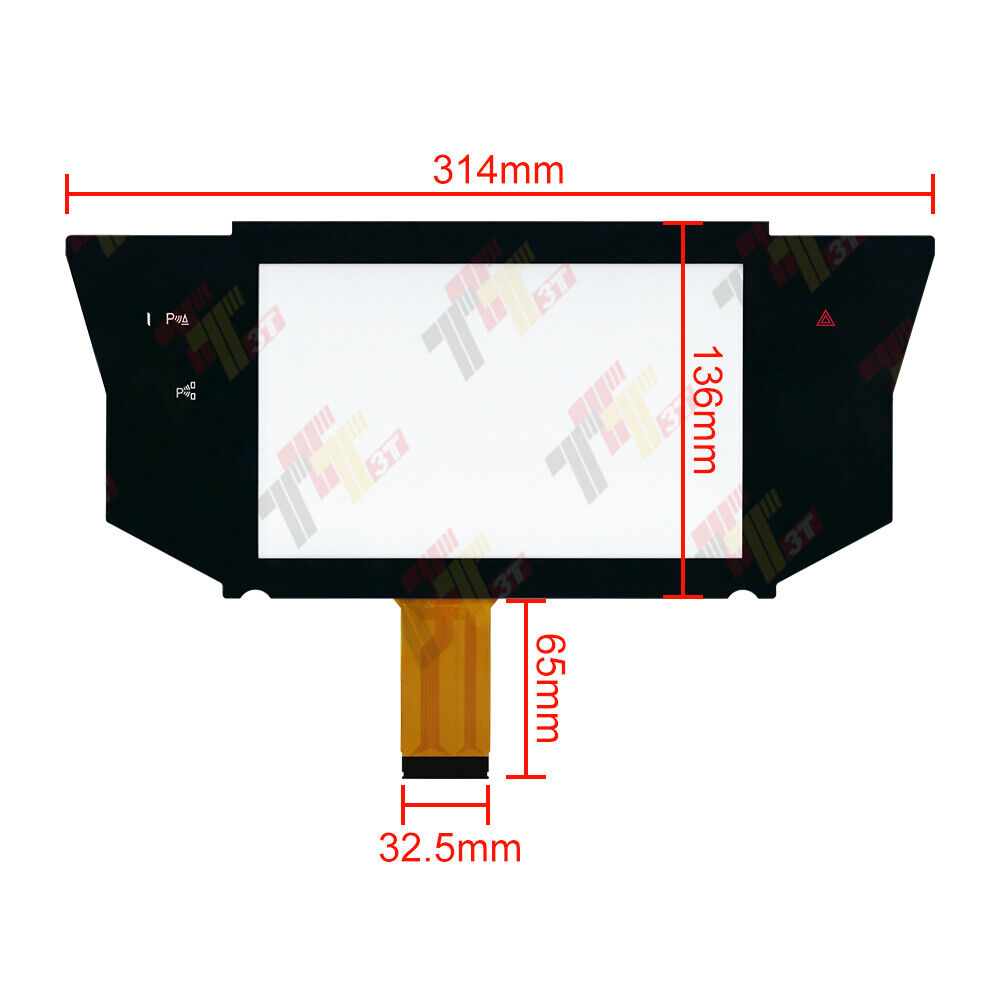

• Approximate outer size: 314 × 136 mm

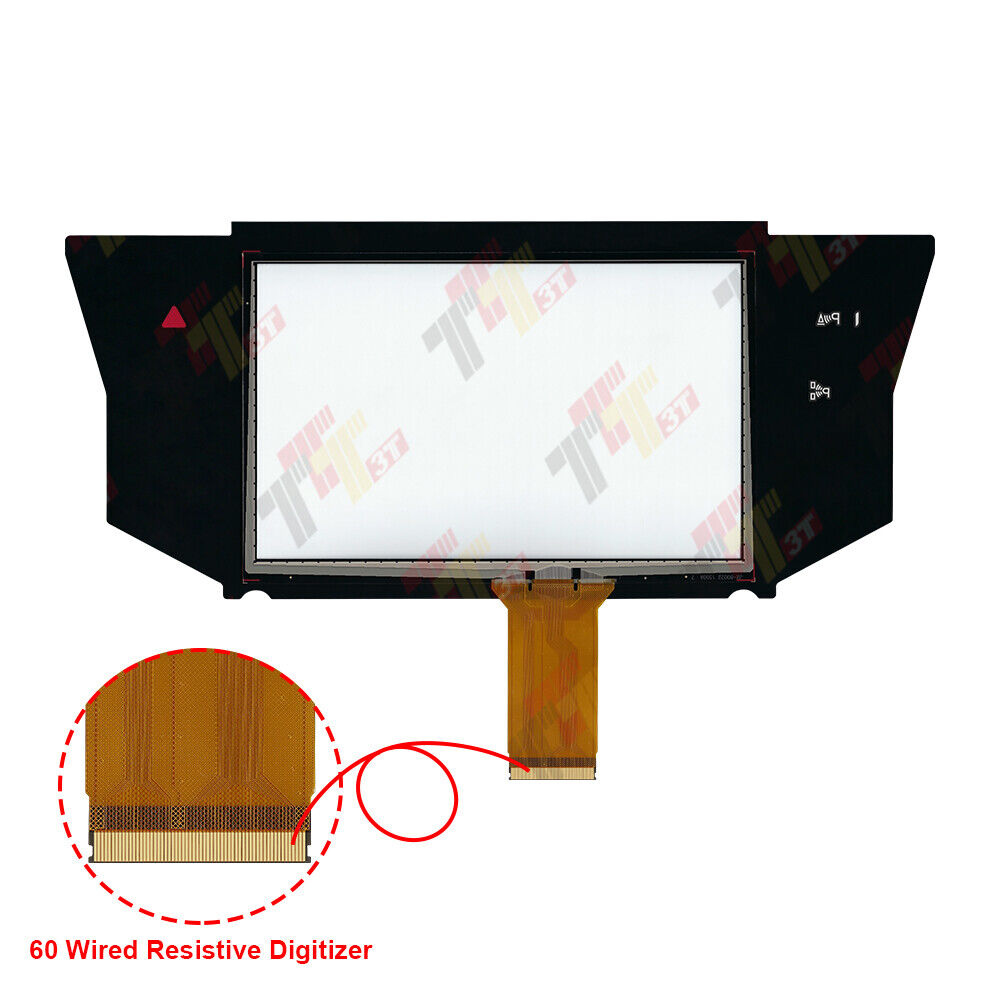

• 60-pin flex interface
• Approximate flex length: 65 mm
• Nominal working voltage: 5 V
• Glass construction

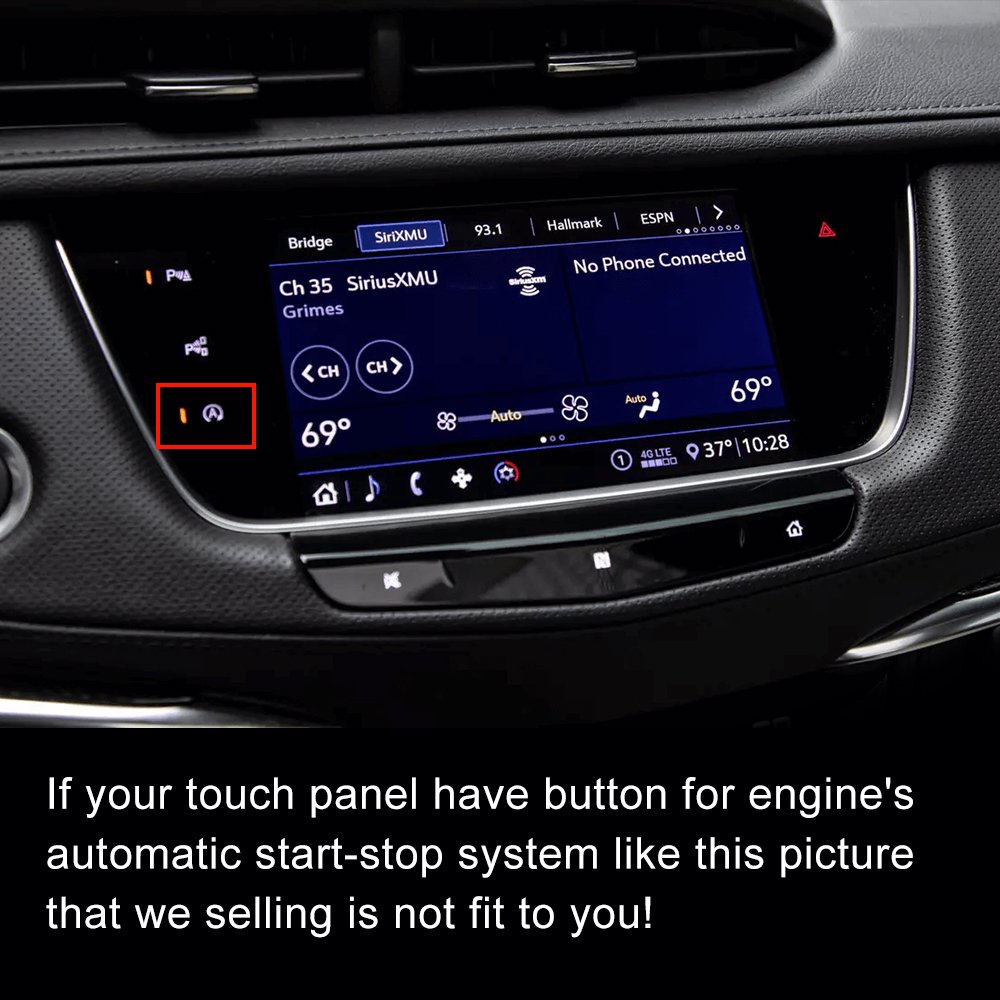

• Version without the engine automatic start-stop button

Fitment and Compatibility

• 2017-2021 Cadillac XT5 radio/navigation displays using screen reference DJ080EA-07A
• XT5 displays have multiple versions; this version is specifically described without the start-stop button
• Match dimensions, 60-pin cable, button layout and original screen/radio number

Part Number Information

• Screen reference: DJ080EA-07A
• Reference radio/navigation numbers: 84129302, 84303686 and 84062172
• Radio numbers are application references, not the digitizer’s Cadillac OE number

Package Contents

• One touch-screen glass digitizer
• LCD, radio/navigation unit, adhesive, tools and instructions are not included

Installation Notes

• Professional display repair is recommended
• Test touch operation before final bonding and remove protective film after installation
• This part will not repair LCD image, backlight or radio-electronics faults
