7" Touchscreen Digitizer for GM Chevrolet IVECO Navigation Display C070VW04

Replace a cracked, scratched or unresponsive touch surface on a compatible navigation display with this seven-inch glass digitizer. This is the touch panel only; it does not include the LCD or complete radio.

Product Details

• Seven-inch capacitive/resistive replacement touch digitizer as configured for C070VW04 applications
• Approximate active panel size: 165 × 105 mm

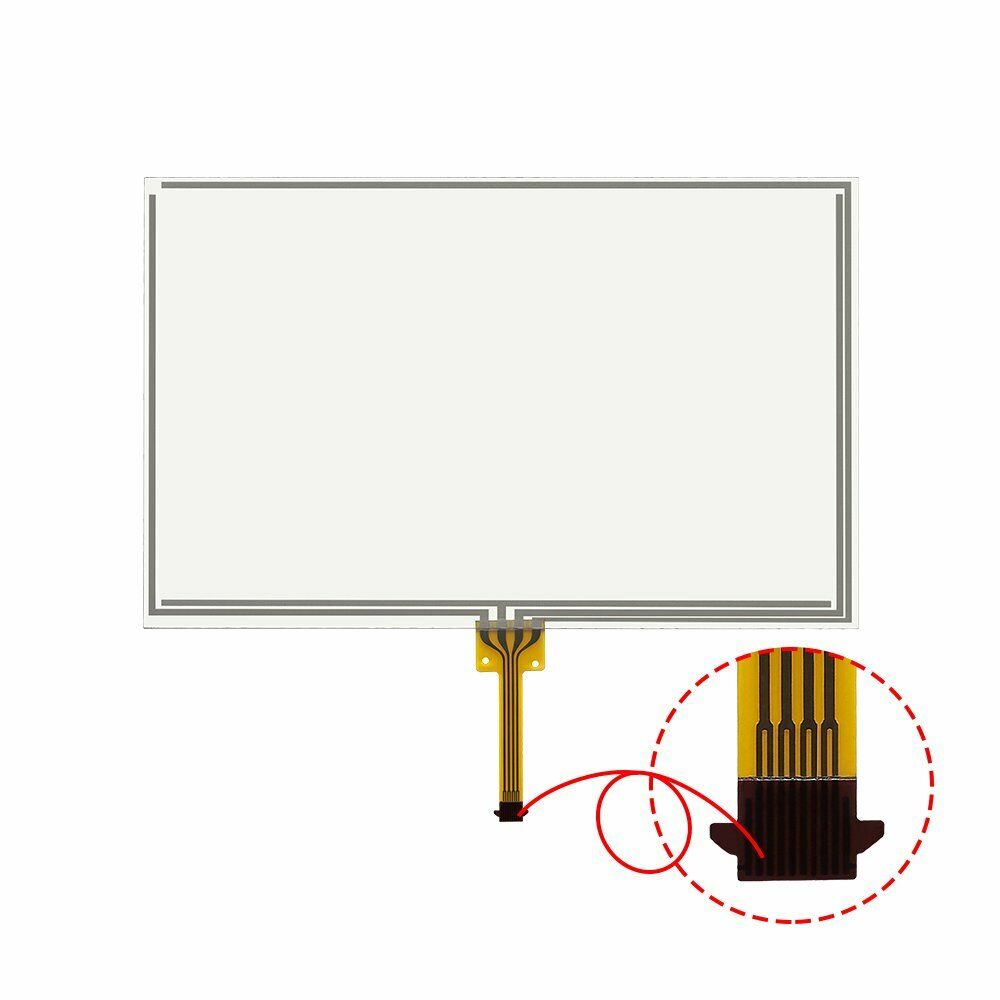

• Ten-pin ribbon interface
• Approximate thickness: 1.5 mm
• Glass construction
• Nominal working voltage: 5 V
• Protective shipping film applied to the surface

Fitment and Compatibility

• Selected GM/Chevrolet navigation and multimedia displays using the exact C070VW04 panel
• Selected IVECO Stralis 460 audio/navigation displays using the same panel
• Fitment must be confirmed by panel number, dimensions, ten-pin interface location and glass outline
• A matching vehicle or radio appearance alone does not confirm compatibility

Part Number Information

• AUO panel references: C070VW04 V1 and C070VW04 V7
• Shopify SKU: C070VW04
• Match the printed panel revision and connector layout whenever possible

Package Contents

• One seven-inch C070VW04 touch-screen digitizer
• LCD, radio/navigation unit, adhesive, tools and installation instructions are not included

Installation Notes

• Professional display repair is recommended
• Remove the protective film only after installation is complete
• Test touch alignment before final bonding; replacement will not correct LCD image, backlight or radio-electronics faults
