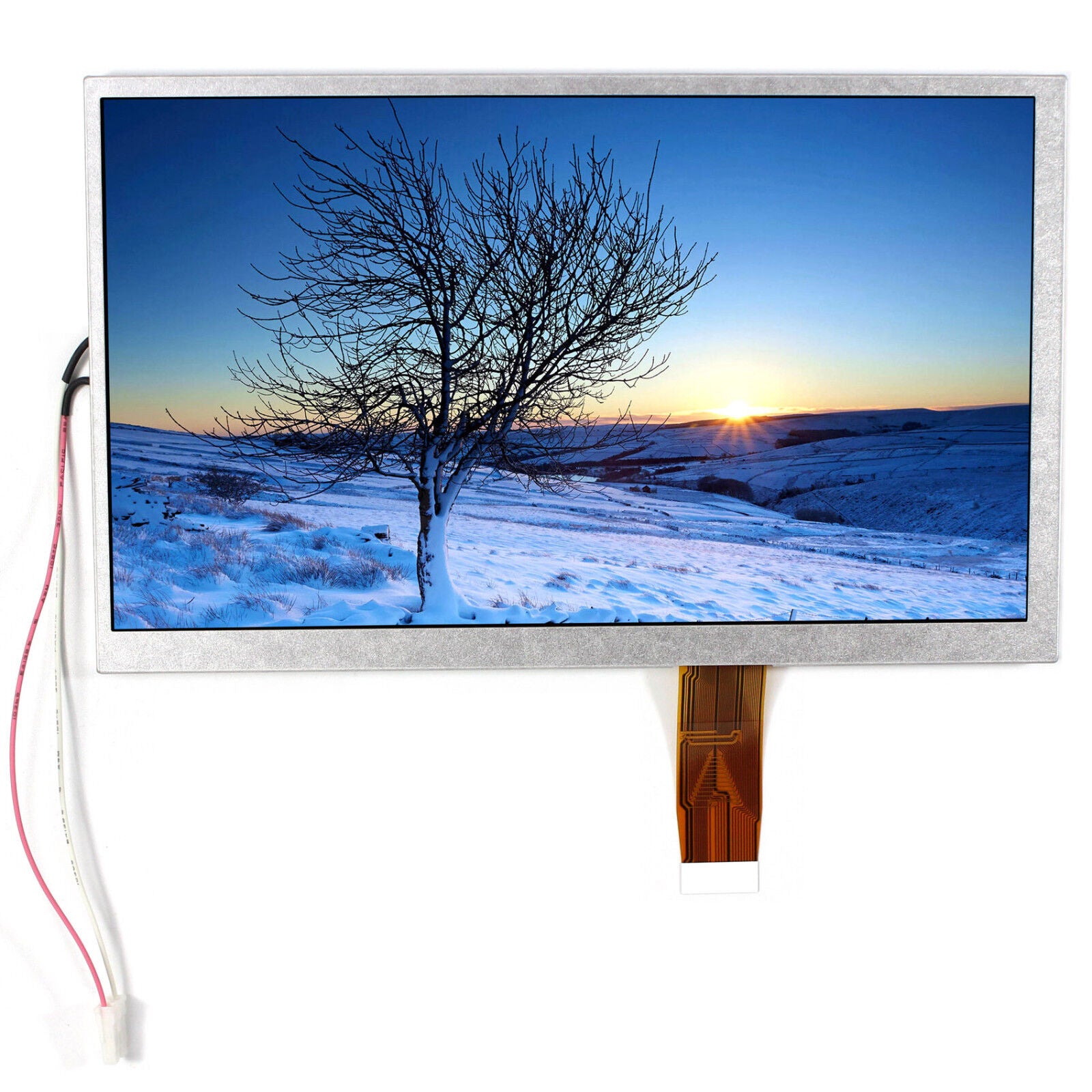

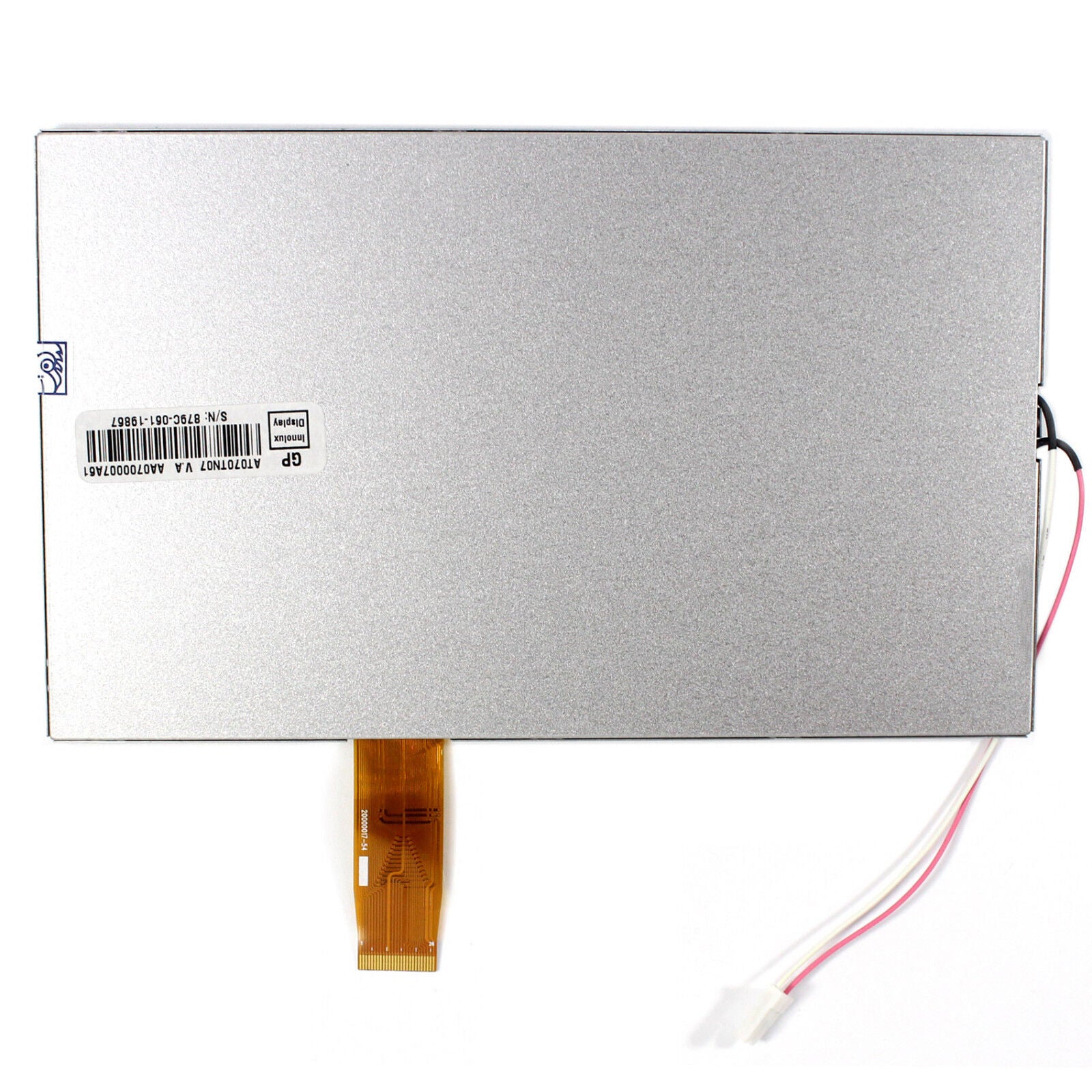

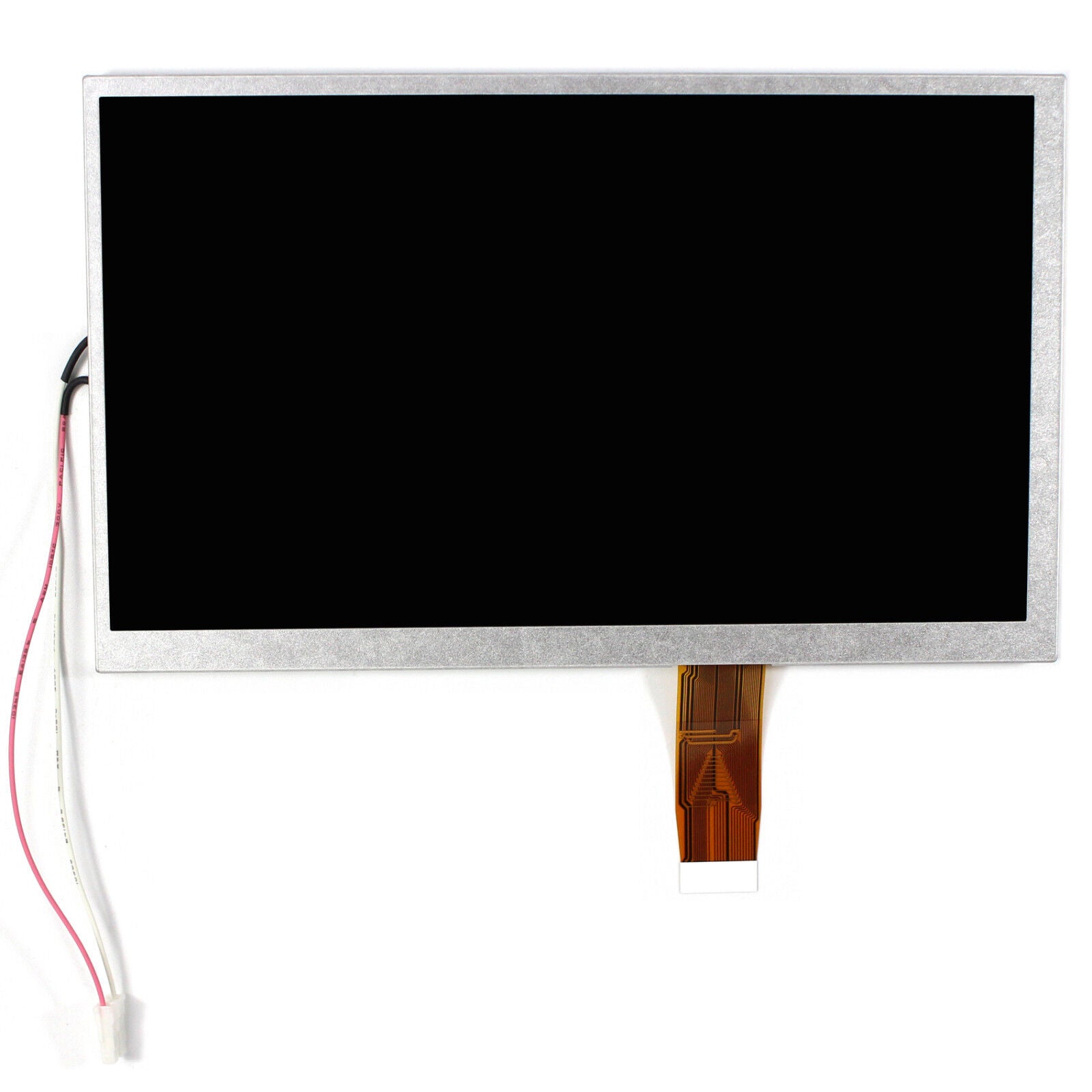

7" TFT LCD Display AT070TN07 for HSD070I65 7" TFT 480×234

Details:

7" AT070TN07 480X234 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 480（RGB)×234

Outline Size 164.9 × 100×5 (H×V×D)

Display Area 154.08 × 86.58 (H×V)

Brightness 200 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 60/60/40/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 26 pins   TFT Specific Analog RGB , FPC

Backlight  WLED

Input Voltage  3.3V (Typ.)

Packing list :

1× 7inch AT070TN07 480X234 LCD Screen
