7-inch LCD Screen for C070VW04 V1 S503

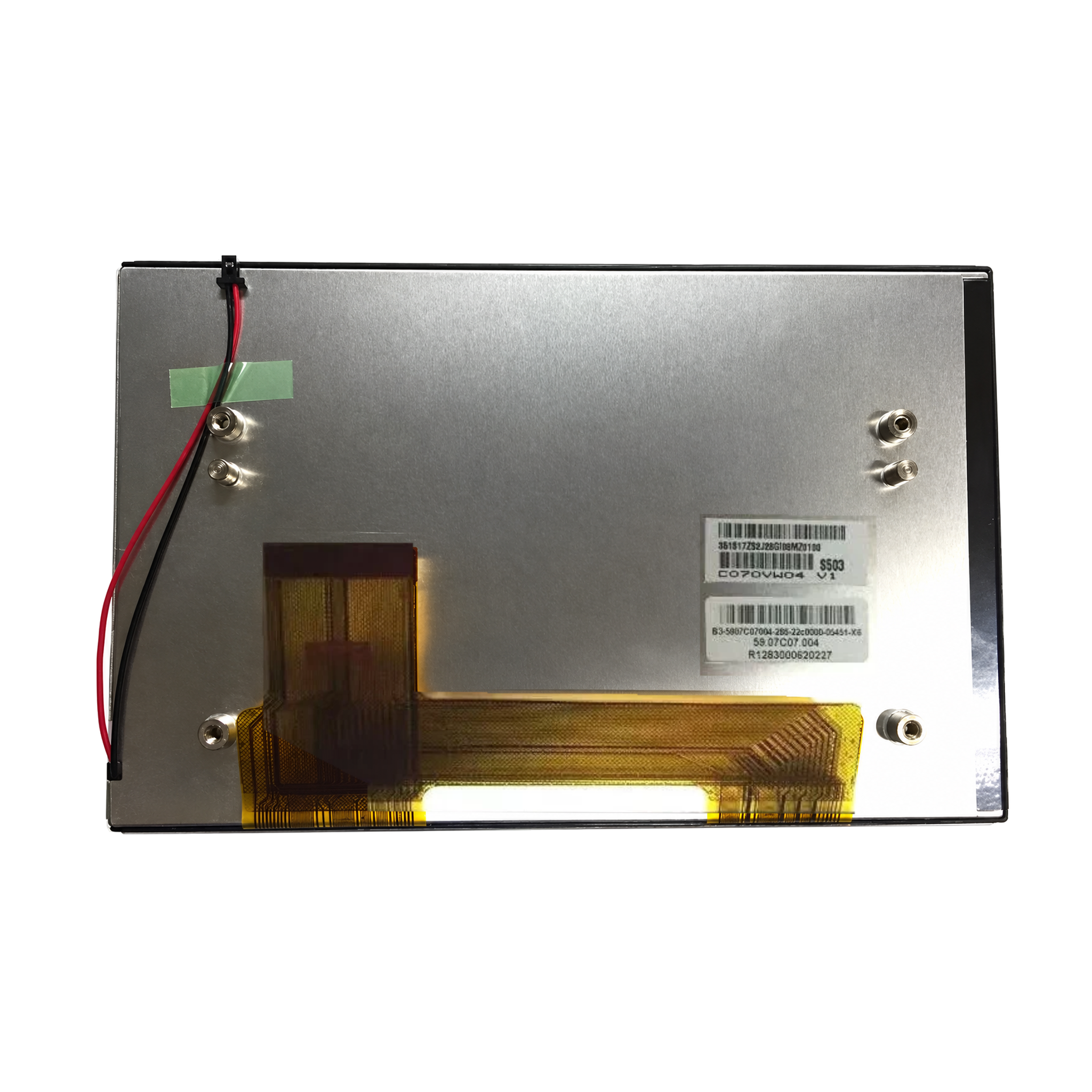

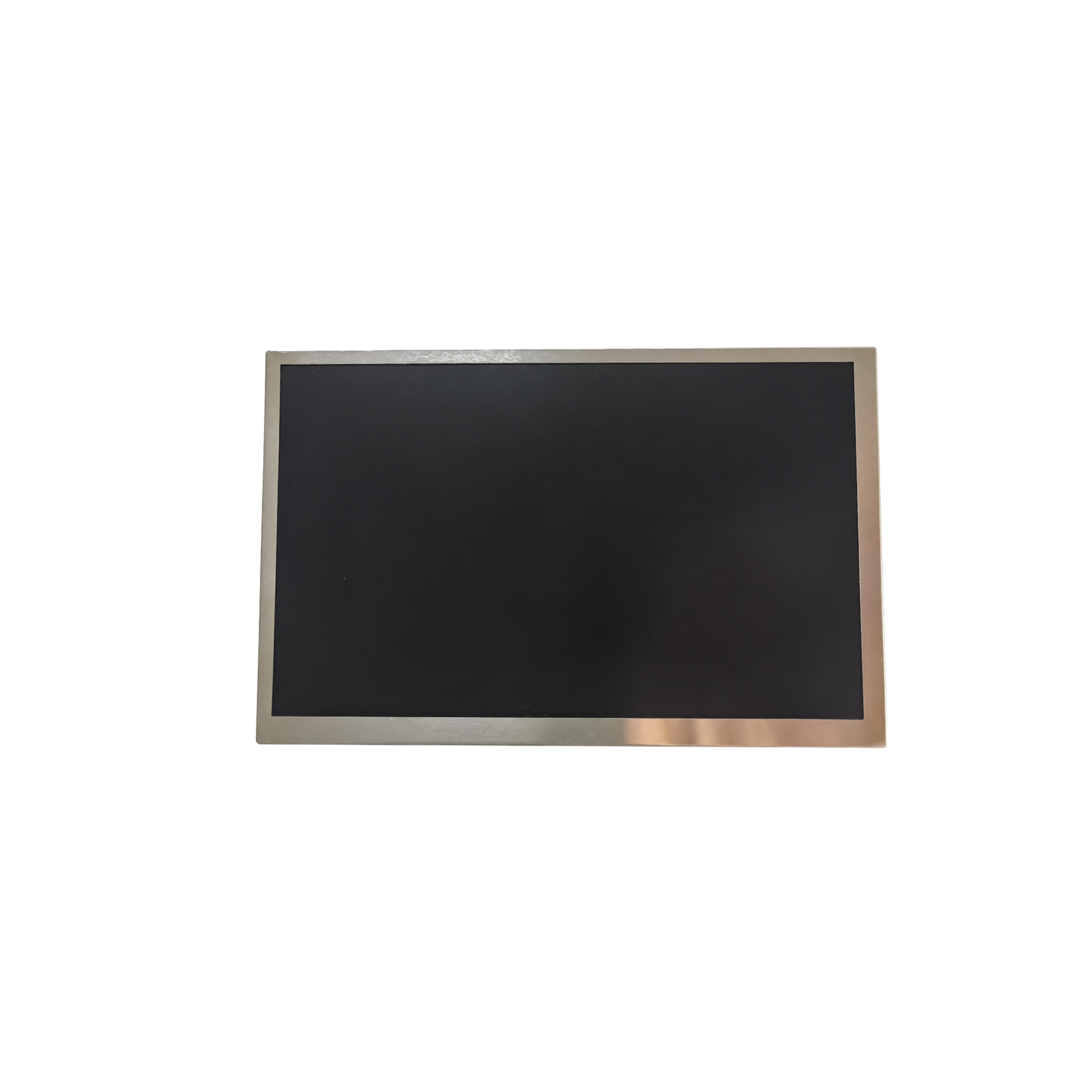

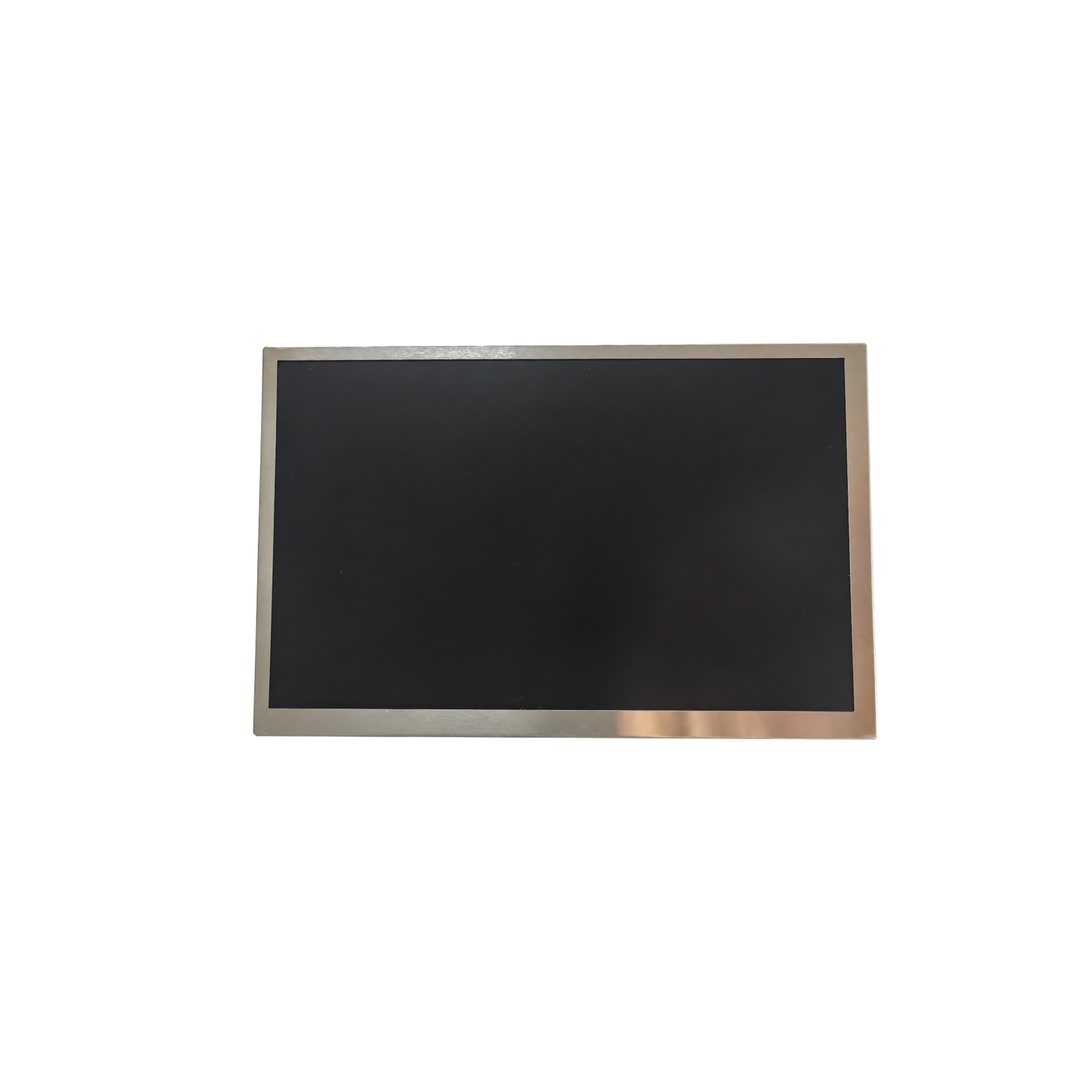

. Replacement 7-inch C070VW04 V1 S503 LCD panel with the attached flex and backlight leads shown. This is the LCD display only, not a touch digitizer or complete monitor.
Compatibility
Match the complete C070VW04 V1 revision and S503 marking on your original panel. Compare the 50-pin flex connector, long folded ribbon, rear mounting posts, lead routing and panel dimensions with both photos before ordering. C070VW04 VB and V0 are different revisions and are not assumed interchangeable.
Details
- Resolution: 800 × 480 pixels.
- Signal interface: 50-pin parallel RGB.
- Condition: Open box; handling or cosmetic marks may be present.
- Includes one LCD panel as pictured. Touch glass, controller, radio, housing, tools and installation are not included.
Professional installation is recommended. A matching screen size alone does not confirm compatibility.
