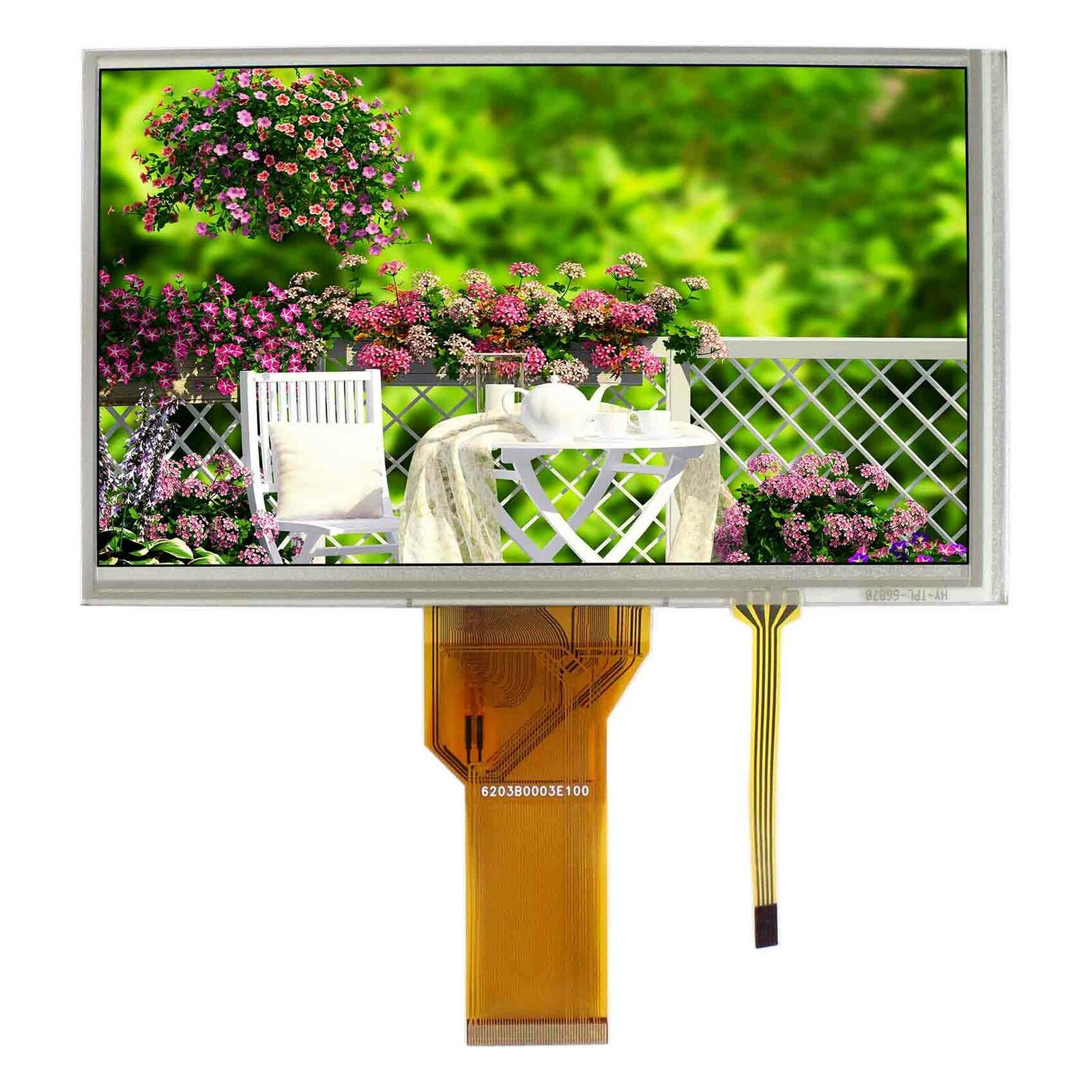

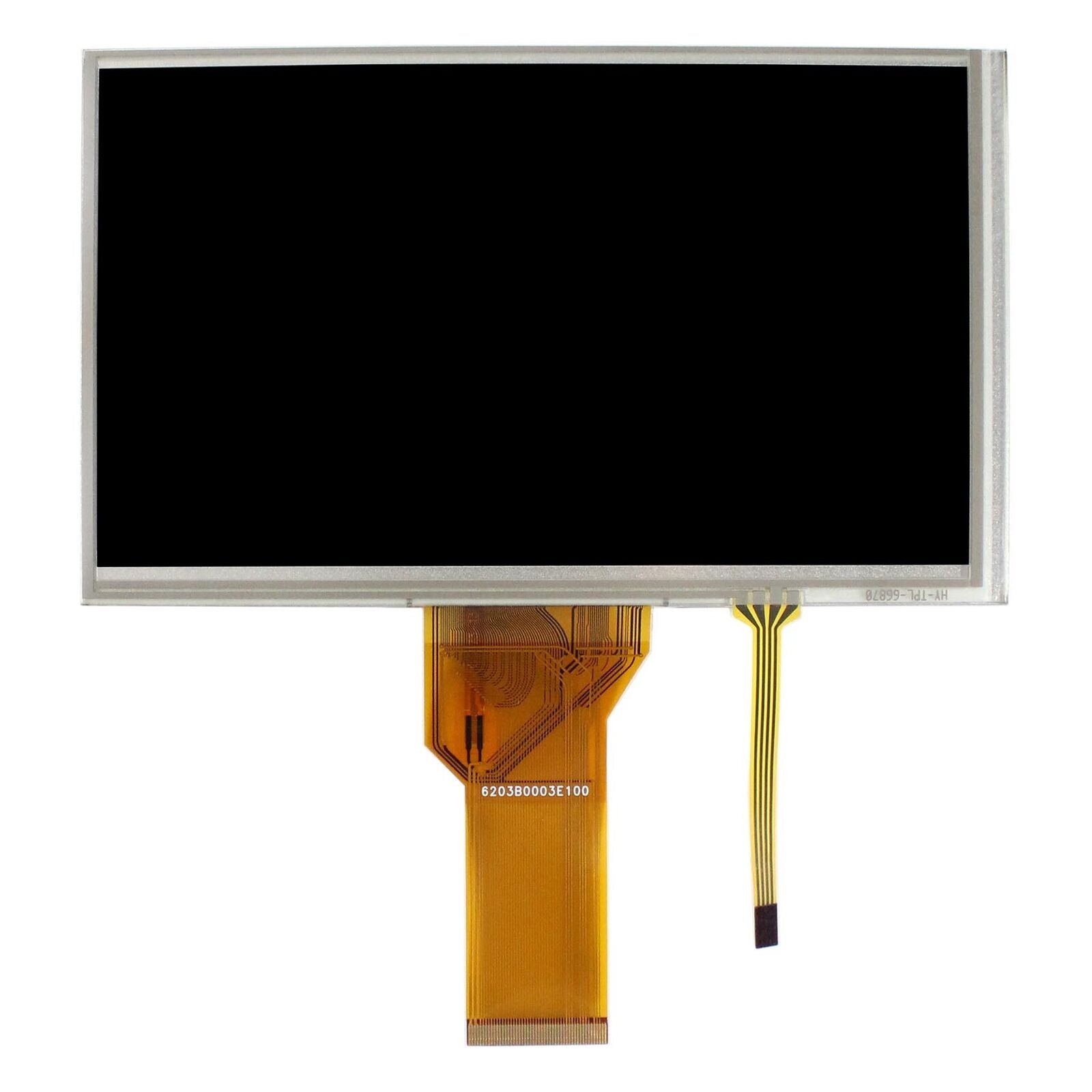

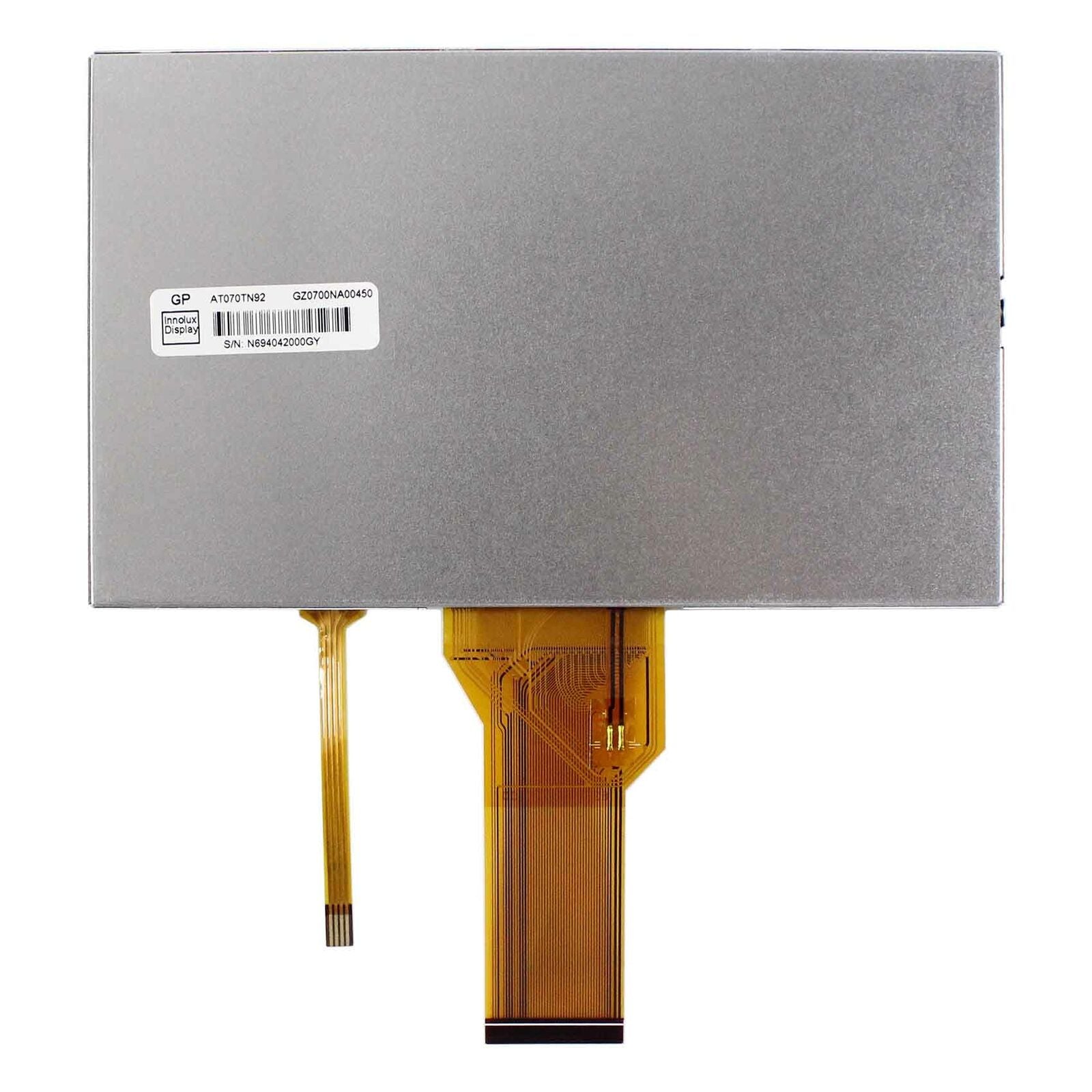

7" AT070TN92 800x480 TFT LCD Screen With Resistive Digitizer Touch Panel

Details:

7" AT070TN92 800X480 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 800RGB)×480

Outline Size 165.2 × 96.62×5.7 (H×V×D)

Display Area 154.08 × 85.92 (H×V)

Brightness 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC

Backlight  WLED

Input Voltage  3.3V (Typ.)

Packing list :

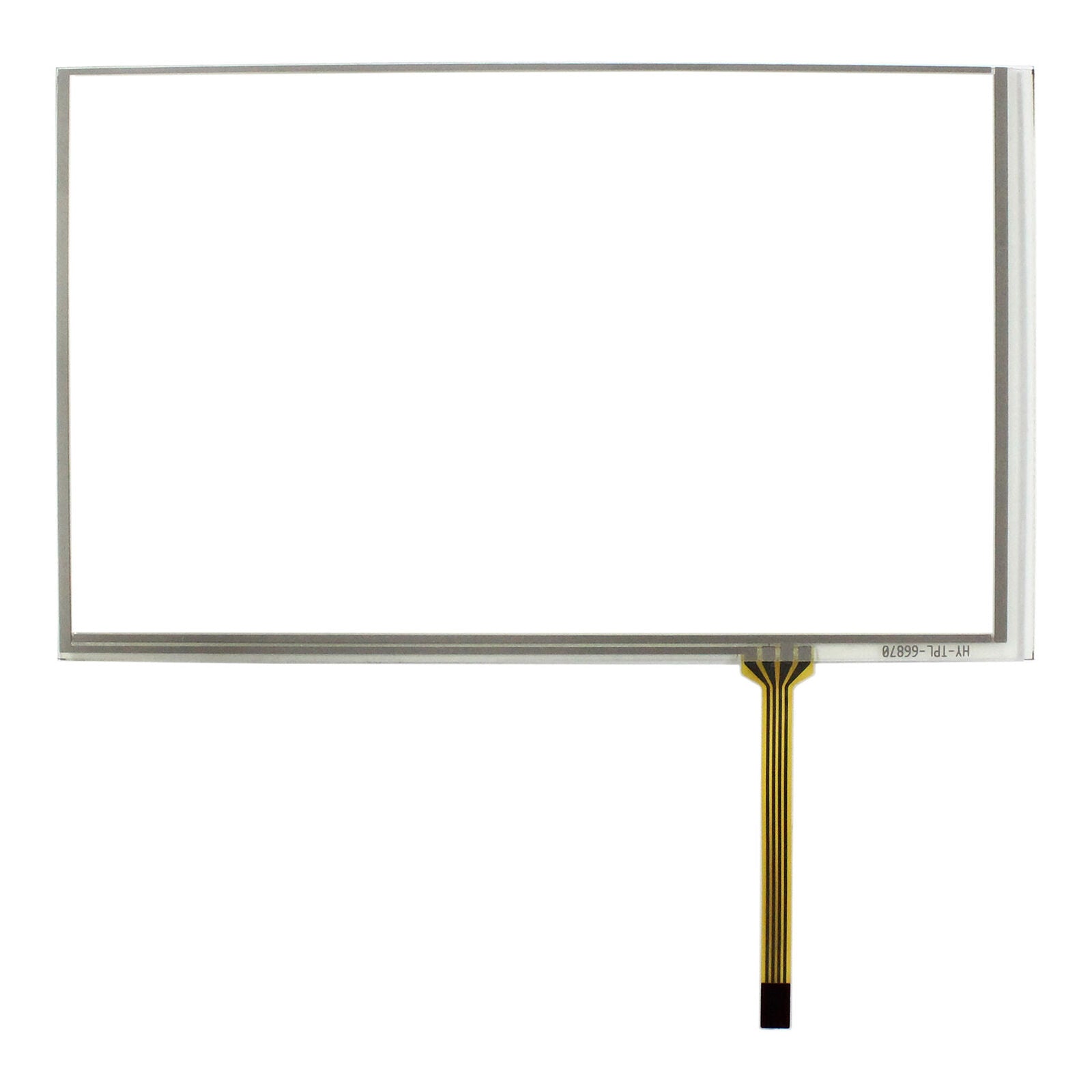

1× 7inch AT070TN93 800X480 LCD Screen With Touch Panel VS070TP-A1
