6.5-Inch LCD Touchscreen Display for Navigation Radio LQ065T5DG02

Product Details

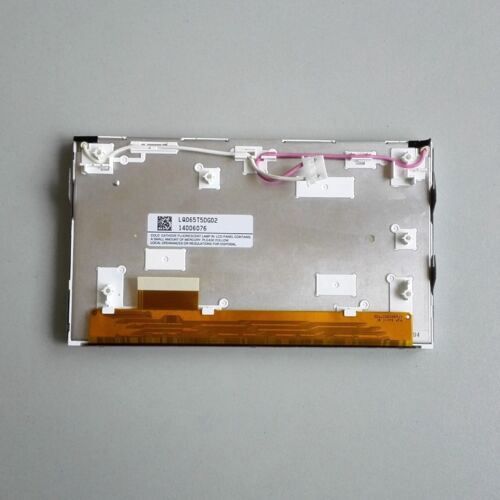

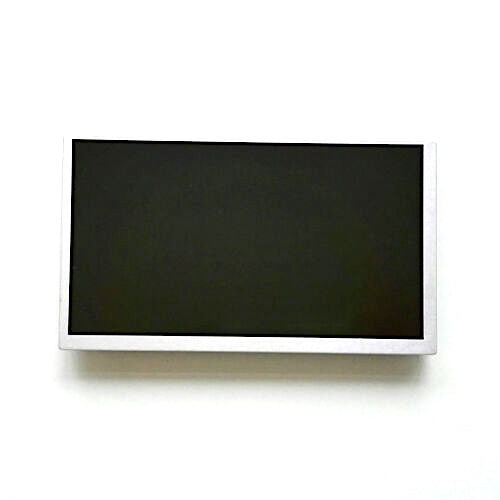

Replacement 6.5-inch TFT-LCD module supplied with a touchscreen for compatible automotive navigation and radio displays.

• Panel type: a-Si TFT-LCD module
• Resolution: 400 × 240 WQVGA
• Active area: 143.4 × 79.326 mm
• Outline dimensions: Approximately 155 × 89.2 mm
• Interface: Parallel RGB, one channel, six-bit

Fitment and Compatibility

For display assemblies originally using a Sharp LQ065T5DG02 panel with matching dimensions, interface, connector position and touchscreen construction.

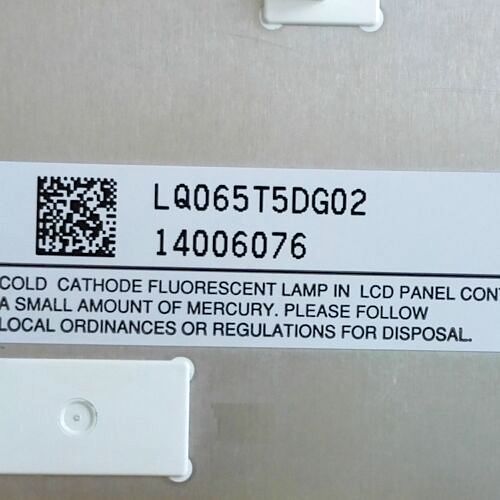

This is not a universal 6.5-inch screen. Compare the full rear label and physical configuration before ordering.

Part Number Information

Display model: Sharp LQ065T5DG02

Match every character in the model number; similar LQ065 panels may not interchange.

Package Contents

• One 6.5-inch LCD display module

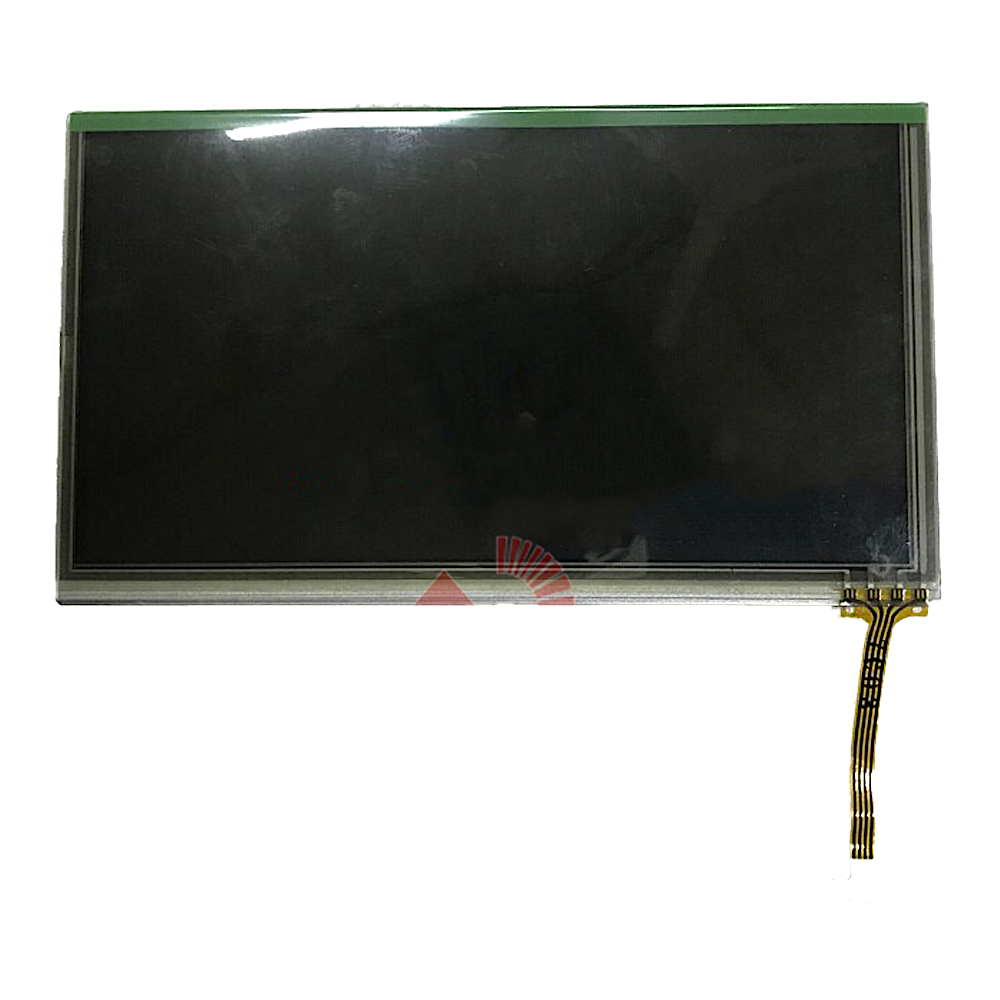

• One attached or paired touchscreen as pictured

Radio, bezel, controller board and installation service are not included.

Installation Notes

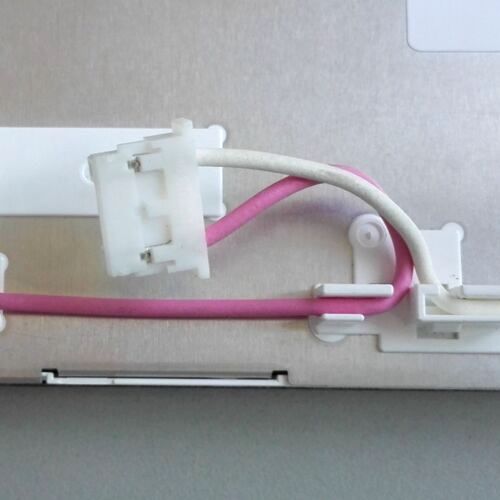

Professional electronics installation is recommended. Protect the panel and flex cables from static, pressure and sharp bends; test operation before final reassembly.
