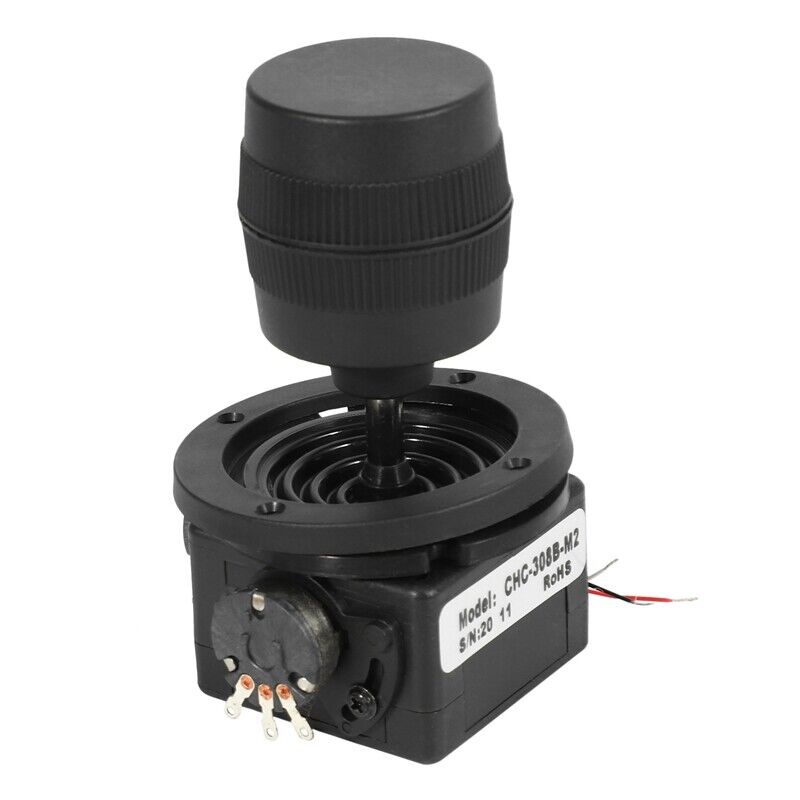

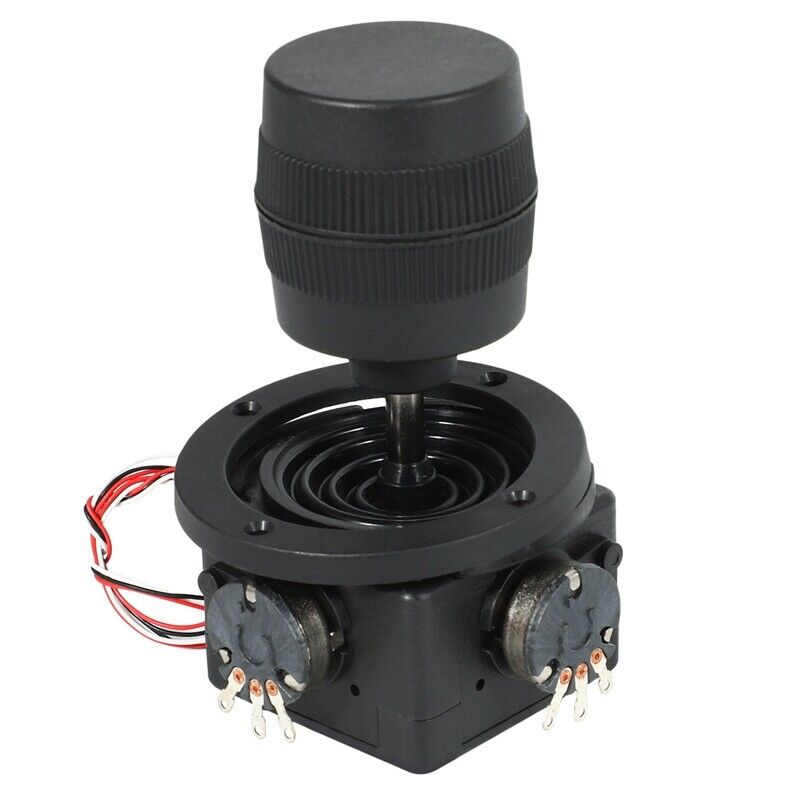

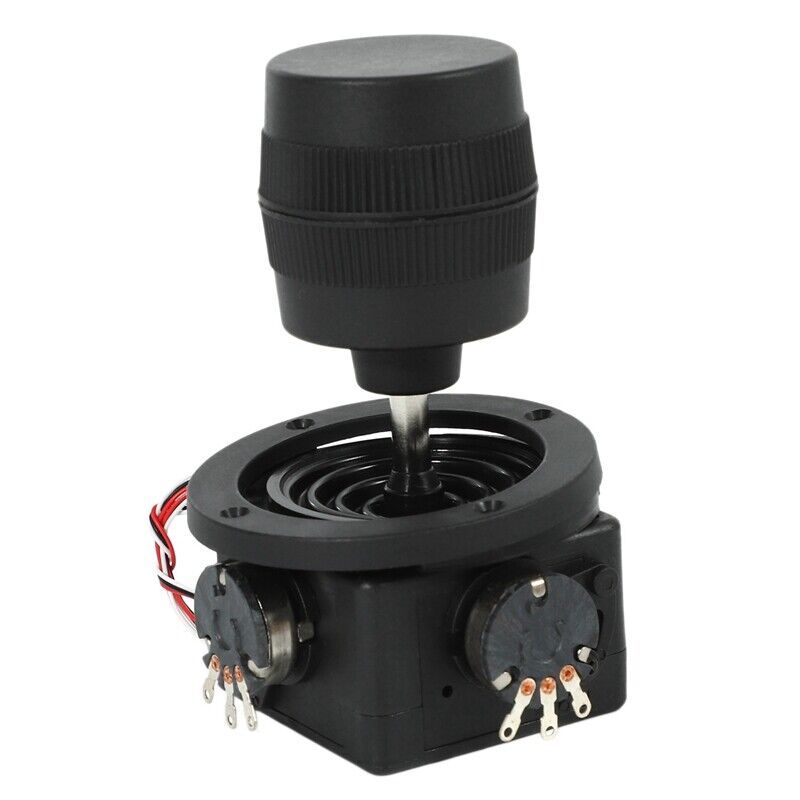

3-Axis 5K Joystick Potentiometer R300B-M2
. R300B-M2 three-axis joystick potentiometer for compatible PTZ camera controls, security-system consoles and industrial control equipment. Provides X-, Y- and Z-axis input with automatic mechanical return.
Product Details
- Resistance: 5K ohms
- Resistance tolerance: ±20%
- Independent linearity tolerance: ±1%
- Resolution: Essentially infinite
- Resistance temperature coefficient: ±400 ppm/°C
- Center-return error: ±1%
- Estimated service life: 500,000 operations
- Operating temperature: -10°C to 80°C
- Approximate size: 84 × 50mm
- Color: Black
Fitment and Compatibility
This is a specification-based control component. Confirm the R300B-M2 model, 5K resistance, dimensions, mounting points, travel, terminal configuration and axis behavior against the original joystick before purchase.
Part Number Information
Model/part reference: R300B-M2.
Package Contents
Includes one three-axis joystick potentiometer.
Installation Notes
Installation requires equipment disassembly and electrical connections. Disconnect power and calibrate the controller according to the equipment manufacturer’s procedures.
