2011 Hyundai Sonata GPS Navigation Dimension Radio Receiver OEM 96560-3Q000

Product Description

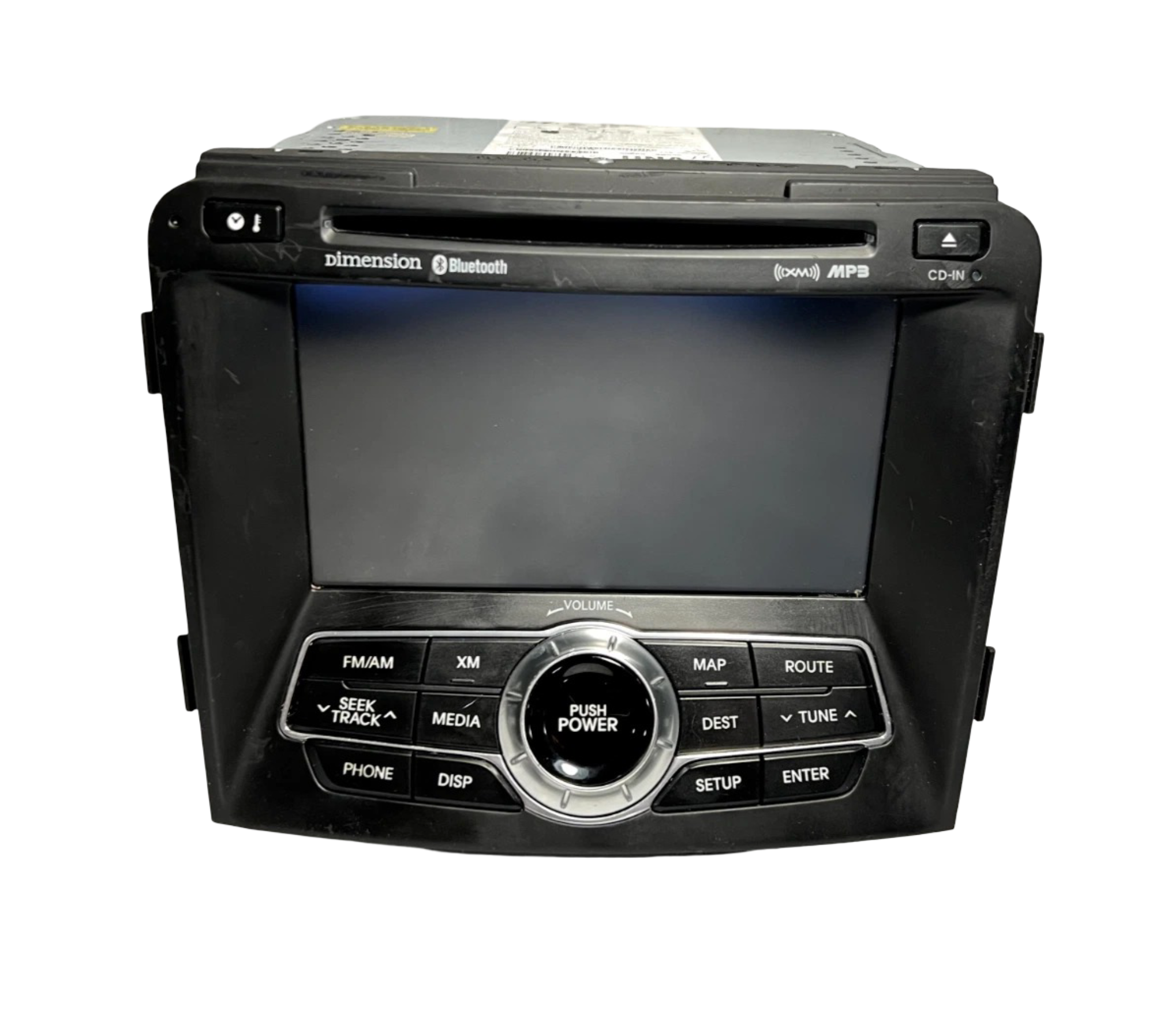

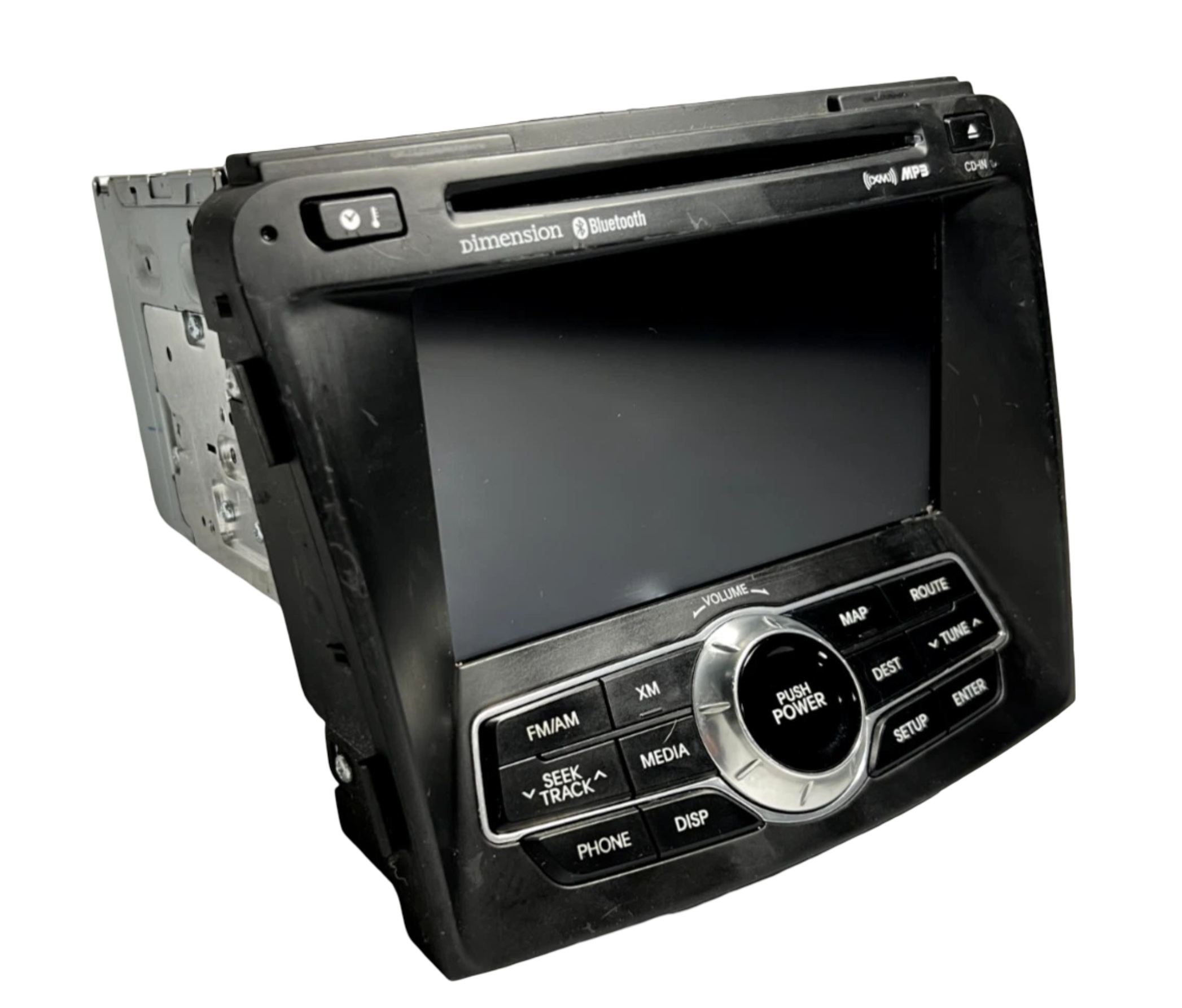

Genuine OEM Hyundai navigation radio receiver for select 2011 Hyundai Sonata models. This factory unit combines the touchscreen navigation display, AM/FM/XM radio, CD playback, Bluetooth capability, and USB/AUX integration in the original dashboard configuration.

This is a used original-equipment component that was carefully removed from a vehicle. It is described by the seller as being in good working condition. Normal cosmetic wear, light scratches, or handling marks may be present; review all listing photos for the exact condition.

Product Details

• Brand: Hyundai
• Type: Navigation radio/head unit
• Condition: Used

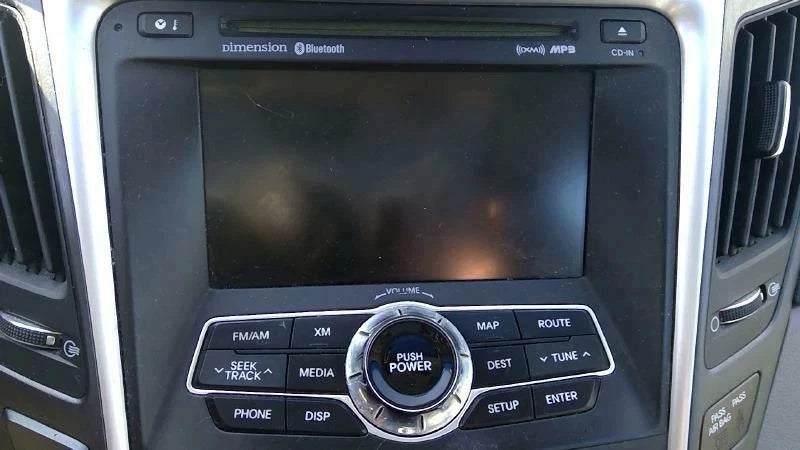

• Installation location: Center dashboard
• Screen type: Factory touchscreen display
• Navigation: Factory GPS navigation
• Audio sources: AM/FM/XM radio and CD
• Connectivity: Bluetooth and factory USB/AUX integration
• Sound system: Factory amplified audio configuration
• Universal fitment: No
• Dimension Autonet sound system

OEM Part Numbers

• 96560-3Q000
• 965603Q000
• 96560-3Q000-4X — cataloged related/compatible service number

Researched Compatibility

The strongest documented application is:

• 2011+ Hyundai Sonata sedan
• Factory navigation system
• Factory external-amplifier audio configuration
• USB/AUX-equipped vehicle
• Early-production configuration associated with approximately December 2009 through May 2011 production

Potential trim and engine applications include:

• GL – 2.4L
• GLS – 2.4L
• SE – 2.4L or 2.0L turbo
• Limited – 2.4L or 2.0L turbo
• 2.0T
• 2.0T Limited

Hyundai’s parts catalog identifies 96560-3Q000-4X as an AVN navigation head unit used with an external JBL amplifier and lists a December 2009–May 2011 production range. Replacement-radio references identify 96560-3Q000 as a 2011 Sonata navigation receiver and stress matching the original number and audio configuration. Hyundai parts catalog, replacement-radio reference

Important Hybrid Fitment Conflict

The eBay compatibility table includes the 2011 Sonata Hybrid. However, independent interchange information identifies this radio family as a non-hybrid application. Because hybrid and gasoline models can use different radios, wiring, software, and amplifier configurations, this unit should not be advertised as confirmed for a Hybrid unless Hyundai verifies it by VIN. Interchange reference

Compatibility and Installation Notice

This radio is configuration-specific. Similar-looking Sonata units may have different data communication, amplifier support, navigation hardware, connectors, or software. Before ordering:

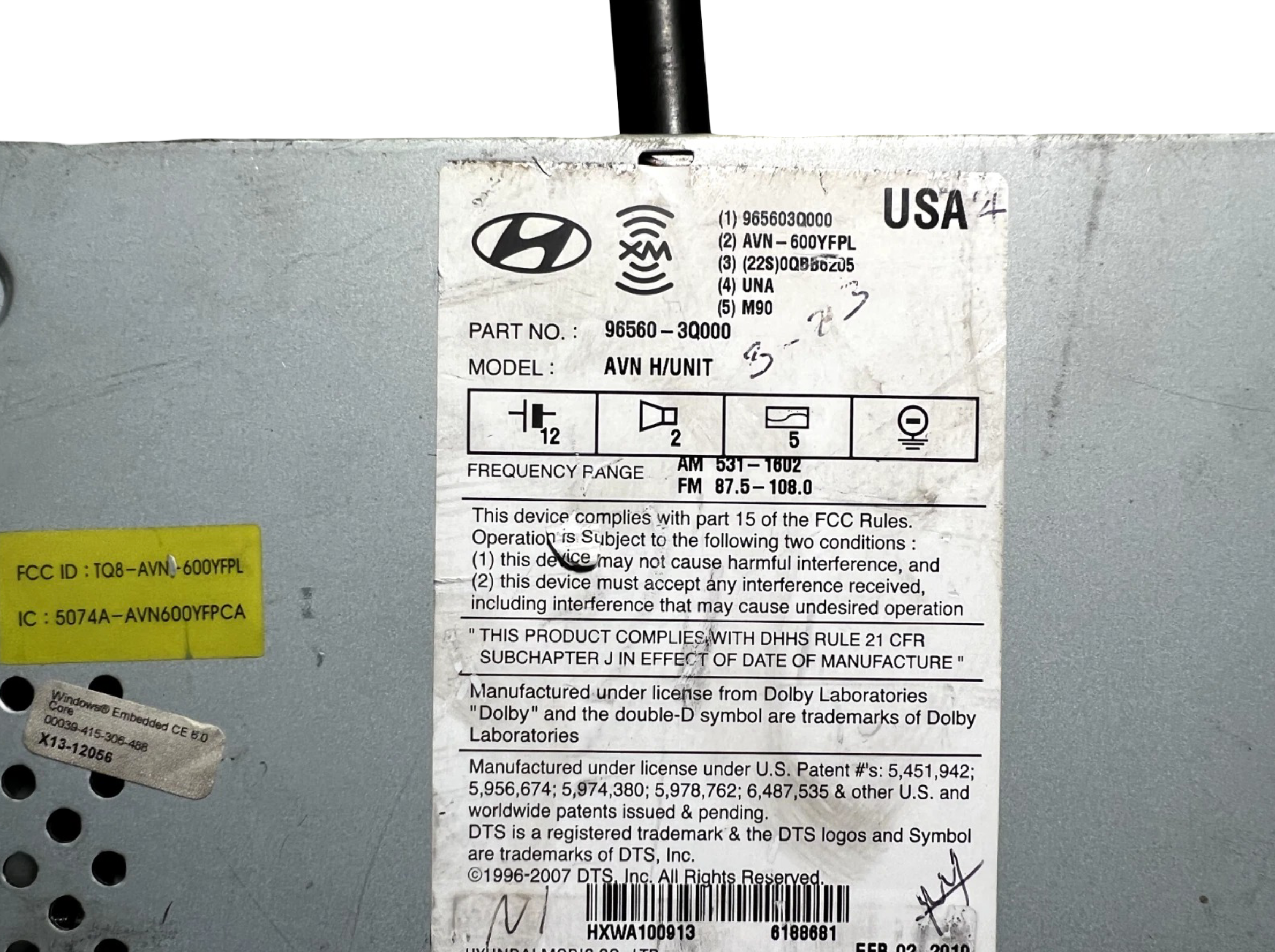

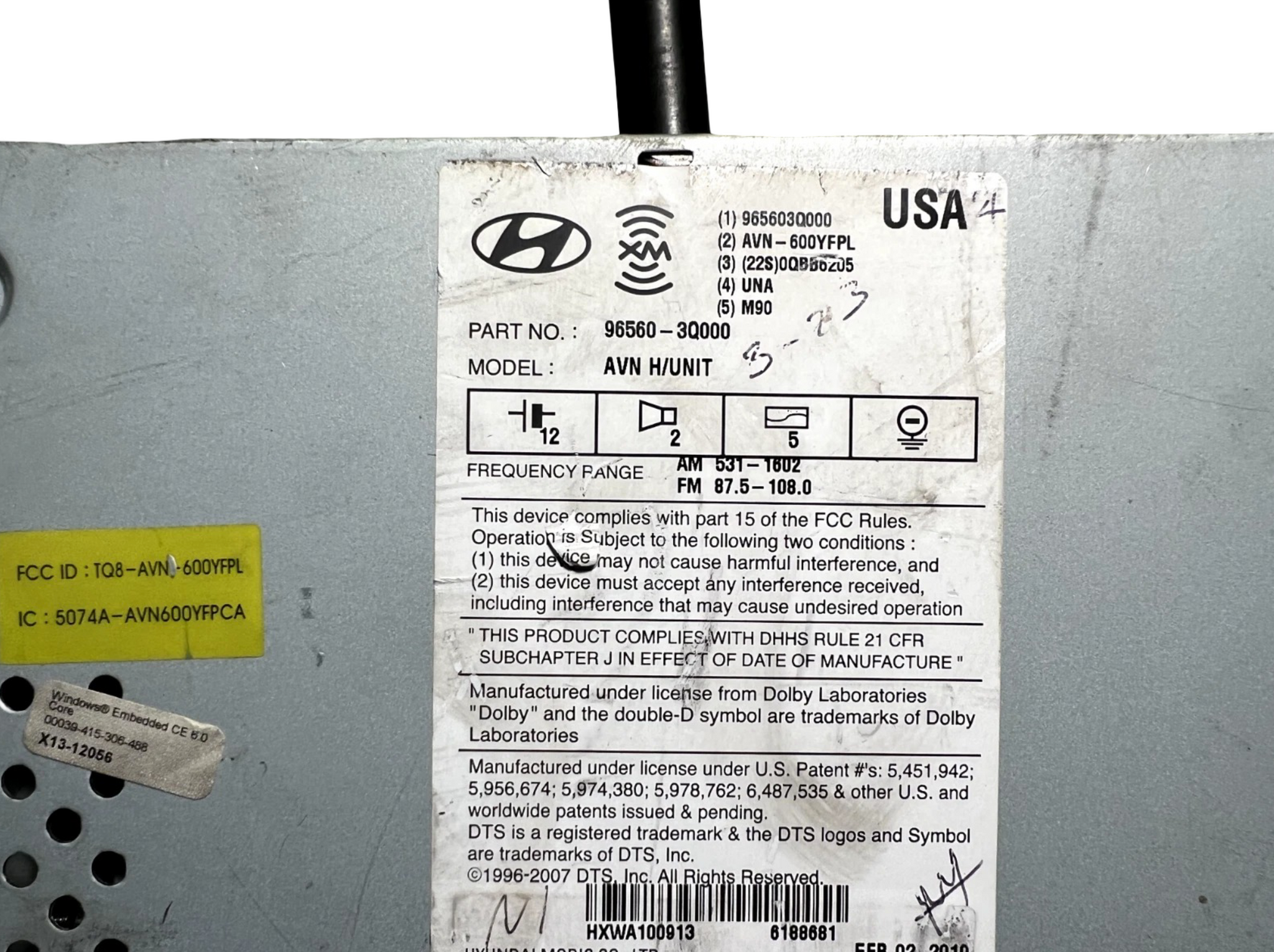

• Match 96560-3Q000 to the original radio label.

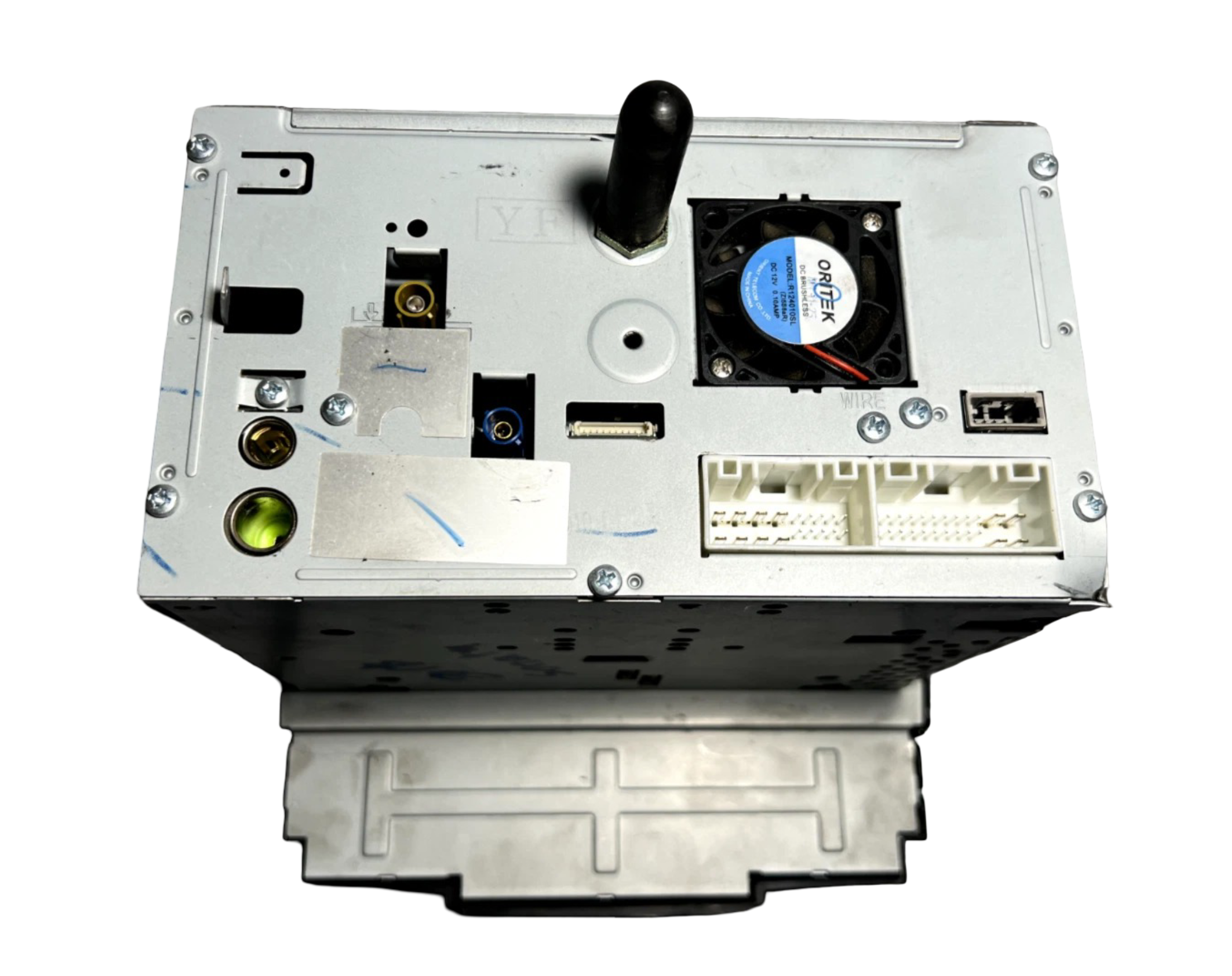

• Compare every electrical connector and mounting point.
• Confirm that the vehicle originally had factory navigation.
• Confirm the factory external-amplifier/speaker configuration.
• Verify compatibility by VIN with a Hyundai dealer or qualified installer.

The navigation database may be outdated and could require a separately purchased map update. Vehicle settings, Bluetooth devices, radio presets, and navigation information may need to be reset after installation.

Package Includes

• One OEM Hyundai navigation radio receiver

Navigation media, map-update card, antenna, amplifier, wiring, mounting hardware, security code, and other accessories are not included unless clearly pictured.
