2008-2015 Audi TT TTS MK2 8J RNS-E Navigation Plus Radio OEM 8J0035193

$ 599.99

Genuine Audi Navigation Plus RNS-E radio/navigation head unit removed from a Audi TTS Prestige Quattro coupe (MK2).

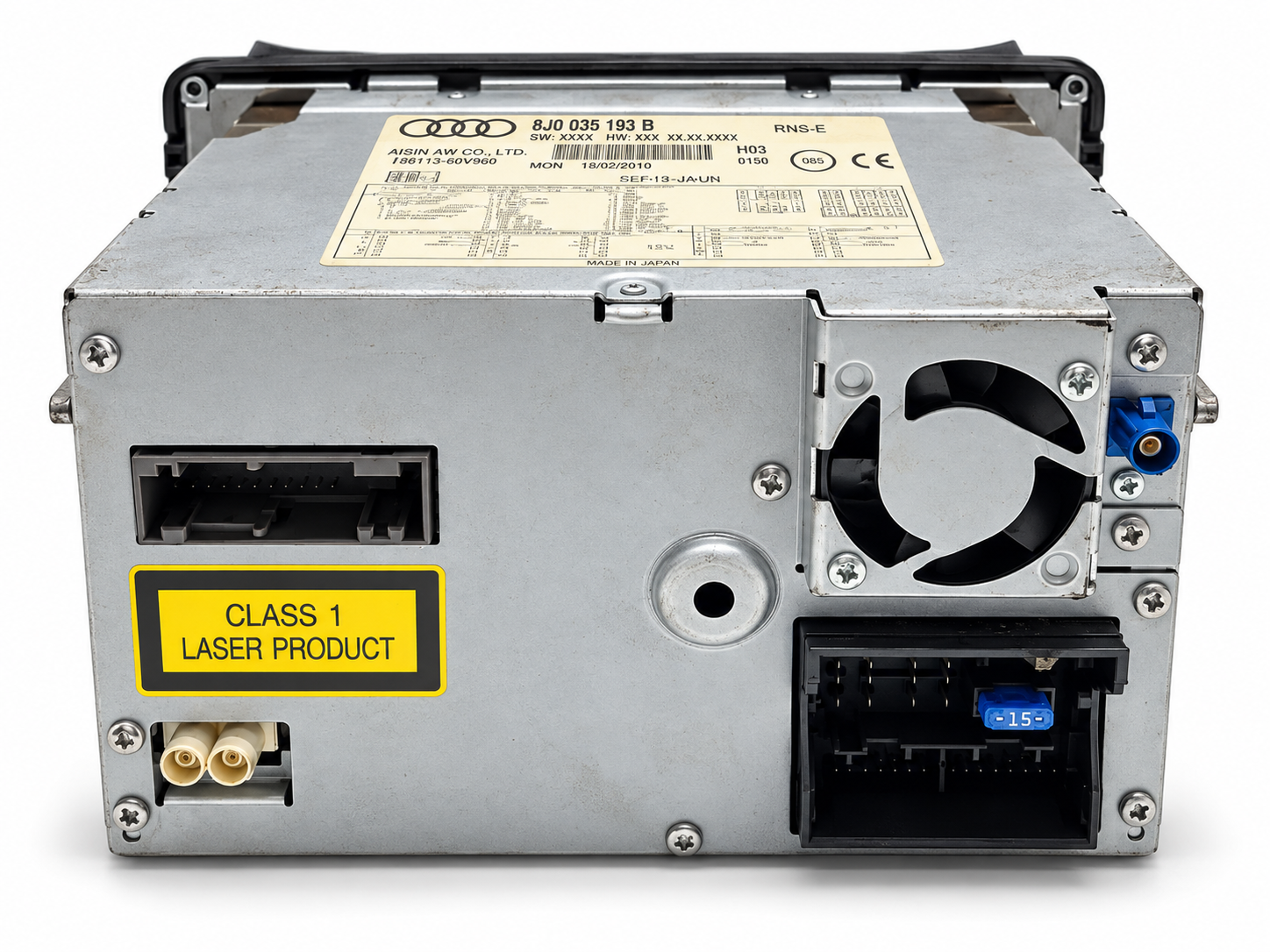

Identification:

Audi part number: 8J0035193B, 8J0035193F, 8J0035193FX
Model: RNS-E PU / second-generation RNS-E
Manufacturer: Aisin AW Co., Ltd.
Hardware version: H03
Software version shown on label: 0150
Supplier number: 86113-60V960
Country of manufacture: Belgium
Salvage interchange: 638-51375
Fuse rating: 15A

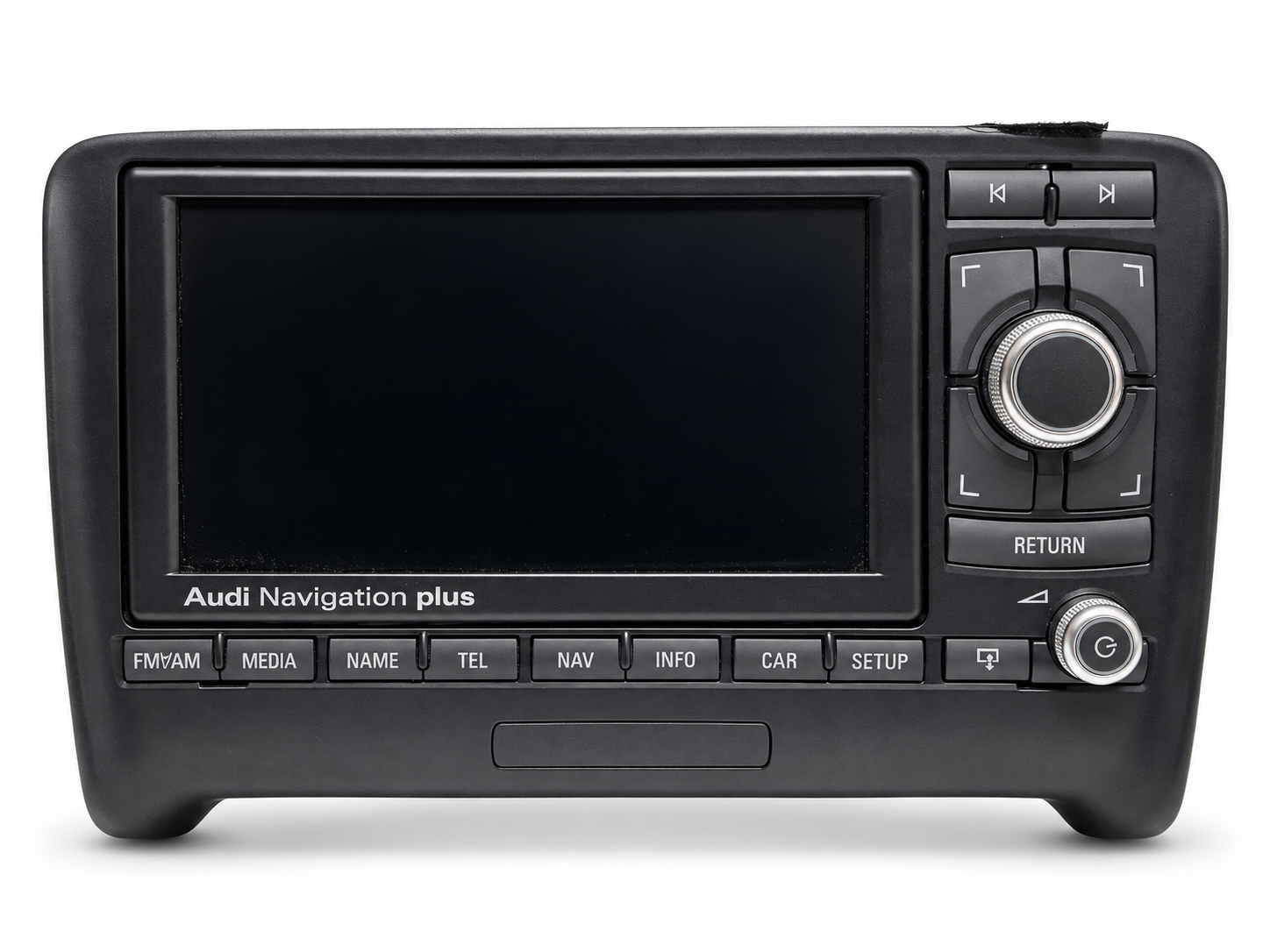

Factory functions:

Audi Navigation Plus GPS navigation
North American AM/FM radio
Navigation DVD drive
Audio CD and MP3 playback
Two SD/SDHC memory-card slots
Color display
MEDIA, TEL, NAV, INFO, CAR and SETUP controls
Steering-wheel-control integration when properly equipped and coded
Sirius satellite-radio compatibility when used with the required external equipment
Bose or standard-audio compatibility depending on vehicle wiring and coding

Verified direct-replacement applications:

2008-2015 Audi TT Quattro Coupe with factory RNS-E Navigation Media
2008-2015 Audi TT Quattro Roadster with factory RNS-E Navigation Media
2008-2015 Audi TTS Quattro Coupe with factory RNS-E Navigation Media
2008-2015 Audi TTS Quattro Roadster with factory RNS-E Navigation Media

Important compatibility information:

This is a North American-region unit.
Vehicle must be an Audi TT/TTS 8J originally equipped with RNS-E navigation, or professionally converted for RNS-E.
Match part number 8J0035193B, faceplate shape, connectors and vehicle equipment before ordering.
Not a direct replacement for the standard Concert or Symphony radio.
Not the correct original part for 2008–2009 TT models, which generally use earlier 8J0 035 192-series units.

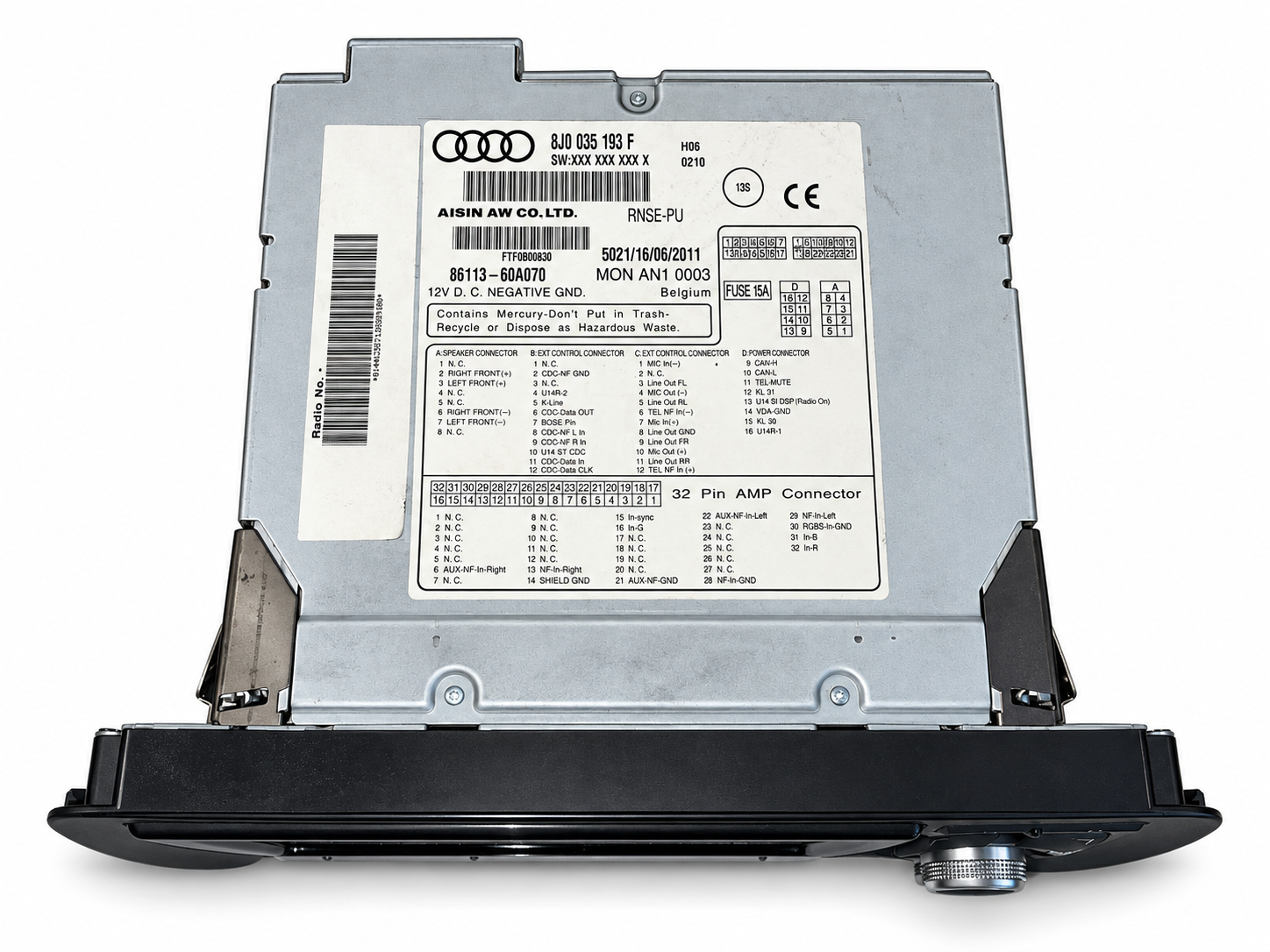

Later 2011–2015 TT/TTS models generally use 8J0035193F or 8J0035193FX. Do not advertise this B-suffix unit as a guaranteed direct replacement for every 2011–2015 vehicle.
Audi’s later remanufactured 8J0035193FX supersedes 8J0035193B/BX, but that does not automatically establish reverse compatibility of this older used B unit with every later application.
Coding with Audi-compatible diagnostic equipment may be required for the vehicle, sound system, telephone, satellite radio and steering-wheel controls.

Security-code warning:
RNS-E units use an anti-theft security PIN. The listing does not state that the four-digit PIN is included. Confirm the security code is supplied before purchase; otherwise the radio may remain in SAFE mode after installation.

Additional equipment:
Bluetooth telephone operation requires the vehicle’s separate factory Bluetooth/telephone module. The TEL button does not mean Bluetooth hardware is built into this radio. Bluetooth music streaming, Audi Music Interface, satellite radio and a reverse camera require the corresponding external modules, wiring and coding.

Condition:

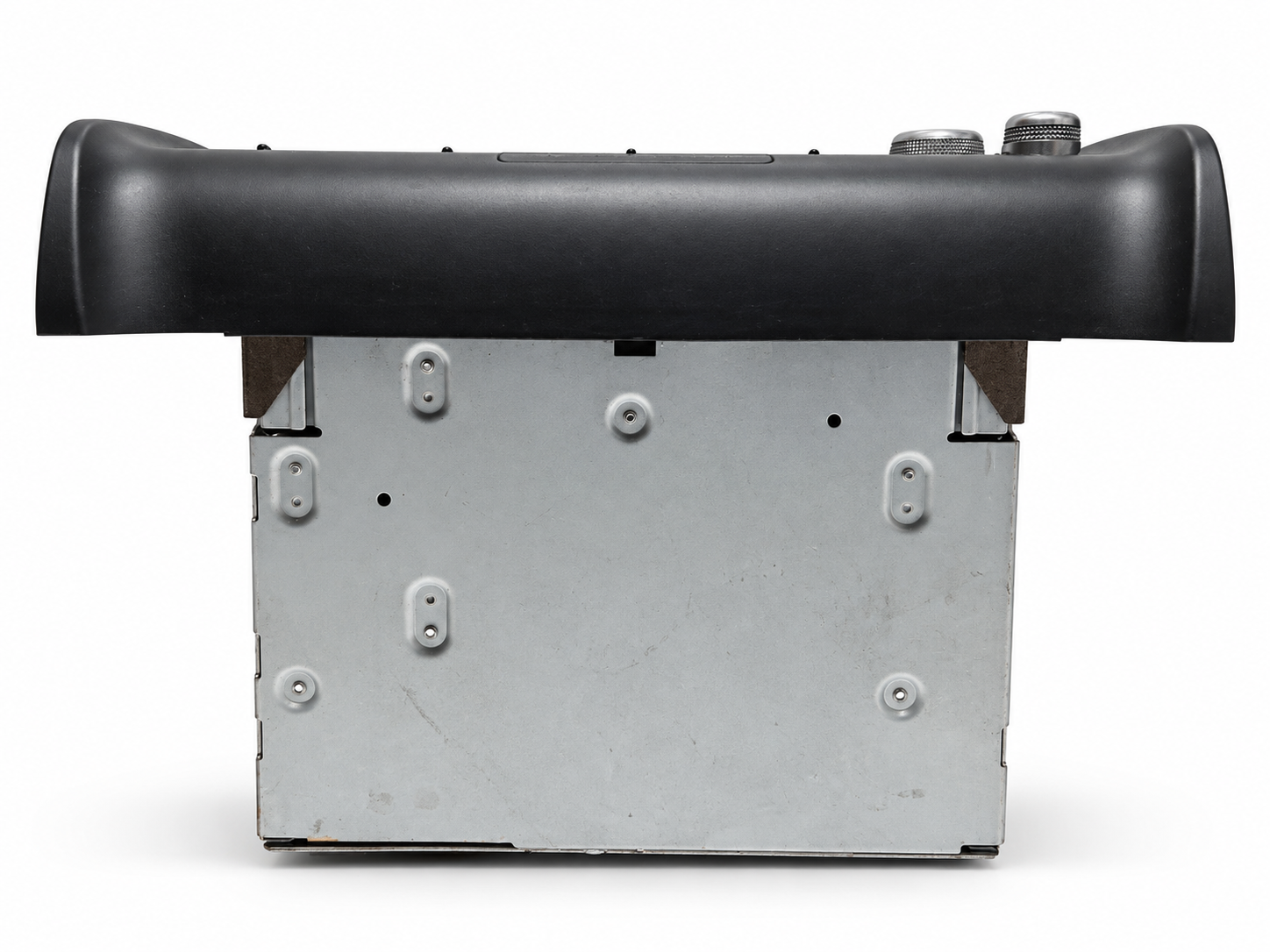

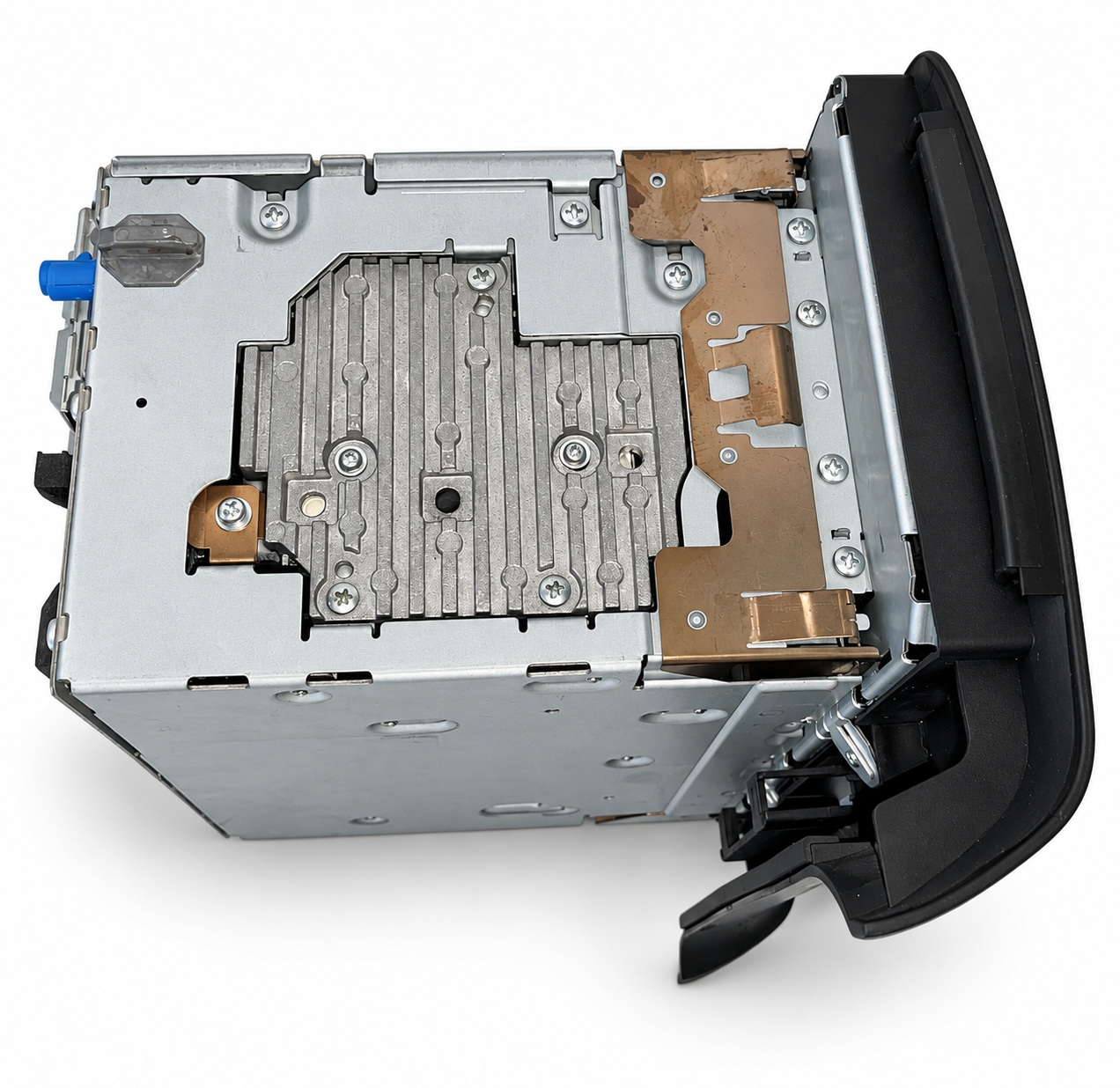

Used OEM unit described as being in good condition. Normal cosmetic wear should be expected. Review the photographs carefully for screen condition, knob wear, button wear, mounting tabs and connector condition.

The listing should state whether the following functions were tested:

Display and backlighting
Touch-free rotary controls and buttons
AM/FM reception
Audio output
Navigation DVD mechanism
Both SD-card slots
Screen opening mechanism
GPS navigation operation

Sale includes only the pictured head unit. Navigation DVD, SD cards, GPS antenna, wiring harness, amplifier, Bluetooth module, satellite tuner, security PIN card and mounting hardware are not included unless specifically pictured or stated.

Professional installation and Audi-specific coding are recommended.
