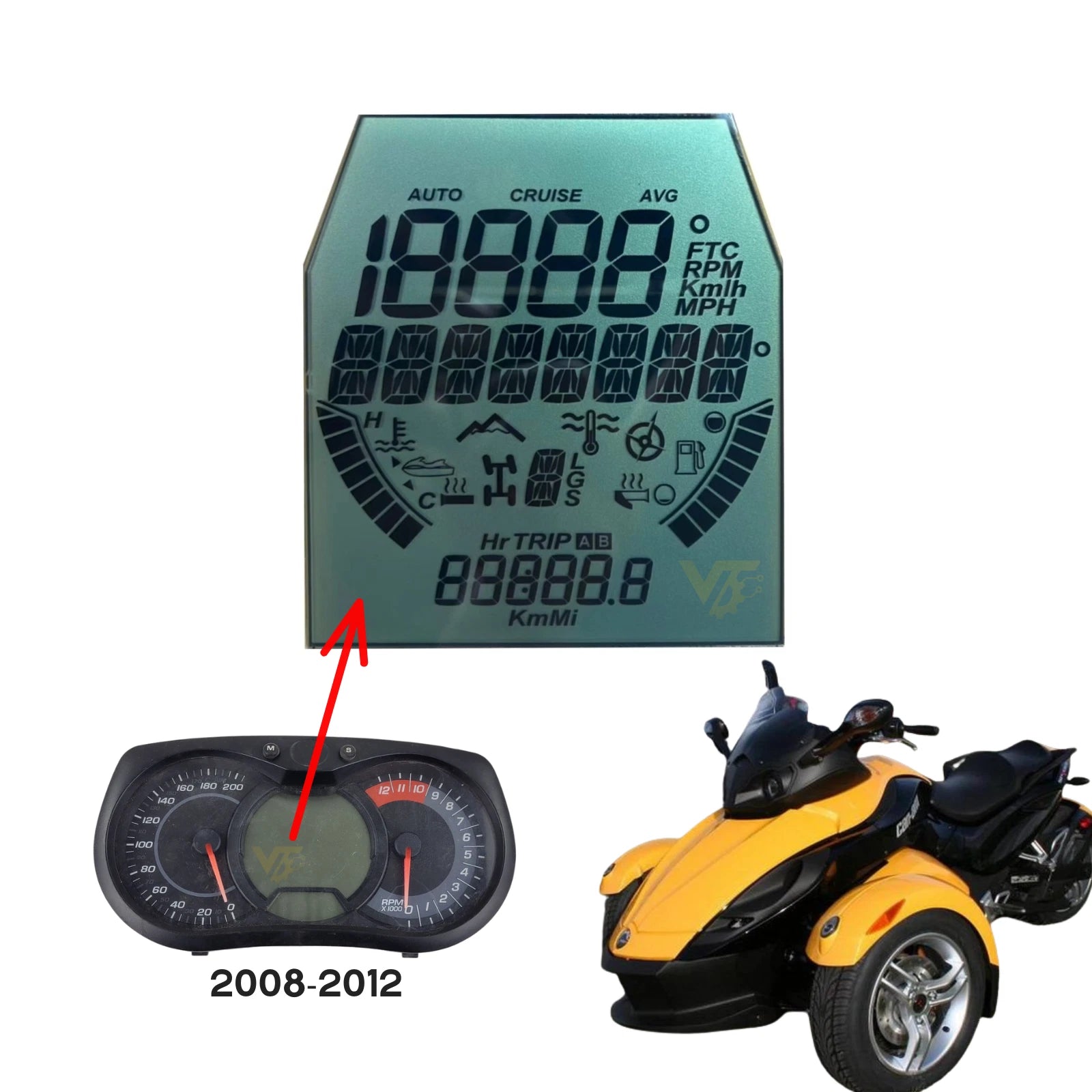

2008-2012 Can-Am Spyder GS RS RS-S Gauge Cluster LCD Screen 710001516

Product Description

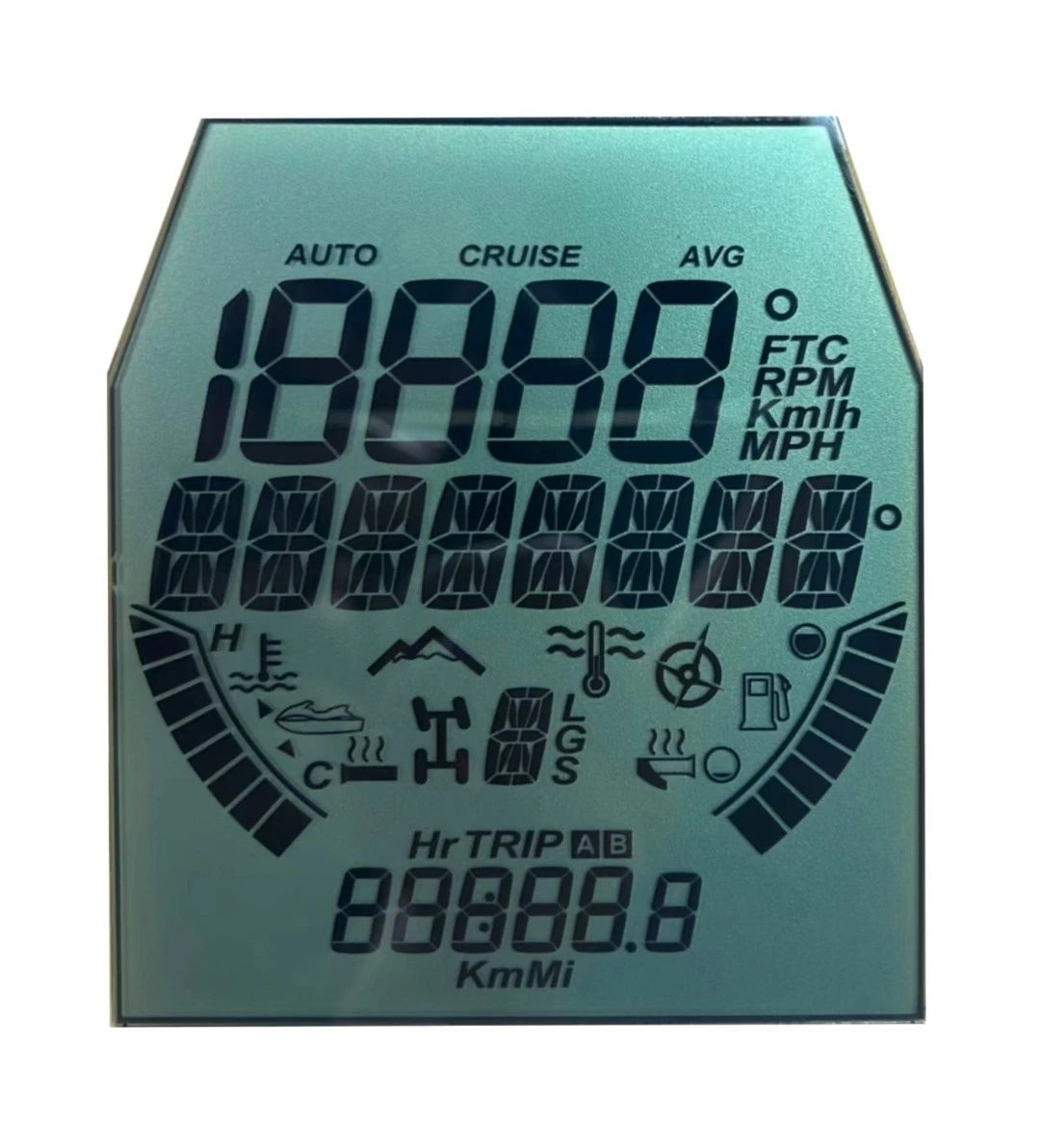

New aftermarket LCD display for repairing select BRP Can-Am Spyder multifunction instrument clusters.

This replacement screen is intended for an existing cluster with a dark, faded, leaking, low-contrast or partially unreadable LCD. Replacing the display allows the original circuit board, housing, analog gauges and vehicle-specific electronics to remain in service.

Product Details

• Condition: New
• Type: Instrument-cluster LCD display
• Application: Select Can-Am Spyder multifunction gauges
• Display style: Segmented monochrome LCD
• Installation location: Inside the original gauge cluster
• Quantity: One LCD screen
• Aftermarket replacement component
• Instrument cluster and housing are not included

Reference Numbers

• 710001516
• 71000151
• 556214

These numbers should be treated as cluster or supplier references. The replacement LCD itself may not carry an original BRP service-part number.

Reported Compatibility

Commonly listed for select:

• 2008 Can-Am Spyder GS 990 — SM5 and SE5
• 2009 Can-Am Spyder GS Roadster — SM5 and SE5
• 2010 Can-Am Spyder RS Roadster — SM5 and SE5
• 2010 Can-Am Spyder RS-S Roadster — applicable configurations
• 2011 Can-Am Spyder RS Roadster — SM5 and SE5
• 2011 Can-Am Spyder RS-S Roadster — SM5 and SE5
• 2012 Can-Am Spyder RS — SM5 and SE5
• 2012 Can-Am Spyder RS-S — SM5 and SE5

Some interchange catalogs extend this display design to certain 2013 RS and RS-S clusters; however, the original screen and cluster must be compared before ordering. A comparable supplier listing associates references 71000151 and 556214 with these early Spyder applications. Comparable fitment listing

Critical Fitment Information

Can-Am used multiple gauge and LCD designs across similar model years. Model and year alone are not sufficient to guarantee compatibility.

Before purchasing:

1. Remove or inspect the original cluster.
2. Compare the screen shape, contact layout, printed segments and dimensions with the listing photographs.
3. Verify the number on the instrument-cluster housing whenever possible.
4. Confirm that the problem is limited to the LCD—not the cluster circuit board, power supply or communication system.

This screen should not be confused with the different 3.5-inch display used in later RT-S, RS-S and F3 clusters associated with references 710003940 and 708400047. That later display has different published applications. Later-screen comparison

Suitable for Repairing

• Dark or blackened LCD
• Faded or sun-damaged display
• Missing display segments
• Low contrast
• Internal LCD bleeding or leakage
• Unreadable mileage and information display

This component will not repair:

• Inoperative analog needles
• Cluster power or ground faults
• Damaged circuit boards
• CAN-bus communication problems
• Failed illumination or warning LEDs
• Water-damaged electronics beyond the LCD

Installation Information

Instrument-cluster removal and complete disassembly are required. The replacement screen must be correctly positioned and connected to the existing circuit board. This is a precision electronic repair, and professional installation is strongly recommended.

Programming is generally not associated with replacing only the LCD because the original cluster electronics are retained. No programming or installation service is included with this product.

Package Includes

• One replacement LCD display

The complete speedometer, instrument cluster, housing, circuit board, lens, needles and installation tools are not included.

Recommended item-specific correction: Because this is an aftermarket screen rather than a BRP-manufactured part, the eBay Brand field should be changed from “BRP” to Unbranded or Aftermarket Products.
