Wire Gauge: 10 AWG

Connector Type: XT60 Female, 5/16 M8 Ring Terminal

Current Capacity: 50 A

Rated Voltage: 600 V

Insulation: Silicone

Conductor: Tinned Copper

Outer Diameter: 5.5 mm

Testing Voltage: 2000 V

ensuring reliable power transfer and safe operation for your devices without any risk of overloading or performance degradation

Durable and High Performance Construction: Made from pure tinned copper and flexible silicone insulation.

Offers excellent flexibility, electrical conductivity, heat resistance and corrosion resistance for both indoor

and outdoor use

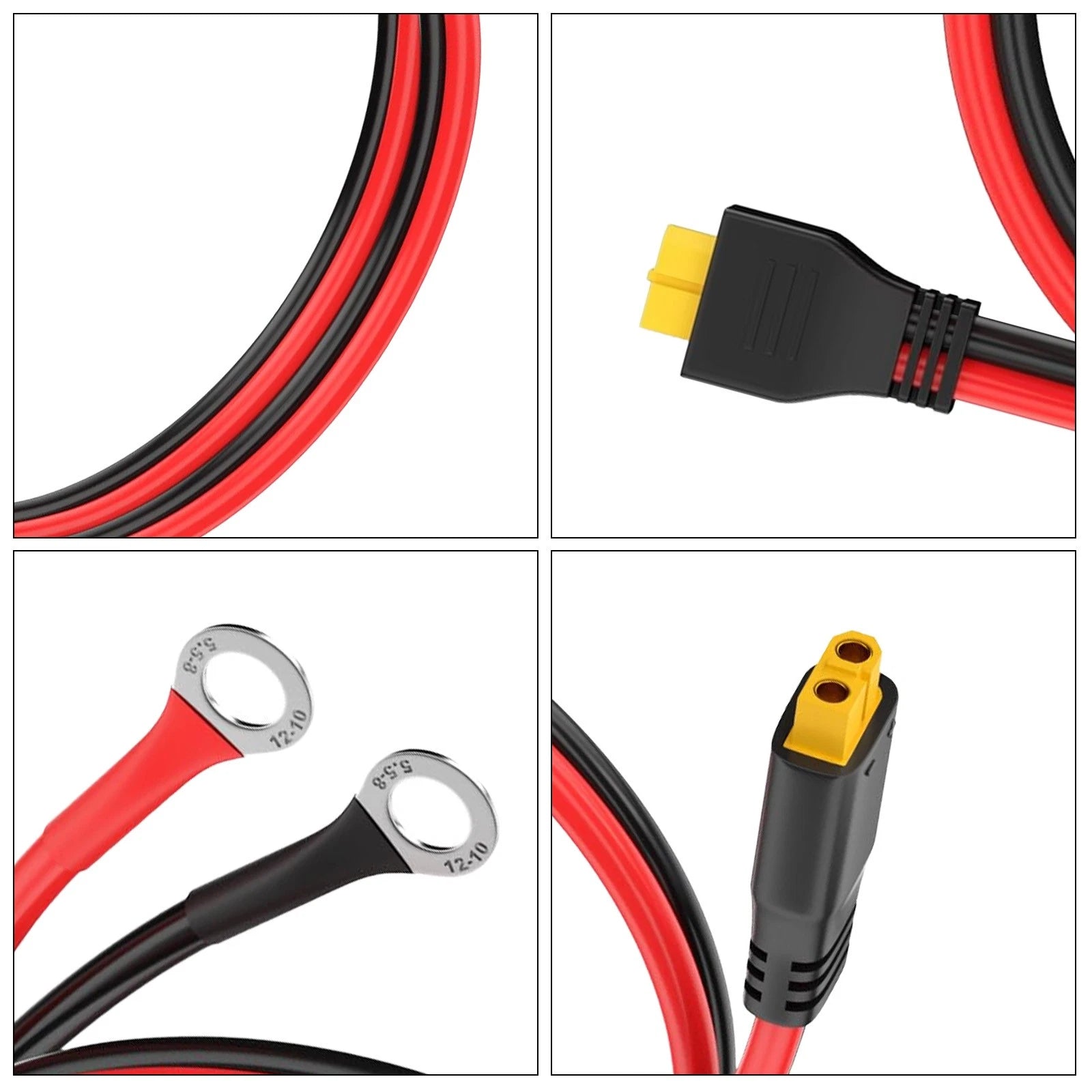

5/16 M8 Ring Terminal: Crafted from tinned copper for corrosion resistance and high-temperature durability.

Rated for 62A max current. Ideal for reliable, long-lasting connections in various electrical applications

Compatible Applications: Compatible with most devices featuring XT60 ports and O Ring terminals. Ideal for

solar systems, battery-powered equipment, generators etc

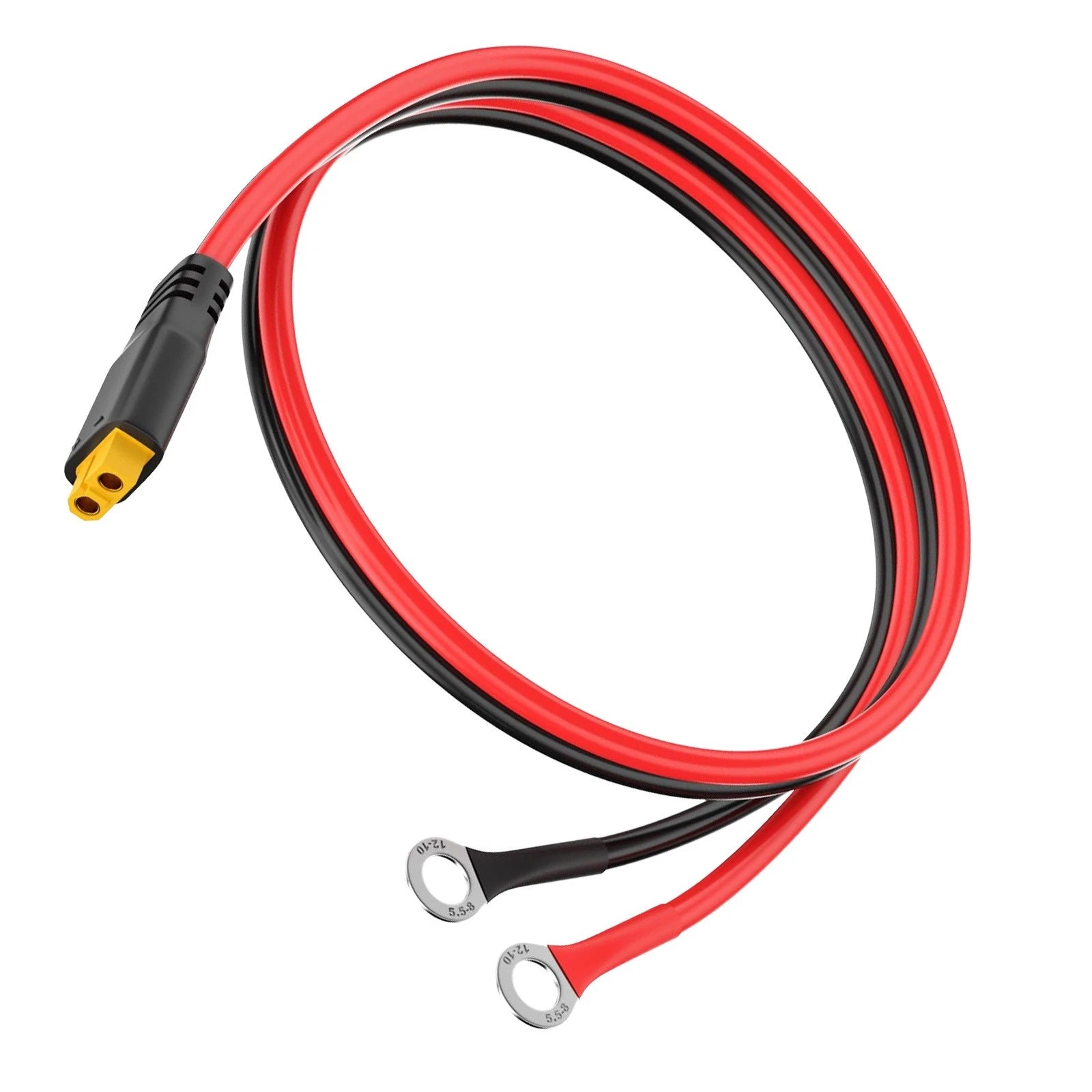

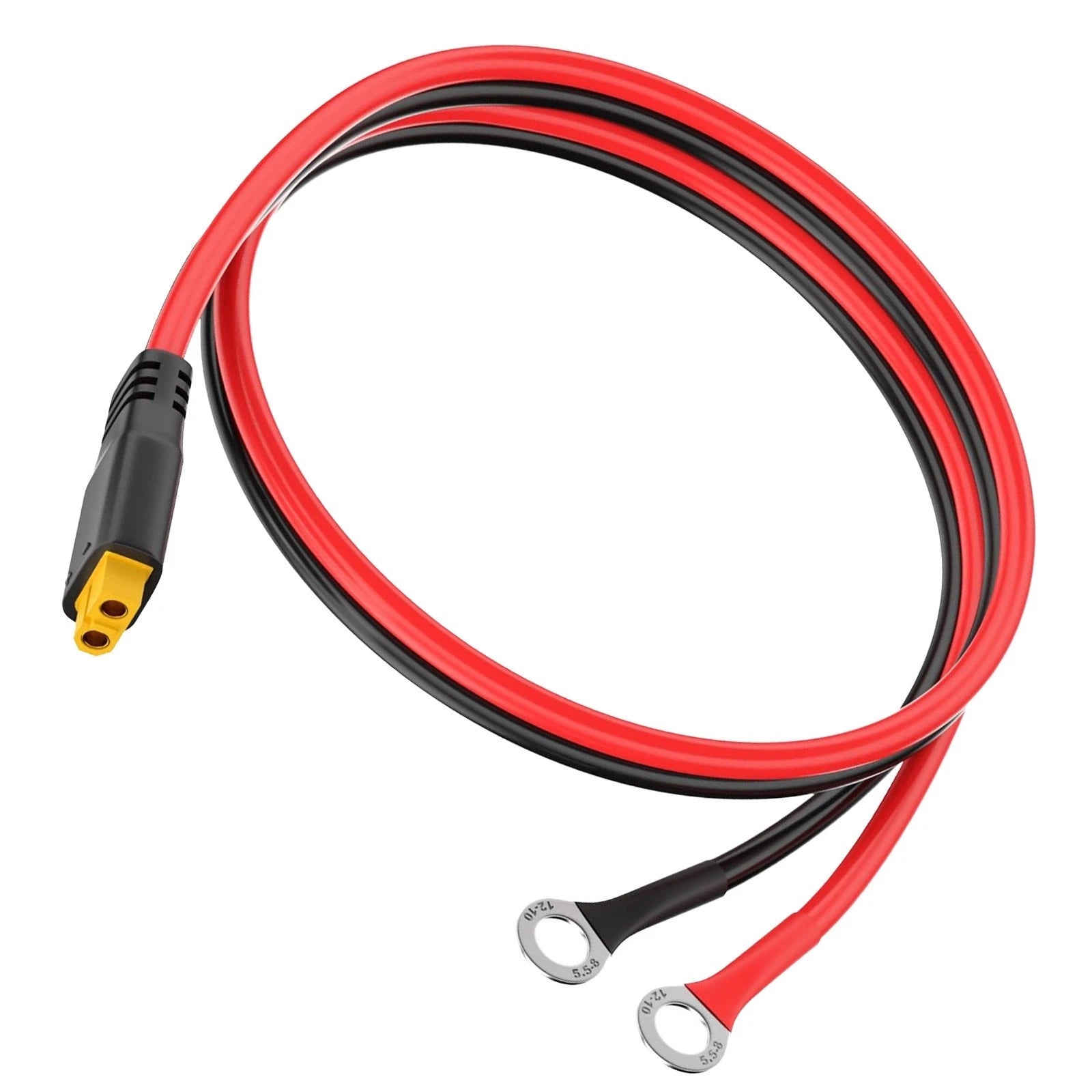

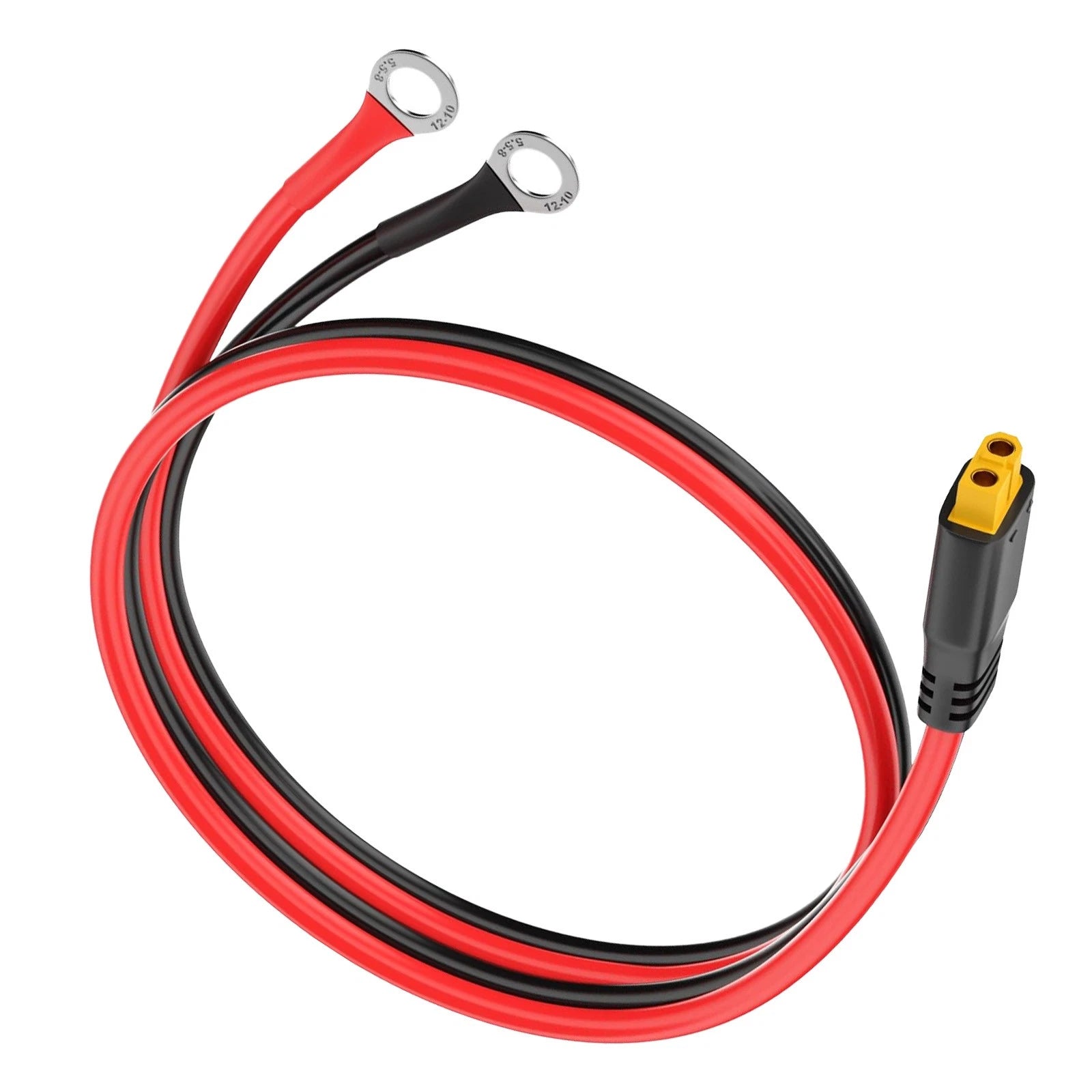

Package Included: 1pcs 10AWG Black&Red XT60 female to M8 terminal cable (Different lengths optional)

Fitment and compatibility

Application reference: 10 AWG XT60 Female Male Connector M8 O Ring Terminal Extension Battery Cable

Fitment can vary by production date, trim, drivetrain, factory options, connector style and installed equipment. Before ordering, compare the original component, mounting points, electrical connections and specifications with the listing photographs and details.

Part number information

Part number / catalog reference: Not provided in the source catalog

Part numbers may have supersessions or regional variations. Match at least one reference number and the physical configuration to the original part whenever possible.

Package and installation notes

Quantity is one product unless the title, variant selection or photographs clearly state otherwise. Professional installation is recommended for electrical, safety-related and drivetrain components.
