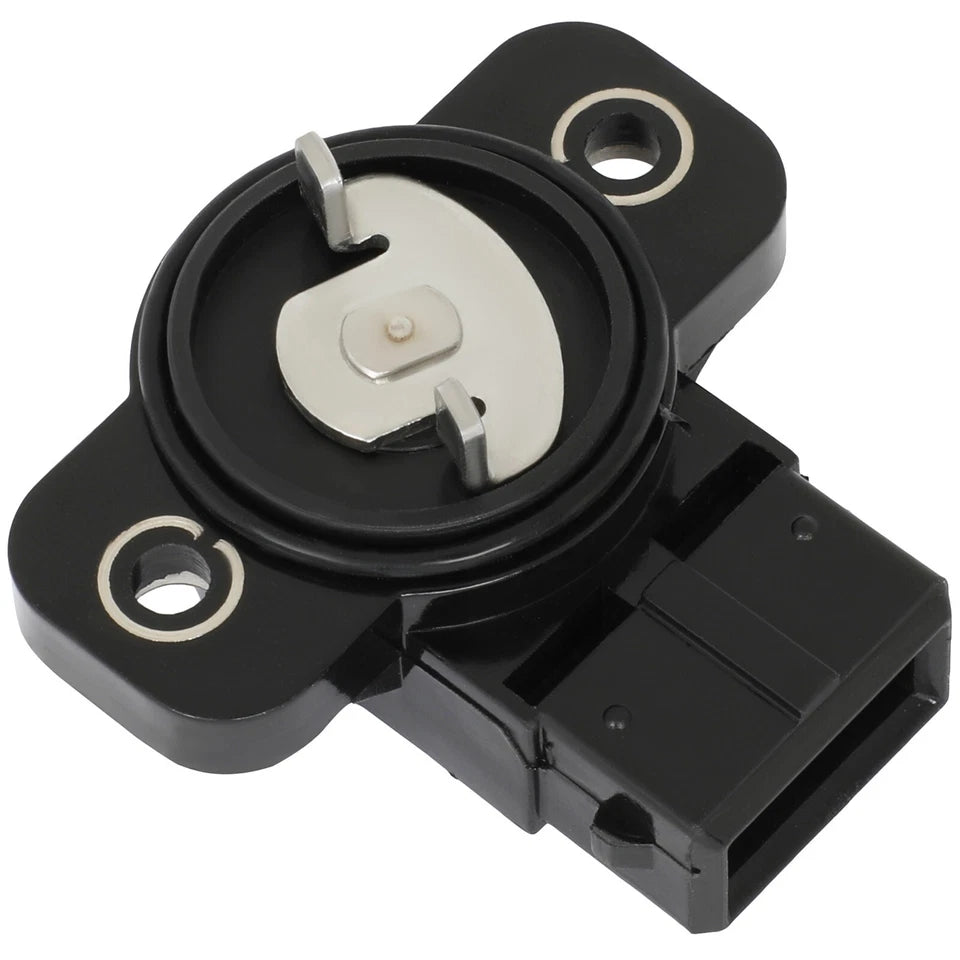

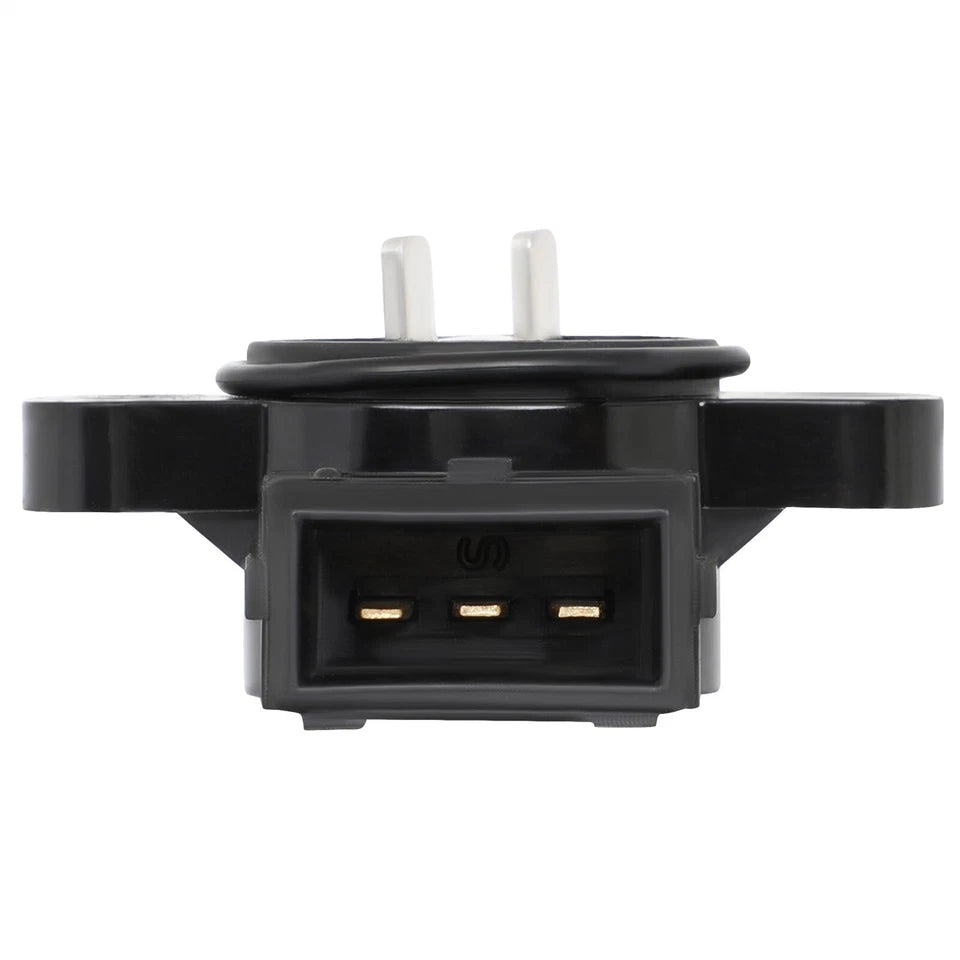

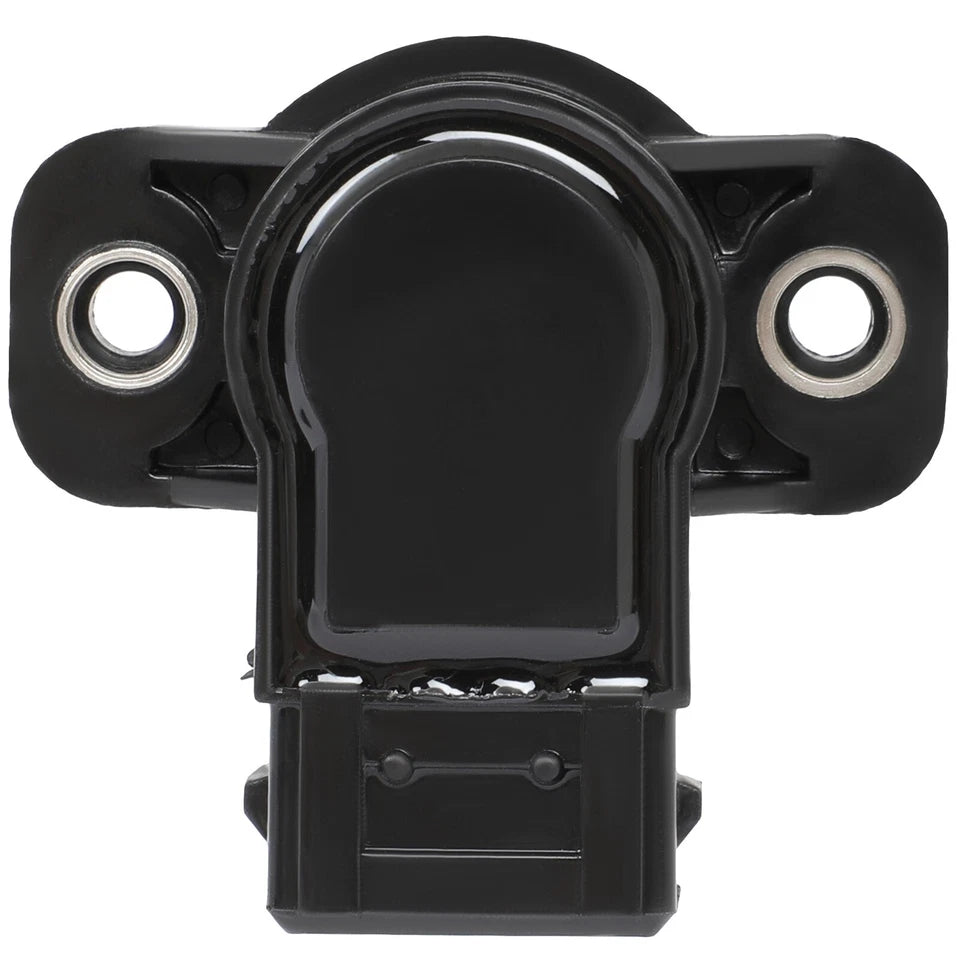

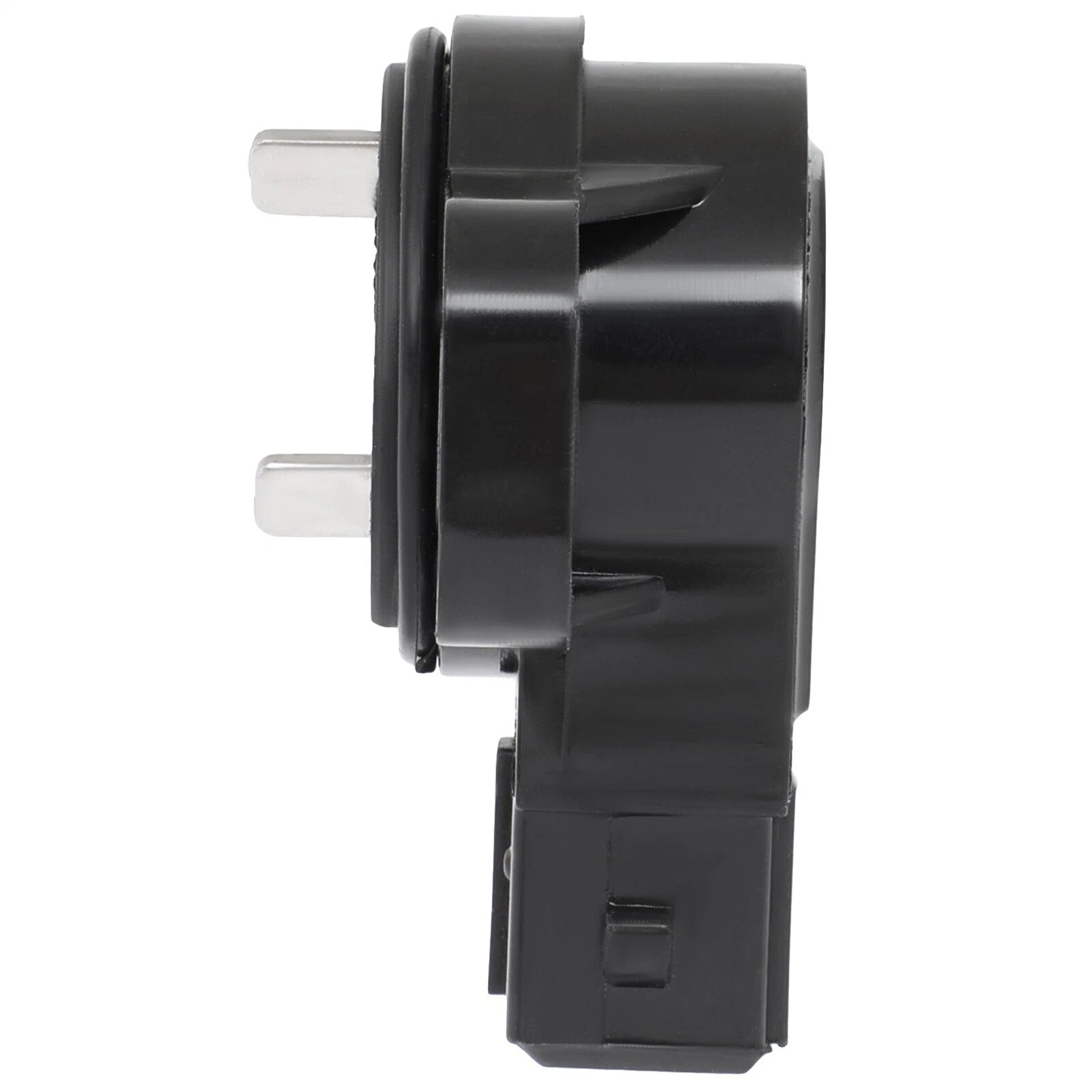

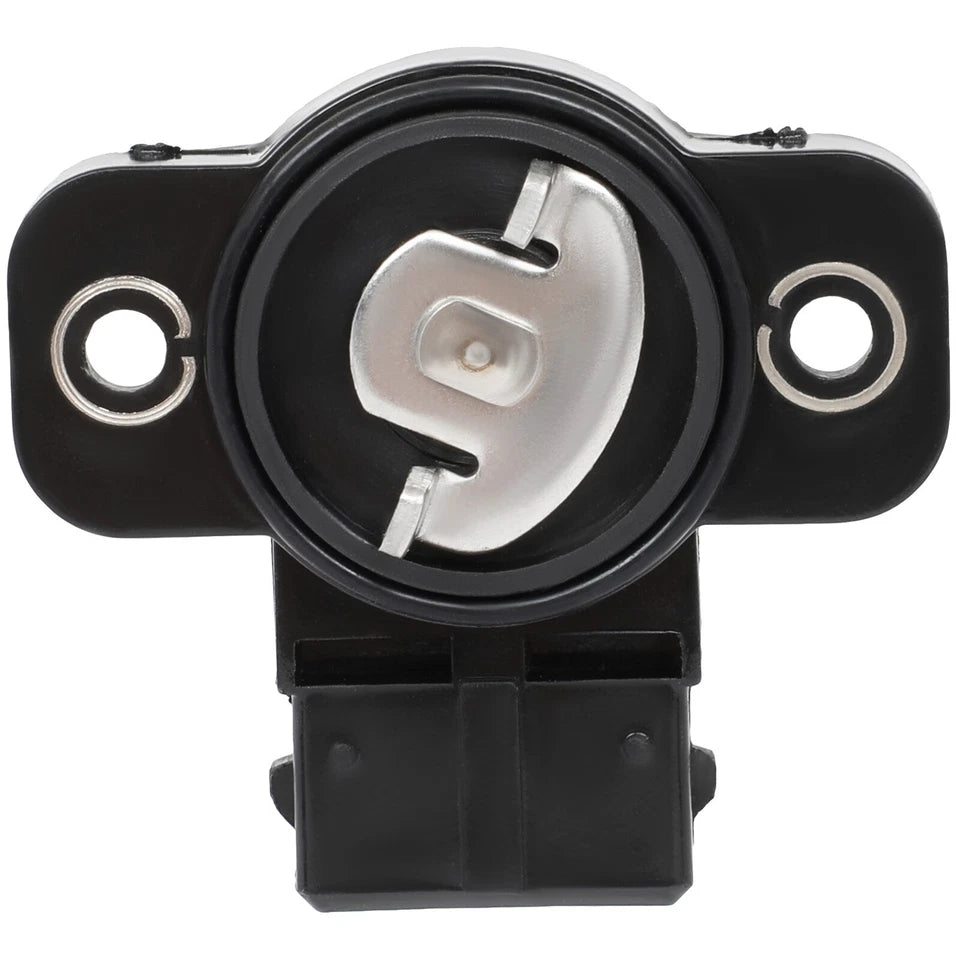

TPS Throttle Position Sensor for 1999-2010 Hyundai Kia 2.5L 2.7L 3517037100

Item Features

1. Easy to install and direct replacement.
2. Stable characteristics, high reliability
3. A Perfect Aftermarket Replacement
4. Manufactured with premium materials to withstand the elements and ensure proper function
5. Sealed connections to prevent environmental corrosion and performance issues
6. High quality construction for durability

Symptoms of a Failing Throttle Position Sensor

• Check Engine Light is On
• Diminished Acceleration Power
• Rough Running and Idling
• Difficulty Shifting Into Next Gear

Fit for

1999-2001 Hyundai Sonata 2.5L V6
2001 Kia Optima 2.5L V6
2001-2006 Hyundai Santa FE 2.7L V6
2002-2005 Hyundai Sonata 2.7L V6
2007-2008 Hyundai Tiburon 2.7L V6
2005-2009 Hyundai Tucson 2.7L V6
2002-2006 Kia Optima 2.7L V6
2006-2006 Kia Sportage 2.7L V6
2007-2010 Kia Sportage 2.7L V6

Installation Steps

1. Disconnect the negative cable from the battery by loosening the clamp's nut with an adjustable wrench in a counterclockwise direction.
2. Locate the throttle position sensor. It is attached to the throttle body on the top of the engine.
3. Separate the wiring harness connector from the throttle position sensor by pressing in on the tabs of the connector while pulling it apart by hand.
4. Remove the throttle position sensor from the throttle body by backing out the two holding screws with a Phillips screwdriver in a counterclockwise direction.
5. Install the new throttle position sensor onto the throttle body with the original screws by twisting them in with a Phillips screwdriver in a clockwise direction.
6. Push the wiring harness connector onto the throttle position sensor until the tabs snap into place.
7. Reconnect the negative battery cable to the negative terminal and tighten the nut with an adjustable wrench in a clockwise direction.
