New Digitizer Touch Screen Glass for 2006-09 LEXUS is250 is350 isF Navigation Radio Climate

Restore the touch-control function of your factory Lexus navigation display without replacing the complete radio or multi-display assembly. This brand-new 7-inch touchscreen digitizer replaces the touch-sensitive glass panel installed over the original LCD.

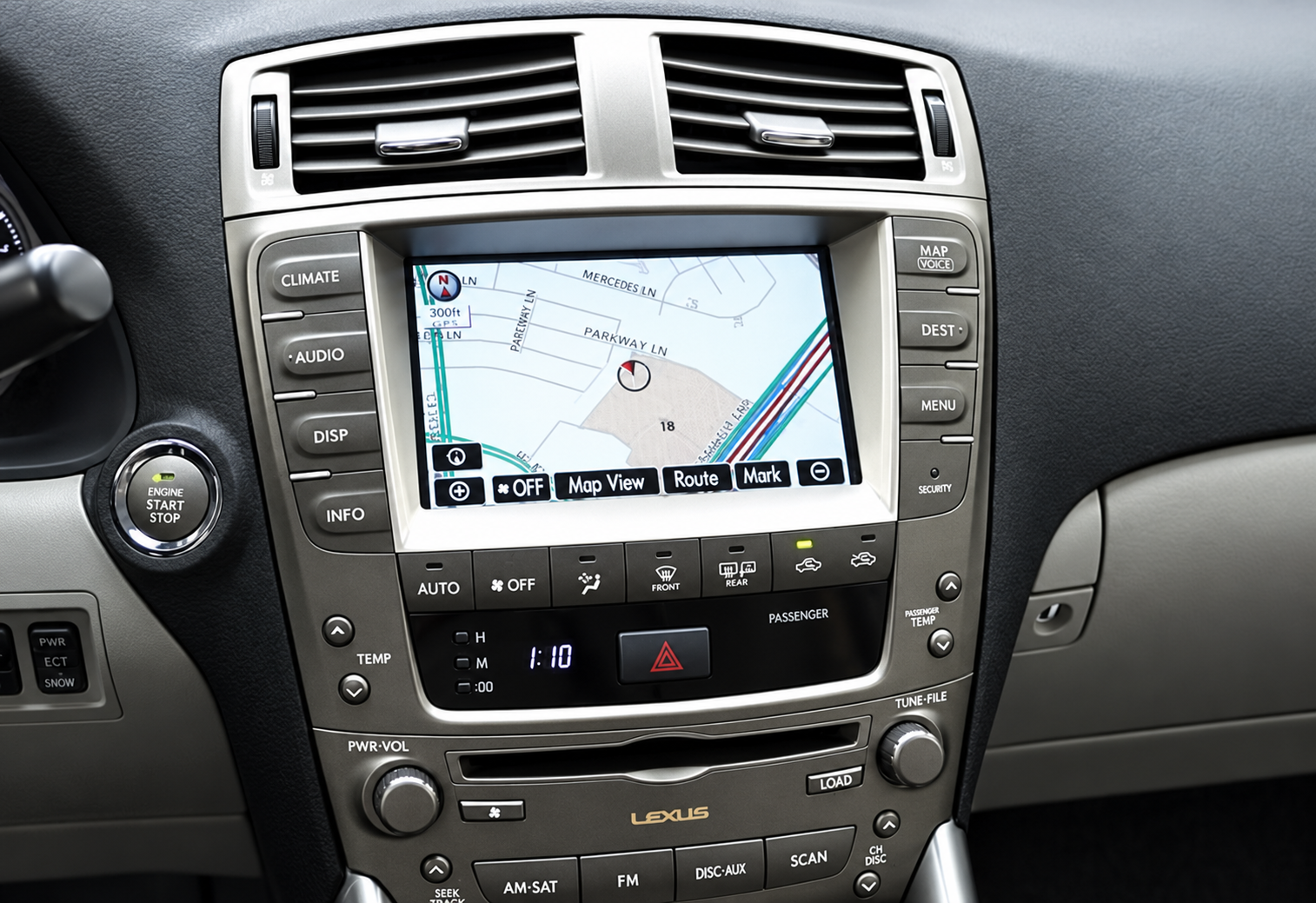

The touchscreen controls multiple factory functions, including navigation, audio, vehicle settings and climate-control menus. Your original LCD, navigation electronics and display housing are retained.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

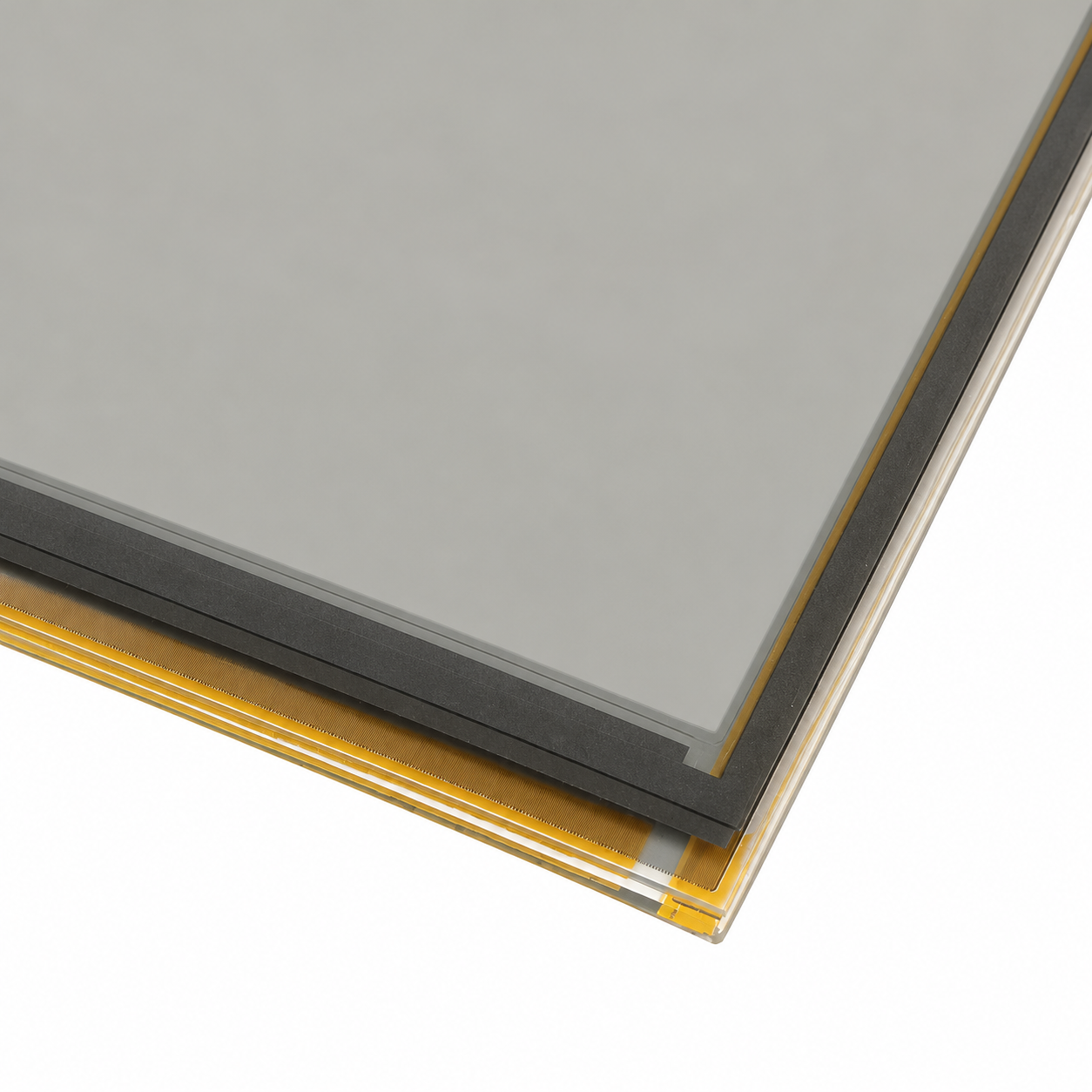

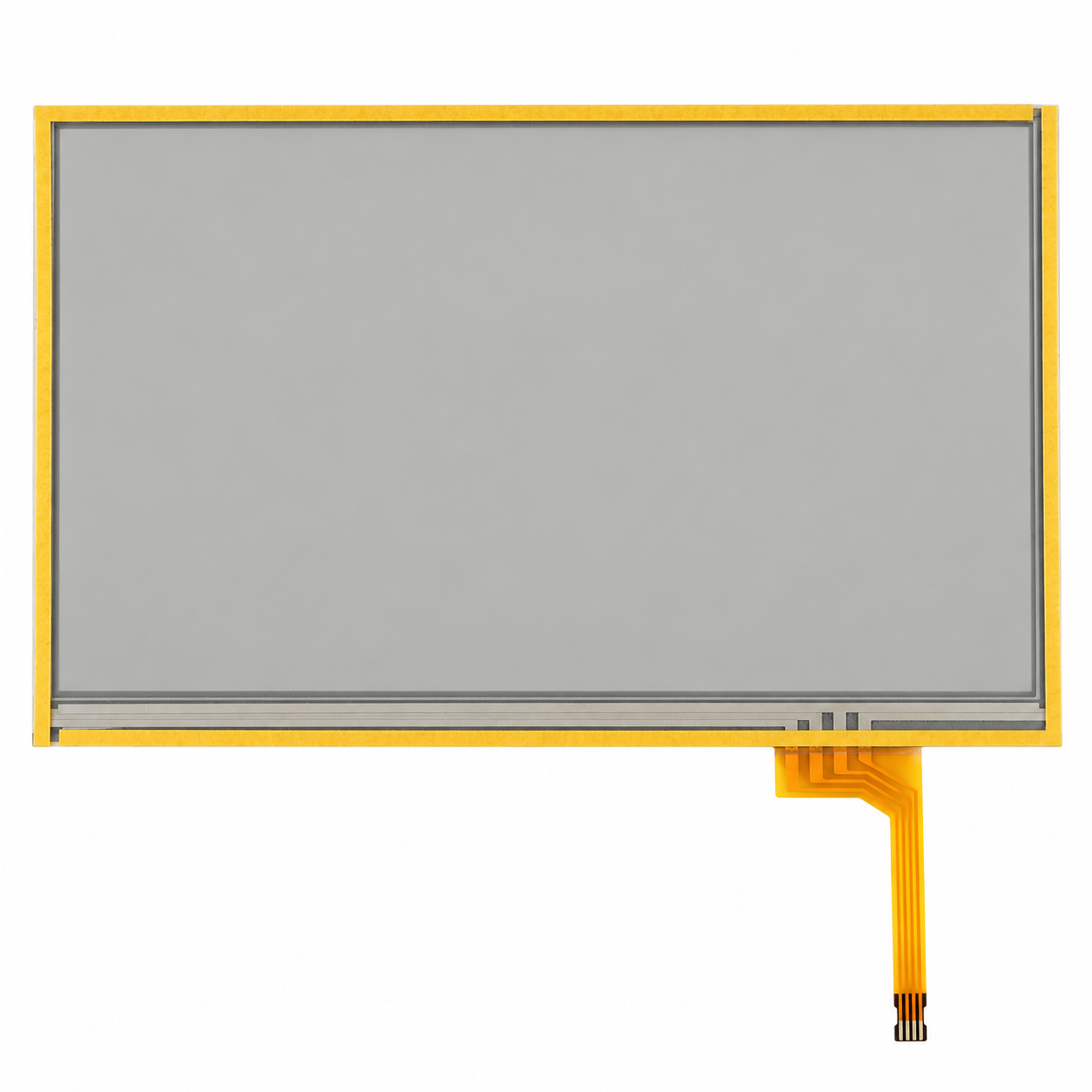

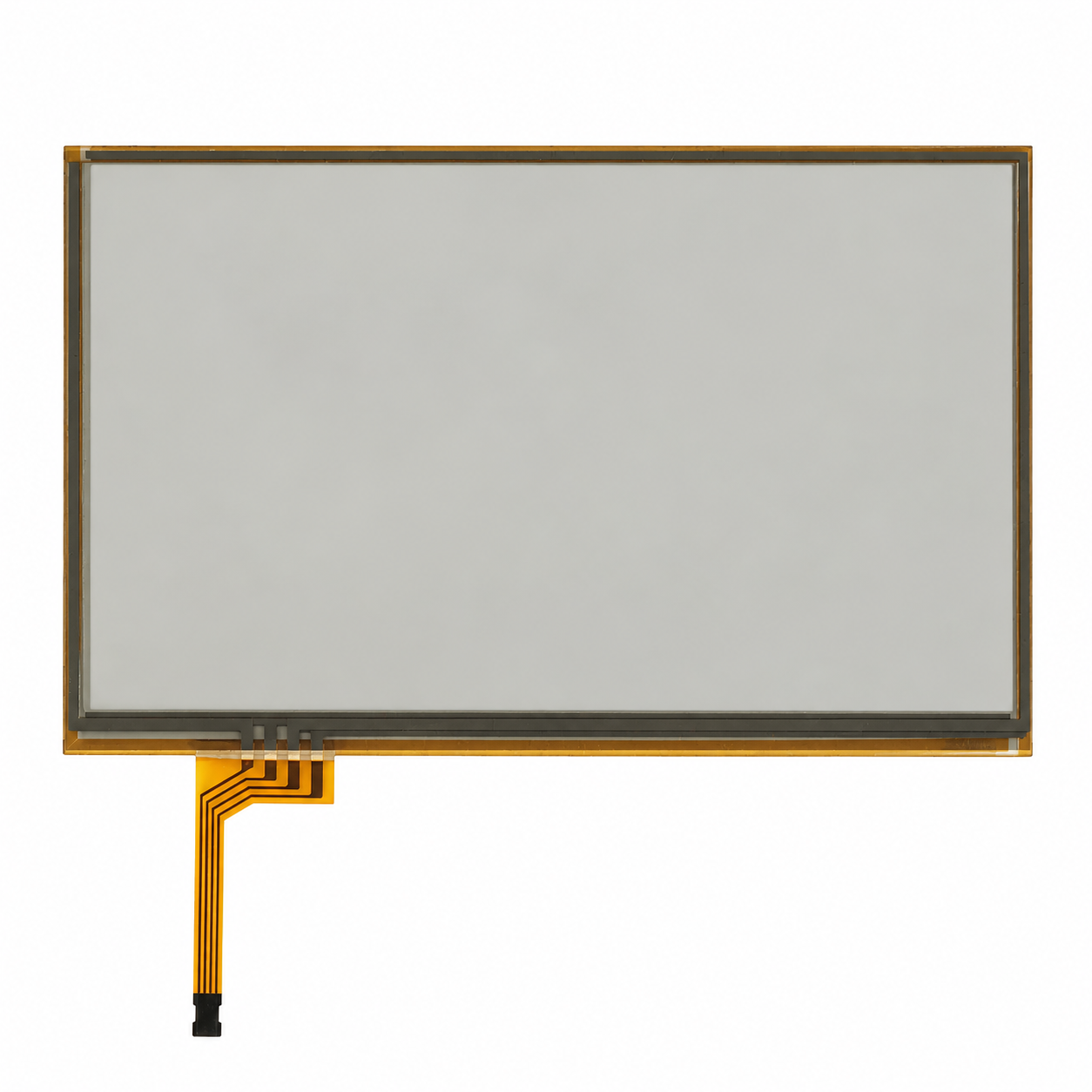

• Product type: Touchscreen digitizer glass panel

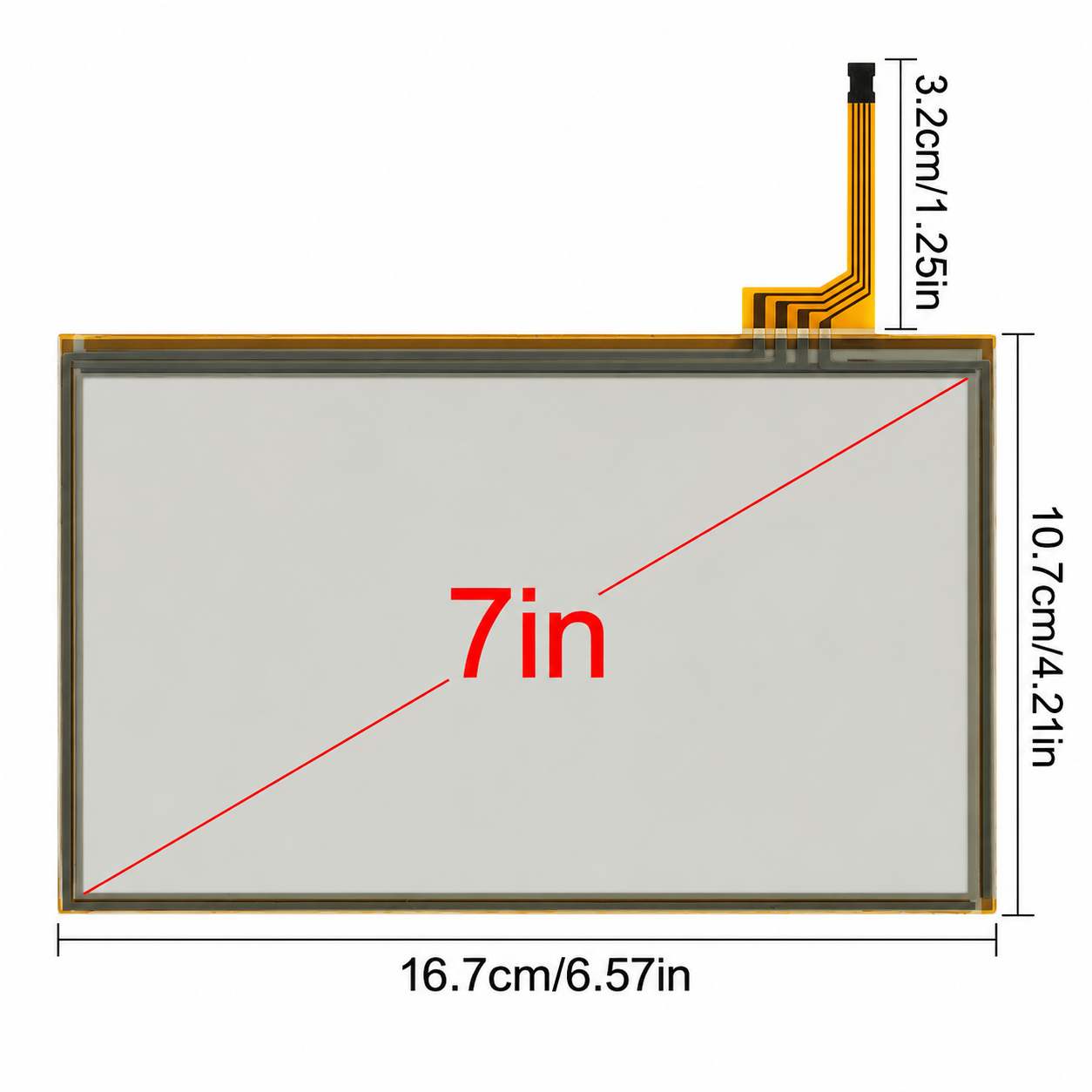

• Screen size: 7 inches
• Touch technology: Resistive

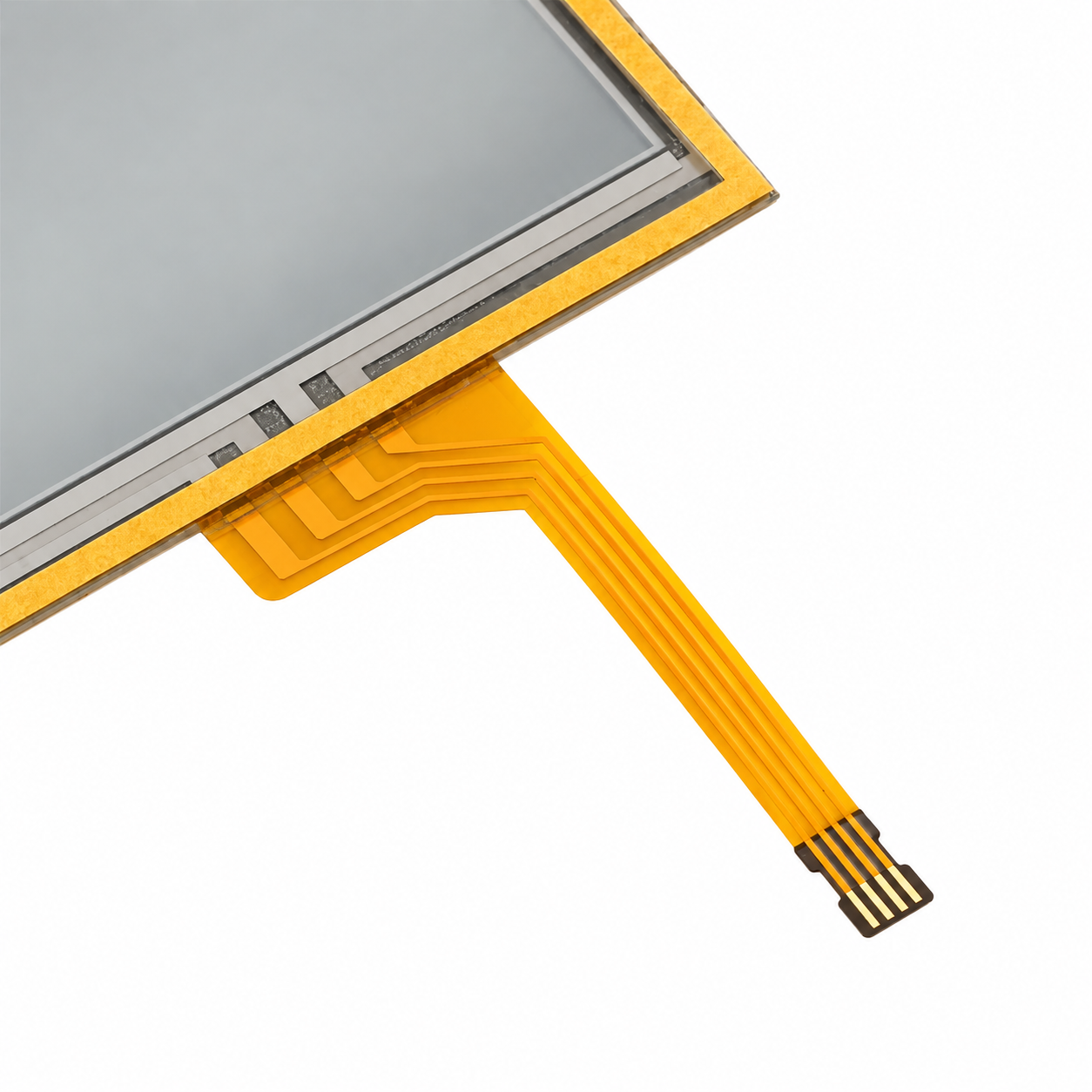

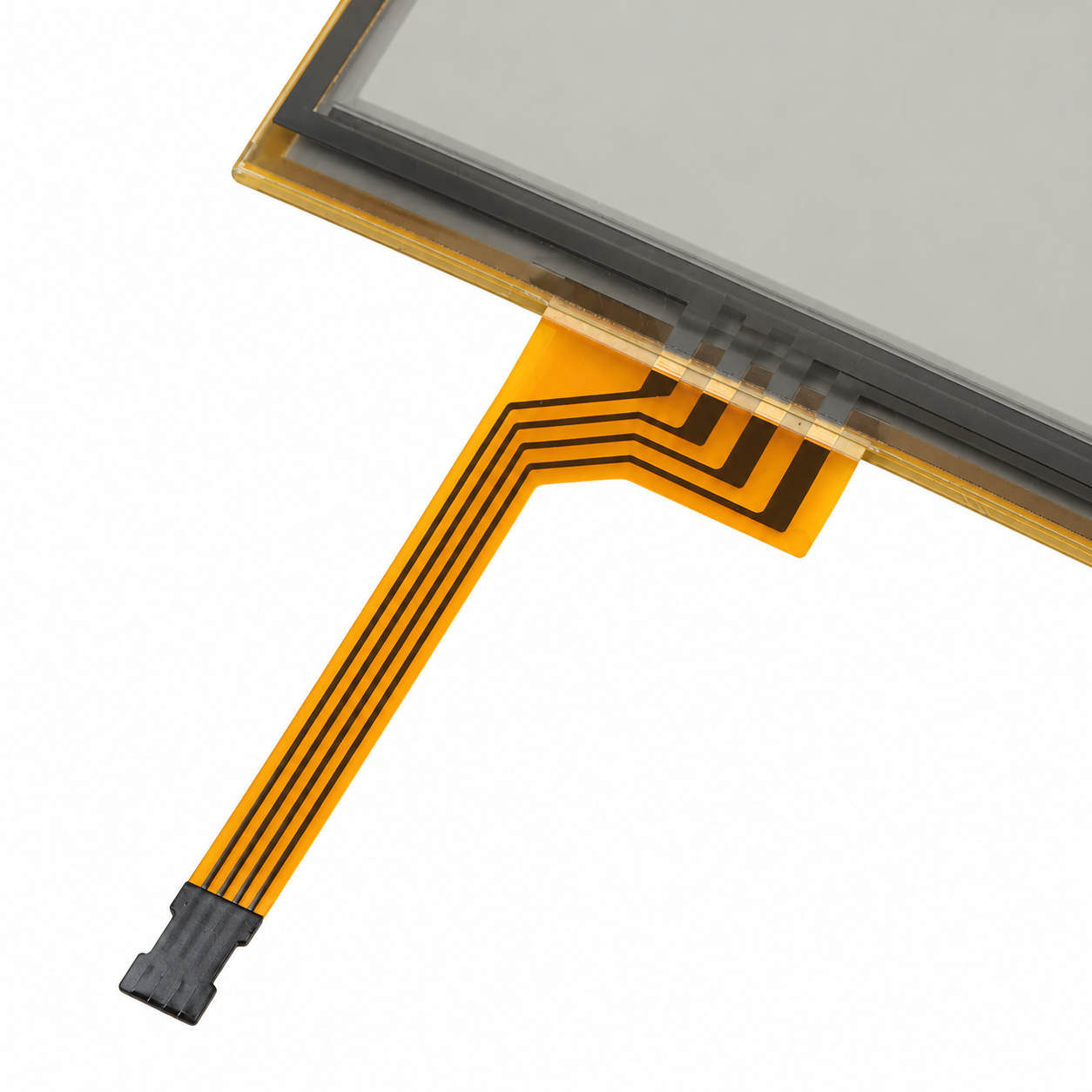

• Connection: 4-pin flexible ribbon cable
• Condition: Brand new
• Installation location: Factory navigation multi-display
• Programming normally required: No
• Quantity: One touchscreen digitizer
• Replaces only the touch-sensitive front panel
• Retains the original LCD, radio, navigation and climate-control electronics

𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 𝗗𝗶𝘀𝗽𝗹𝗮𝘆 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

Designed for factory navigation displays using LCD assemblies such as:

• LTA070B510F
• LTA070B511F
• LTA070B512F
• LTA070B513F

These are LCD assembly reference numbers, not a Lexus part number assigned to the loose digitizer. Lexus normally supplies the complete multi-display assembly rather than the touchscreen separately.

𝗣𝗿𝗶𝗺𝗮𝗿𝘆 𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

For vehicles equipped with the original 7-inch touchscreen navigation system:

• 2006-2009 Lexus IS250
• 2006-2009 Lexus IS350
• 2008-2009 Lexus IS F

𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗠𝗮𝗿𝗸𝗲𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

• 2006-2009 Lexus IS300 XE20 in markets where the vehicle uses the same factory 7-inch navigation display

Toyota Prius

IS300 compatibility is market-dependent. North American buyers should verify the display number and ribbon connection rather than relying on the model name alone.

𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗥𝗲𝗽𝗼𝗿𝘁𝗲𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆

The same touchscreen style is also reported in selected 2005-2007 Lexus GS navigation displays, including:

• Lexus GS300
• Lexus GS350
• Lexus GS430
• Lexus GS450h

GS model availability varies by year and market. Confirm the original screen model, physical dimensions, four-pin ribbon connection and product photographs before ordering.

𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿

• Touchscreen does not respond
• Intermittent touch response
• Incorrect or offset touch commands
• Dead areas on the touch panel
• Unwanted or phantom touch commands
• Cracked, scratched or worn touch glass
• Navigation, audio or climate menus cannot be selected because of a failed digitizer

𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿

• Dead pixels, lines or black spots inside the LCD image
• A completely black display
• Dim or failed backlighting
• Distorted colors or damaged LCD polarizer
• Missing video caused by the navigation or display electronics
• Radio, amplifier or navigation-computer faults
• Climate-control system faults unrelated to touchscreen input
• Damaged wiring, connectors or circuit boards

If the picture itself is damaged, an LCD or complete LCD-and-digitizer assembly may be required.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

Installation requires removal and disassembly of the factory navigation display. The original digitizer must be carefully separated from the LCD, and the replacement panel must be aligned and connected without damaging the LCD surface or ribbon cable.

Professional installation is recommended. Test the new touchscreen before completely reassembling the dashboard. Keep dust, fingerprints and adhesive residue away from the LCD and inner glass surfaces.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

• One 7-inch Touchscreen Digitizer Glass Panel

𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱

• LCD panel
• Navigation display assembly
• Radio or navigation head unit
• Climate-control module
• Dashboard trim
• Installation tools or instructions

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗡𝗼𝘁𝗶𝗰𝗲

Several factory navigation configurations were used. Before ordering, compare the original panel, ribbon cable, connector location and display reference number with the listing photographs. Vehicle year and model alone are not sufficient to guarantee compatibility.
