2009-13 Lamborghini Gallardo LP550 LP560 LP570 6.5in Nav LCD LTA065B3D0F

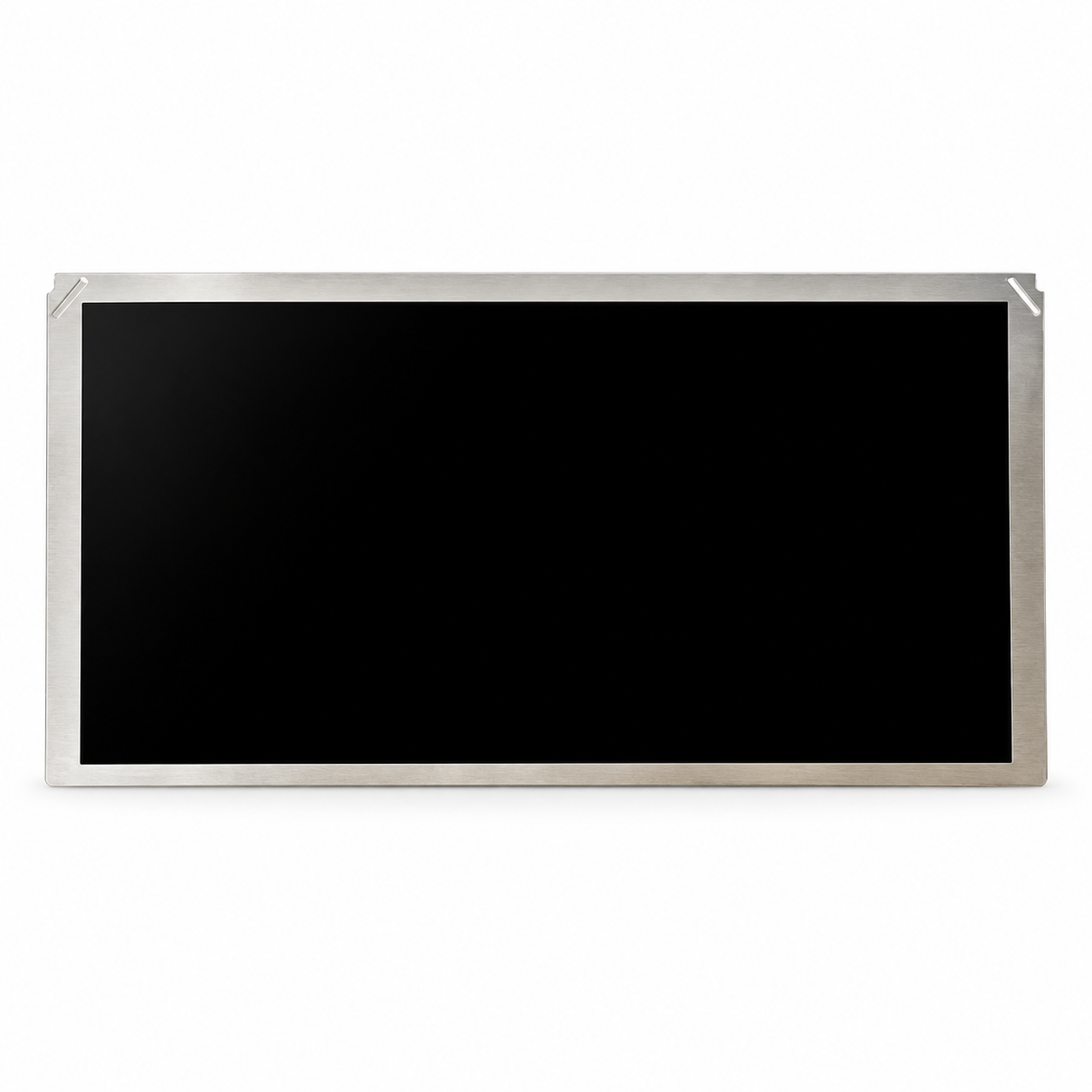

New replacement 6.5-inch LCD display panel for selected second-generation factory navigation systems installed in the Lamborghini Gallardo.
Designed to replace a damaged, cracked, dim, blank, lined or pixel-defective display when the original navigation unit is otherwise functioning correctly.

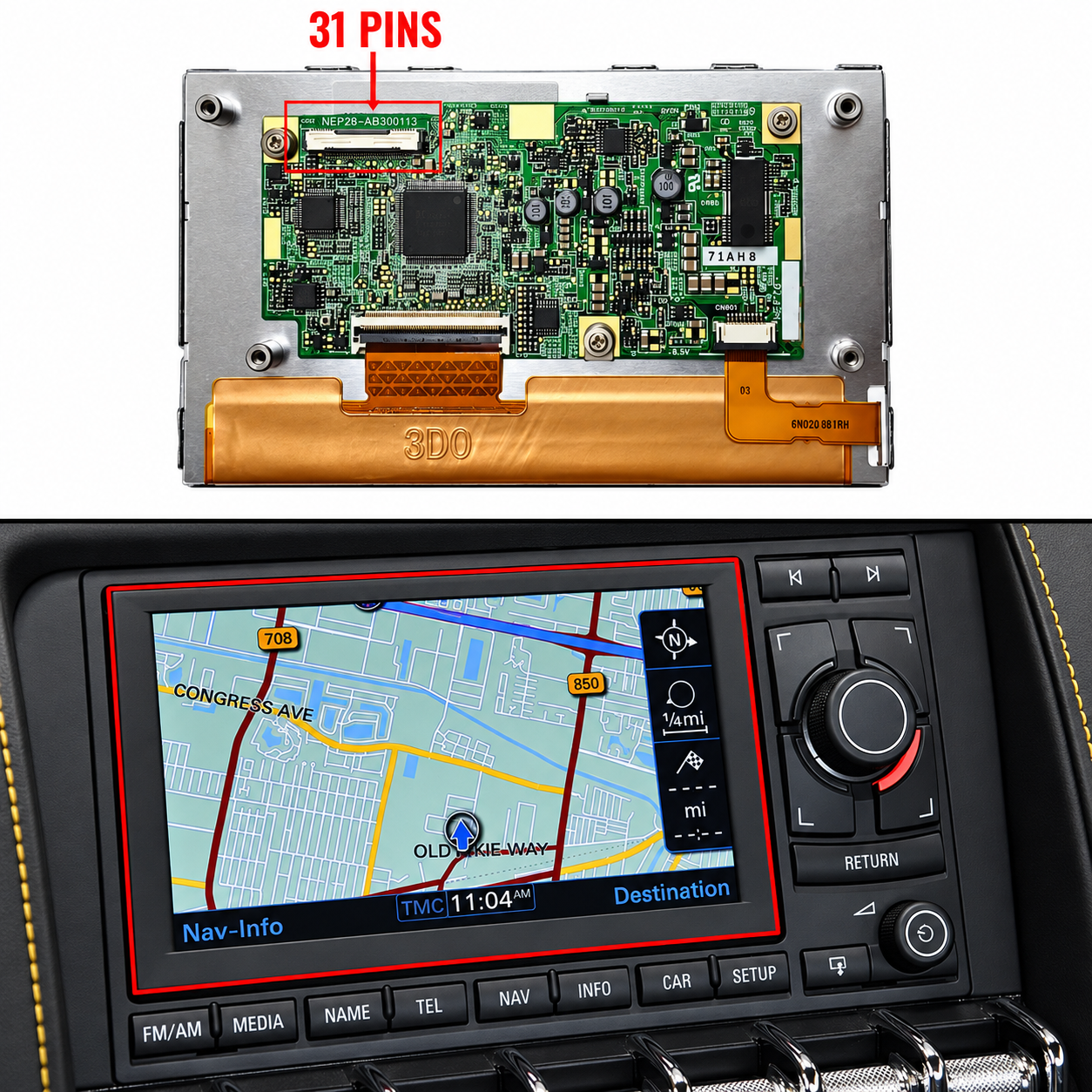

Display Reference Numbers:
• LT065AB3D600
• LTA065B3D0F
• NEP28-AB3D0113
Compatibile Navigation References:
• Lamborghini 400035192N — European/UK specification
• Lamborghini 400035192P — USA specification
• Aisin 86113-60V910
• Aisin 86113-60V920
Applications:
May fit the following models equipped with the matching second-generation factory navigation unit:
• 2009–2013 Lamborghini Gallardo LP560-4 Coupe and Spyder
• 2010–2013 Lamborghini Gallardo LP550-2 Coupe and Spyder
• 2010–2013 Lamborghini Gallardo LP570-4 Superleggera
• 2011–2013 Lamborghini Gallardo LP570-4 Spyder Performante
• Selected special-edition Gallardo models using navigation unit 400035192N or 400035192P
Compatibility Check:

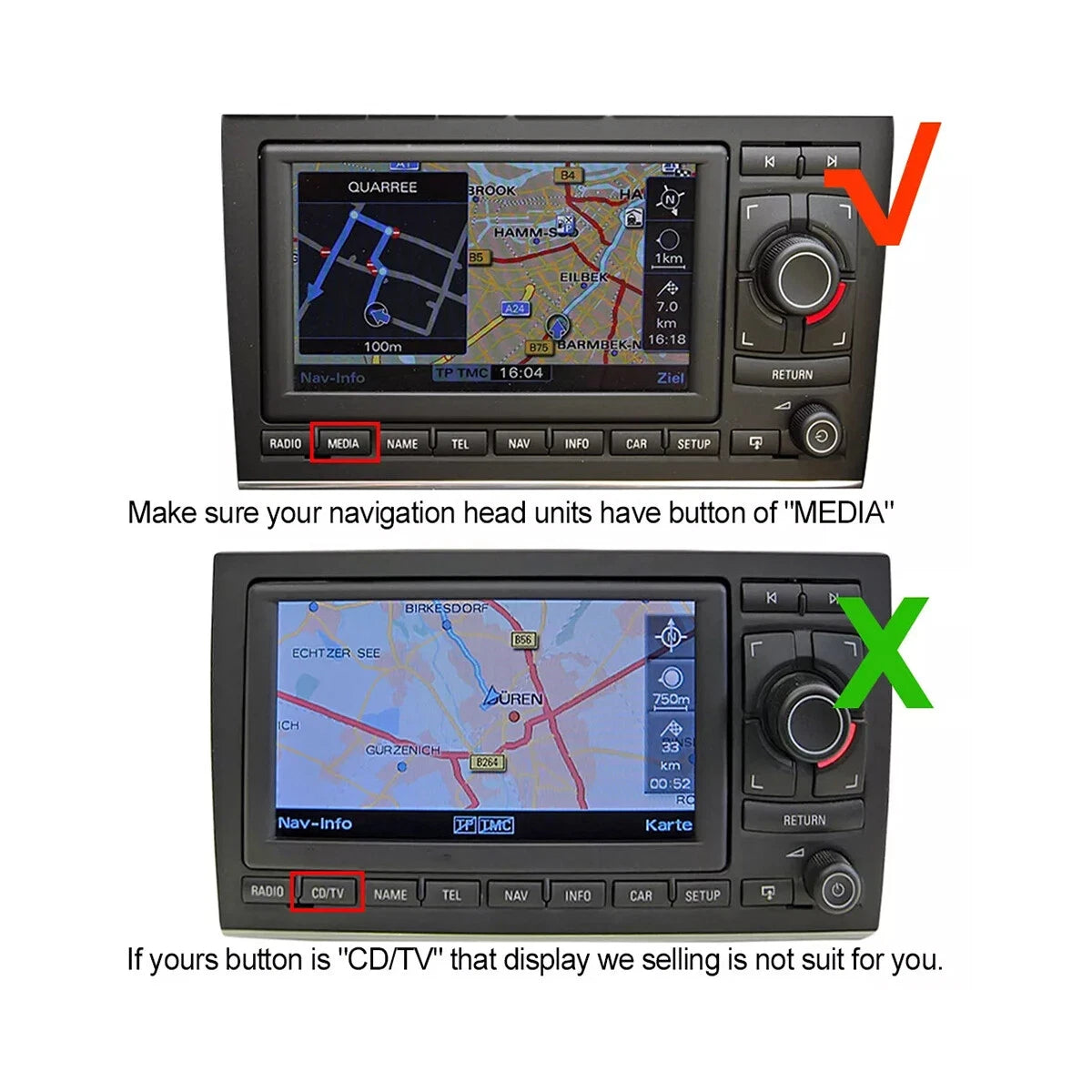

The original navigation unit must have a MEDIA button.
This display is NOT suitable for units with a CD/TV button. Some Gallardo vehicles were equipped with an optional Kenwood system, including part number 400035053A; this display does not fit that system.

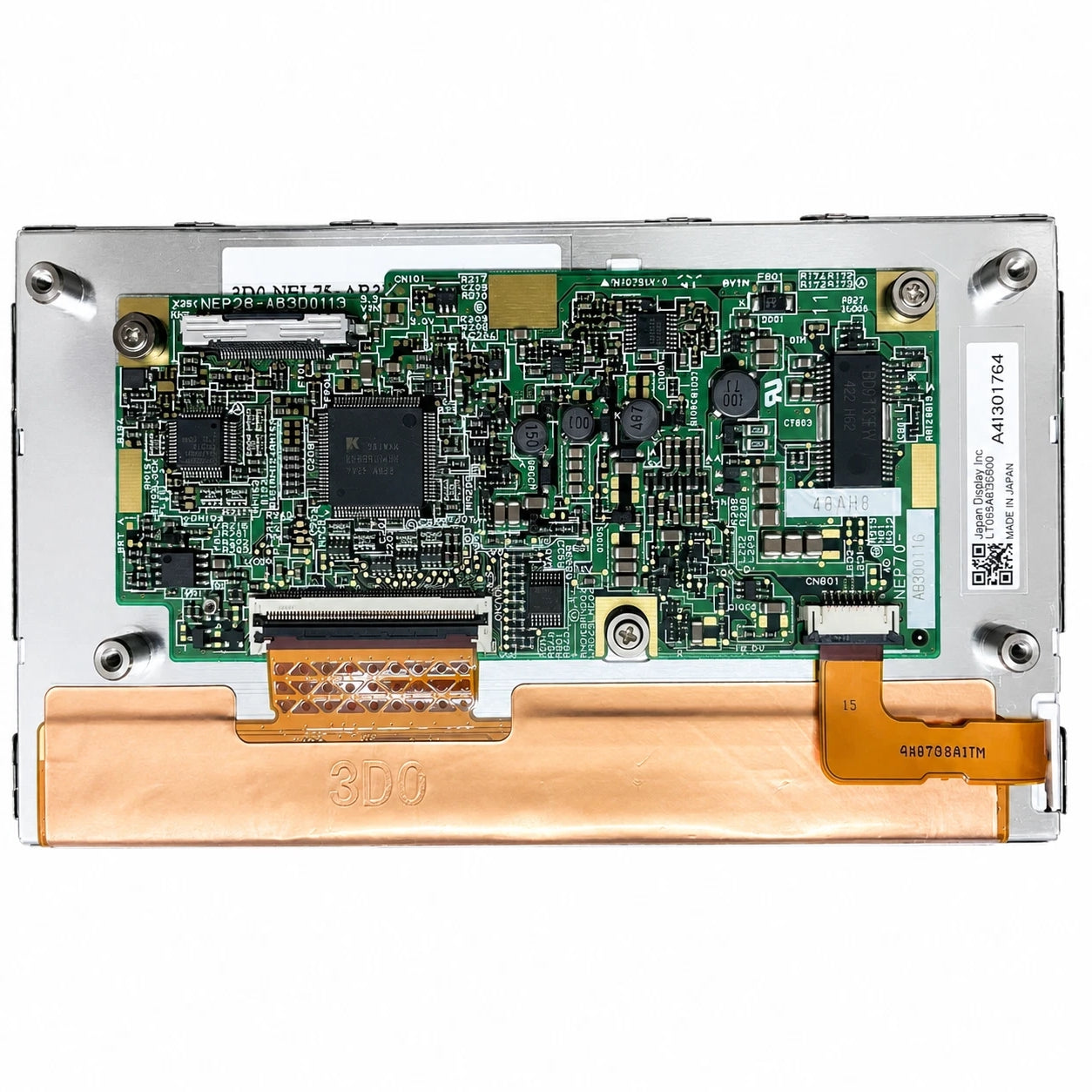

Before ordering, remove the original display and confirm that one of the screen numbers above appears on its rear label. Matching only the vehicle year or model is not sufficient.
Product Details:
• Display size: 6.5 inches
• Display type: LCD with LED backlight
• Touchscreen: No
• Placement: Factory dashboard radio/navigation unit
• Brand: Unbranded aftermarket replacement
• Quantity: One LCD display panel
Package Contents:
• One replacement LCD display panel
The complete navigation unit, faceplate, buttons, control knobs, installation tools and instructions are not included.
Installation:
Professional installation is strongly recommended. Installation requires disassembly of the factory navigation unit and careful handling of delicate connectors. Test the display before completely reassembling the unit.
Replacing the LCD normally does not change the vehicle coding or radio security information because the original navigation electronics remain in the vehicle.
Please note that this part repairs display-panel faults only. It will not correct problems caused by the navigation unit’s power supply, main circuit board, backlight driver, connectors or other internal components.
