Display for Massey Ferguson and John Deere Tractors Instrument Cluster 6010 6620 7610 8210 8410

Restore a faded, unreadable or partially missing instrument-cluster display without replacing the complete dashboard assembly. This new aftermarket monochrome LCD is designed for professional repair of compatible John Deere and Massey Ferguson tractor instrument clusters and hour-meter panels.

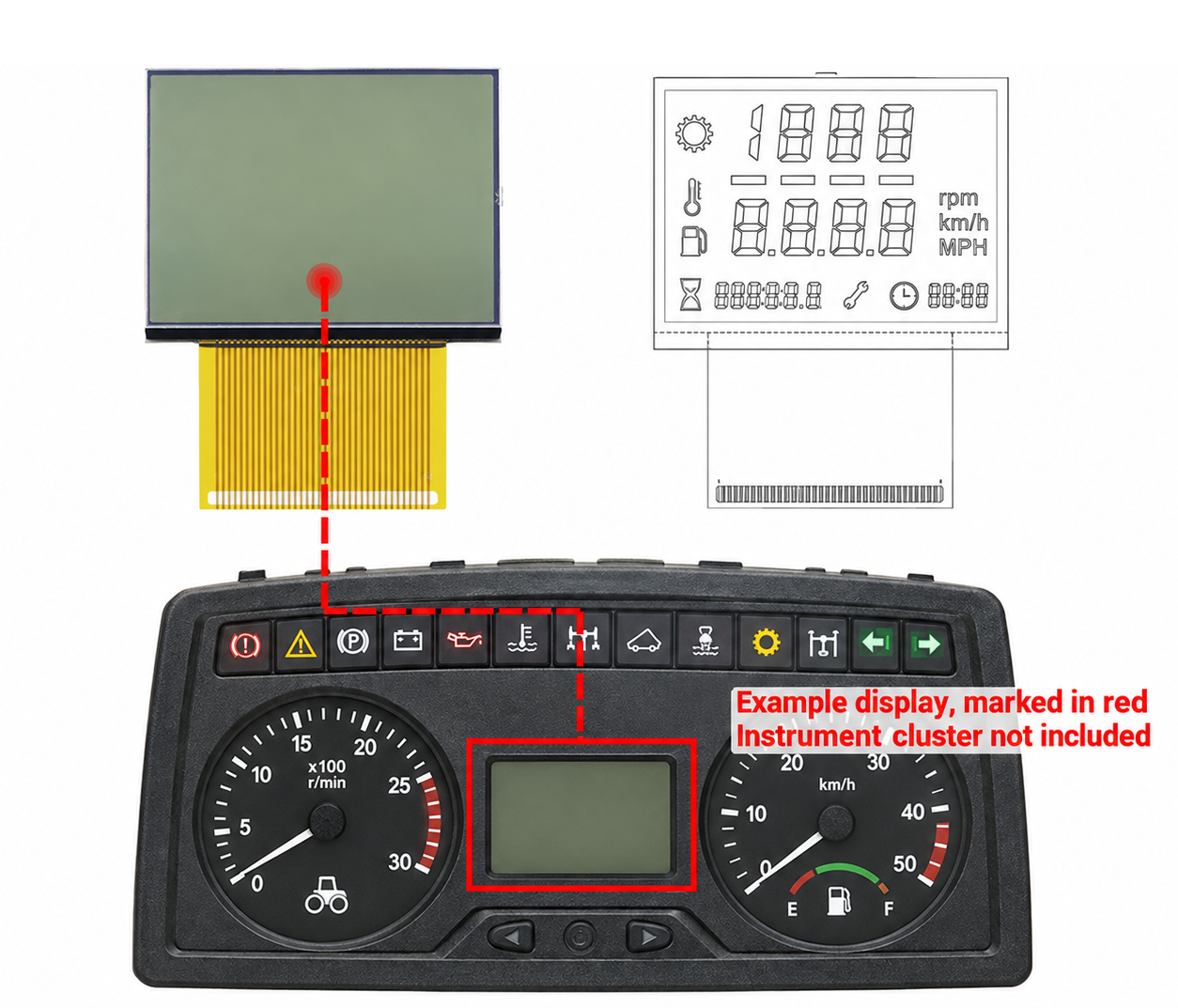

This listing includes the replacement LCD display only. The complete instrument cluster, gauges, housing and electronic circuit board are not included.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

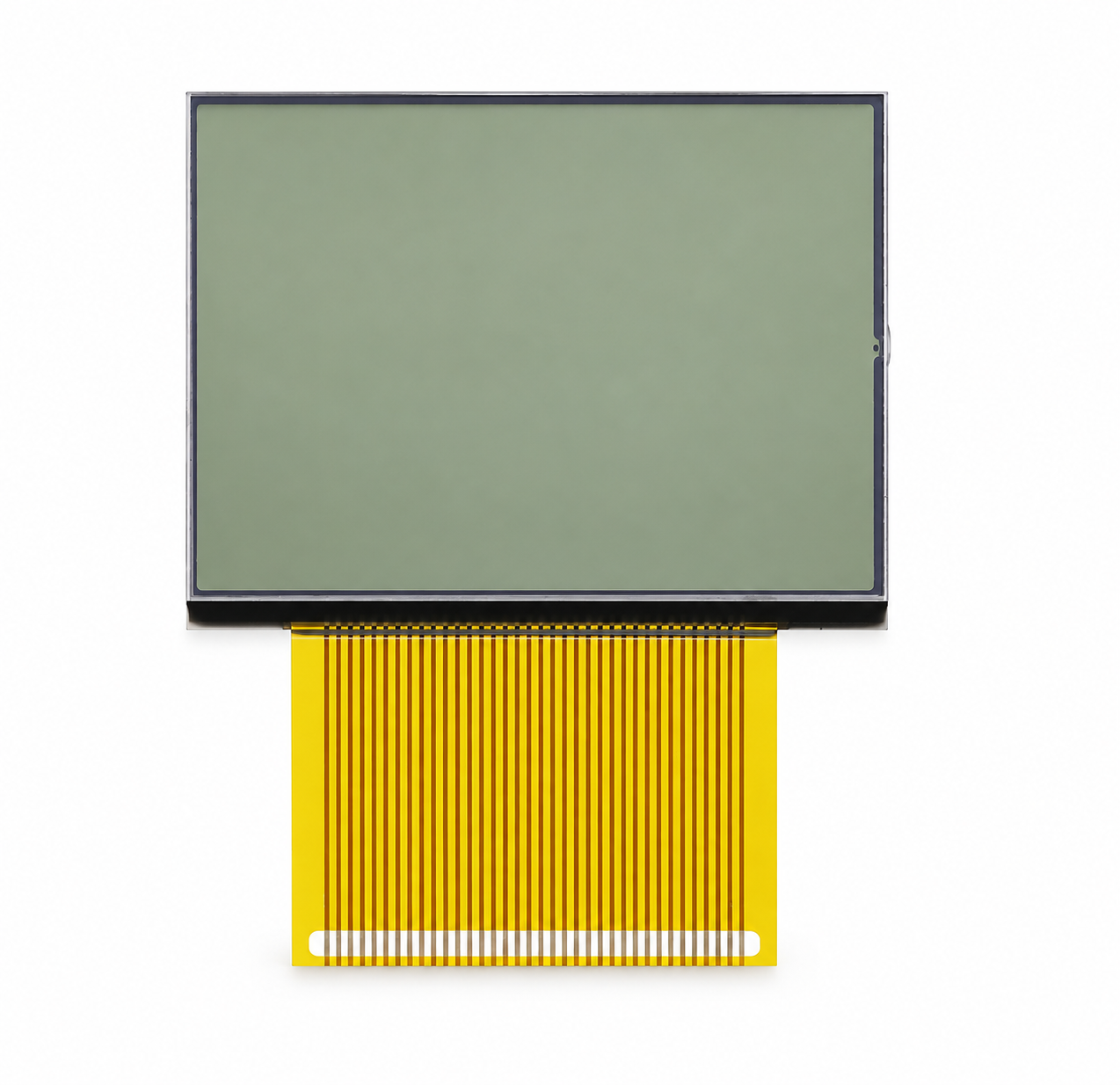

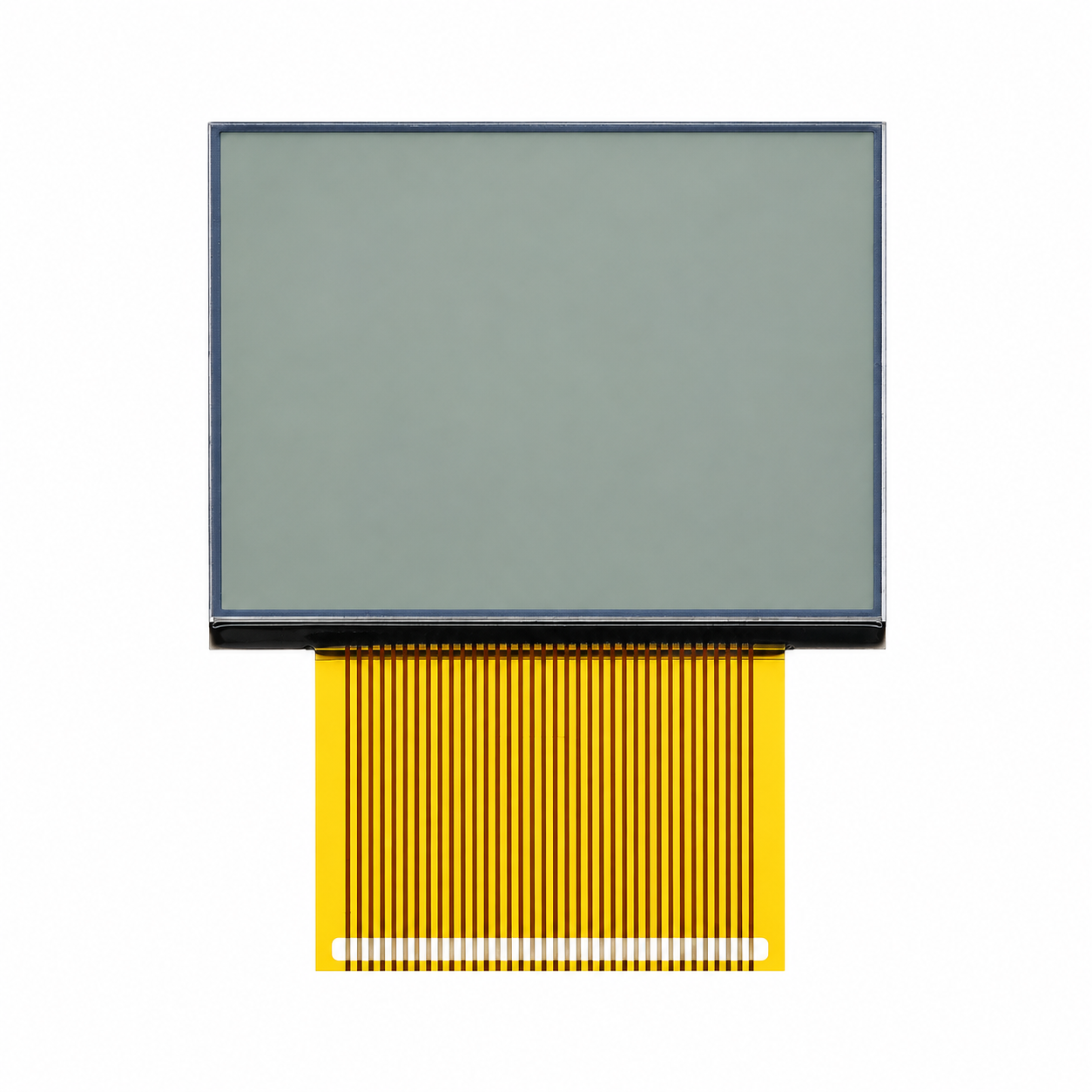

• Product type: Replacement instrument-cluster LCD
• Display type: Monochrome

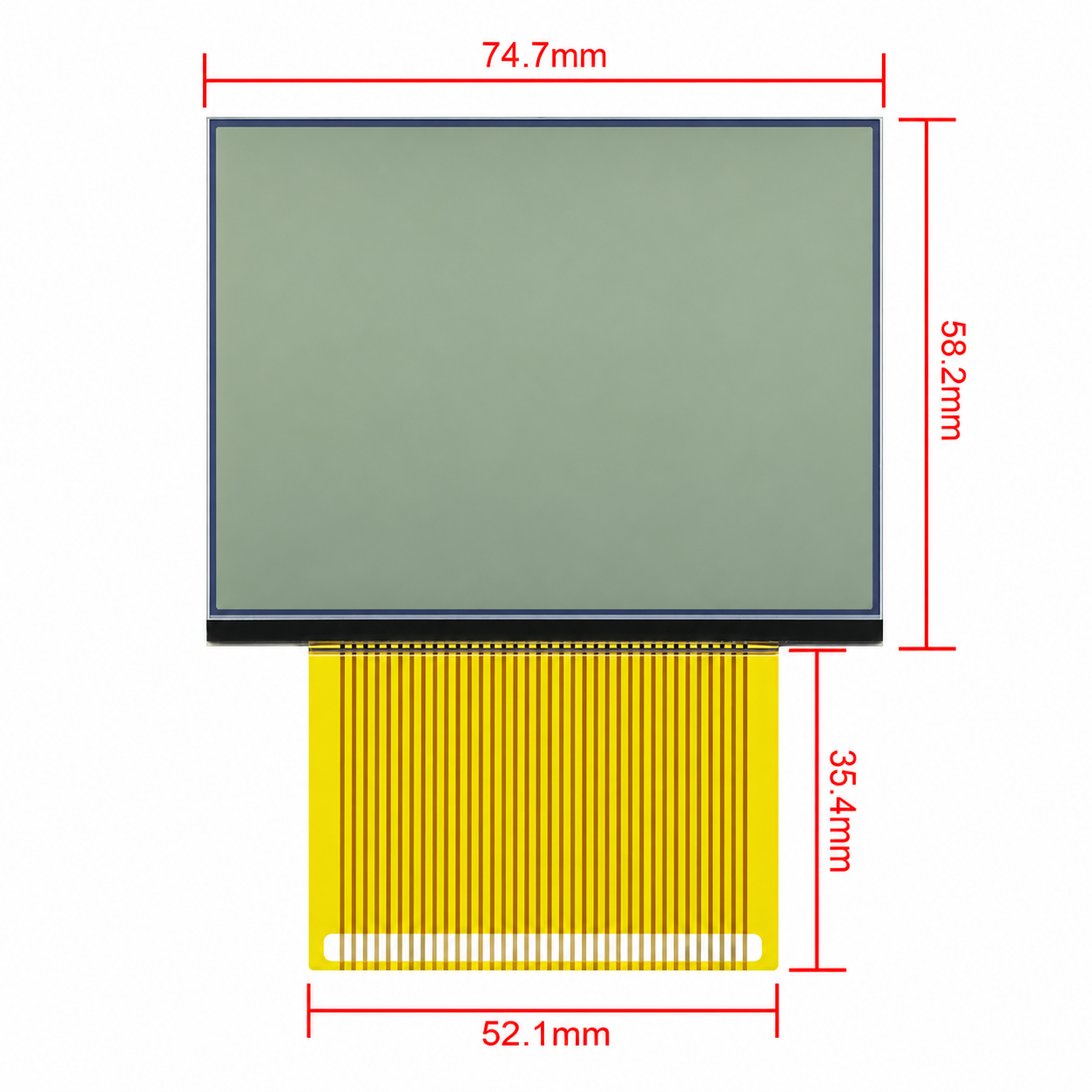

• Approximate display size: 75 × 58 mm
• Connection type: Flexible printed connector
• Reported connector configuration: 36-pin
• Condition: New
• Brand: Aftermarket replacement
• Country of manufacture: China
• Installation location: Tractor instrument cluster or hour-meter panel
• Manufacturer part number: Not applicable
• Warranty: One year

𝗥𝗲𝗽𝗮𝗶𝗿𝘀 𝗖𝗼𝗺𝗺𝗼𝗻 𝗗𝗶𝘀𝗽𝗹𝗮𝘆 𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀

This replacement may help repair:

• Missing LCD segments
• Faded or low-contrast information
• Unreadable operating-hour display
• Intermittent or flickering display
• Display failure at high or low temperatures
• Dark patches or halo-like marks around the screen
• Blank LCD when the cluster electronics remain operational

A blank display may also be caused by power-supply, circuit-board, connector or processor faults. Diagnose the instrument cluster before ordering.

𝗔𝗱𝘃𝗲𝗿𝘁𝗶𝘀𝗲𝗱 𝗝𝗼𝗵𝗻 𝗗𝗲𝗲𝗿𝗲 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Potential applications include instrument clusters used in the following models:

• 6010
• 6110
• 6210
• 6310
• 6410
• 6510
• 6610
• 6810
• 6910
• 6020
• 6120
• 6220
• 6320 and 6320SE
• 6420
• 6520
• 6620
• 6820
• 6920
• 7610
• 7710
• 7810
• 8110
• 8210
• 8310
• 8410

Some models were manufactured with more than one instrument-cluster or LCD design. The tractor model alone does not guarantee compatibility.

𝗠𝗮𝘀𝘀𝗲𝘆 𝗙𝗲𝗿𝗴𝘂𝘀𝗼𝗻 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆

This display may also fit certain Massey Ferguson instrument clusters using the same 75 × 58 mm monochrome LCD and matching flexible connector.

Massey Ferguson used several different screen dimensions, connector arrangements and cluster manufacturers. Compatibility must be determined by comparing the original display rather than by tractor brand alone.

𝗞𝗻𝗼𝘄𝗻 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 𝗖𝗹𝘂𝘀𝘁𝗲𝗿 𝗙𝗮𝗺𝗶𝗹𝗶𝗲𝘀

This type of display is associated with instrument-cluster numbers that may include:

• 90154-014/0003
• 90154-019/0002
• 90154-019/0005
• AL114033, AL114034 and AL114035
• AL119269, AL119270, AL119272 and AL119273
• AL150449
• AL151430 and AL151433
• AL153391, AL153392 and AL153393
• AL159134, AL159390, AL159392, AL159394 and AL159396
• AL160436, AL160438, AL160440, AL160471, AL160473 and AL160475
• AL162399, AL162401 and AL162403
• AL166105, AL166106 and AL166108
• AL167474
• AL200756
• AL203383
• AL77108, AL77109, AL77110, AL77111 and AL77112
• AL79813 and AL79814
• AL80591
• AL81254, AL81255 and AL81256
• AL82439
• SN210324, SN244557 and SN375183

This list identifies cluster families associated with this style of display. It does not guarantee that every revision uses the identical LCD.

𝗕𝗲𝗳𝗼𝗿𝗲 𝗢𝗿𝗱𝗲𝗿𝗶𝗻𝗴

Remove or open the original instrument cluster and verify:

• Original LCD dimensions are approximately 75 × 58 mm
• Display shape and glass outline match the photographs
• Flexible connector is on the correct side
• Connector width and number of contacts match
• Contact spacing and orientation match
• Instrument-cluster number is compatible
• The original screen is not one of the smaller 56 × 47 mm or alternate 74.5 × 58 mm versions

Several visually similar LCD variants exist. Measuring the original screen and comparing the connector is essential.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

Professional electronic installation is required.

• The instrument cluster must be removed and disassembled.
• The original display connector must be desoldered carefully.
• The replacement connector must be aligned and soldered to the circuit board.
• Excessive heat can permanently damage the LCD, connector or cluster circuit board.
• Antistatic handling and temperature-controlled soldering equipment are recommended.
• Test all display segments before completely reassembling the cluster.

This is not a plug-and-play external accessory. Installation requires advanced soldering experience and instrument-cluster repair knowledge.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

• One replacement monochrome LCD display

The instrument cluster, circuit board, gauges, housing, installation tools and repair service are not included.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗡𝗼𝘁𝗲

Because tractor clusters can vary by production date, equipment level and previous replacement history, always match the original display’s measurements and connector arrangement to the listing photographs. Professional installation is strongly recommended.
