Instrument Cluster Stepper Motor for 2000-2006 GM Vehicles XC5.168 X15.168

Product Details

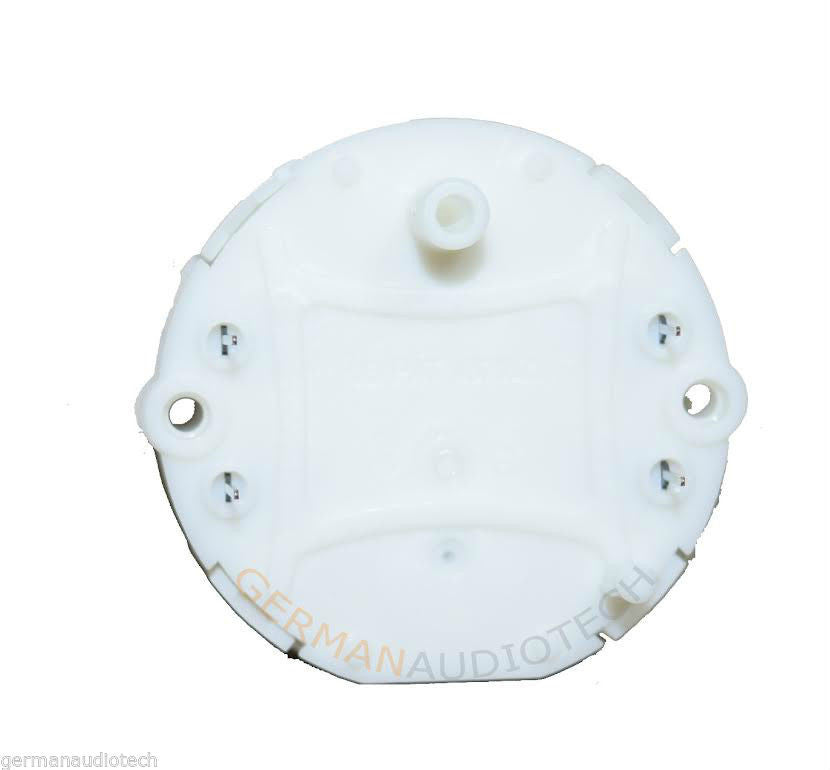

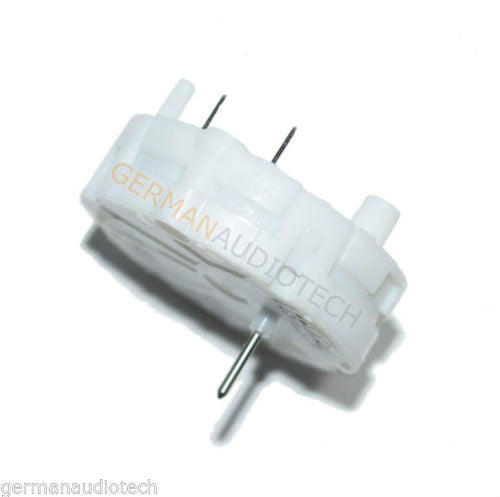

New replacement pointer stepper motor for compatible General Motors instrument clusters. One motor services one gauge position and may replace failed XC5.168- or X15.168-family motors when the physical design and pin layout match.

• Condition: New
• Quantity: One stepper motor
• Suitable for compatible speedometer, tachometer, fuel and temperature gauges

Fitment and Compatibility

Used in selected 2000-2006 GM-family clusters, including certain Chevrolet Avalanche, Cavalier, Impala, Monte Carlo, Silverado, Suburban, Tahoe and TrailBlazer; GMC Envoy, Sierra and Yukon; Cadillac Escalade; Buick LeSabre, Rainier and Rendezvous; Pontiac Aztek, Bonneville, Grand Am, Grand Prix, Montana and Sunfire; Oldsmobile Bravada and Silhouette; Hummer H2; and Isuzu Ascender.

Coverage varies by model and cluster supplier. Some 2006 applications use a different motor. Open the cluster and match the original motor markings, pin layout, shaft and mounting pattern before ordering.

Part Number Information

Component references: XC5.168 and X15.168 family

This electronic component is not sold under a single vehicle-manufacturer OE service part number. Identification must be made from the original motor and cluster design.

Package Contents

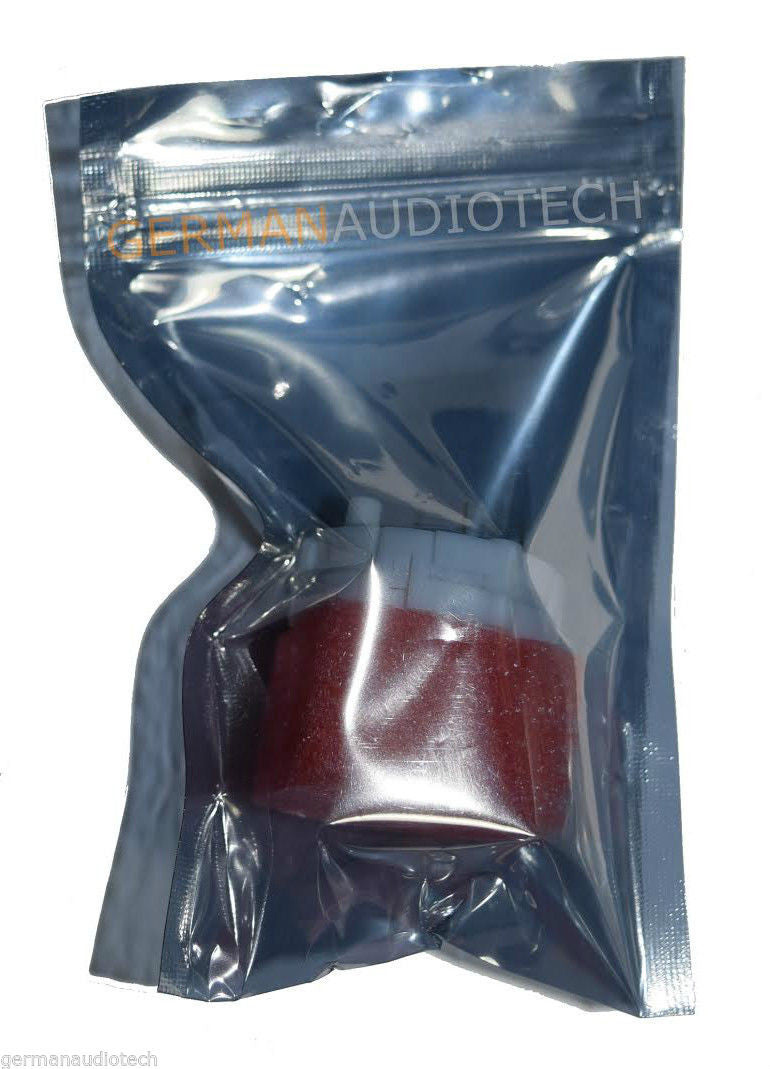

• One instrument-cluster stepper motor

Installation Notes

Cluster disassembly, pointer removal, soldering and gauge calibration are required. Record pointer resting positions before disassembly. Incorrect pointer indexing can cause inaccurate readings; professional electronic repair is recommended.
