3-Piece Instrument Cluster LCD Set for 1995-2003 Mercedes-Benz W202 W208 W210

Restore missing, faded, or fragmented instrument-cluster pixels with this complete three-display LCD set for compatible Mercedes-Benz W202, W208, and W210 clusters. Each LCD includes its bonded ribbon cable for replacement of the original display assembly.

Product Details

• New three-piece LCD display set

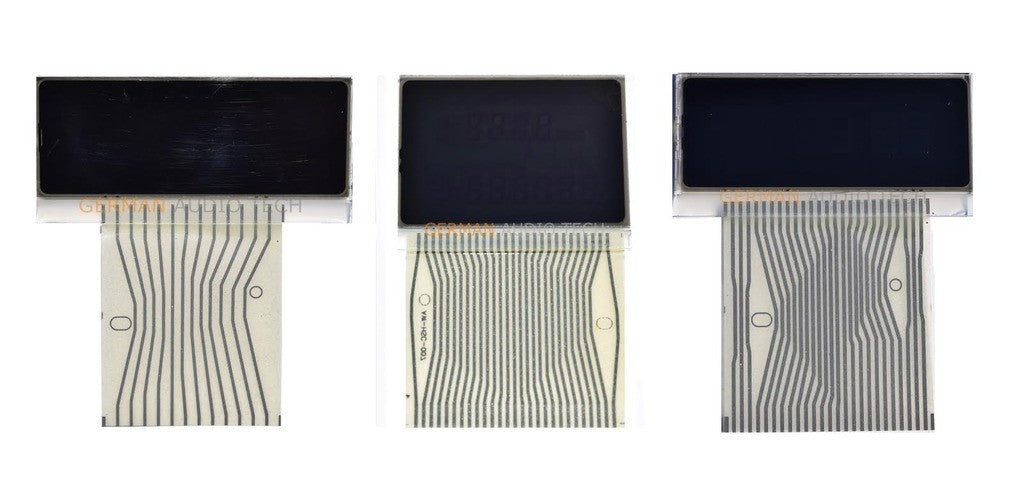

• Includes left, center, and right LCDs with bonded cables
• Repairs common pixel loss, fading, lines, and unreadable display segments
• Retains the original instrument cluster and vehicle coding

Fitment and Compatibility

• 1995-2000 Mercedes-Benz C-Class W202 clusters with three separate LCDs
• 1996-2003 Mercedes-Benz E-Class W210 clusters with separate displays
• 2000-2003 Mercedes-Benz CLK-Class W208 clusters using the matching two side displays

The center odometer LCD in this set is intended for compatible W202 C-Class clusters. W208 and W210 applications may use only the matching side displays. Mercedes-Benz used multiple cluster suppliers and display layouts; compare the original LCD dimensions, cable paths, contact patterns, and cluster construction before ordering.

Part Number Information

These internal LCD assemblies were not cataloged by Mercedes-Benz as a universal separate service part. No single OE part number applies to every compatible cluster; fitment must be confirmed by the original display layout.

Package Contents

One left LCD with cable, one center LCD with cable, and one right LCD with cable. Instrument cluster, heat-bonding tool, and installation service are not included.

Installation Notes

Instrument-cluster removal, disassembly, precise alignment, and controlled heat-and-pressure bonding are required. Excess heat or incorrect alignment can permanently damage the LCD or circuit board. Professional installation is recommended.
