- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A

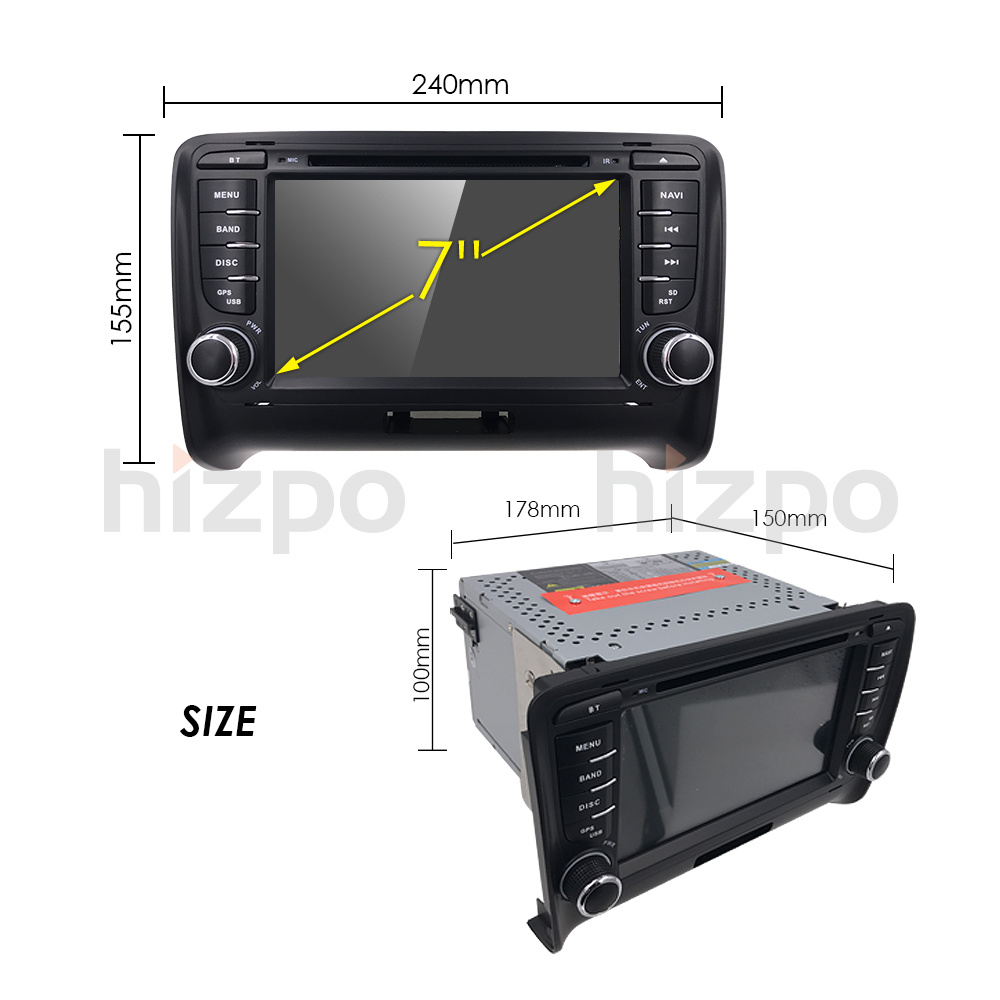

- Screen Size: 7 inch |
General
|
- Operation System: Google Android 8.1
- CPU: QUAD CORE ARM A7 4*1.2 GHz
- RAM: 2GB
- ROM: 16GB
- Extended SD Card: Support TF Card up to 64GB |
System
|

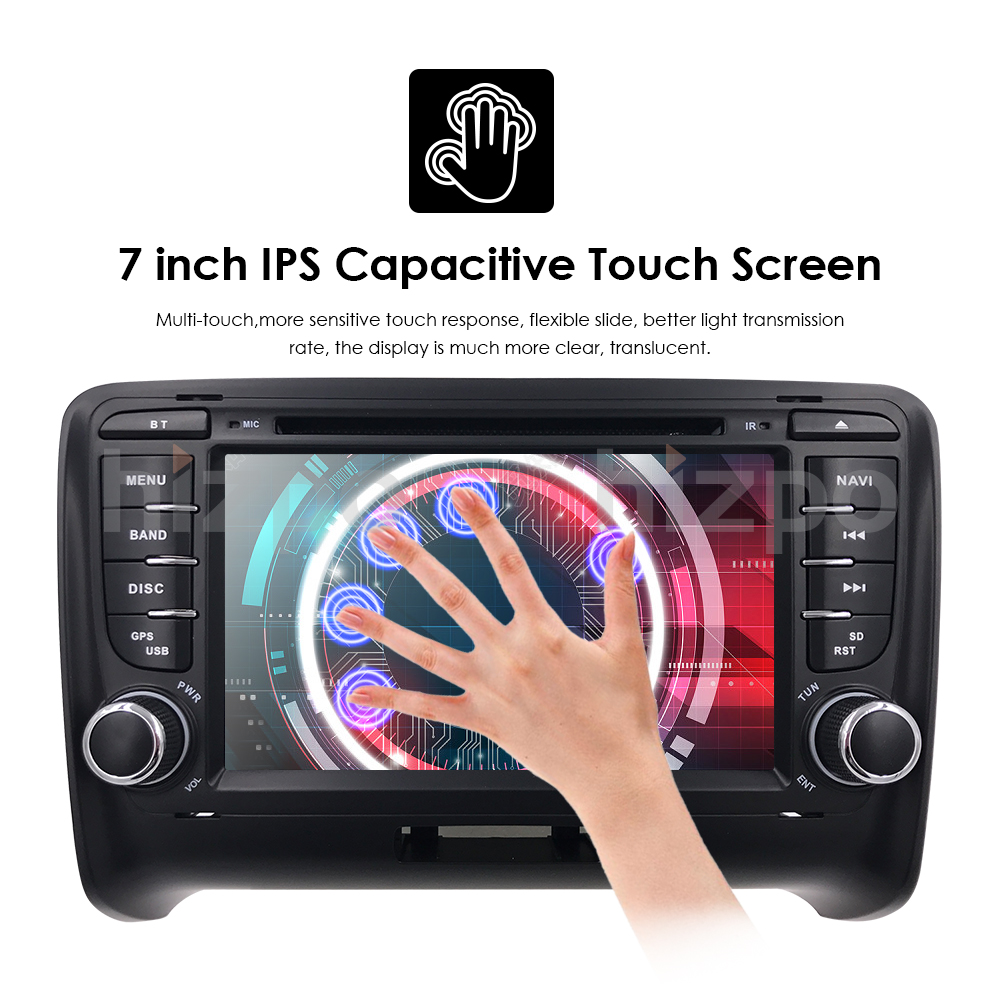

- Touch Screen: Yes
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes |
Display
|
- Connector: On the Back
- WiFi: Built-in WiFi Modem, support 802.11b/g/n
- 4G Dongle included: Not Included, you can contact us to buy it together |
WiFi/4G
|
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc.
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT |
Internet
|
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB |
Audio
|
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot |
Video
|

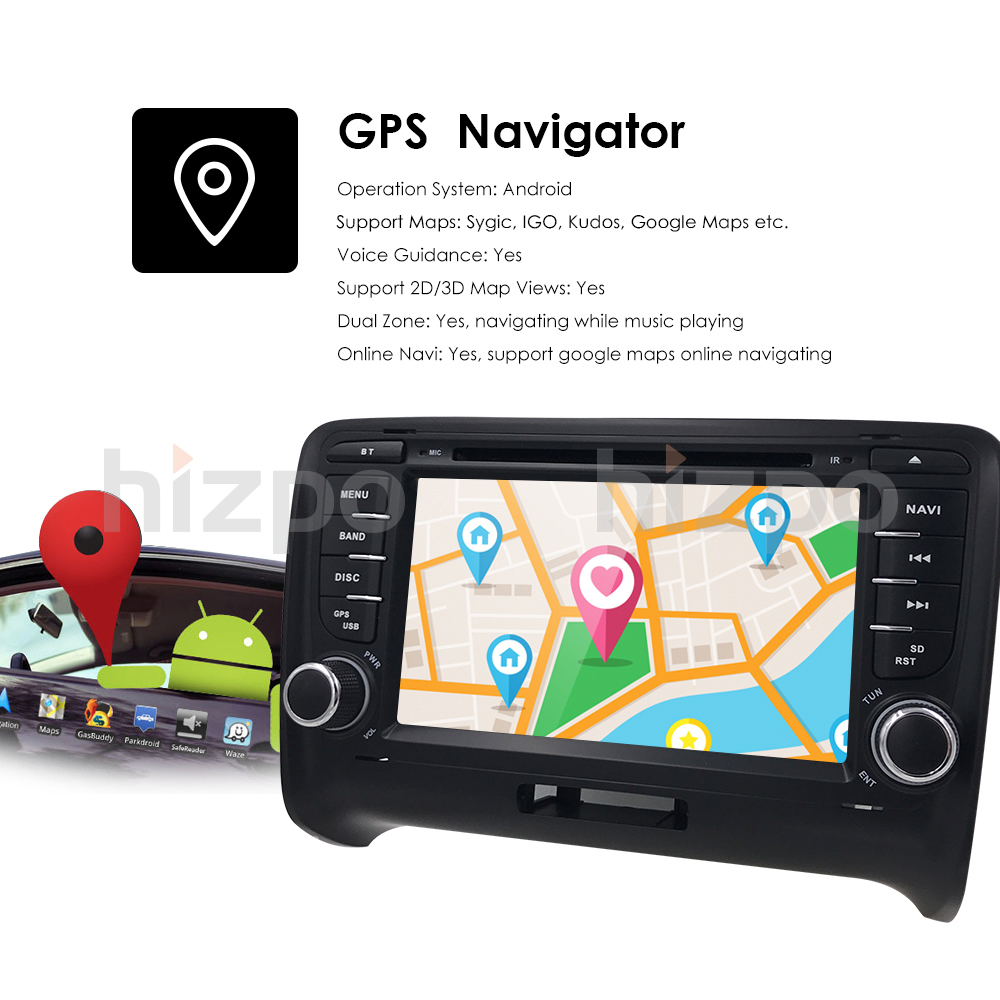

- Operation System: Android 8.1
- Support Maps: Sygic, Google Map etc.
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support google maps online navigating |
GPS
|
- Decode IC: SC3590
- Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
- OSD/Audio/Subtitle Language: English, German, French, Spanish, Portuguese, Italian, Dutch, Finnish, Russian, Arabic, Greek Hebrew, Thai and etc.
- Auto-Save Function: Yes, expediently watch all kinds of disc continuously |
DVD
|

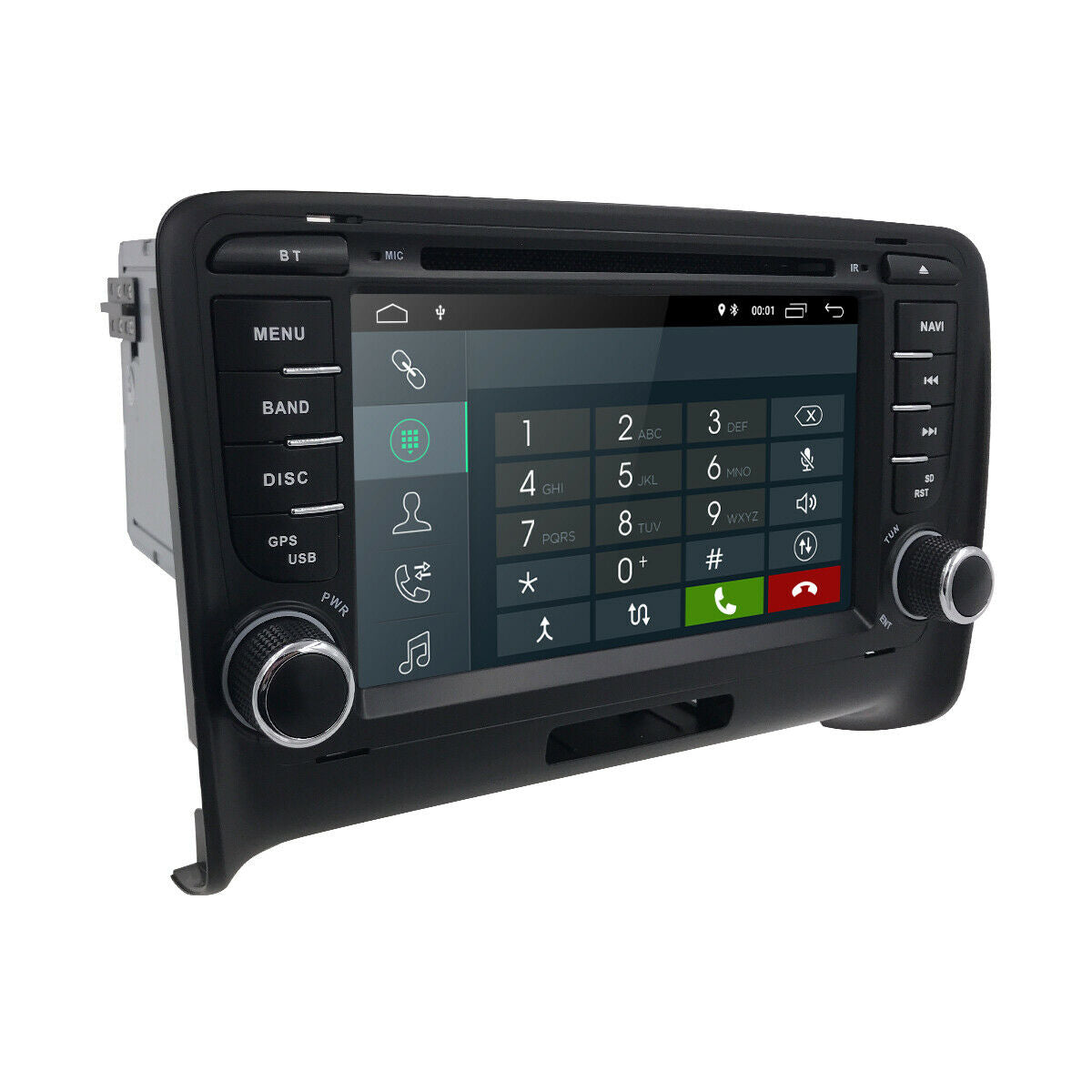

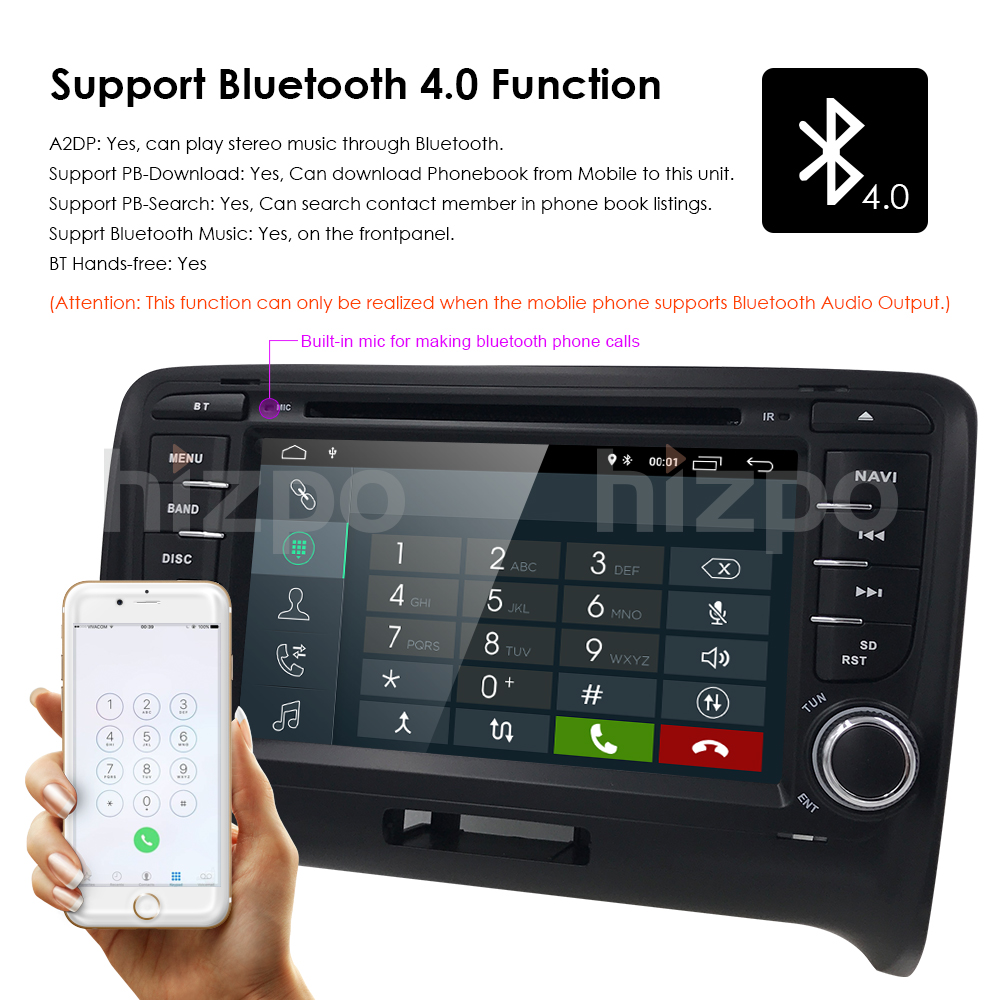

- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back- Bluetooth IC: SD-8723 |
Bluetooth
|

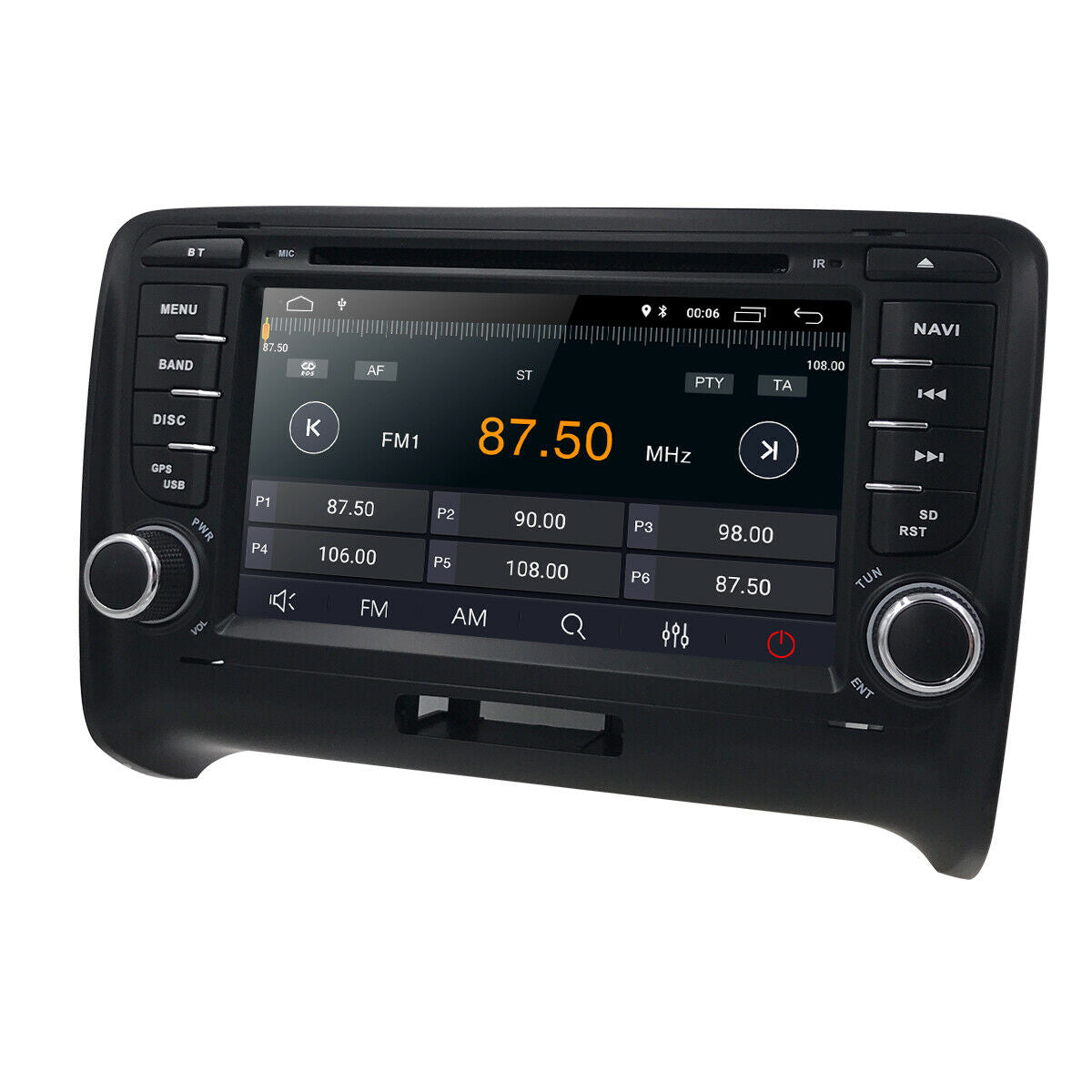

- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)
- RADIO IC: NXP-7786 |
Radio
|

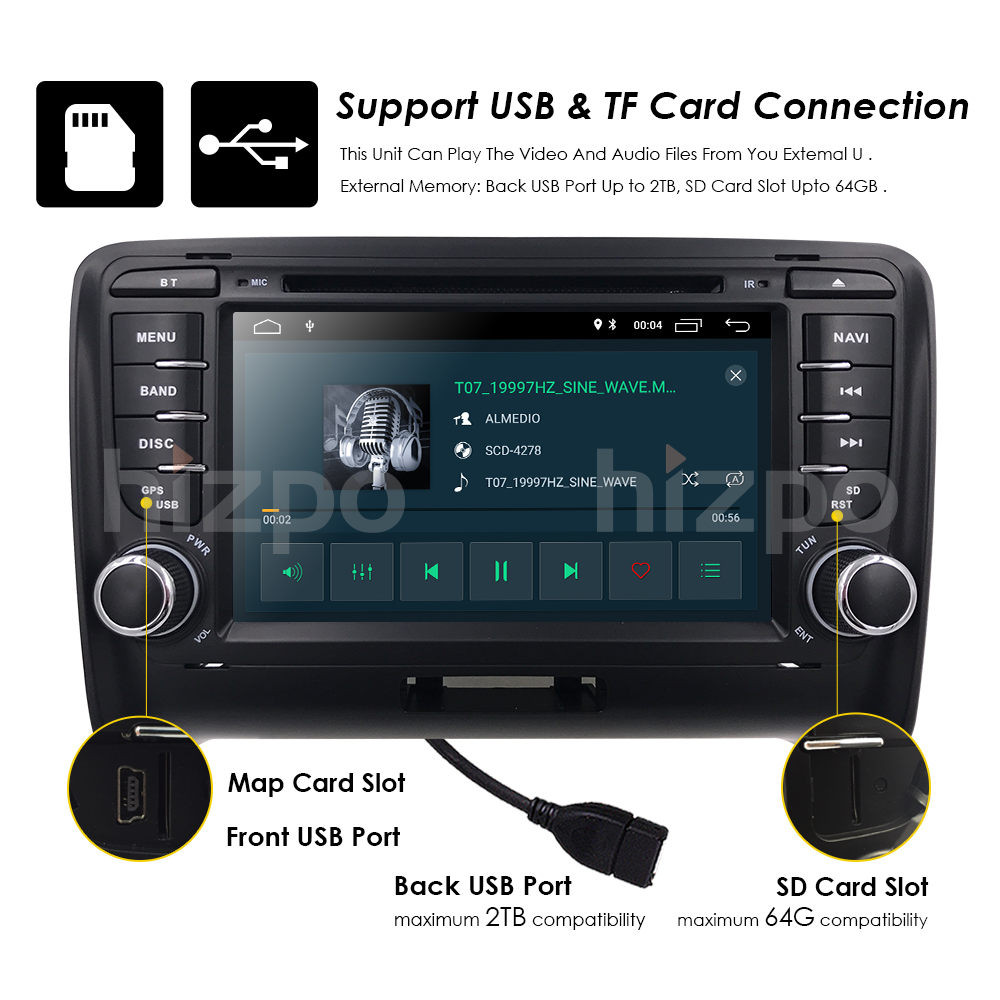

- Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box / Smartphone
- Capacity: 2TB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes |
USB
|
- Position: On the front panel, Media or GPS Card Slot optional
- Capacity: 64GB micro SD/TF Card
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes |
SD
|
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes, 1080P
- Play recorded Video directly: Yes
- Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed |
DVR
|
- Built-in DAB Player App: Yes
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes |
DAB(+)-IN
|
- Built-in Digital TV Tuner: No (you can contact us to buy it together)
- External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box
- Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function
- Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function |
DTV-IN
|
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function

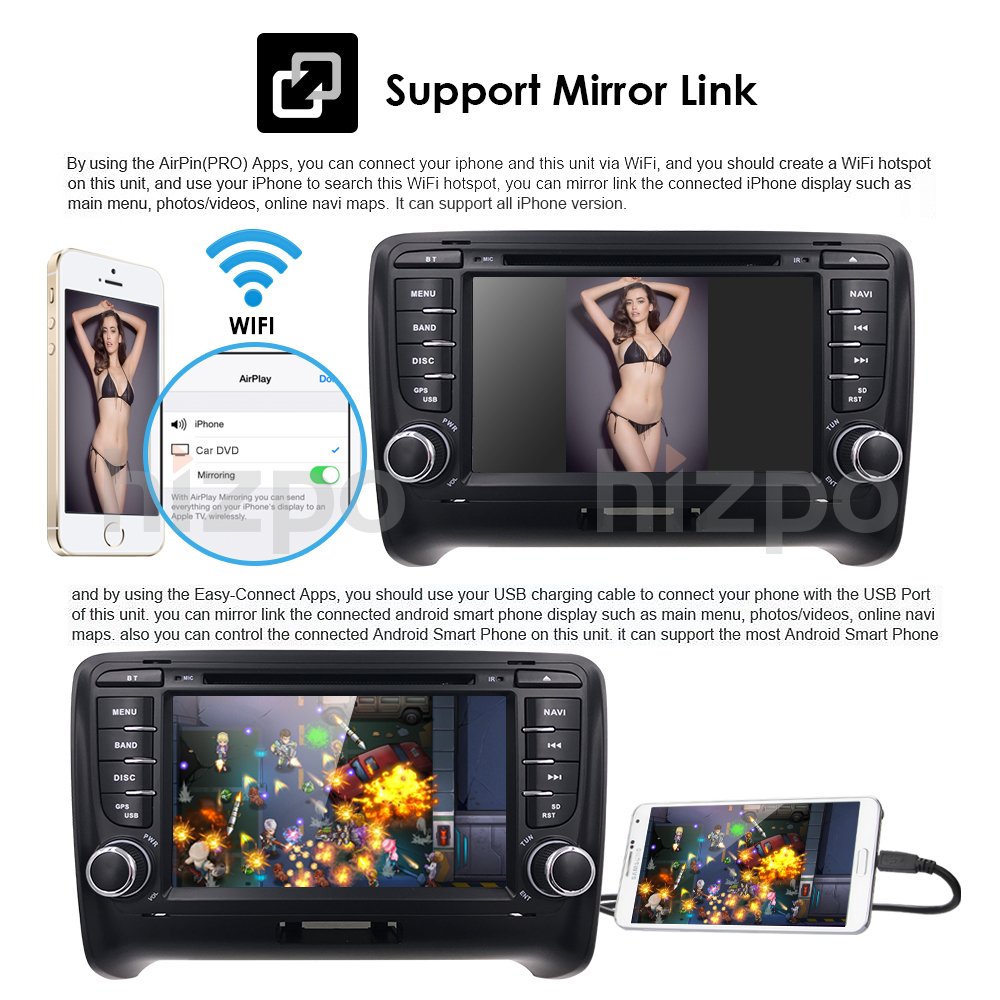

- Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone
- Support TPMS: YES (Not Included, you can contact us to buy it together) |
Additional
|
- WiFi/Hotspot/Bluetooth: Yes
- Brightness level adjustable: Yes
- Wallpaper: Wallpapers/Live Wallpapers/Gallery
- Sound: Key Tone & Volume
- Storage: Display Internal Storage/Nand Flash/Connected Device Storage
- Apps: Running Apps display/force stop/uninstall
- Element: Red Button light color
- Security: Yes
- Accounts: Yes
- Languages and Input: more than 70 Languages and choose input method
- Backup and Reset: Yes
- Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time
- Accessibility: Yes
- GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio
- Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler

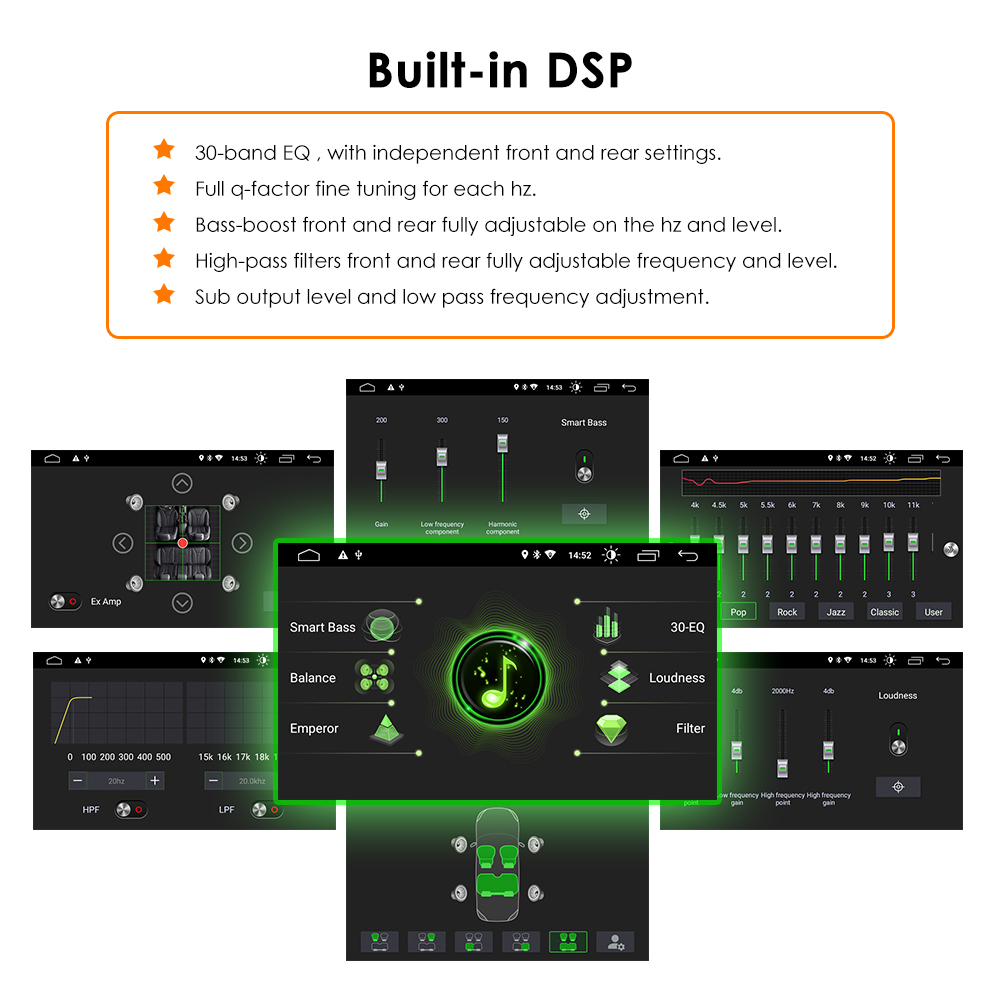

- Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom
- Steering Wheel Control: Yes
- Factory Settings: Code 126, choose Radio Band and 88 Open-Unit-Logos
- About Device: Display Parameter Info. |
Setup
|

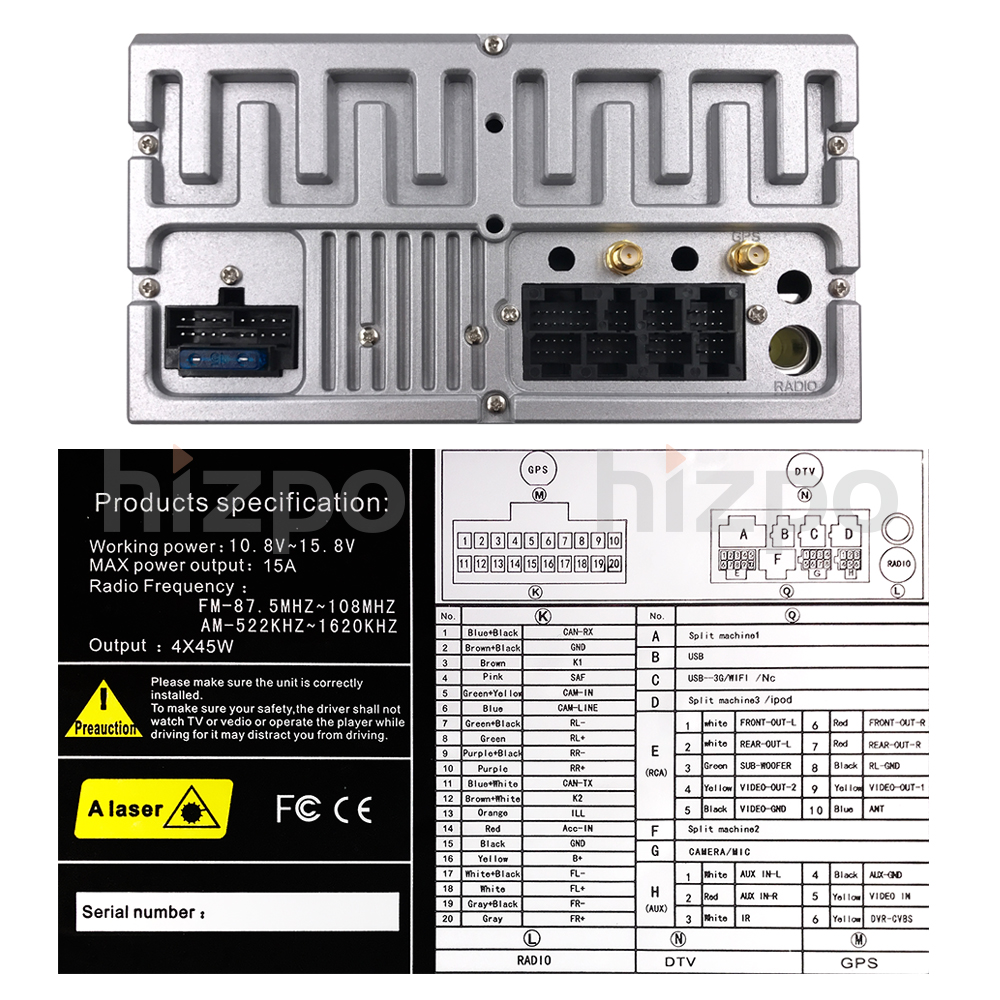

- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One
- Radio Antenna In: One
- GPS Antenna In: One |
Input
|
|
- Audio Out: LR, LF, RR, RF
- Surround Stereo Out: 4*50w
- SubwooferOut:One
- Video Out: Two, Video1 & Video2
|
Output
|
|

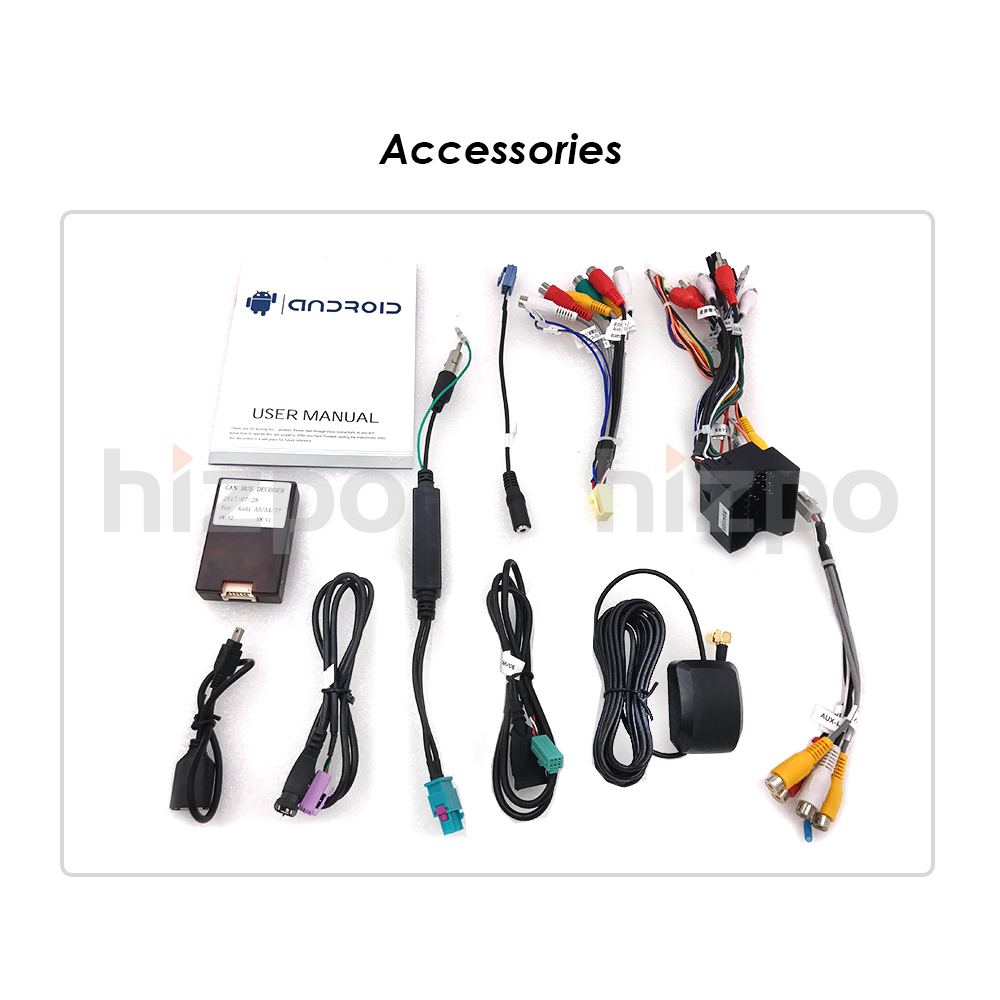

- 1*User's Manual in English
- 2*Power Cable
- 1*RCA Cable
- 1*RCA Cable for External Device
- 1*External Microphone Connection Cable
- 3*USB Adapter Cable
- 1*GPS Antenna
- 1*WiFi Antenna
- 1*Canbus Decoder Box
- 1*Radio Antenna Adapter Cable
|
Accessories
|
|
