Double DIN Install Stereo Dash Kit + Harness + Antenna for 2004-2009 Mazda 3

  • $ 49.95

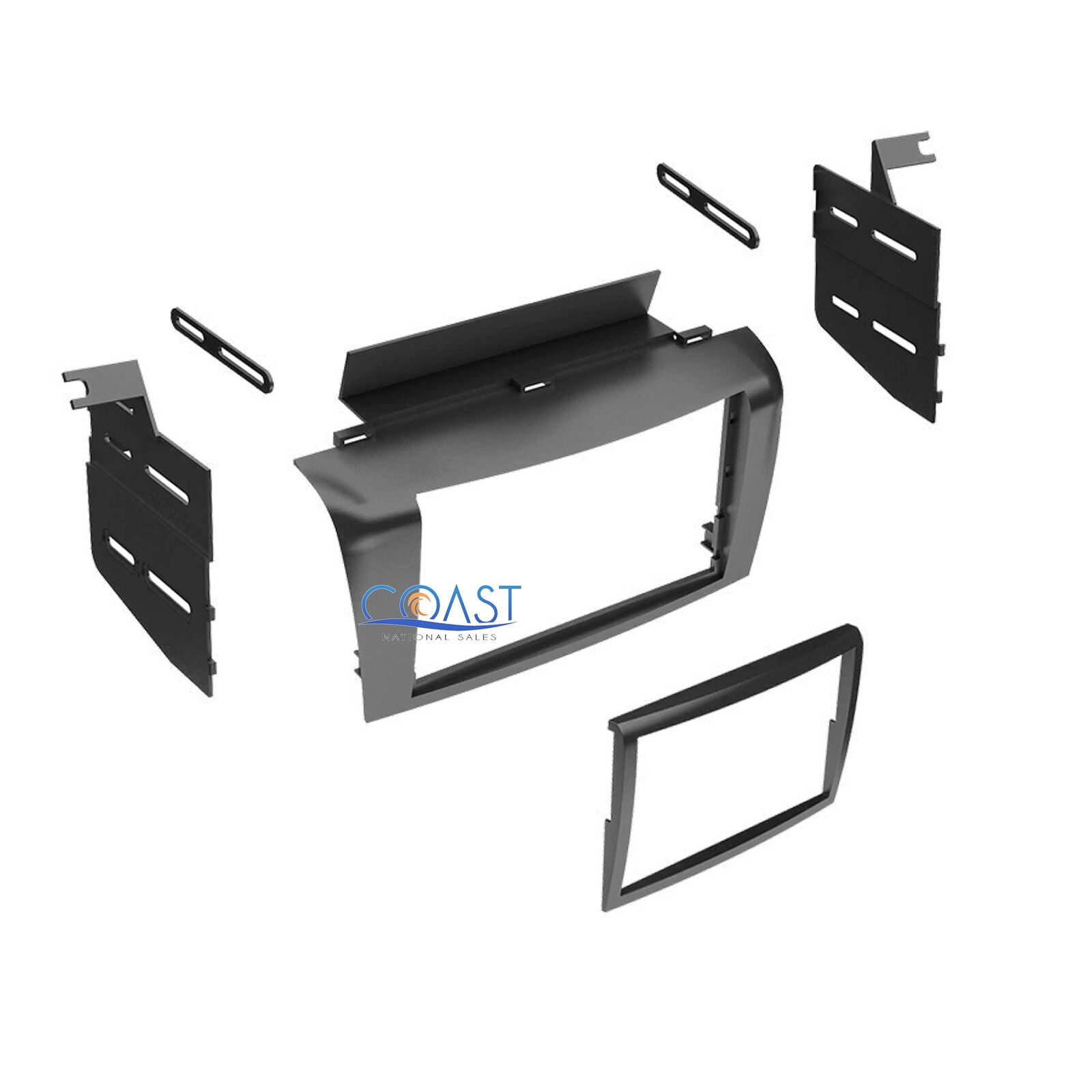

Dash Kit Features:

  • Double DIN Installation Dash Kit With Harness/ ISO Radios

  • Specially Design Patent Pending Side Mount Brackets

  • Designed And Contoured To Match Factory Dashboard

  • Showing A Gapless Fit Between The Dash And The Kit

  • Painted To Match Factory Dash Color

  • High-Grade ABS Plastic Structure

  • Factory Style Texture

  • All Necessary Hardware Included

  • Illustrated Instructions For Easy Installation

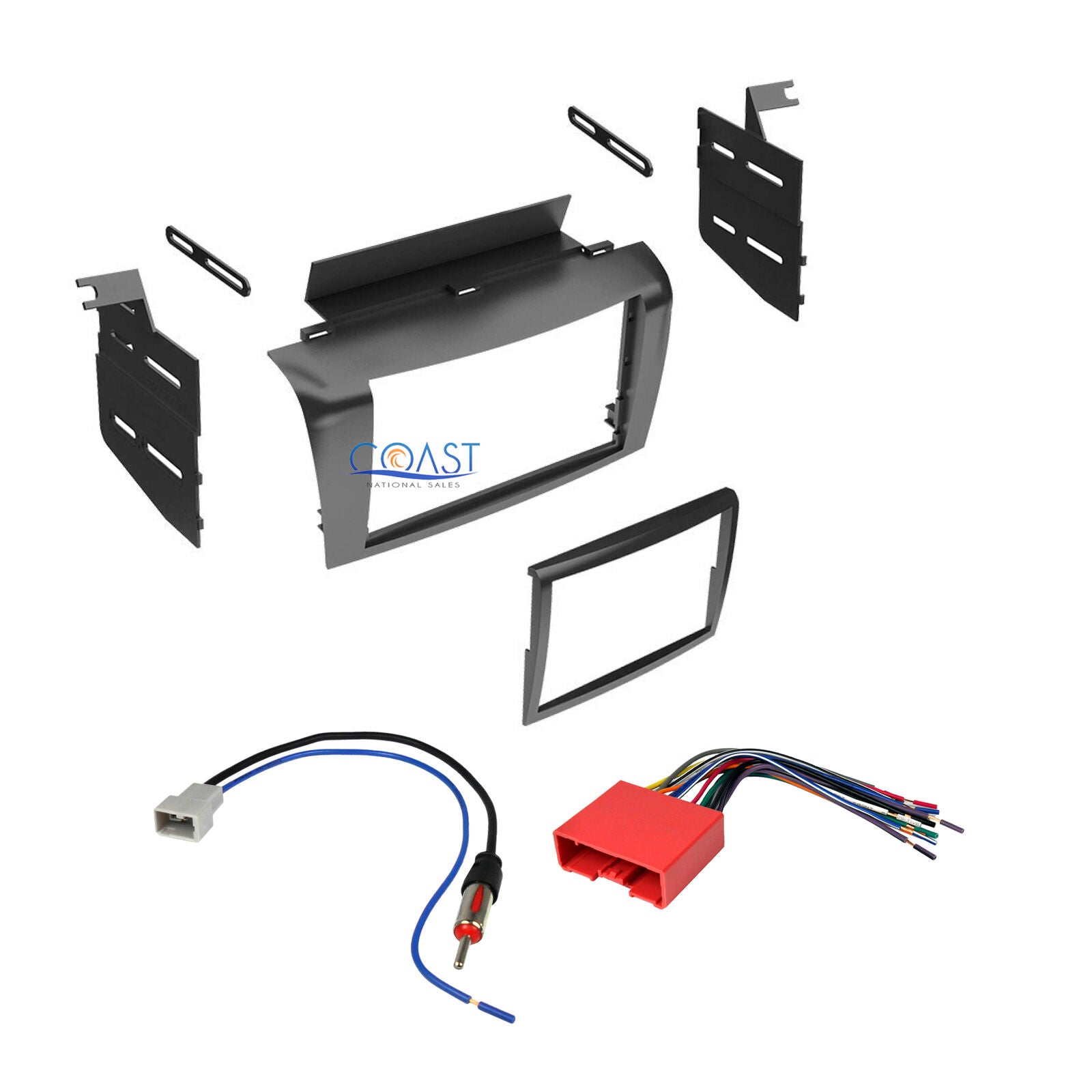

Kit Includes:

  1. Radio Housing W/Pocket

  2. Brakets

  3. Spacers

  4. Face Plate

  5. Mounting Screws

  6. Wiring Harness

Tool Required:

  • Phillips Screwdriver

  • Panel Removal Tool

  • Small Flat Blade Screwdriver

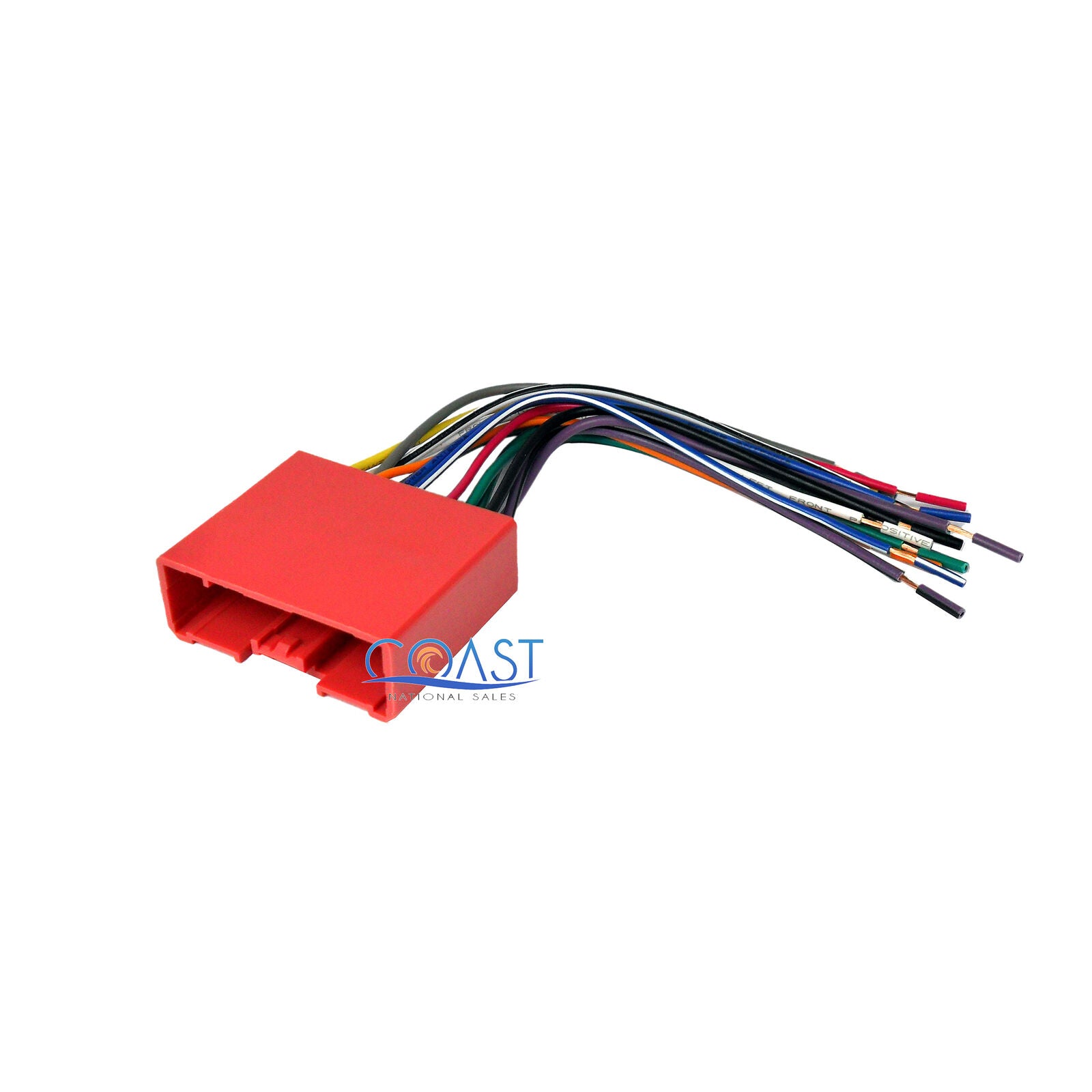

Harness Features:

  • 24-Pin Replacement Wiring Harness

  • Plugs Into Harness At Radio

  • Provides Power And 4 Speakers

  • Heat Resistant For Lasting A Lifetime

  • Allows Installation Of Aftermarket Radio Using Factory Wiring And Connector

  • High Quality ABS Plastic Molded Connector For The Perfect Fit

  • Pre-Stripped To Make Installation Quick And Easy

  • No Cutting Of Factory Wiring Needed

Connections Guide:

  • Yellow – 12V Constant

  • Red – 12V Accessory

  • Black - Ground

  • Orange – Dash Light Dimmer/Illumination

  • Green – Lt Rear Speaker (+)

  • Green With Black Stripe Lt Rear Speaker (-)

  • White – Lt Front Speaker (+)

  • White With Black Stripe – Lt Front Speaker (-)

  • Purple – Rt Rear Speaker (+)

  • Purple With Black Stripe – Rt Rear Speaker (-)

  • Gray – Rt Front Speaker (+)

  • Gray With Black Stripe – Rt Front Speaker (-)

Compatibility Vehicles:

    • Mazda:

      • 2004-2009 Mazda 3

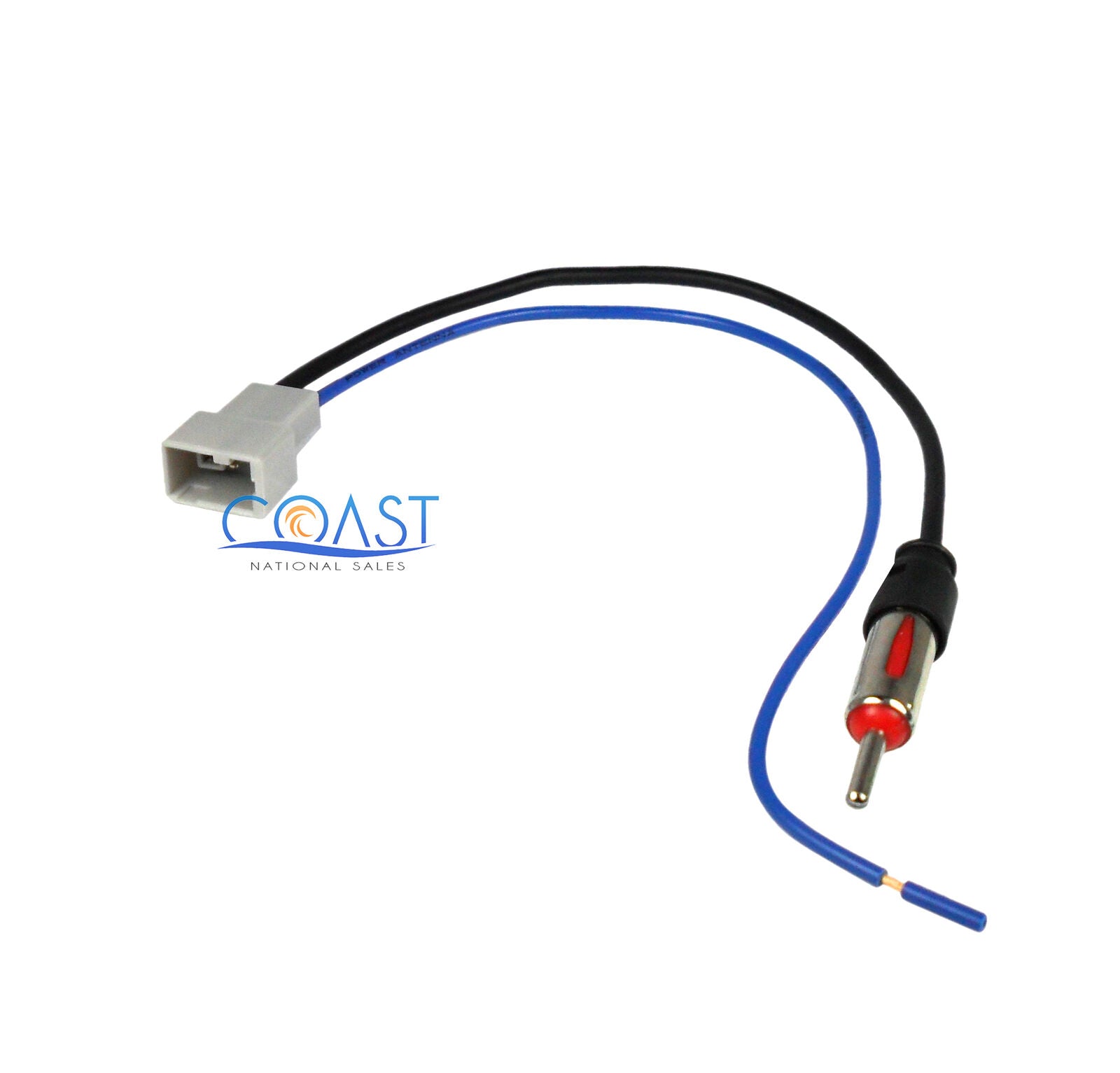

Antenna Features:

      • Antenna Adapter To Aftermarket Radio

      • Compatible With For 2005-Up Honda Vehicles

      • Use When Replacing Factory Radio

      • Quick And Easy Installation

      • Quality Crafted To Factory's Rigid Specification

      • Also Same As Metra 40-HD10/ Best Kits HO-6/ Scosche HAAB

    • Authorized Internet Dealer

    • One-Year CNS Warranty: Inquire Within For Further Details

      Note:

      • Vehicle Compatibility Chart May Vary Depending On Vehicle Options, And Production Dates. Please Inquire Before Purchase.
